RecPro RV 80-inch Powered Triple Recliner Sofa & Drop-Down Console

Introducció

This manual provides instructions for the safe and proper installation, operation, and maintenance of your RecPro RV 80-inch Powered Triple Recliner Sofa with Drop-Down Console. Please read this manual thoroughly before use and retain it for future reference.

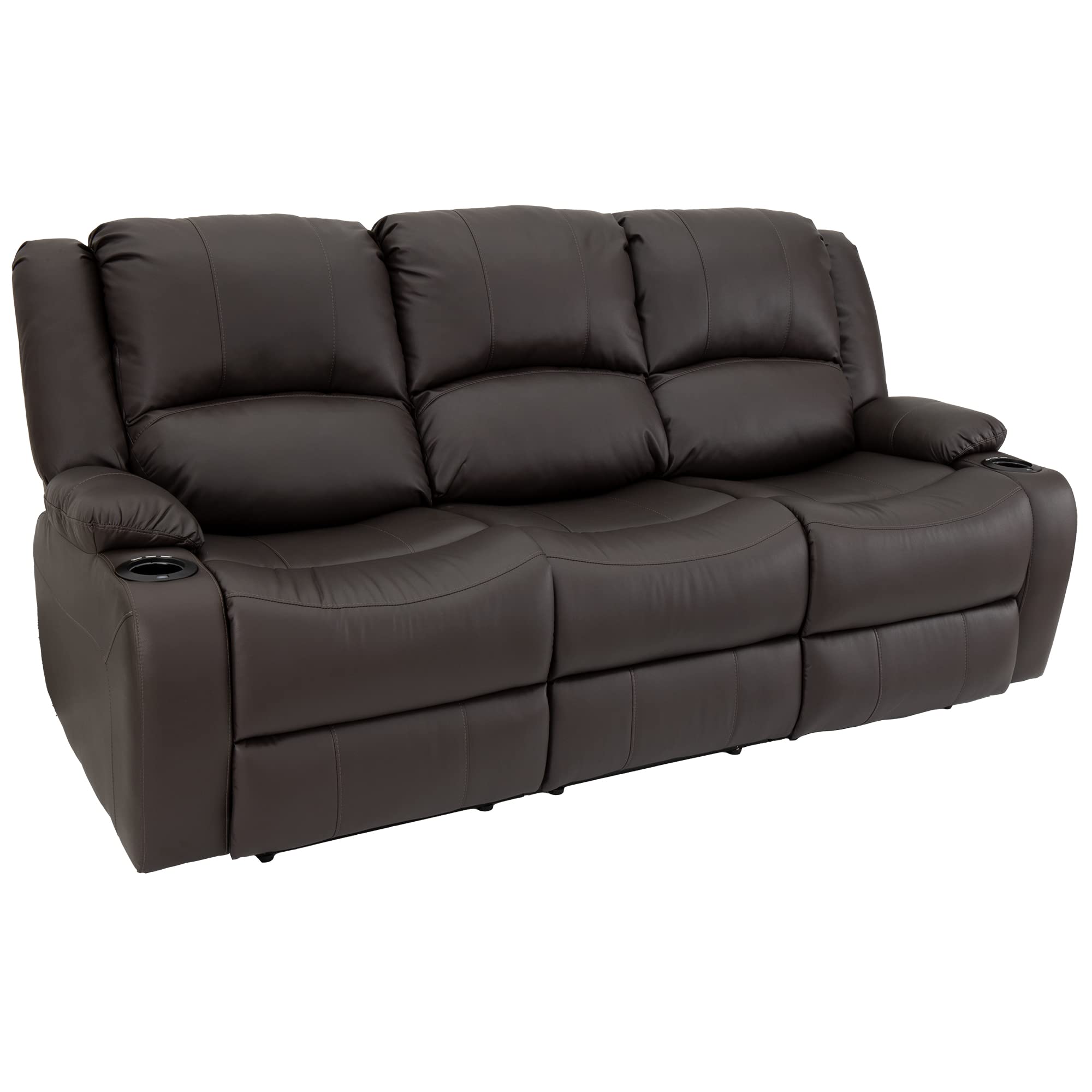

Figure 1: RecPro RV 80-inch Powered Triple Recliner Sofa.

Informació de seguretat

Observeu les següents precaucions de seguretat per evitar lesions o danys al producte:

• Keep the sofa away from open flames or high heat sources.
• Use only mild cleaning solutions and avoid harsh chemicals that may damage the upholstery.
• Supervise children and pets to avoid risks of entrapment during operation of the reclining mechanism.
• Ensure proper electrical connection for the powered reclining feature.

Contingut del paquet

Your RecPro RV 80-inch Powered Triple Recliner Sofa is delivered in a modular design, typically consisting of 3 pieces. The package includes:

• Left Arm Facing (LAF) Recliner Section
• Right Arm Facing (RAF) Recliner Section
• Center Console Section with Drop-Down Feature
• Totes les eines de muntatge necessàries

Muntatge i muntatge

The modular design of this sofa allows for easy installation, even through narrow RV doorways. Assembly typically requires two people.

1. Desempaquetar components: Carefully remove all components from their packaging. The sofa arrives in two separate boxes, each containing a piece of the set.
2. Espai lliure de la porta: Each individual piece is designed to fit through a minimum 22-inch door frame.
3. Posicionament: Place the sofa sections in your desired location within the RV. For full recline functionality, ensure at least 3 inches of clearance from the wall (wall-hugger design).
4. Connecta les seccions: Align the modular sections and connect them using the integrated locking mechanisms. Component connector assembly is not required as the pieces are designed to interlock. All necessary tools for any minor adjustments are included.
5. Connexió d'alimentació: Connect the power cord for the powered reclining mechanism to a suitable RV power outlet.

Figure 2: Modular connection point for easy assembly.

Instruccions de funcionament

Your RecPro RV sofa features powered reclining seats and a convenient drop-down console.

Reclining Operation

• Each of the three seats is powered and reclines independently.
• To recline, locate the control button on the side of the cupholder for your desired seat. Press and hold the button to extend the footrest and recline the backrest.
• Release the button when you reach your preferred reclining position.
• To return to the upright position, press and hold the button again until the seat is fully upright.

Drop-Down Console

• The middle seat's backrest can be folded down to reveal a console with cupholders.
• To deploy the console, gently pull the top of the middle seat's backrest forward until it folds down.
• To return the console to a seat, lift the console backrest until it locks into the upright position.

Port de càrrega USB

• A USB charging port is integrated into the cupholder control panel.
• Connect your compatible electronic devices to this port for convenient charging.

Figure 3: Powered cupholder with recline controls and USB charging port.

Manteniment

Una cura adequada allargarà la vida útil i l'aspecte del vostre sofà.

Cleaning Ultrafabrics Brisa Upholstery

• Neteja regular: Gently dust the upholstery with a dry or slightly damp cloth every 3-6 months to remove surface dirt and debris.
• Neteja de punts: For spills or stains, use a mild cleaning solution. A solution of 1 part bleach to 5 parts water can be used for tougher stains. Apply the solution to a clean cloth, gently blot the affected area, and then wipe with a clean, damp drap per eliminar qualsevol residu.
• Eviteu productes químics durs: Do not use abrasive cleaners, solvents, or harsh detergents, as these can damage the Ultrafabrics Brisa material.

Figure 4: Ultrafabrics Brisa material texture.

Resolució de problemes

If you encounter issues with your sofa, refer to the following common solutions:

• Recliner Not Operating: Ensure the power cord is securely plugged into both the sofa and a functional power outlet. Check for any tripped circuit breakers in your RV.
• Sorolls inusuals: If you hear unusual noises during reclining, inspect the mechanism for any obstructions. Do not force the recliner.
• Console Not Latching: Ensure the drop-down console is properly aligned and pushed firmly into place when returning it to the upright position.

For persistent issues or problems not listed here, please contact RecPro customer support.

Especificacions

Figure 5: Sofa dimensions including width, height, and depth.

Informació de la garantia

This RecPro RV sofa is covered by a Garantia limitada del fabricant d'5 any. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty details, refer to the documentation included with your product or contact RecPro customer support.

Atenció al client

If you have any questions, require assistance, or need to report an issue, please contact RecPro customer support through their official website or the retailer where the product was purchased. Have your model number (PMOD-80-C-533-3023) and purchase date ready for faster service.
