Introducció
This manual provides comprehensive instructions for the installation, maintenance, and care of your new APS Luxury Chrome Stainless Steel Mesh Grille Insert, Model N19-S43267F. This product is specifically designed for Ford F-150 models manufactured between 2021 and 2023. Please read all instructions carefully before beginning installation to ensure proper fitment and safe operation.
Informació de seguretat
- Always wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Ensure the vehicle is parked on a level surface with the engine off and the parking brake engaged.
- If you are unsure about any step of the installation process, consult a professional automotive technician.
- Mantingueu totes les eines i peces petites lluny dels nens.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- One (1) APS 2.5mm Wire Mesh Lower Bumper Grille Insert (Chrome Stainless Steel)
- Installation Hardware (bolts/clips as required for bolt-on/overlay installation)
- Guia d'instal·lació (aquest document)
Nota: This product is an inner grille insert only. It does not include the vehicle's logo, emblem, frame, or outer grille shell. You will need to retain your original grille shell for installation.

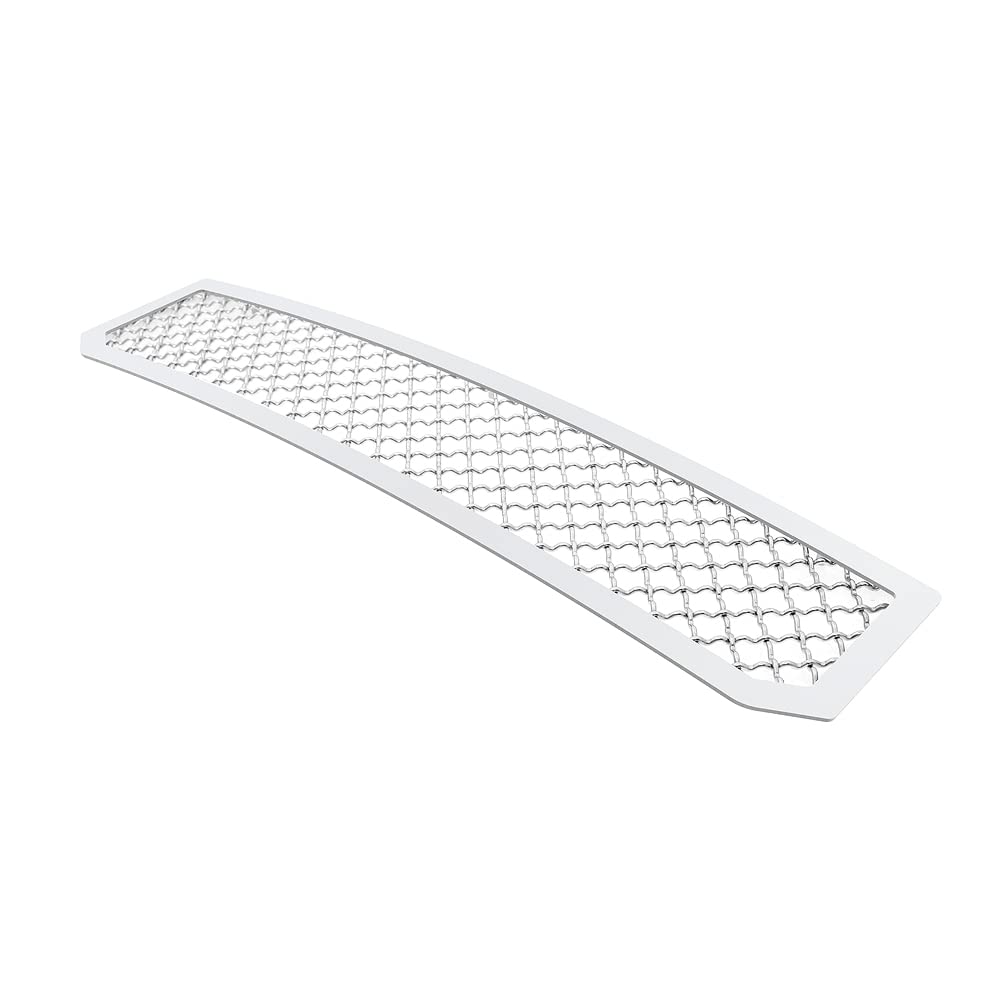

Image: The APS N19-S43267F lower bumper grille insert shown separately and installed on a Ford F-150's lower bumper opening.
Configuració (Instal·lació)
The APS N19-S43267F grille insert is designed for a bolt-on/overlay/bolt-over installation, meaning no drilling is required into your vehicle's original equipment grille. The insert attaches directly to your existing lower bumper grille opening.
Passos d'instal·lació:
- Preparar el vehicle: Ensure the vehicle is off and cool. Clean the area around the lower bumper grille opening to remove any dirt or debris.
- Position the Grille Insert: Carefully align the APS grille insert with the lower bumper grille opening. Ensure it sits flush and centered.
- Secure the Insert: Using the provided installation hardware, attach the grille insert to the original equipment grille. Follow the specific instructions provided with the hardware for proper tightening. Do not overtighten.
- Verificar l'ajust: Once secured, gently check the grille insert to ensure it is firmly in place and does not rattle or move.

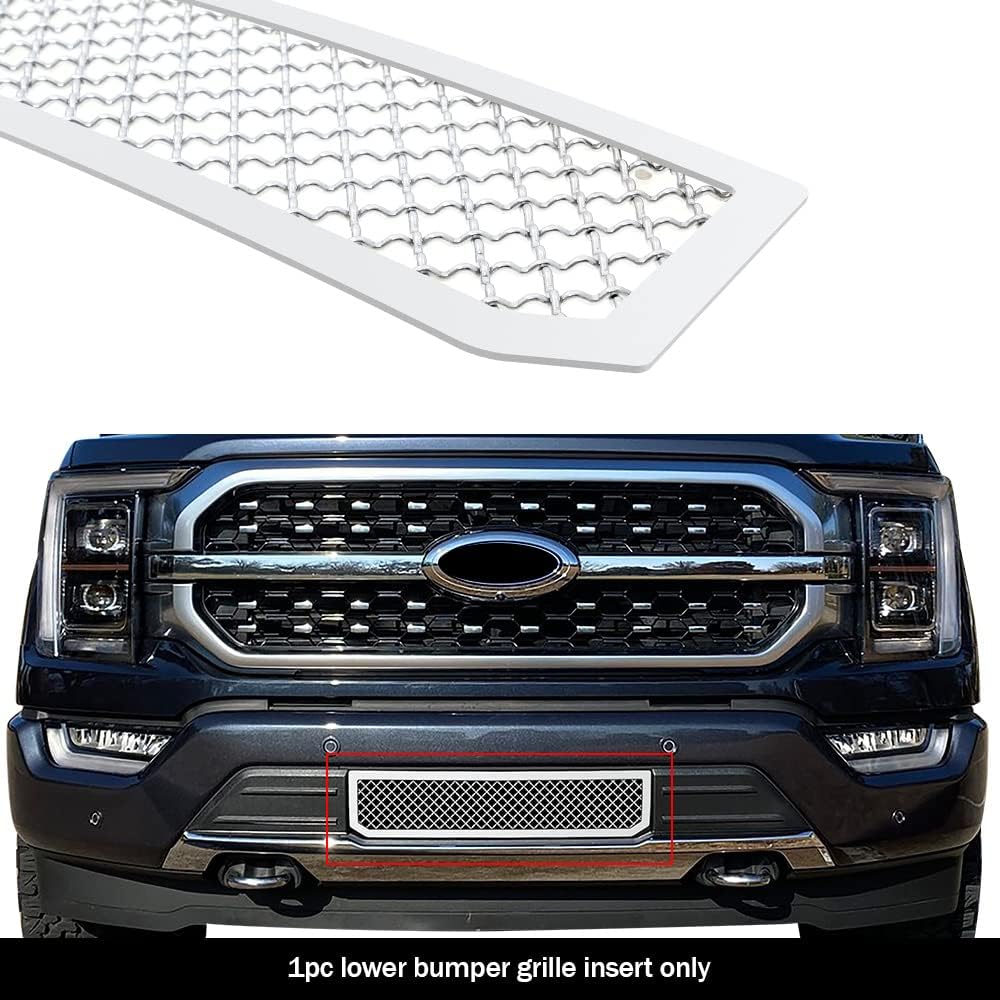

Image: The APS N19-S43267F grille insert shown in detail, highlighting its mesh pattern and the lower bumper area where it is installed.
Funció del producte
The APS N19-S43267F Lower Bumper Grille Insert serves to enhance the aesthetic appeal of your Ford F-150 while providing an additional layer of protection for the vehicle's lower bumper opening. The mesh design allows for adequate airflow while helping to prevent larger debris from entering the engine bay or damaging internal components.

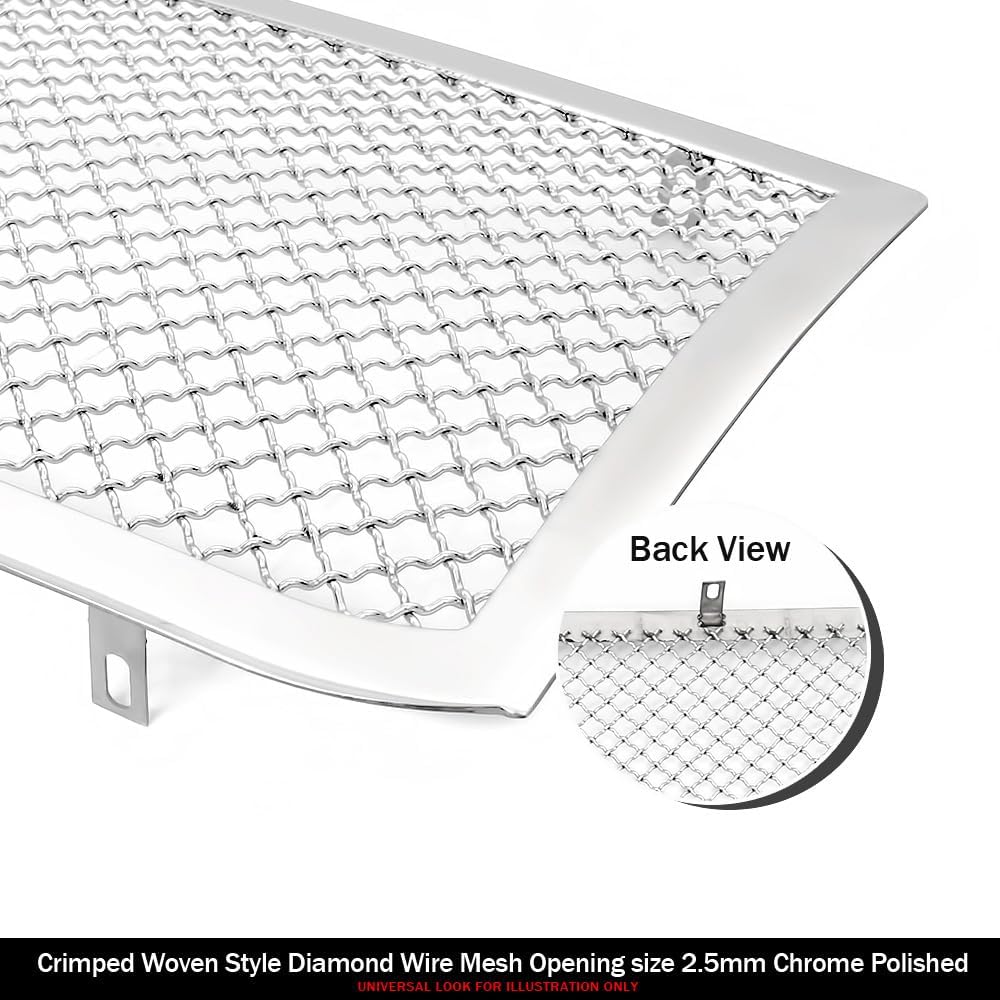

Imatge: Enrere view of the APS N19-S43267F grille insert, illustrating the crimped woven style diamond wire mesh with a 2.5mm opening size and polished chrome finish.
Manteniment
To maintain the appearance and longevity of your chrome stainless steel grille insert, follow these simple maintenance guidelines:
- Neteja regular: Wash the grille insert regularly with mild automotive soap and water. Use a soft cloth or sponge to avoid scratching the polished surface.
- Eviteu productes químics durs: Do not use abrasive cleaners, steel wool, or harsh chemical solvents, as these can damage the chrome finish and stainless steel.
- Assecat: Dry the grille insert thoroughly after washing to prevent water spots, especially in areas with hard water.
- Polit (opcional): For an extra shine, you may use a chrome-specific polish designed for automotive use.
Resolució de problemes
Problemes comuns i solucions:
- Grille Insert Does Not Fit: Double-check that your vehicle is a Ford F-150 model from 2021-2023. Ensure the insert is correctly oriented. If the issue persists, contact customer support.
- Loose Fitment: Ensure all installation hardware is securely tightened. Avoid overtightening, but confirm a snug fit.
- Scratches/Damage During Installation: Exercise caution during installation. Minor scratches can sometimes be buffed out with appropriate chrome polish. For significant damage, contact customer support.
Especificacions
| Característica | Especificació |
|---|---|
| Marca | APS |
| Número de model | N19-S43267F |
| Compatibilitat | Ford F-150 (2021, 2022, 2023) |
| Material | Acer inoxidable premium |
| Color/Acabat | Chrome Polished |
| Tipus de malla | Crimped Woven Style Diamond Wire Mesh |
| Mesh Opening Size | 2.5 mm |
| Tipus de muntatge | Bolt-on / Overlay (No drilling required) |
| Dimensions de l'article (L x A x A) | 53.3 x 12.7 x 5.1 cm (21 x 5 x 2 polzades) |
| Pes de l'article | 2.76 lliures |
Garantia
APS stands behind the quality of its products. This grille insert comes with a satisfaction guarantee. If you encounter any issues with your grille, please do not hesitate to contact us for assistance. Specific warranty duration and terms may vary; please refer to your purchase documentation for details.
Suport
For technical assistance, installation questions, or warranty claims, please contact APS customer support through the retailer where the product was purchased or visit the official APS weblloc per obtenir informació de contacte.
