Manual d'usuari de la bombeta de filament LED Rabalux

1. Introducció

Thank you for choosing the Rabalux LED Filament Bulb, Model 2088. This manual provides important information for the safe and efficient use of your new bulb. Please read it thoroughly before installation and keep it for future reference.

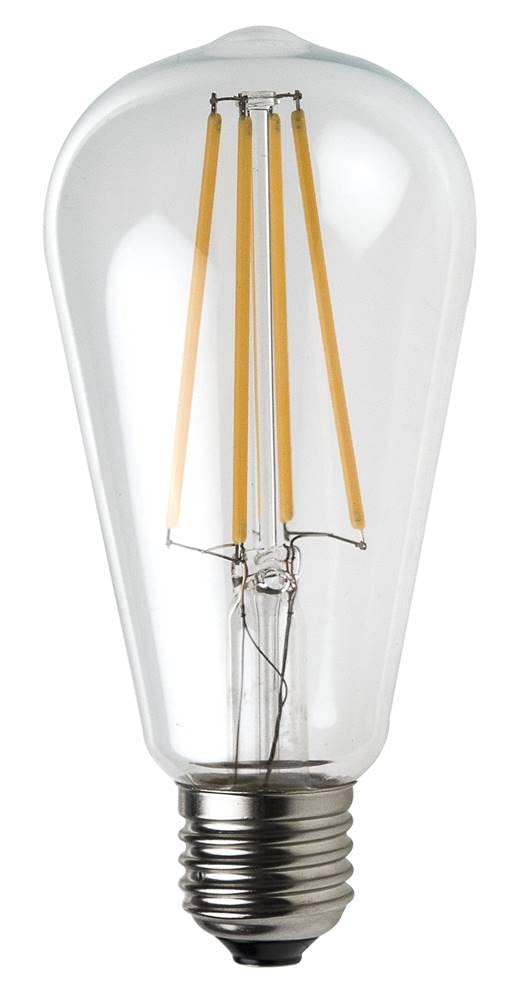

This image displays the Rabalux LED Filament Bulb, model 2088. It features a transparent glass casing with visible vertical LED filaments inside, and a standard E27 screw base at the bottom. The bulb has a distinctive ST64 shape.

The Rabalux 2088 is a transparent LED filament bulb designed for general lighting purposes. It features an E27 base, consumes 10W of power, and emits a neutral white light at 4000 Kelvin with a luminous flux of 1230 lumens. Its classic ST64 shape and transparent design make it suitable for various decorative and functional lighting fixtures.

2. Informació de seguretat

• Seguretat elèctrica: Always ensure the power supply is switched off at the main circuit breaker before installing, removing, or cleaning the bulb.
• Manipulació: Allow the bulb to cool down completely before handling. Do not touch the bulb with wet hands.
• Compatibilitat: Use only with compatible E27 lamp titulars.
• Ús interior: This bulb has an IP20 protection rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is intended for indoor use only in dry environments.
• No regulable: Aquesta bombeta és no regulable. Do not attempt to use it with dimmer switches, as this may damage the bulb or the dimmer.
• Eliminació: Desfeu-vos de la bombeta d'acord amb la normativa local per a residus electrònics.

3. Configuració i instal·lació

1. Apagueu l'alimentació: Before beginning installation, ensure the power supply to the light fixture is completely switched off at the circuit breaker or fuse box.
2. Preparació de l'aparell: If replacing an old bulb, carefully unscrew it from the lamp holder. Allow it to cool if it was recently in use.
3. Instal·lar una bombeta nova: Gently screw the Rabalux LED Filament Bulb (E27 base) into the compatible lamp suport. Gireu en sentit horari fins que quedi ajustat amb els dits. No l'estrenyeu massa.
4. Restaura l'alimentació: Once the bulb is securely installed, restore power to the light fixture from the main circuit breaker.
5. Prova: Engegueu l'interruptor de la llum per confirmar que la bombeta funciona correctament.

4. Instruccions de funcionament

The Rabalux LED Filament Bulb operates like any standard light bulb. Once installed and power is supplied to the fixture:

• Activació/desactivació: Use the wall switch or the fixture's integrated switch to turn the light on or off.
• No regulable: As noted in the safety section, this bulb is not designed for dimming. It will operate at its full brightness (1230 lumens) when switched on.

5. Manteniment

The Rabalux LED Filament Bulb requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Neteja: Before cleaning, always turn off the power supply and allow the bulb to cool. Wipe the bulb gently with a soft, dry, lint-free cloth. Do not use liquid cleaners or abrasive materials.
• Substitució: When the bulb reaches the end of its lifespan, follow the installation steps in reverse to safely remove it. Ensure power is off before removal.
• Inspecció: Reviseu periòdicament la bombeta i el dispositiu de llum per si hi ha signes de danys o connexions soltes.

6. Solució De Problemes

If you encounter issues with your Rabalux LED Filament Bulb, consider the following common problems and solutions:

• La bombeta no s'encén:
  • Comproveu si l'alimentació de l'aparell està connectada.
  • Ensure the bulb is screwed in tightly and making proper contact with the lamp titular.
  • Test the fixture with another known working bulb to rule out a fixture issue.
  • Check the circuit breaker for the room or fixture.
• Parpelleig de la bombeta:
  • Confirm the bulb is not connected to a dimmer switch, as this bulb is not dimmable.
  • Assegureu-vos que la bombeta estigui ben cargolada a l'endoll.
  • Comproveu si hi ha cablejat solt a la instal·lació (consulteu un electricista qualificat si no esteu segurs).
• Light Output is Low:
  • Verify the bulb's specifications match your expectations (e.g., 1230 lumens for this model).
  • Ensure the fixture's shade or cover is clean and not obstructing light.

If problems persist after trying these steps, contact Rabalux customer support or a qualified electrician.

7. Especificacions

8. Garantia i Suport

For warranty information and customer support, please refer to the documentation provided at the time of purchase or visit the official Rabalux weblloc web. Els termes de garantia específics poden variar segons la regió i el distribuïdor.

Rabalux Official Weblloc: www.rabalux.com
