1. Instruccions de seguretat
Please read all safety instructions carefully before using the WELOV S25 Cordless Vacuum Cleaner. Keep this manual for future reference.
- No utilitzeu l'aparell a l'exterior o sobre superfícies humides.
- No permeteu que els nens facin servir l'aspiradora. Cal una supervisió acurada quan s'utilitza a prop dels nens.
- No recolliu líquids inflamables o combustibles, com ara la gasolina, ni els utilitzeu en zones on puguin estar presents.
- No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
- No l'utilitzeu sense el got de pols i/o els filtres al seu lloc.
- Apagueu l'aparell abans de connectar o desconnectar el raspall motoritzat.
- Feu servir només tal com es descriu en aquest manual. Utilitzeu només els accessoris recomanats pel fabricant.
- No manipuleu l'endoll o l'aparell amb les mans mullades.
- No introduïu cap objecte a les obertures. No utilitzar amb cap obertura bloquejada; mantenir lliure de pols, pelusses, cabells i qualsevol cosa que pugui reduir el flux d'aire.
- Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
2. Què s'inclou
The WELOV S25 Cordless Vacuum Cleaner package includes the following components:
- Main Body (Handheld Unit)
- Extension Tube (Red)
- Power Brush (Floor Tool with LED lights)
- Eina per esquerdes
- Eina de tapisseria 2 en 1
- Adaptador de corrent (carregador)
- Suport de muntatge a la paret
- Screw Package for Wall Mount
- Filtre HEPA addicional
Image: All components included in the WELOV S25 package, laid out clearly. This includes the main body, extension tube, power brush, various attachments, charger, and wall mount accessories.
3. Muntatge
Follow these steps to assemble your WELOV S25 Cordless Vacuum Cleaner:
- Connect the Extension Tube: Align the main body with the extension tube and push until it clicks securely into place.
- Attach the Power Brush: Connect the power brush to the other end of the extension tube, ensuring it clicks firmly.
- Instal·lació d'accessoris: For handheld use, attach the crevice tool or 2-in-1 upholstery tool directly to the main body. For extended reach, attach them to the extension tube.
Image: A visual guide demonstrating the simple click-in mechanism for assembling the main body, extension tube, and various cleaning attachments.
Video: This video demonstrates the unboxing and assembly process of the WELOV S25 Cordless Vacuum Cleaner, showing how to connect the main unit, extension wand, and floor brush, as well as other accessories.
4. Carregant la bateria
Before first use, fully charge the vacuum cleaner. A full charge typically takes 3-4 hours.
- Connect the power adapter to the charging port on the main body of the vacuum cleaner.
- Connecteu l'adaptador a una presa de corrent.
- The battery indicator lights on the main body will illuminate to show the charging status. All lights will be solid when fully charged.
- For convenient storage and charging, use the included wall mount bracket.
Image: This image illustrates the two available charging modes for the vacuum cleaner, including direct plug-in and wall-mounted charging.
Video: This video segment demonstrates how to plug in the charger and shows the battery indicator lights during the charging process.
5. Instruccions de funcionament
The WELOV S25 offers versatile cleaning options for various surfaces.
5.1 Modes d'encesa/apagada i succió
- Press the power button on the main body to turn the vacuum on.
- Press the mode button to switch between two suction modes: standard (for everyday cleaning) and max (for stubborn dirt and deep cleaning).
- The LED indicator on the power brush illuminates the cleaning path, making dust and debris visible in dimly lit areas.

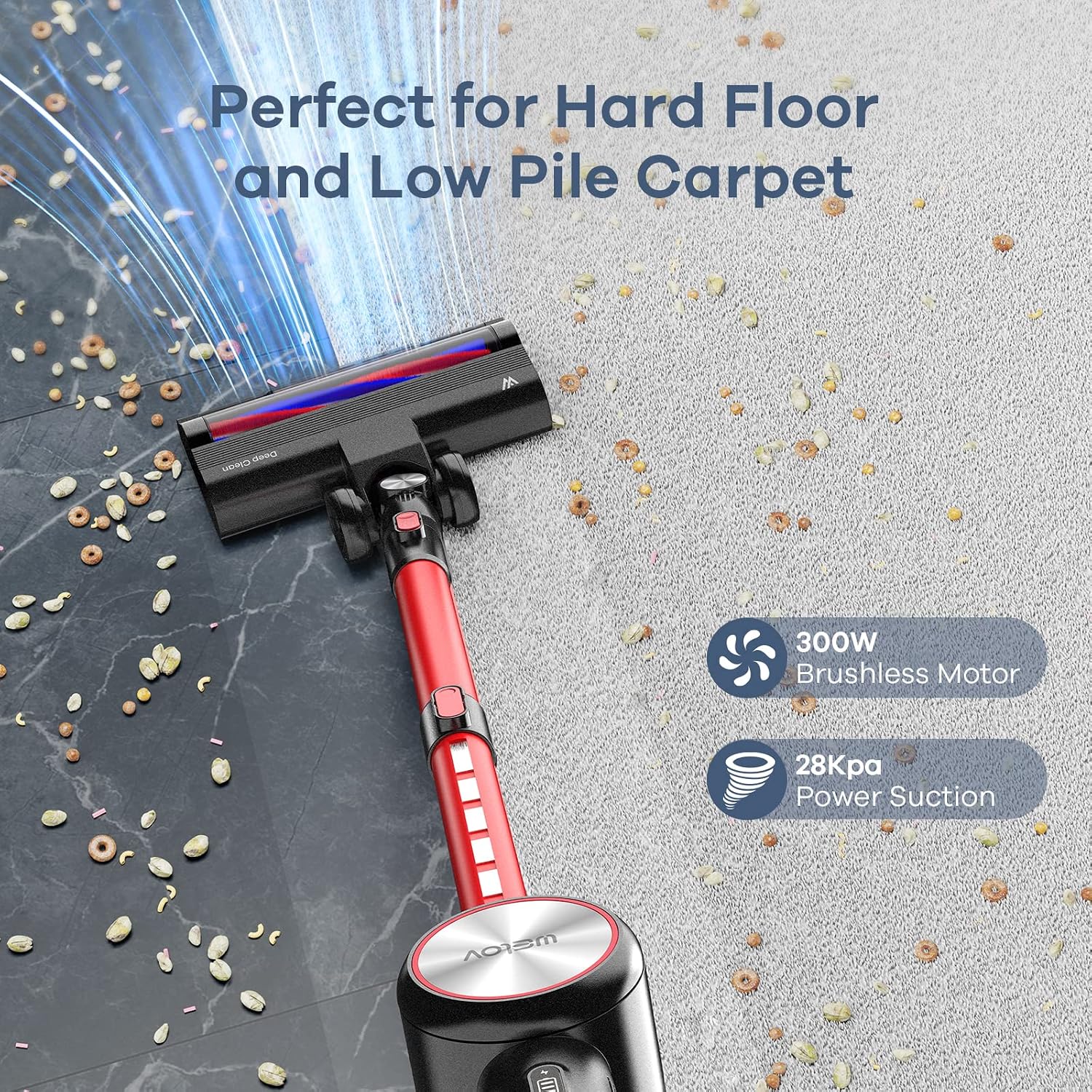

Image: The WELOV S25 vacuum cleaner in action, effectively cleaning both hard floors and low-pile carpets, highlighting its 300W brushless motor and 28Kpa powerful suction.
Image: This image illustrates the 28Kpa Max Suction capability of the WELOV S25, detailing approximate runtimes of 40 minutes on slow speed and 20 minutes on high speed.
5.2 Versatile Cleaning with Attachments
- Neteja de sòls: Use the power brush with the extension tube for efficient cleaning of hard floors and low-pile carpets. The flexible head allows for 180° wide-angle cleaning and 90° vertical movement.
- Mode portàtil: Detach the extension tube and power brush to convert the unit into a handheld vacuum. Attach the crevice tool for tight spaces or the 2-in-1 upholstery tool for furniture and delicate surfaces.
Image: The WELOV S25 vacuum cleaner showcasing its 180-degree wide-angle cleaning capability, allowing for easy maneuverability around obstacles.
Image: A visual representation of the WELOV S25 transforming into a handheld vacuum, suitable for cleaning curtains, car interiors, and furniture.
Video: This video demonstrates the WELOV S25 in action, vacuuming both tiled and carpeted floors, showcasing its maneuverability and suction power. It also highlights the LED lights on the brush head.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de l'aspiradora.
6.1 Buidar el contenidor d'escombraries
- To empty the dustbin, hold the main body over a trash can.
- Press the one-touch release button on the dustbin to open the bottom flap and release collected debris.
6.2 Neteja dels filtres
The WELOV S25 features a 4-stage high-efficient filter system, including a HEPA filter and a stainless steel strainer. These filters are washable.
- Twist and pull to remove the dustbin from the main body.
- Remove the HEPA filter and stainless steel strainer from the dustbin.
- Rinse both filters under running water until clean. Ensure they are completely dry before reinserting.
- Reassemble the filters and dustbin, then reattach to the main body.

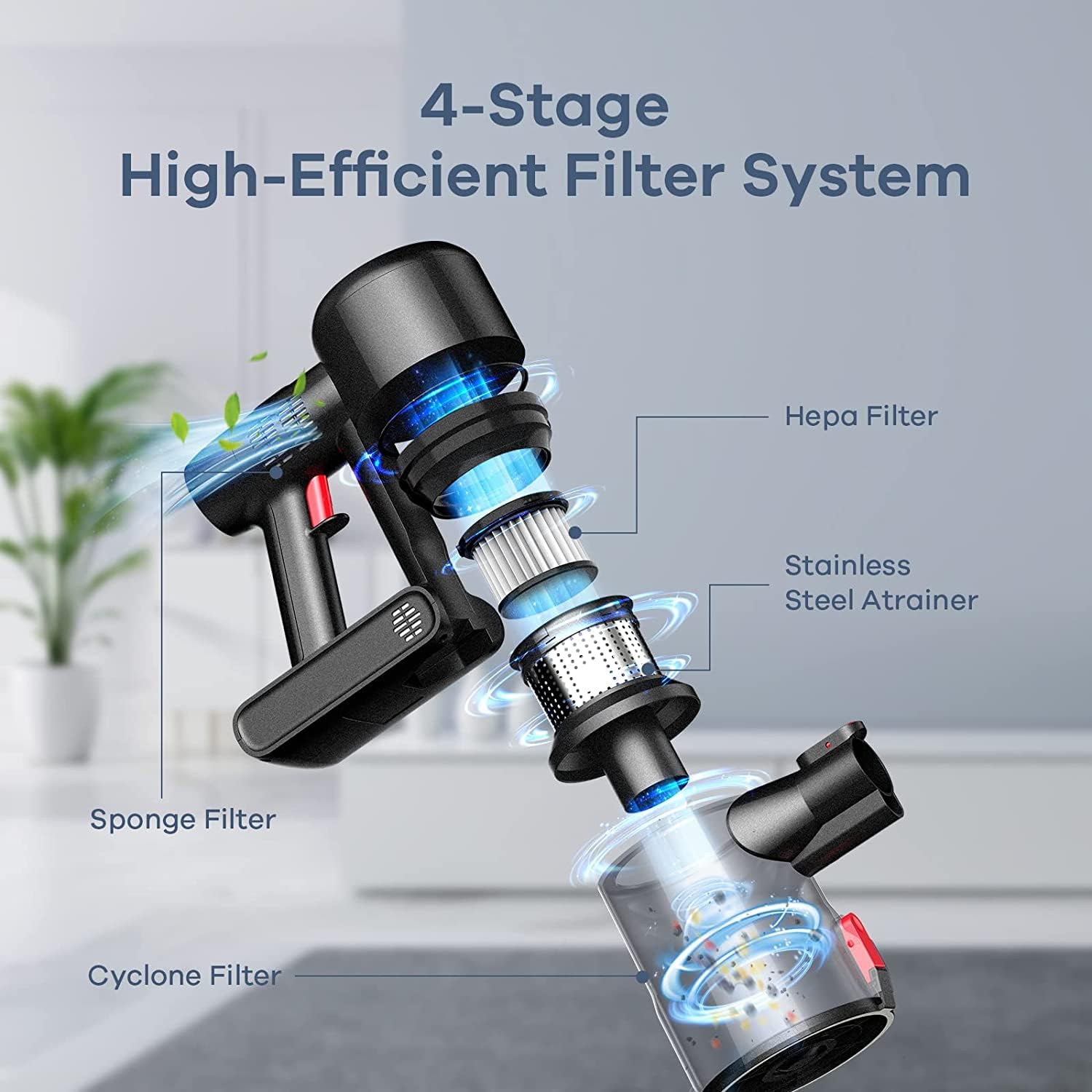

Imatge: Una explosió view il·lustrant les 4-stage high-efficient filter system, including the sponge filter, cyclone filter, stainless steel strainer, and HEPA filter.
Image: A close-up showing the internal components of the 4-stage high-efficiency filter system, emphasizing its ability to capture 99.99% of dust.
Video: This video segment demonstrates how to empty the dustbin with a one-touch release and how to remove and wash the filters for thorough cleaning.
7. Solució De Problemes
If you encounter any issues with your WELOV S25, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| L'aspiradora no s'encén. | La bateria no està carregada. | Carregueu la bateria completament. |
| Baixa potència d'aspiració. | El contenidor d'escombraries és ple o els filtres estan obstruïts. | Empty the dustbin and clean the filters. |
| El corró del raspall no gira. | Cabells o restes enredades al corró del raspall. | Traieu els cabells enredats o les restes del raspall rotatiu. |
| Durada de la bateria curta. | Using max suction mode continuously. | Switch to standard mode for longer runtime. Ensure battery is fully charged before use. |
8. Especificacions
Key technical specifications for the WELOV S25 Cordless Vacuum Cleaner:
| Característica | Detall |
|---|---|
| Marca | WELOV |
| Model | S25 |
| Característica especial | HEPA, Lightweight |
| Tipus de filtre | Cartridge (Washable HEPA, Stainless Steel Atrainer) |
| És sense fil? | Sí |
| Capacitat | 0.7 litres |
| Wattage | 300 watts |
| Usos recomanats | Hard Floor, Low Pile Carpet, Pet Hair |
| Factor de forma | Màquina de mà, stick |
| Tipus de bateria | Ió de liti |
| Nivell de soroll | 75 decibels |
| Durada de la bateria | Up to 45 minutes (Slow Speed) |
| Dimensions del producte | 13 x 5 x 9 polzades |
| Pes de l'article | 2.65 lliures |
Imatge: Una imatge interna view of the WELOV S25 main body, highlighting the 300W brushless digital motor for efficient cleaning.
9. Garantia i Suport
For warranty information or technical support, please refer to the documentation included in your product packaging or contact WELOV customer service directly. Contact details can typically be found on the official WELOV weblloc web o a través del vostre distribuïdor.
