JOYROOM JR-QP192 20000mAh 22.5W Fast Charging Power Bank User Manual

1. Introducció

Thank you for choosing the JOYROOM JR-QP192 20000mAh 22.5W Fast Charging Power Bank. This portable power bank is designed to provide reliable and fast charging for your electronic devices on the go. With its high capacity, multiple output ports, and digital LCD display, it ensures you stay powered throughout your day. Please read this manual carefully before use to ensure optimal performance and safety.

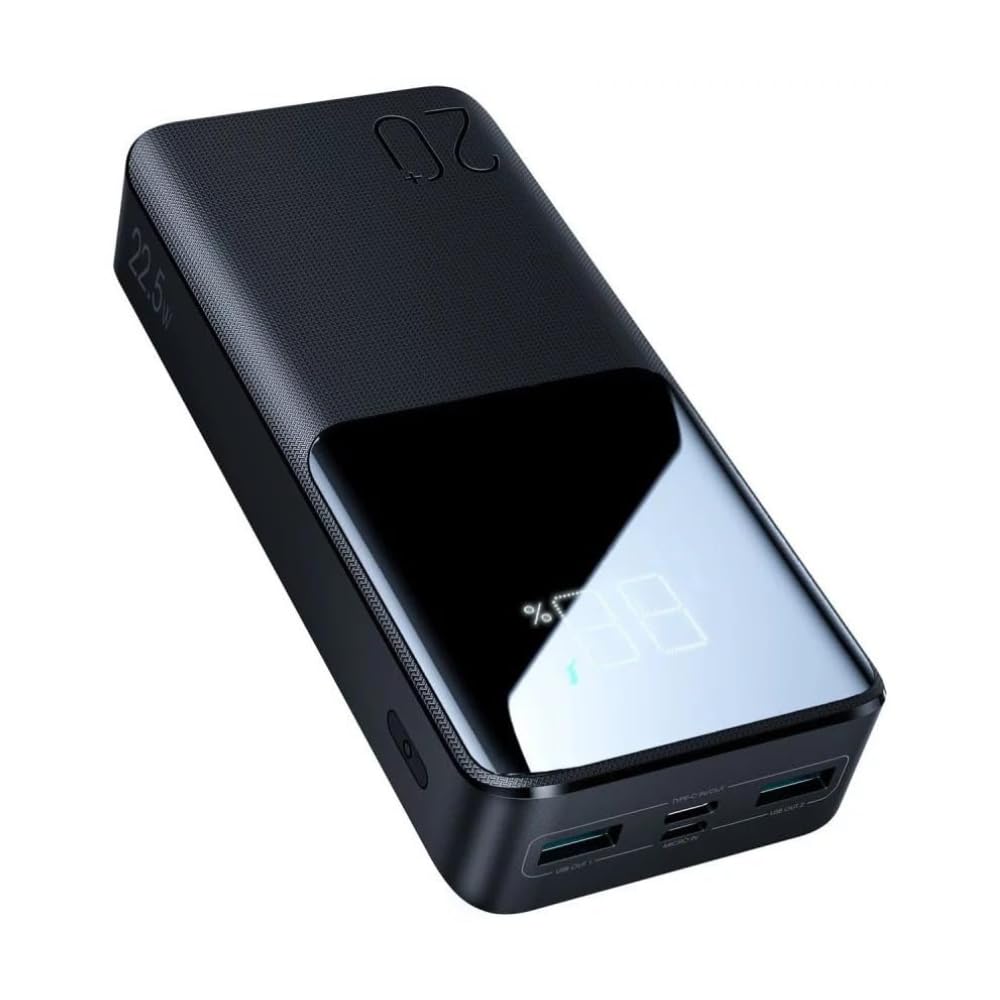

Image 1: JOYROOM JR-QP192 Power Bank, showcasinpel seu disseny elegant i la seva pantalla LCD.

2. Producte acabatview

2.1 Característiques clau

• Alta capacitat: Bateria de 20000 mAh per a una autonomia prolongada.
• Càrrega ràpida: 22.5W output for quick device charging.
• Càrrega multidispositiu: Equipped with 3 output ports (2x USB-A, 1x USB-C) to charge multiple devices simultaneously.
• Pantalla LCD digital: Percentatge de bateria en temps realtagvisualització.
• Ports d'entrada dual: Conveniently recharge the power bank using USB-C or Micro-USB.
• Disseny portàtil: Slim and lightweight, ideal for travel and daily use.
• Seguretat avançada: Protecció integrada contra sobrecàrrega, sobreescalfament i curtcircuits.

2.2 Components

The JOYROOM JR-QP192 power bank includes:

• JOYROOM JR-QP192 Power Bank
• Cable de càrrega (USB-A a USB-C)
• Manual d'usuari

Familiarize yourself with the ports and display:

• Ports de sortida USB-A (x2): For charging most USB-powered devices.
• Port USB-C (entrada/sortida): For charging devices or recharging the power bank.
• Port d'entrada micro-USB: Per recarregar el banc d'energia.
• Botó d'encesa: To check battery level or activate charging.
• Pantalla digital LCD: Mostra el percentatge de bateria restanttage.

Image 2: The power bank illustrating its two input ports (USB-C, Micro-USB) and three output ports (2x USB-A, 1x USB-C).

3. Configuració

3.1 Càrrec inicial

1. Before first use, fully charge your JOYROOM JR-QP192 power bank.
2. Connect the included USB-A to USB-C cable (or your own USB-C to USB-C/Micro-USB cable) to one of the power bank's input ports (USB-C or Micro-USB).
3. Connect the other end of the cable to a suitable USB wall adapter (not included) or a computer's USB port.
4. The LCD display will show the charging progress. Charging is complete when the display shows 100%.

Image 3: The power bank being recharged from a wall outlet, demonstrating its fast recharge capability compared to ordinary power banks.

3.2 Comprovació del nivell de la bateria

Press the power button once to activate the LCD display. The screen will show the current battery percentage del banc d'energia.

Image 4: Close-up of the power bank's LED digital display, indicating the remaining power in real-time.

4. Instruccions de funcionament

4.1 Recàrrega del banc d'energia extern

Per recarregar el banc d'energia:

1. Choose either the USB-C input port or the Micro-USB input port.
2. Connect a compatible charging cable to the chosen input port.
3. Connecteu l'altre extrem del cable a una font d'alimentació, com ara un adaptador de paret o un ordinador.
4. The LCD display will show the charging status. Disconnect when fully charged.

4.2 Càrrega dels vostres dispositius

To charge your smartphone, tablet, or other USB-powered device:

1. Use your device's original charging cable or a high-quality compatible cable.
2. Connecteu un extrem del cable al vostre dispositiu.
3. Connect the other end to one of the power bank's output ports (USB-A or USB-C).
4. El carregador extern començarà a carregar el dispositiu automàticament. Si no, prem el botó d'engegada una vegada.
5. The LCD display will show the power bank's remaining battery level.

Image 5: The power bank providing 22.5W ultra-fast charging to a smartphone, highlighting its efficiency compared to standard 15W chargers.

Image 6: The 20000mAh power bank demonstrating its capacity to charge multiple devices like an iPhone 13, Galaxy S22, iPad Mini, and AirPods Pro multiple times.

5. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar el banc d'energia. Eviteu netejadors líquids o materials abrasius.
• Emmagatzematge: Guardeu el banc d'energia en un lloc fresc i sec, allunyat de la llum solar directa, de temperatures extremes i de la humitat.
• Cura de la bateria: Per allargar la durada de la bateria, carregueu completament el banc d'energia almenys un cop cada tres mesos si no l'utilitzeu regularment. Eviteu descarregar completament la bateria amb freqüència.
• Manipulació: No deixeu caure, desmunteu ni intenteu reparar el banc d'energia vosaltres mateixos. Això pot anul·lar la garantia i plantejar riscos per a la seguretat.

6. Solució De Problemes

• El banc d'energia no es carrega: Ensure the charging cable is securely connected to both the power bank's input port and the power source. Try a different cable or wall adapter.
• El dispositiu no es carrega des del banc d'alimentació: Ensure your device's charging cable is properly connected to both the device and an output port on the power bank. Press the power button on the power bank to initiate charging. Check if the power bank has sufficient charge.
• Càrrega lenta: Ensure you are using a fast-charging compatible cable and adapter for both the power bank and your device. Some devices may not support 22.5W fast charging.
• La pantalla LCD no funciona: Press the power button to activate the display. If it remains off, the power bank might be completely discharged or faulty.
• Power bank gets hot during charging/discharging: It is normal for power banks to generate some heat during operation. If it becomes excessively hot, disconnect it immediately and contact customer support.

7. Especificacions

8. Informació de seguretat

• No exposeu el banc d'energia a l'aigua, la humitat o la humitat elevada.
• Avoid exposing the power bank to direct sunlight or high temperatures (above 60°C/140°F).
• No utilitzeu el banc d'energia extern si està danyat, inflat o té fuites.
• Mantenir fora de l'abast dels nens.
• Feu servir només cables i adaptadors de càrrega certificats.
• No curtcircuiteu el banc d'energia.
• Desfeu-vos del banc d'energia de manera responsable d'acord amb la normativa local.

9. Garantia i Suport

9.1 Garantia

This product is provided without an explicit warranty. Please refer to your retailer's return policy for any issues.

9.2 Atenció al client

For further assistance or inquiries, please visit the official JOYROOM store or contact your point of purchase.

JOYROOM Store: https://www.amazon.eg/stores/JOYROOM/page/A651F2A5-D0D5-4286-BF36-B7A44074E738
