Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your ExBrite LED Lighted Bathroom Medicine Cabinet. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Imatge: Frontal view of the ExBrite LED Lighted Bathroom Medicine Cabinet.
Informació de seguretat
Refer to the user manual for safety instructions regarding installation, use, and maintenance. Always follow proper electrical safety procedures when handling the cabinet. Keep the cabinet away from water sources to prevent accidents. Do not overload the shelves to maintain structural integrity.
WARNING: Electrical installation should be performed by a qualified electrician in accordance with all local and national electrical codes.
Característiques del producte
- Stepless Dimming & Color Temperature Control: Adjust brightness from 10% to 100% and color temperature from 3000K (warm) to 6000K (cool) to suit your preference.
- Enhanced Defogging Function: The mirror surface quickly warms to approximately 40°C for a clear reflection. The defogging function automatically shuts off after 60 minutes for safety.
- Tempered Glass Shelves & High-Power Outlets: Features 8mm thick tempered glass shelves, each supporting up to 30 lbs. Includes two 1800W high-power dual outlets and two USB ports inside the cabinet for convenient charging and use of devices.
- Double-Layer Aluminum Frame: Provides superior strength, stability, and load-bearing capacity.
- Interior Sensor Light: A built-in 6000K LED interior light automatically activates when the cabinet door is opened.
- High-Brightness LED Strips: Dual LED strips with a Color Rendering Index (CRI) > 90 ensure vivid, natural color reproduction.
Image: Visual representation of stepless dimming and color temperature adjustment from 3000K to 6000K.
Image: Comparison showing the enhanced anti-fog area on the ExBrite mirror versus a standard anti-fog area.
Imatge: Detallada view of the cabinet interior, highlighting glass shelves, 120Vac outlets, USB ports, 110° soft-close hinges, aluminum alloy frame, and concealed handle.

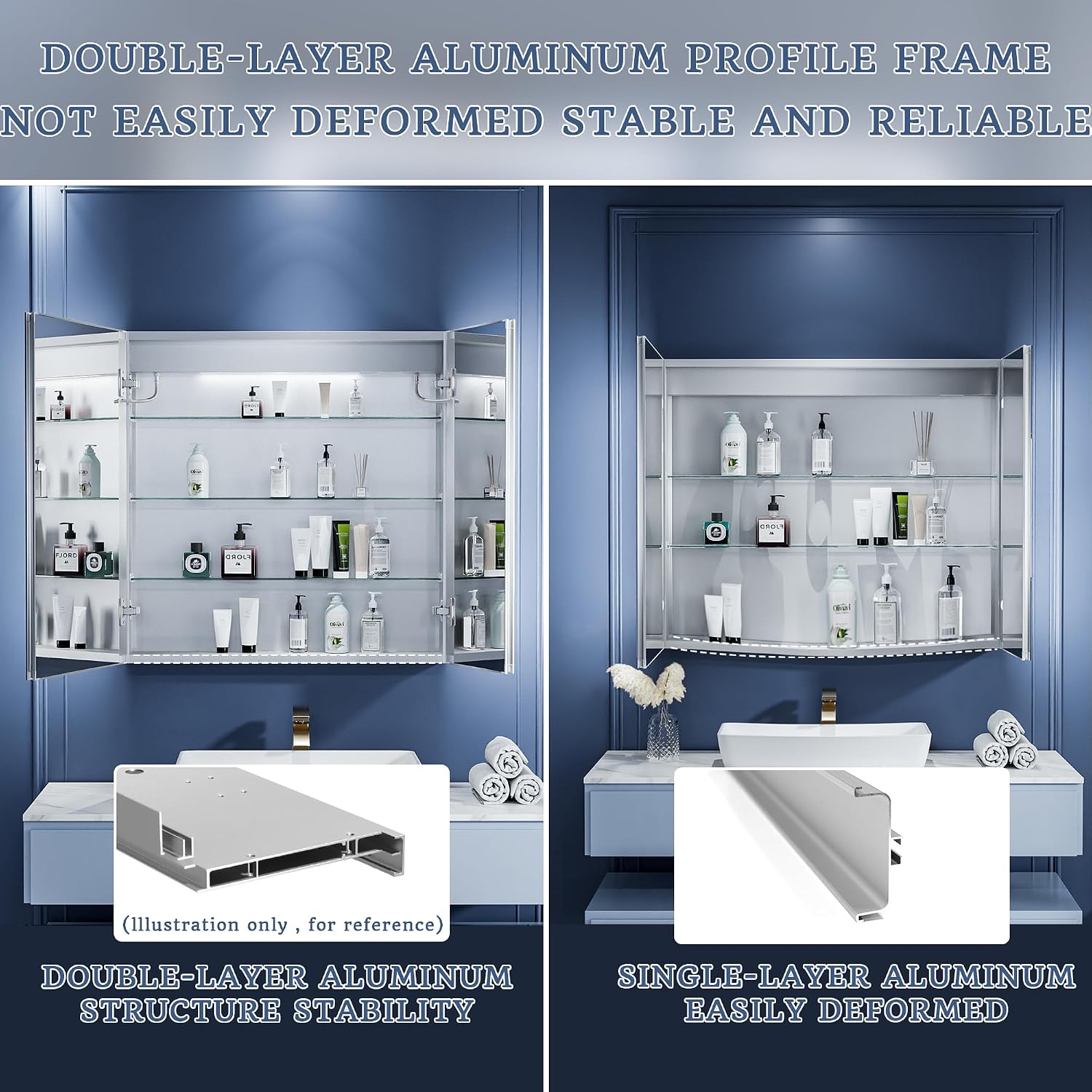

Image: Comparison illustrating the stability of a double-layer aluminum frame versus a single-layer frame.
Configuració i instal·lació
The ExBrite LED Medicine Cabinet supports both surface mounting and recessed installation, offering flexibility for various bathroom layouts.
Image: Diagrams showing both recessed mounting, where the cabinet protrudes approximately 1 inch, and surface mounting.
Dimensions
Dimensions del producte: 5.25 cm de profunditat x 30 cm d'amplada x 30 cm d'alçada
Image: Detailed diagram showing the overall cabinet dimensions (30"W x 30"H x 5.25"D) and recommended cutout dimensions for recessed installation (28"W x 30"H x 4.25"D).
Installation Steps (Surface Mount)
- Verify minimum clearance for door swing.
- Mark the installation location on the wall. Use appropriate wall anchors if needed.
- Secure the mounting bar with round head screws.
- Connect the electrical wiring (white to neutral, black to live, green/yellow to ground).
- Lift the cabinet onto the mounting bar, ensuring the hooks engage the bar.
- Secure the cabinet to the wall using additional screws through the side panels.
Image: Step-by-step diagram for surface mounting installation, including measuring, marking, securing the mounting bar, wiring, and hanging the cabinet.
Instruccions de funcionament
Controls tàctils
The mirror features integrated touch controls for various functions. These are typically located on the mirror surface.
- Encès/apagat: Tap the power icon to turn the LED lights on or off.
- Ajust de brillantor (atenuació): Press and hold the brightness icon to cycle through brightness levels from 10% to 100%. Release when the desired brightness is reached.
- Canvi de temperatura de color: Tap the color temperature icon to switch between 3000K (warm), 4500K (natural), and 6000K (cool) light settings.
- Activació del desembador: Tap the defogger icon to activate the anti-fog function. The defogger will automatically turn off after 60 minutes.
Interior Sensor Light
The 6000K LED interior light automatically illuminates when the cabinet door is opened, providing visibility for items stored inside.
Manteniment
- Neteja del mirall: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the edges.
- Neteja de l'armari: Wipe the aluminum frame and glass shelves with a damp cloth and mild detergent. Dry thoroughly with a soft cloth.
- Components elèctrics: Ensure the cabinet is disconnected from power before cleaning any electrical components. Do not use excessive moisture near outlets or wiring.
- Frontisses: Periodically check the 110° soft-close hinges for smooth operation. Lubricate if necessary with a silicone-based lubricant.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums LED no s'encenen. | Sense corrent, connexió fluixa, interruptor defectuós. | Check power supply, ensure connections are secure. Contact a qualified electrician if necessary. |
| Defogger not working. | Defogger not activated, power issue. | Ensure the defogger icon is pressed. Check power supply. |
| Llums parpellejants o tènues. | Unstable power, faulty LED driver. | Check power source. If problem persists, contact customer support. |
| Cabinet door not closing smoothly. | Les frontisses necessiten ajustament o lubricació. | Adjust or lubricate the 110° soft-close hinges. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | ExBrite |
| Nom del model | Botiquí il·luminat |
| Número de model | DHMC3030V3TX |
| Mida | 30''x30'' |
| Dimensions del producte | 5.25 "P x 30" W x 30" H |
| Tipus de muntatge | Wall Mount (Surface & Recessed) |
| Material del marc | Marc d'alumini |
| Nombre de prestatgeries | 3 (vidre temperat) |
| Límit de pes a la prestatgeria | 30 lliures per prestatge |
| Característiques especials | Stepless Dimming, 3 Color Temperature, Defog, Lighting Memory Function, Interior Sensor Light, 2x 1800W Outlets, 2x USB Ports |
| Certificacions | ETL Certified (Unit), UL Certified (Components) |
| Pes de l'article | 47.8 lliures |
| UPC | 669423314134 |
Garantia i Suport
The ExBrite LED Lighted Bathroom Medicine Cabinet is ETL certified as a complete unit, and all critical components have passed UL certification, ensuring compliance with safety standards.
ExBrite offers customer support and typically provides up to a 1-year warranty on their products. For specific warranty details, technical assistance, or to report any issues, please contact ExBrite customer service.
- Atenció al client: Refer to your purchase documentation or the ExBrite weblloc per obtenir informació de contacte.
- Període de garantia: Up to 1 Year (check specific product terms).
