VASAGLE ULNT118B22 70-Inch Console Table with Hidden Charging Station User Manual

1. Introducció

Thank you for choosing the VASAGLE ULNT118B22 70-inch console table. This versatile furniture piece is designed to enhance your living space with its functional design, including a hidden charging station. This manual provides detailed instructions for assembly, operation, maintenance, and safety to ensure optimal use and longevity of your product.

Image: The VASAGLE 70-inch console table, black finish, positioned behind a sofa in a modern living room, showcasing és Slim Profile and functional top surface with a laptop and decorative items.

2. Informació de seguretat

Si us plau, llegiu i comprengui tots els avisos i instruccions de seguretat abans del muntatge i l'ús. Si no segueix aquestes instruccions, pot patir lesions o danys al producte.

• Kit antibolcada: For safety reasons, always secure this table to the wall using the included anti-tip kit to prevent accidental tipping.
• Protectors de cantonades: Utilize the provided corner protectors to safeguard against bumps and potential injuries, especially in households with children.
• Seguretat dels nens: Children are not permitted to climb or play on this console table.
• Capacitat de pes: Do not exceed the maximum static load capacity of the tabletop (180 lb / 81.5 kg) and the shelf (20 lb / 9.1 kg).
• Seguretat elèctrica: Ensure the power strip is used in a dry environment. Do not overload the outlets.

Image: Anti-Tip Kit installation detail.

Image: Corner Protectors for safety.

3. Contingut del paquet

Before beginning assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• 1 x Slim Console Table (disassembled components)
• 1 x Assembly Bag (containing screws, hex key, etc.)
• 1 x Kit antivuelco
• 1 x manual d'instruccions

4. Instruccions de muntatge

Assembly typically requires two people and approximately 30-60 minutes. Tools recommended for assembly include a hex key (provided) and a screwdriver (not provided). Follow the step-by-step diagrams in the included Assembly Guide for detailed instructions.

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i suau per evitar ratllades.
2. Identifica les parts: Match each component with the corresponding labels in the Assembly Bag and the instruction manual.
3. Muntatge del marc: Attach the metal frame components using the provided screws and hex key. Ensure all connections are secure.
4. Fixar prestatges: Secure the particleboard shelves to the assembled frame.
5. Instal·leu l'estació de càrrega: Place the power strip into its designated compartment on the tabletop.
6. Ajustament final: Once all parts are in place, gently tighten all screws to ensure stability. Do not overtighten.
7. Attach Safety Features: Install the anti-tip kit to the wall and apply corner protectors as desired.

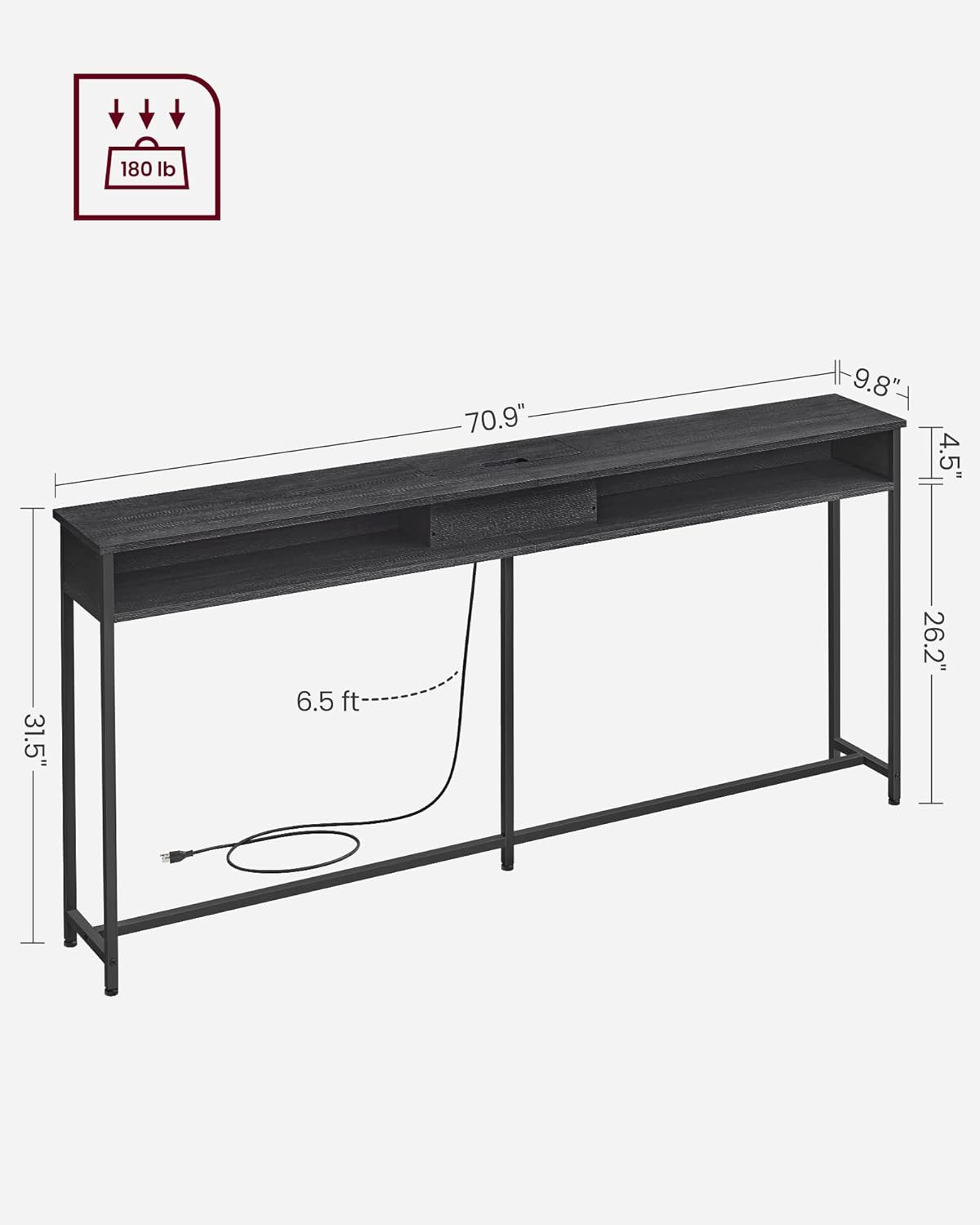

Image: Detailed dimensions of the console table, including the 70.9-inch width, 9.8-inch depth, and 31.5-inch height, along with the 6.5 ft power cord length.

5. Operating Instructions (Hidden Charging Station)

The console table features a convenient hidden charging station to keep your devices powered and your tabletop tidy.

• Accessing the Charging Station: Gently lift the hinged section of the tabletop to reveal the integrated power strip.
• Dispositius de connexió:
  • The power strip includes 2 endolls de corrent altern (120 V/12 A) for standard electrical devices.
  • També presenta 2 ports USB (5V/2A) for charging smartphones, tablets, and other USB-powered devices.
• Gestió de cables: Utilize the rear cable hole to guide charging cables from the hidden compartment to your devices on the tabletop, maintaining an organized appearance.
• Closing the Compartment: Once charging is complete or devices are disconnected, carefully lower the hinged tabletop section to conceal the power strip and cables.

Image: Hidden charging station with lid open, revealing two AC outlets and two USB ports.

Image: Rear cable hole for organized cable routing.

6. Manteniment

Una cura adequada ajudarà a mantenir l'aspecte i la funcionalitat de la vostra consola.

• Neteja: Netegeu les superfícies amb anunciamp cloth, then immediately wipe dry with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals.
• Vessaments: Promptly clean up any spills to prevent staining or damage to the engineered wood surface.
• Calor i humitat: Eviteu col·locar objectes calents directament sobre la superfície. Feu servir posagots per a begudes per evitar que es formin anells d'humitat.
• Apretar els elements de fixació: Periodically check and tighten all screws and fasteners to ensure the table remains stable.

7. Solució De Problemes

Si teniu algun problema amb la taula de consola, consulteu les solucions habituals següents:

8. Especificacions

9. Garantia i Suport

For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official VASAGLE weblloc web. Conserveu el rebut de compra per a qualsevol reclamació de garantia.
