IMEX Danemark Chrome Shower Column Mixer Set BDR031 User Manual

1. Introducció

Thank you for choosing the IMEX Danemark Chrome Shower Column Mixer Set BDR031. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.

Precaucions de seguretat

• Ensure all installation work is performed by a qualified professional to prevent damage or injury.
• Tanqueu el subministrament principal d'aigua abans de començar qualsevol instal·lació o manteniment.
• Do not use abrasive cleaners or tools on the chrome finish, as this can cause permanent damage.
• Verify all connections are secure and watertight to prevent leaks.

2. Producte acabatview

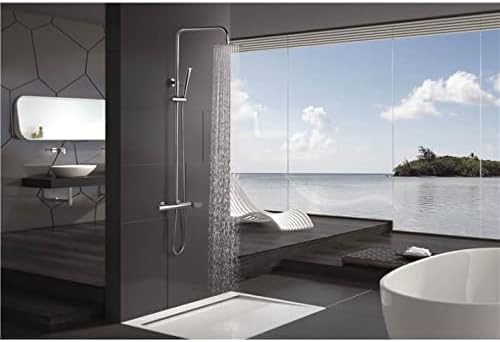

The IMEX Danemark series shower column features a modern design with curved and round lines, enhancing comfort and elegance in your bathroom. This set includes a robust, extensible shower bar and a high-quality mixer.

Característiques clau

• Extensible Shower Bar: Made of stainless steel, adjustable between 88 cm and 125 cm.
• Round Overhead Sprayer: 20 cm diameter, extra-flat, chrome-plated, and anti-limescale stainless steel.
• Adjustable Handheld Shower Holder: Allows for height adjustment to suit user preference.
• Single-Position Handheld Shower: Round design for comfortable use.
• Pressió d'aigua ajustable: Customize water flow intensity. Average flow rate is 12 liters per minute.
• Brass Faucet with Sedal Cartridge: Ensures precise control over water temperature and flow.
• Reinforced Flexible Hose: 1.5 m length for increased durability.
• Acabat: Chrome.

Components inclosos

• Capçal de dutxa superior
• Mànega flexible
• Dutxa de mà
• Bar de Dutxa
• Aixeta mescladora

3. Configuració i instal·lació

The IMEX Danemark Shower Column is designed for wall mounting. Proper installation is crucial for the functionality and longevity of the product. It is highly recommended that installation be carried out by a certified plumber or a qualified professional.

Directrius generals d'instal·lació

1. Prepareu l'àrea d'instal·lació: Ensure the wall surface is clean, level, and structurally sound to support the shower column.
2. Tanqueu el subministrament d'aigua: Locate and turn off the main water supply to your bathroom before starting any work.
3. Muntar el mesclador: Install the main mixer unit to the wall, ensuring hot and cold water connections are correctly aligned and sealed.
4. Install the Shower Bar: Securely attach the extensible shower bar to the wall, ensuring it is plumb and at the desired height.
5. Connect Shower Components: Attach the overhead shower head, flexible hose, and handheld shower to their respective connections on the shower bar and mixer.
6. Comproveu si hi ha fuites: Once all components are installed, slowly turn on the main water supply and carefully inspect all connections for any signs of leakage.
7. Funcionalitat de prova: Test the water flow, temperature control, and handheld shower functionality.

Refer to the technical diagram (Figure 5) for precise measurements and connection details. Ensure adequate space and proper plumbing connections are available.

4. Instruccions de funcionament

The IMEX Danemark Shower Column features a single-lever mixer for easy control of water flow and temperature.

Control del flux i la temperatura de l'aigua

• Ajust del flux: Move the mixer lever up to increase water flow and down to decrease it.
• Ajust de temperatura: Move the mixer lever left for hotter water and right for colder water. The integrated Sedal cartridge ensures precise temperature mixing.
• Pressió de l'aigua: The water outlet pressure is adjustable, allowing you to customize the force of the water spray. The average flow rate is approximately 12 liters per minute.

Handheld Shower Adjustment

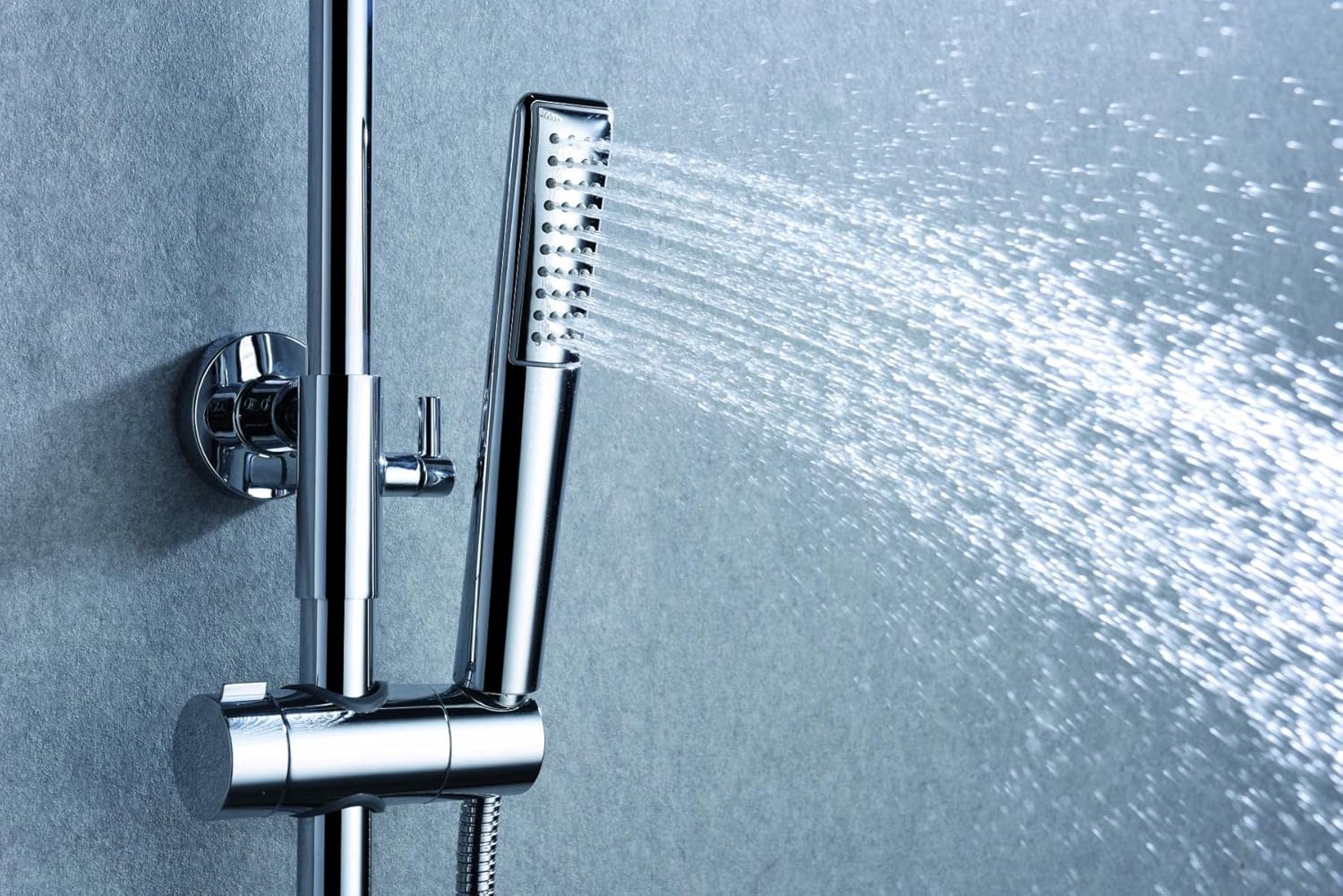

• The holder for the handheld shower is height-adjustable. Simply slide it along the shower bar to your preferred position.

5. Manteniment i Neteja

Regular cleaning and maintenance will ensure the longevity and pristine appearance of your IMEX shower column. Follow these steps carefully to avoid damaging the chrome finish.

1. Neteja inicial: For general surface cleaning, use a soft cotton cloth. Dampen the cloth if necessary. Gently wipe the faucet surface to remove most dirt without damaging the material. Do not use abrasive sponges or brushes.
2. Limescale Removal: Limescale deposits typically accumulate in corners and joints. Use a mild, citric acid-based cleaner for removal. Do not spray the concentrated cleaner directly onto the faucet. Instead, apply it to a cloth and then wipe the affected areas.
3. Neteja de l'aireador: The aerator can be easily removed for cleaning. Immerse it in warm water with a small amount of cleaner for approximately ten minutes to dissolve deposits.
4. Esbandida: After cleaning, thoroughly rinse the faucet with clean water to remove all cleaning product residues.
5. Poliment final: Repeat the initial cleaning step with a soft cotton cloth to completely remove any remaining cleaning product residues and restore a brilliant shine to the surface.

Consell addicional: Clean the sink and spout at the same time to ensure all fixtures shine together.

We recommend using a mild, citric acid-based cleaning product. Stronger, commonly used concentrates can irritate hands and eyes, potentially cause allergies, and redden sensitive skin. Similarly, harsh chemicals can damage the faucet's material.

6. Solució De Problemes

If you encounter any issues with your IMEX Danemark Shower Column, please refer to the following common troubleshooting tips. For complex problems, it is advisable to contact a qualified professional.

• Baixa pressió d'aigua: Check if the main water supply valve is fully open. Inspect the aerator and shower heads for limescale buildup and clean them as described in the Maintenance section.
• Fuites d'aigua: Ensure all connections are tightened properly. If leaks persist, the seals or O-rings might need replacement. Contact a professional.
• Temperatura de l'aigua inconsistent: Verify that both hot and cold water supplies are functioning correctly. If the issue persists, the mixer cartridge might require inspection or replacement by a professional.
• Difficulty Adjusting Shower Bar: Ensure the locking mechanism for the adjustable handheld shower holder is clean and free of debris.

7. Especificacions

8. Garantia i Suport

For information regarding warranty coverage, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or assistance with parts, please reach out to the manufacturer or the seller directly.

Venedor: DEVON CORP SL

Fabricant: IMEX PRODUCTS
