Rettru XD Security Camera User Manual

1. Producte acabatview

The Rettru XD Security Camera is a compact, versatile surveillance device designed for indoor and outdoor use. It offers high-definition video recording, night vision capabilities, and smart motion detection. With both Wi-Fi and offline hotspot modes, it provides flexible monitoring options. The camera comes equipped with a 64GB SD card for local storage and supports optional cloud backup.

Image: The Rettru XD Security Camera, demonstrating its small, discreet form factor.

2. Què s'inclou

Your Rettru XD Security Camera package includes the following components:

• 1 x Rettru XD Wireless Security Camera
• 1 targeta SD de 64 GB (preinstal·lada o per separat)
• 1 x cable de càrrega USB
• 1 x Base de muntatge
• 1 x Lector de targetes SD
• 1 x eina de restabliment
• 1 x Manual d'usuari (aquest document)

Image: Components included with the Rettru XD Security Camera, highlighting the camera and the 64GB SD card.

3. Característiques del producte

• Super Compact Size: Designed for discreet placement in various environments such as home security, office, baby monitoring, pet monitoring, and vehicle surveillance.
• Wired and Wireless Operation: Provides 24/7 protection when plugged into a power source. Offers approximately 90 minutes of wireless use on battery power.
• Comandament Wi-Fi Viewing: Allows live monitoring of your home, pets, or office from your smartphone. Supports 2.4GHz Wi-Fi networks only.
• Works Without Wi-Fi (Hotspot Mode): Functions as a hotspot camera for areas without Wi-Fi access. Connect directly to your phone for live viewing and playback, supporting continuous recording and motion detection.
• HD Video & Night Vision: Captures clear, high-definition video day and night. Infrared (IR) night vision enables monitoring in low-light conditions.
• Smart Motion Alerts: Sends instant notifications to your phone upon detecting movement. Detection zones can be customized to focus on specific areas.
• Emmagatzematge local i al núvol: Videos are securely stored on the included 64GB SD card. Optional cloud backup service is available for additional security and accessibility.

4. Guia de configuració

4.1 Càrrega inicial

Before first use, fully charge the camera. Connect the camera to a USB power adapter (not included) or a computer USB port using the provided USB charging cable. The charging indicator light will show the charging status.

4.2 Inserció de la targeta SD

Locate the SD card slot on the camera. Gently insert the included 64GB SD card into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.

4.3 Descàrrega i instal·lació d'aplicacions

To utilize the camera's full features, download the official companion application to your smartphone. Scan the QR code provided in the quick start guide (if applicable) or search for the app name in your device's app store. Follow the on-screen instructions to complete the installation.

4.4 Connexió a Wi-Fi

1. Assegureu-vos que el vostre telèfon intel·ligent estigui connectat a una xarxa Wi-Fi de 2.4 GHz.
2. Open the installed application and create an account or log in.
3. Follow the in-app instructions to add a new device. This typically involves powering on the camera and scanning a QR code displayed on your phone with the camera's lens, or connecting to the camera's temporary Wi-Fi hotspot.
4. Once connected, the camera will link to your home Wi-Fi network.

Image: Visual representation of the Wi-Fi remote viewing setup, showing connectivity between phone, router, and camera.

5. Instruccions de funcionament

5.1 Viu View

Open the companion app on your smartphone. Select your camera from the device list to access the live video feed. You can view foo en temps realtagi des de qualsevol lloc amb connexió a Internet.

5.2 Enregistrament i reproducció

The camera automatically records footage to the inserted SD card based on your settings (e.g., continuous recording, motion-triggered recording). To view recorded videos, navigate to the playback section within the app. You can browse by date and time to review esdeveniments passats.

5.3 Offline Mode (Hotspot)

For areas without Wi-Fi, the camera can create its own local Wi-Fi hotspot. Connect your smartphone directly to this hotspot (usually named after the camera's model or serial number). This allows for local live viewing and playback without an internet connection. Note that remote viewing is not possible in this mode.

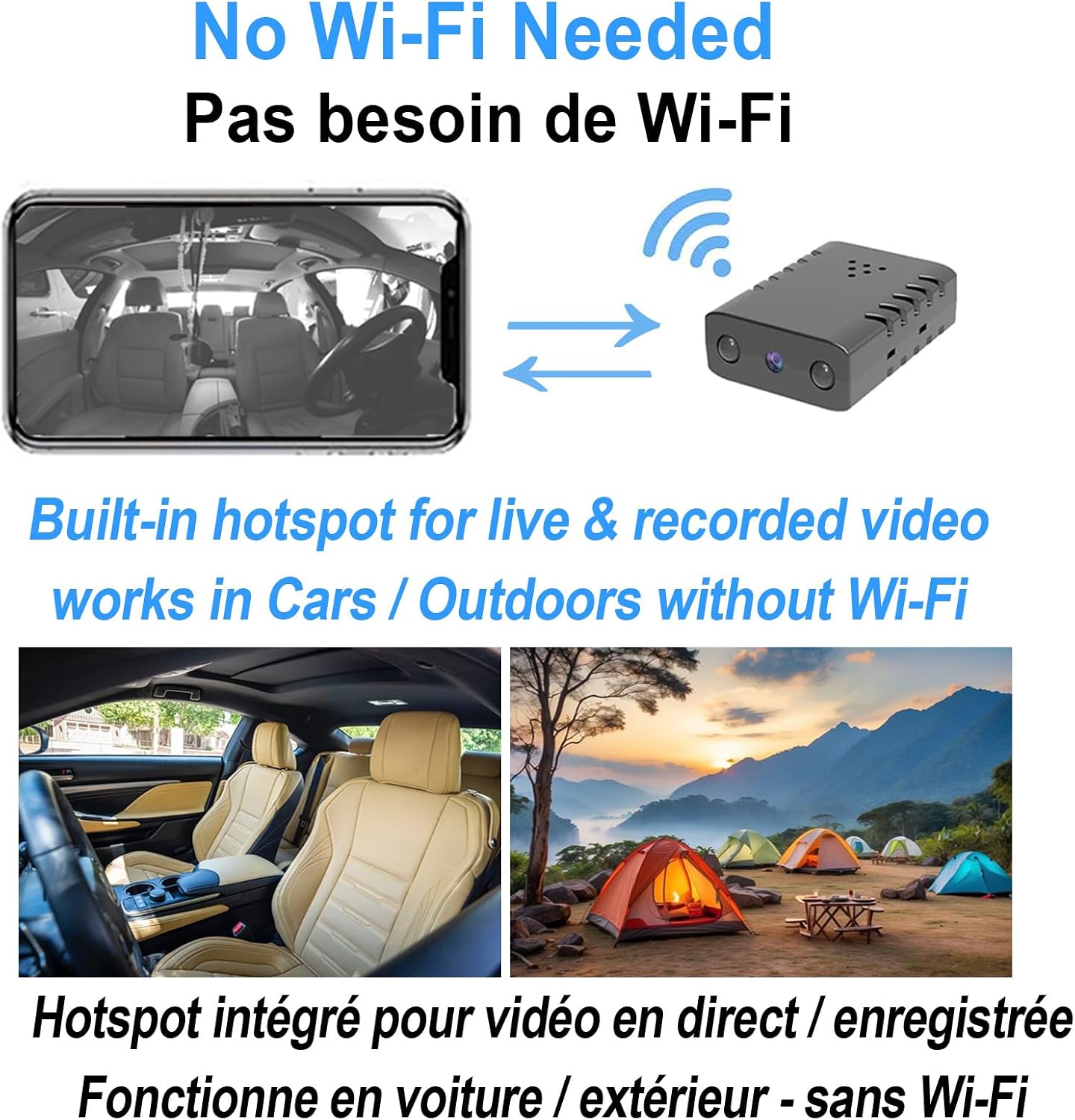

Image: Illustration of the camera's hotspot mode, enabling direct connection for use in cars or outdoors without external Wi-Fi.

6. Detecció de moviment i alertes

The Rettru XD Security Camera features intelligent motion detection. When movement is detected within the camera's field of view, it can trigger recording and send instant push notifications to your smartphone.

6.1 Customizing Detection Zones

Within the app settings, you can define specific areas within the camera's view where motion detection should be active. This helps reduce false alarms from irrelevant movements outside critical zones.

6.2 Alert Sensitivity

Adjust the motion detection sensitivity level in the app to fine-tune how easily the camera triggers an alert. Higher sensitivity detects smaller movements, while lower sensitivity requires more significant motion.

Image: Demonstration of motion detection, showing how the camera identifies movement and sends alerts to your phone.

7. Opcions d'emmagatzematge

7.1 Local Storage (SD Card)

The camera comes with a 64GB SD card, providing ample space for recorded video footage. The storage capacity can hold up to 16 days of video footage, depending on recording settings and activity levels. The SD card reader is included for easy access to files en un ordinador.

7.2 Cloud Storage (Optional)

For enhanced security and accessibility, an optional cloud backup service is available. This service provides an alternative storage solution, protecting your footage even if the physical SD card is damaged or removed. Refer to the app for details on subscribing to cloud storage.

Image: Visual representation of the 64GB SD card for local storage and the cloud icon for optional cloud storage.

8. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar la lent i el cos de la càmera. Eviteu utilitzar netejadors líquids o materials abrasius.
• Actualitzacions de firmware: Regularly check the companion app for available firmware updates. Keeping the firmware updated ensures optimal performance and security.
• Cura de la bateria: For prolonged battery life, avoid extreme temperatures. If storing the camera for an extended period, charge it to about 50% before storage.
• Gestió de la targeta SD: Periodically format the SD card through the app to maintain its performance and prevent data corruption. Back up important footage abans de formatar.

9. Solució De Problemes

10. Especificacions

11. Garantia i Suport

11.1 Informació de la garantia

The Rettru XD Security Camera comes with a 12 mesos de garantia des de la data de compra. Aquesta garantia cobreix defectes de fabricació i avaries en condicions d'ús normal. Conserveu el comprovant de compra per a reclamacions de garantia.

11.2 Atenció al client

For technical assistance, troubleshooting, or warranty inquiries, please contact Rettru customer support. Refer to the contact information provided on the product packaging or the official Rettru website. When contacting support, please have your product model number (XD-64GB) and purchase details ready.

12. Informació important de seguretat

• No exposeu la càmera a temperatures extremes, llum solar directa ni humitat.
• Utilitzeu només el cable de càrrega subministrat.
• Mantingueu la càmera i els seus accessoris fora de l'abast dels nens.
• No intenteu desmuntar ni modificar la càmera. Això anul·larà la garantia.
• Ensure proper ventilation when the camera is in operation, especially if plugged in for extended periods.
