iZEEKER PIHK03 Type-C USB Hardwire Kit Instruction Manual

1. Producte acabatview

The iZEEKER PIHK03 Type-C USB Hardwire Kit is designed to provide continuous power to your dash camera, enabling 24-hour parking surveillance and protecting your vehicle's battery from drainage. This kit connects directly to your car's OBD-II port, offering a reliable power source for compatible USB Type-C dash cams.

2. Característiques clau

• Àmplia compatibilitat: Designed for USB Type-C port dash cams and car chargers, including iZEEKER GD300, GD850, GD800, and iD400 models.
• Broad Vehicle Voltage Rang: Compatible with vehicles providing 11.5V-40V input voltage, suitable for cars, trucks, buses, and SUVs.
• 24-Hour Parking Surveillance: Supplies uninterrupted power to the dash camera via the OBD-II connector, allowing continuous monitoring even when the vehicle is off.
• Sensor G integrat: Activates the dash cam to record upon detecting vibrations when the vehicle is parked. The dash cam powers off after 1 minute of no vibration to conserve battery.
• Volum baixtage Protecció: Automatically cuts off power to the dash cam if the vehicle's battery voltage drops below 11.5V, preventing battery drainage.
• Proteccions de seguretat múltiples: Inclou overvoltage protection, short circuit protection, and battery protection for safe operation.

Figure 2.1: Illustration of 24/7 Parking Monitoring capability.

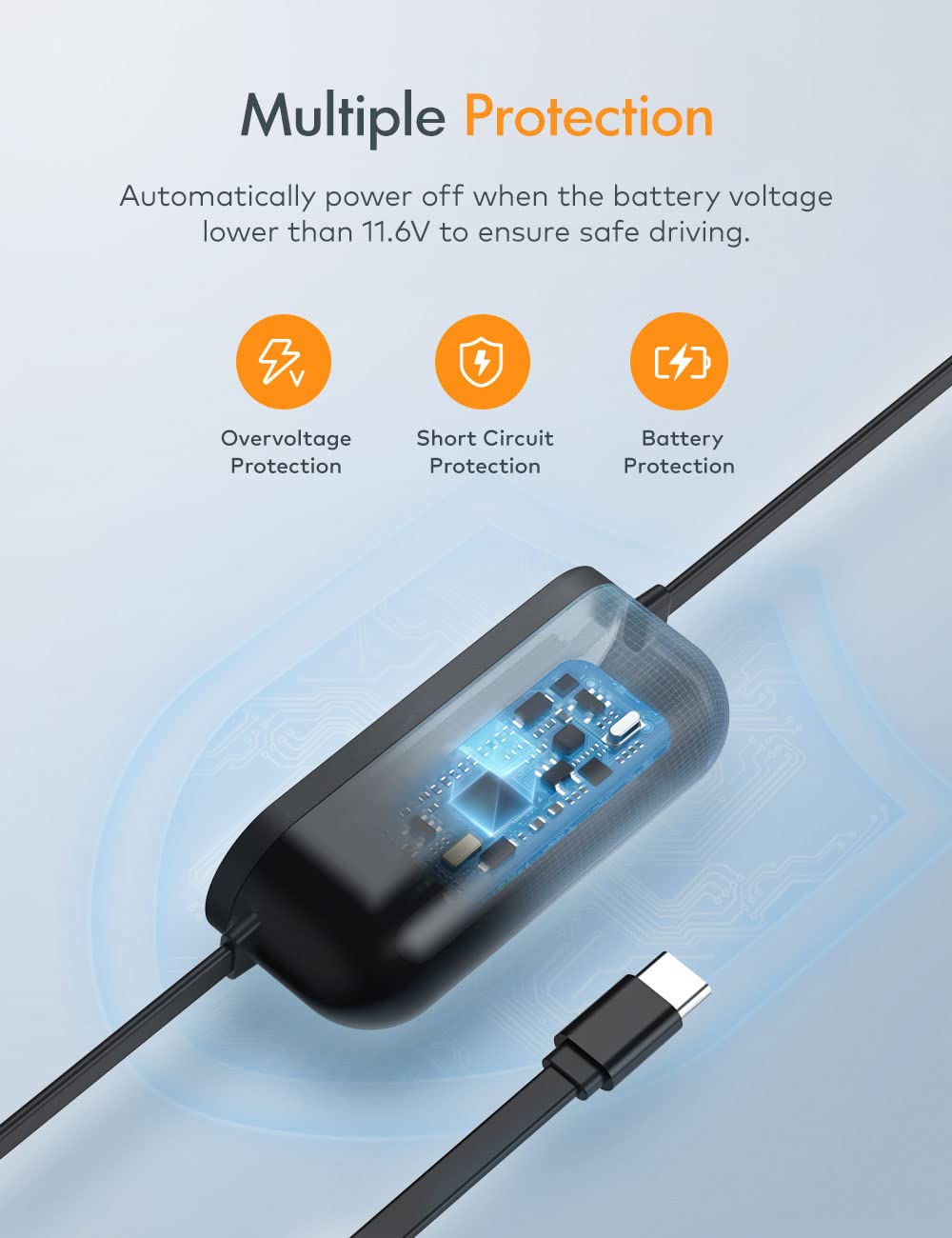

Figure 2.2: Multiple protection features of the hardwire kit.

3. Què hi ha a la caixa

• iZEEKER PIHK03 Type-C USB Hardwire Kit

4. Especificacions

Figure 4.1: Components of the hardwire kit.

Figure 4.2: Wide input voltage range for vehicle compatibility.

5. Configuració i instal·lació

Follow these steps to properly install your iZEEKER PIHK03 Hardwire Kit:

1. Mount Your Dash Cam: Securely mount your dash camera in a location that provides a clear, unobstructed view de la carretera.
2. Localitza el port OBD-II: Identify your vehicle's OBD-II connector, typically located under the dashboard on the driver's side.
3. Connect Hardwire Kit: Plug the OBD-II connector of the hardwire kit into your vehicle's OBD-II port.
4. Cablejat de ruta: Carefully run the Type-C cable from the OBD-II port towards your dash camera. Hide the wire under the headliner, along the A-pillar, and under the dashboard trim for a neat and secure installation.
5. Secure G-Sensor: The G-sensor module has a 3M adhesive sticker. Remove the backing and firmly attach the G-sensor to the windshield near your dash cam.
6. Connecteu-vos a la Dash Cam: Plug the Type-C end of the hardwire kit into the Type-C charging port of your dash camera.
7. Funcionalitat de prova: Start your vehicle to ensure the dash cam powers on. Turn off your vehicle and test the parking surveillance mode (if applicable to your dash cam) by gently shaking the vehicle to trigger the G-sensor.

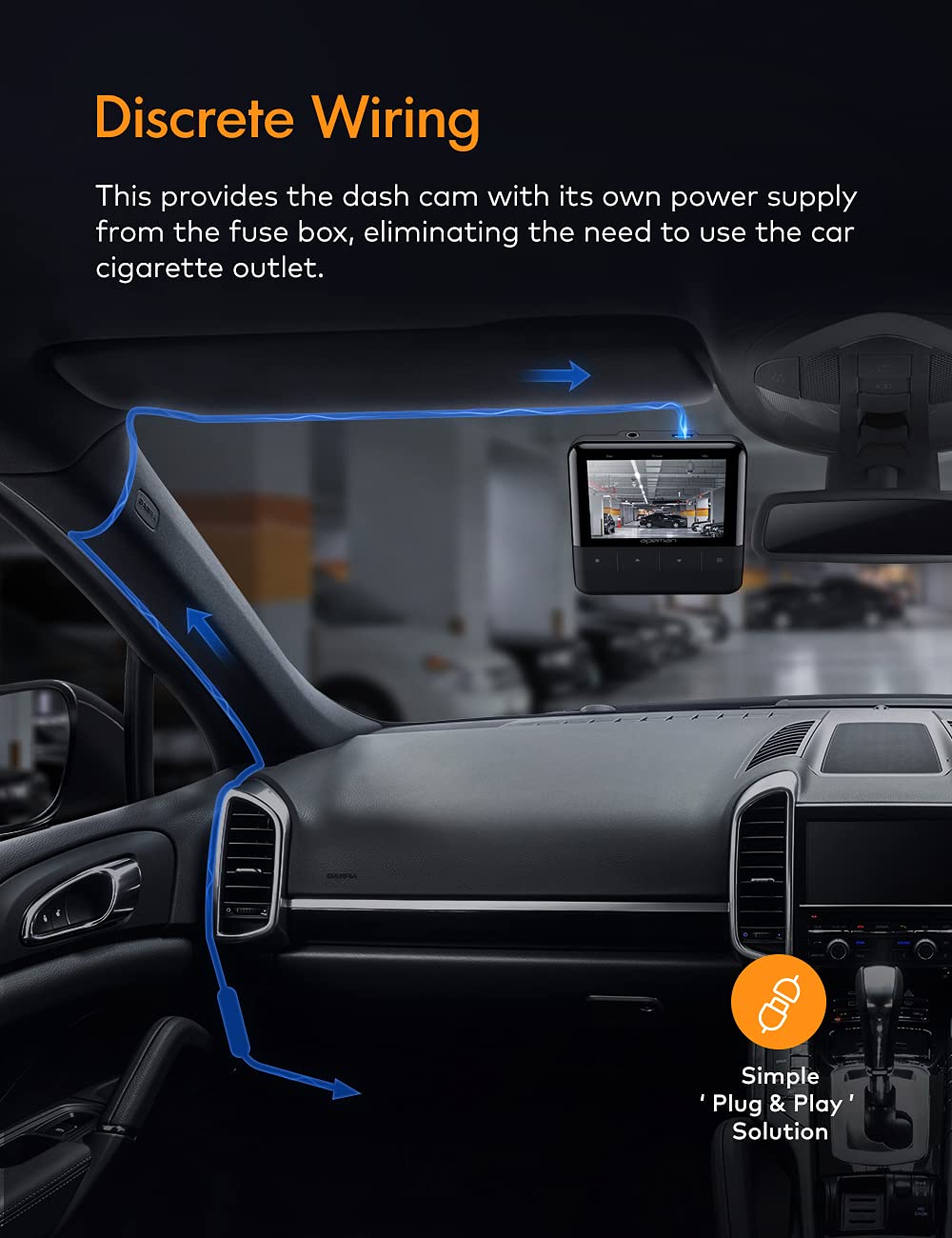

Figura 5.1: Example of discrete wiring installation.

6. Instruccions de funcionament

The iZEEKER PIHK03 Hardwire Kit operates automatically to manage power delivery to your dash camera:

• Funcionament normal: When your vehicle's ignition is on, the hardwire kit provides continuous power to your dash camera, allowing it to record normally.
• Mode de vigilància d'aparcament: After the vehicle's ignition is turned off, the dash cam will typically shut down after 5 minutes. The built-in G-sensor in the hardwire kit then enters a monitoring state. If the vehicle experiences a vibration (e.g., impact, door slam), the G-sensor will trigger the hardwire kit to power on the dash cam, initiating recording. The dash cam will automatically shut down after 1 minute if no further vibration signals are detected, conserving battery power.
• Volum baixtage Protecció: The kit continuously monitors your vehicle's battery voltage. Si el voltage drops below 11.5V, the hardwire kit will automatically cut off power to the dash cam to prevent excessive battery discharge, ensuring your vehicle can start.

7. Manteniment

To ensure optimal performance and longevity of your hardwire kit:

• Inspecció periòdica: Periodically check all connections, especially the OBD-II plug and the Type-C connection to the dash cam, to ensure they are secure and free from corrosion or damage.
• Gestió de cables: Ensure that the wiring remains neatly tucked away and is not pinched or exposed to excessive heat or sharp edges.
• Neteja: Keep the OBD-II port and the hardwire kit's connectors clean and free of dust or debris.

8. Solució De Problemes

If you encounter issues with your iZEEKER PIHK03 Hardwire Kit, refer to the following common problems and solutions:

• La càmera del salpicadero no s'encén:
  • Ensure the hardwire kit is securely plugged into the vehicle's OBD-II port.
  • Verify the Type-C connector is firmly inserted into the dash cam's power input.
  • Check if your dash cam is compatible with a Type-C power input.
  • Confirm your vehicle's battery voltage is above 11.5V. The low voltage protection feature will prevent the dash cam from powering on if the battery is too low.
• Parking Mode Not Working / Dash Cam Shuts Off Immediately When Car is Off:
  • Ensure the G-sensor module is securely attached and not obstructed.
  • Verify that your dash cam's parking mode settings are correctly configured to work with a hardwire kit (refer to your dash cam's manual).
  • The hardwire kit will cut power if the battery voltage drops below 11.5V. If your vehicle's battery is weak, this protection may activate prematurely.
  • Confirm that the dash cam itself supports parking mode functionality when powered by a hardwire kit.
• Potència intermitent:
  • Inspect the entire cable for any signs of damage, kinks, or loose connections.
  • Ensure the OBD-II port in your vehicle is clean and free of debris.

If these steps do not resolve the issue, please contact iZEEKER Customer Support for further assistance.

9. Garantia i Suport

iZEEKER products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your PIHK03 Hardwire Kit, please refer to the warranty card included with your product or visit the official iZEEKER website. You may also contact iZEEKER Customer Service directly for professional assistance.
