Hayward SX0244DA2 Sand Filter Bottom Diffuser with Laterals and Central Tube Instruction Manual

1. Introducció

This manual provides essential information for the installation, operation, and maintenance of your Hayward SX0244DA2 Sand Filter Bottom Diffuser with Laterals and Central Tube. This component is crucial for the efficient filtration of your pool water. Please read these instructions carefully before proceeding with installation or maintenance to ensure proper function and longevity of the product.

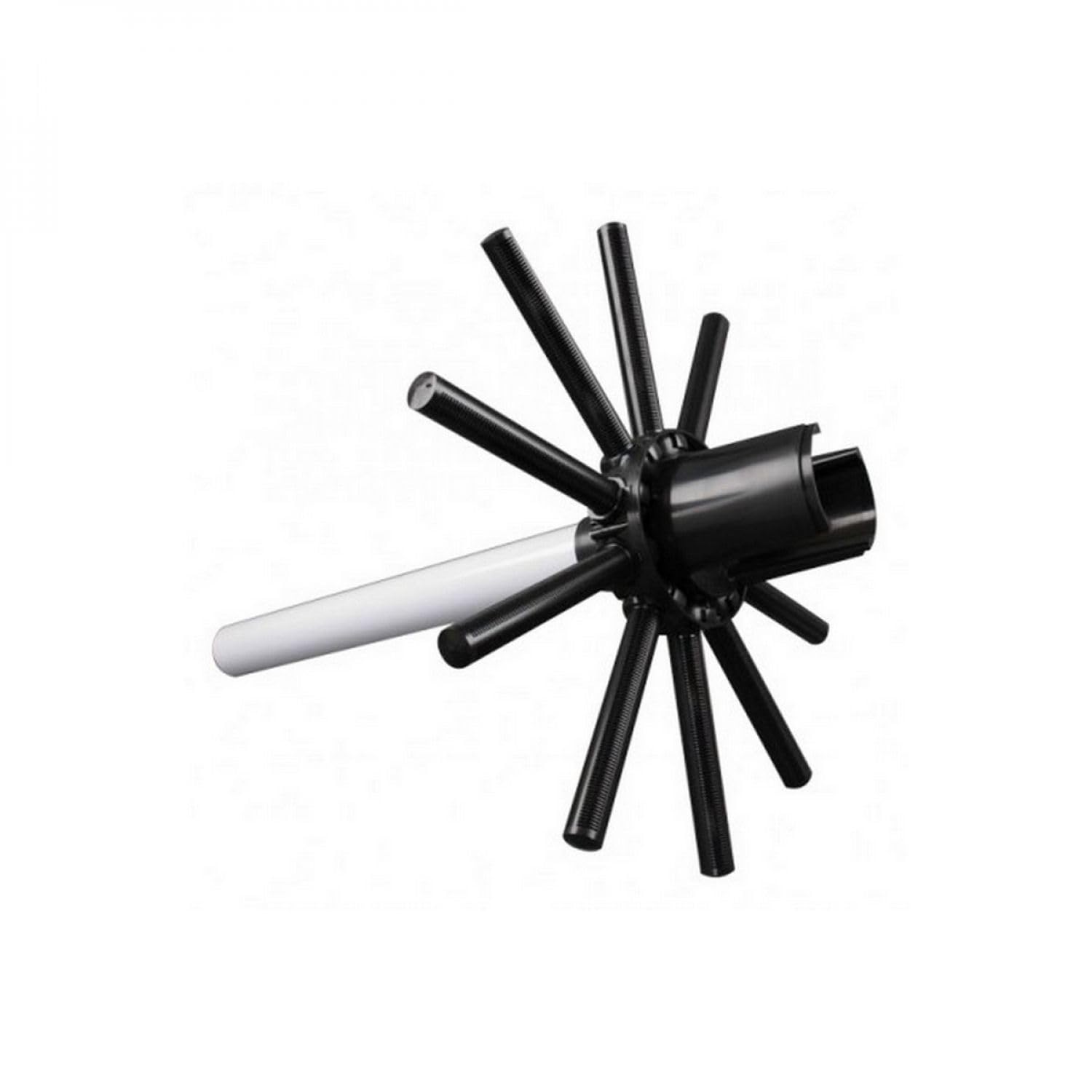

Figure 1: Hayward SX0244DA2 Sand Filter Bottom Diffuser with Laterals and Central Tube. This image displays the complete assembly, including the central tube and the radiating laterals, designed for optimal water distribution within a sand filter.

2. Informació de seguretat

Always observe basic safety precautions when working with pool equipment.

• Ensure the pool pump and filter system are turned off and disconnected from power before performing any installation or maintenance.
• Utilitzeu equips de protecció individual adequats, com ara guants i ulleres de protecció.
• If you are unsure about any procedure, consult a qualified pool technician.
• Mantenir els nens i les mascotes lluny de la zona de treball.

3. Producte acabatview

The Hayward SX0244DA2 bottom diffuser assembly is a critical component within your sand filter system. It consists of a central tube and multiple lateral arms (crépines) designed to ensure uniform water flow through the filter media.

Característiques principals:

• Funció: Distributes water evenly across the bottom of the sand filter tank, allowing for efficient filtration as water passes upwards through the sand during backwash, and downwards during filtration.
• Compatibilitat: Designed for Hayward sand filter models S0244T, S244TXE, and S0246T.
• Construcció: Made from durable hard plastic for longevity in pool environments.
• Dimensions: Overall diameter of the laterals assembly is 156 mm.

4. Configuració i instal·lació

This section outlines the general steps for installing the SX0244DA2 bottom diffuser. Specific filter models may have slight variations; always refer to your sand filter's primary manual for detailed instructions.

Passos d'instal·lació:

1. Preparació: Ensure the sand filter tank is empty and clean. Remove any old or damaged diffuser components.
2. Assemble Laterals: If the laterals are not pre-assembled to the central tube, carefully attach each lateral arm to the central tube. Ensure they are securely fastened but do not overtighten.
3. Position in Tank: Carefully lower the assembled diffuser (central tube with laterals) into the bottom of the sand filter tank. Ensure the central tube is centered and the laterals are spread out evenly across the bottom.
4. Secure Central Tube: The top of the central tube will typically connect to the filter's multiport valve or a standpipe. Ensure this connection is secure and properly sealed according to your filter's instructions.
5. Afegir material filtrant: Once the diffuser is securely in place, carefully add the appropriate amount of filter sand or other media into the tank, ensuring not to damage the laterals.
6. Assemblea final: Reassemble the rest of your sand filter system, including the multiport valve and plumbing connections.
7. Comprovació de fuites: After reassembly, perform a leak check before fully operating the system.

Nota: It is recommended to fill the filter tank with water up to the level of the laterals before adding sand to cushion the impact and prevent damage to the diffuser arms.

5. Instruccions de funcionament

The SX0244DA2 diffuser operates passively within the sand filter system. Its primary role is to facilitate proper water flow during filtration and backwashing cycles.

• Filtració: During the filtration cycle, water enters the top of the filter, flows downwards through the sand media, and is collected by the laterals of the bottom diffuser. The laterals ensure that filtered water is efficiently collected and directed out of the filter.
• Rentat a contracorrent: During backwashing, water flows in reverse (upwards) through the laterals, agitating the sand media to dislodge trapped debris. The even distribution provided by the laterals is crucial for effective cleaning of the filter bed.

Ensure your sand filter's multiport valve is set to the correct position for the desired operation (Filter, Backwash, Rinse, Waste, Recirculate, Closed).

6. Manteniment

The SX0244DA2 diffuser itself requires minimal direct maintenance, but its proper function relies on the overall maintenance of your sand filter.

• Rentat a contracorrent regular: Perform backwashing as recommended by your sand filter manufacturer or when the pressure gauge indicates a need for cleaning. This prevents excessive buildup on the laterals.
• Inspect During Sand Changes: When replacing the filter sand (typically every 3-5 years), inspect the laterals and central tube for cracks, damage, or blockages. Replace any damaged components.
• Chemical Cleaning: Periodically, a chemical filter cleaner can be used to remove oils, scale, and other stubborn deposits from the filter media and internal components, including the diffuser. Follow the cleaner manufacturer's instructions.

7. Solució De Problemes

If you experience issues with your sand filter, the bottom diffuser might be a contributing factor.

8. Especificacions

9. Garantia i Suport

This Hayward product comes with a 12 mesos de garantia des de la data de compra.

For technical assistance, warranty claims, or any product-related inquiries, please contact our customer service department.

• Customer Service Availability: Monday to Friday, 9:00 AM to 1:00 PM (local time).
• Mètode de contacte: Please refer to your purchase documentation or the Hayward official website for specific phone numbers or contact forms.

Please have your product model number (SX0244DA2) and proof of purchase ready when contacting support.
