Manual d'usuari del monitor de vídeo per a nadons HelloBaby HB41

Introducció

The HelloBaby HB41 Video Baby Monitor provides parents with a secure and reliable way to monitor their baby. Featuring a 4-inch IPS screen, two-way talk, night vision, and temperature monitoring, this device ensures you can keep a close eye on your little one without Wi-Fi dependency, enhancing privacy and security. Its long range and extended battery life offer flexibility and peace of mind.

Image: The HelloBaby HB41 baby monitor system, showing the camera unit and the parent display unit with its user interface.

Què hi ha a la caixa

Upon opening your HelloBaby HB41 package, please ensure all the following components are present:

• 4" Baby Monitor with Camera and Audio (Parent Unit and Camera Unit)
• 1 × Wall Mount Kit
• 2 × AC Adapters (one for the camera, one for the parent unit)
• 1 × Manual d'usuari (aquest document)

Característiques del producte

The HelloBaby HB41 is equipped with advanced features designed for optimal baby monitoring:

• New Upgrade IPS Screen: Proporciona àmplia viewing angles, accurate color reproduction, and high contrast for a clear, vivid image of your baby.
• Night Vision & VOX Mode: Infrared night vision allows clear monitoring in darkness. VOX mode conserves power by turning off the display and activating when baby cries.
• No WiFi - Safe & Protect Privacy: Operates on 2.4GHz FHSS technology, ensuring a secure, private connection without Wi-Fi or app dependency.
• Two-way Talk & Temperature Sensor: Communicate with your baby remotely and monitor the room temperature accurately.
• 1000ft Range & No-cut-out: Offers extended range for monitoring from various locations within your home or backyard without signal loss.
• Pan-Tilt-Zoom: Ajusta la càmera de forma remota view to cover a wider area of the nursery.
• Cançons de bressol: Cançons de bressol integrades per calmar el teu nadó.

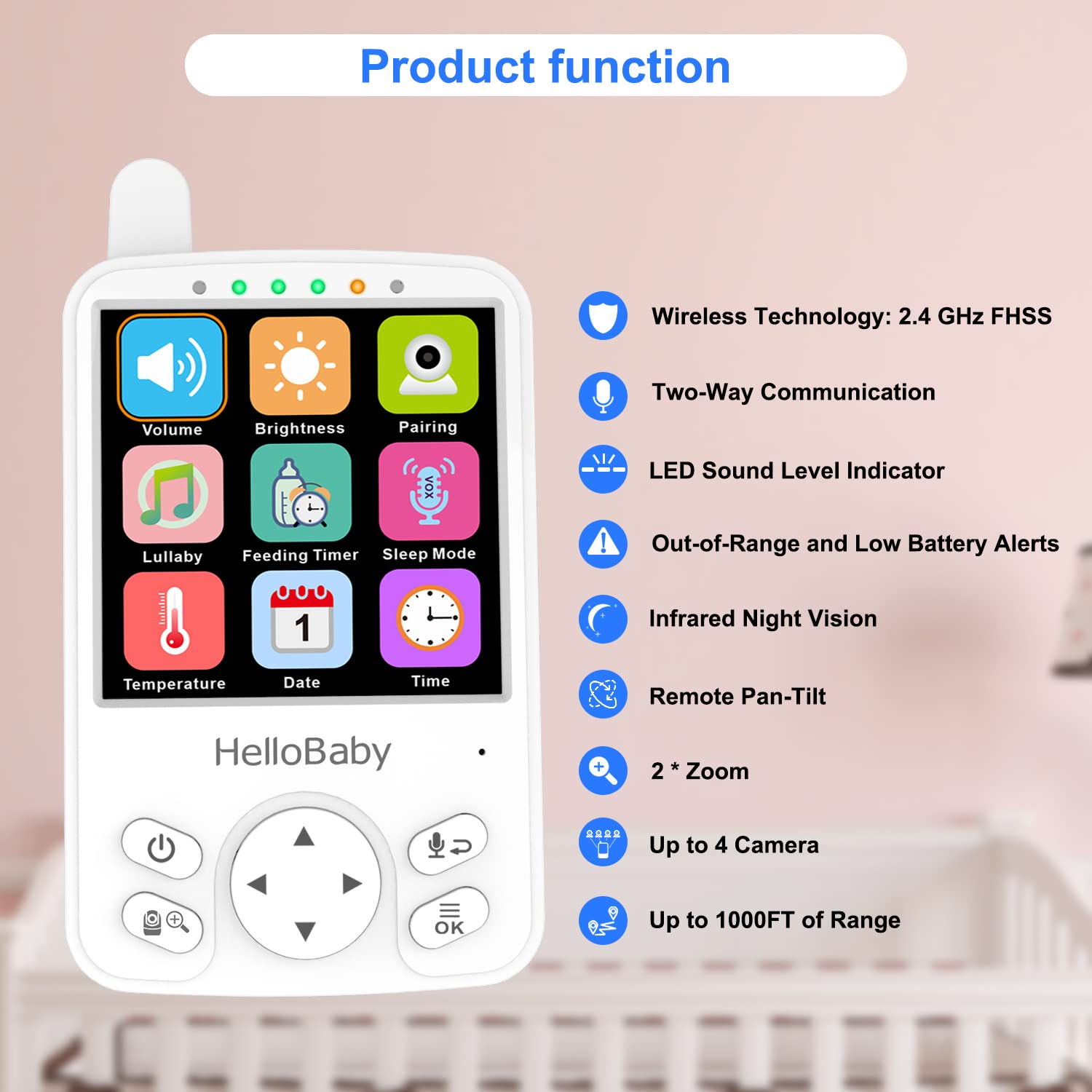

Imatge: Un cop mésview of the HelloBaby HB41's key functions, including wireless technology, two-way communication, LED sound level indicator, alerts, night vision, remote pan-tilt, zoom, multi-camera support, and long range.

Image: A visual comparison demonstrating the superior clarity and wider viewing angles of the IPS LCD screen used in the HB41 monitor compared to a normal LCD screen.

Image: Illustration highlighting the 2000 mAh battery of the HB41 parent unit, providing 12 hours of extra long standby time for day and night monitoring.

Image: Depiction of the two-way communication feature, showing a parent speaking into the monitor and the baby hearing it, along with temperature and time display.

Image: An illustration of the night vision capability, showing the camera monitoring a baby sleeping in a dark room with musical notes indicating lullabies.

Image: Visual representation of the monitor's 1000ft long range, allowing monitoring from various parts of a house or backyard, emphasizing no Wi-Fi or app requirement.

Image: A close-up of the camera unit near a sleeping baby, highlighting the temperature sensor feature that allows monitoring of the baby's room temperature.

Guia de configuració

1. Càrrega de la unitat principal

Before first use, fully charge the parent unit for approximately 7-8 hours. Connect one AC adapter to the parent unit and plug it into a power outlet. The battery indicator will show charging status.

2. Alimentació de la unitat de càmera

Connect the second AC adapter to the camera unit and plug it into a power outlet. The camera unit will automatically power on.

3. Col·locació de la càmera

Col·loqueu la unitat de càmera en un lloc que ofereixi una visió clara view of your baby's crib or play area. Ensure it is out of reach of children and at least 3 feet (1 meter) away from the crib to prevent entanglement hazards. The included wall mount kit can be used for elevated placement.

4. Emparellament (si cal)

The parent unit and camera unit are pre-paired at the factory. If they do not connect automatically, or if you are adding an additional camera, follow these steps:

1. On the parent unit, press the Menú botó.
2. Navegueu fins a Càmera icon (often looks like a camera with a plus sign).
3. Seleccioneu Afegeix una càmera or Maridatge.
4. En 10 segons, premeu el botó Parella button on the back of the camera unit.
5. The parent unit will display a confirmation once pairing is successful.

Instruccions de funcionament

Encès/Apagat

• To power on the parent unit, press and hold the Poder botó fins que la pantalla s'il·lumini.
• Per apagar-lo, manteniu premut el botó Poder botó fins que la pantalla s'apagui.
• The camera unit powers on automatically when connected to power.

Volume and Brightness Adjustment

• Premeu el botó Menú botó.
• Navegueu fins a Volum or Brillantor icona.
• Use the arrow buttons to adjust the level.
• Premeu OK per confirmar o Menú per sortir.

Pan-Tilt-Zoom (PTZ)

• Mentre viewing the live feed, use the directional arrow buttons on the parent unit to pan (move horizontally) and tilt (move vertically) the camera.
• To zoom in or out, press the Zoom button (often indicated by a magnifying glass icon).

Image: The camera unit demonstrating its 120-degree tilt and 355-degree pan capabilities for comprehensive room coverage.

Xerrada bidireccional

• Manteniu premut el botó Parla button (microphone icon) on the parent unit to speak to your baby through the camera's speaker.
• Release the button to hear your baby.

Image: A person using the two-way talk feature of the HelloBaby monitor, with speech bubbles indicating communication between the parent and baby.

Mode VOX (centraleta operada per veu)

• VOX mode conserves battery by turning off the parent unit's screen when no sound is detected from the baby's room.
• The screen will automatically activate and alert you when the baby makes a sound (e.g., crying, babbling).
• To enable/disable VOX mode or adjust sensitivity, go to the Menú i seleccioneu el VOX icona.

Image: A split image illustrating the VOX mode, showing the monitor screen off when the baby is sleeping peacefully and turning on to display the baby when crying is detected.

Image: Another visual example of VOX mode, showing the monitor screen blank when the baby is asleep and displaying the baby's image when crying, indicating sound activation.

Visió nocturna

La càmera canvia automàticament a visió nocturna per infrarojos en condicions de poca llum, proporcionant una imatge clara en blanc i negre del vostre nadó.

Image: The monitor displaying a clear black-and-white image of a sleeping baby, demonstrating the automatic night vision feature.

Monitorització de la temperatura

The current room temperature is displayed on the parent unit's screen. This helps ensure your baby's environment is comfortable.

Cançons de bressol

To play lullabies, access the Cançó de bressol option from the parent unit's menu. You can select different melodies to help soothe your baby to sleep.

Temporitzador d'alimentació

The parent unit includes a feeding timer function. Access it from the menu to set reminders for feeding times.

Manteniment

Neteja

• Unplug both units before cleaning.
• Use a soft, dry cloth to clean the surfaces of the parent unit and camera.
• No utilitzeu esprais de neteja ni netejadors líquids directament sobre les unitats.

Battery Care (Parent Unit)

• To maximize battery life, fully charge the parent unit before initial use.
• Eviteu esgotar completament la bateria amb freqüència.
• If storing the unit for an extended period, charge it periodically to maintain battery health.

Resolució de problemes

Especificacions

Garantia i Suport

HelloBaby products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included in your product packaging or visit the official HelloBaby website. If you encounter any issues or require technical assistance, please contact HelloBaby customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.

Per a més ajuda, podeu visitar el HelloBaby Store on Amazon.
