Manual d'usuari del monitor per a nadons HelloBaby HB6233

1. Introducció

Thank you for choosing the HelloBaby HB6233 Baby Monitor. This device is designed to provide parents with peace of mind by offering a secure, private, and reliable way to monitor their baby. Featuring a 3.2-inch IPS color display, 2.4GHz digital wireless technology, and a range of useful functions, this monitor ensures you can always keep an eye and ear on your little one without relying on Wi-Fi.

The HelloBaby HB6233 Baby Monitor system, showing the camera unit and the portable parent unit with a 3.2-inch IPS display.

2. Característiques del producte

• 3.2-inch IPS Color Display: Provides a clear and wide view del teu nadó.
• Tecnologia sense fil digital de 2.4 GHz: Ensures a secure, interference-free connection without Wi-Fi, offering enhanced privacy.
• Visió nocturna HD: Automatic infrared night vision allows for clear monitoring in low-light conditions or complete darkness.
• Xerrada bidireccional: Communicate with your baby remotely to soothe them with your voice.
• Sensor de temperatura: Accurately monitors the room temperature around your baby, displayed on the parent unit.
• Mode VOX (Intercanvi operat per veu): The display turns off to save power and activates automatically when sound is detected, alerting you to your baby's cries.
• Pan, Tilt, and Digital Zoom: Ajusta la càmera de forma remota viewing angle (360-degree horizontal, 120-degree vertical) and zoom in for a closer look.
• De llarg abast: Up to 1000ft (300m) open space transmission range, allowing mobility around your home.
• Cançons de bressol: Built-in lullabies to help soothe your baby to sleep.

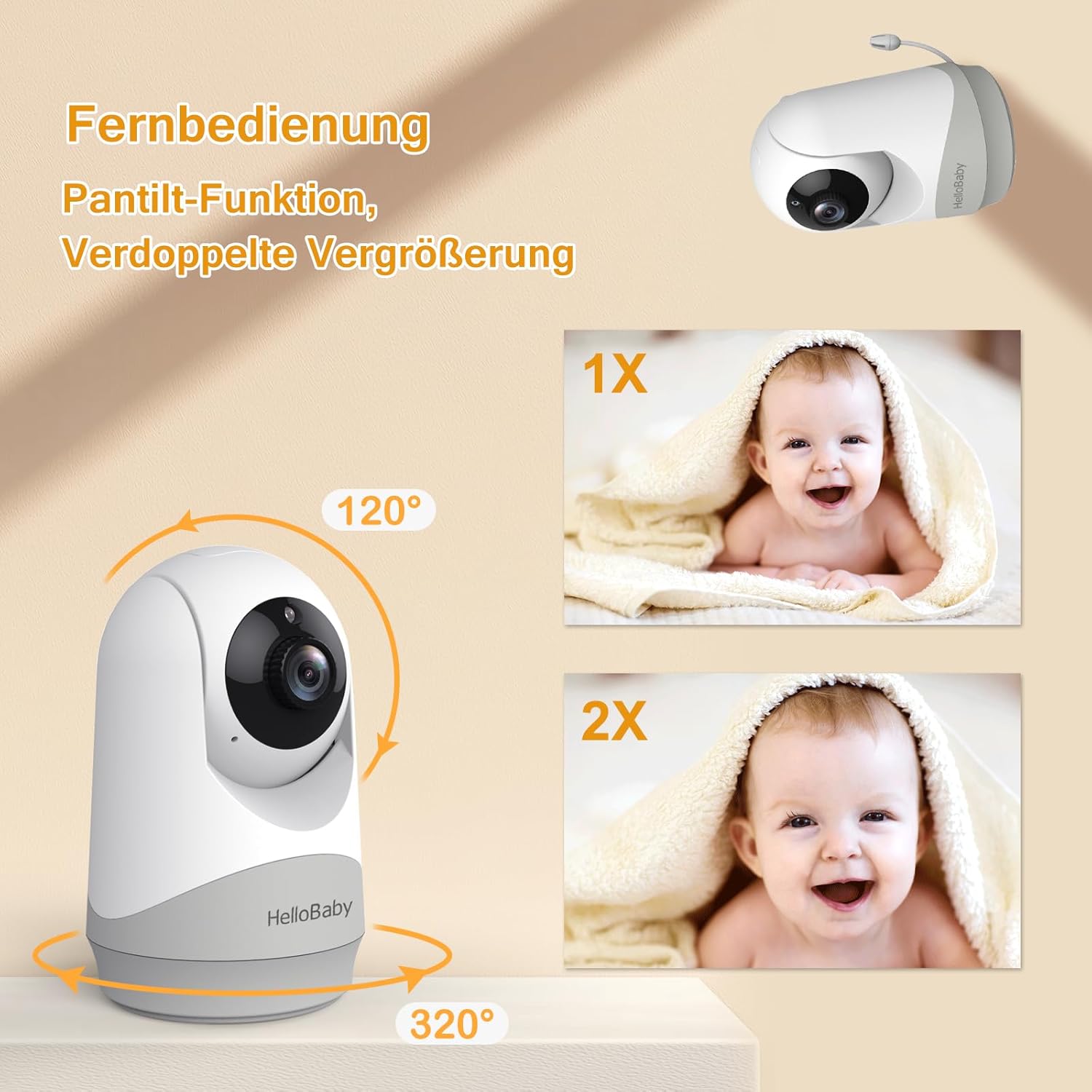

The camera unit offers remote pan (360 degrees) and tilt (120 degrees) functionality, along with digital zoom for detailed viewing.

Utilize the two-way talk feature to communicate with your baby through the monitor's parent unit.

Automatic night vision provides clear grayscale images of your baby, even in complete darkness, ensuring continuous monitoring.

3. Què hi ha a la caixa

• Camera Unit (x1)
• Parent Unit (x1)
• Adaptador de corrent (x2)
• Manual d'usuari (x1)
• Wall-Mounting Kit (x1)

4. Configuració

The HelloBaby HB6233 Baby Monitor is designed for simple plug-and-play setup. No complex Wi-Fi configuration is required.

1. Charge the Parent Unit: Before first use, fully charge the parent unit using one of the provided power adapters. The parent unit is powered by a rechargeable battery for portability.
2. Engegueu la unitat de càmera: Connect the camera unit to a power outlet using the second power adapter.
3. Col·locació: Place the camera unit in your baby's room, ensuring a clear view of the crib or play area. Use the included wall-mounting kit if desired. Position the camera at a safe distance from the baby and out of reach of children.
4. Encès: Turn on both the parent unit and the camera unit. They will automatically pair.

For optimal performance, ensure both units are within the effective transmission range (up to 1000ft in open space) and away from large metal objects or other electronic devices that may cause interference.

5. Instruccions de funcionament

The parent unit provides intuitive controls for managing your monitoring experience.

• Remote Pan/Tilt/Zoom: Use the directional arrows on the parent unit to remotely adjust the camera's horizontal (pan) and vertical (tilt) viewing angles. The zoom function allows you to get a closer look at your baby.
• Xerrada bidireccional: Prem i mantén premut el botó del micròfon de la unitat parental per parlar amb el teu nadó a través de l'altaveu de la càmera. Deixa anar el botó per escoltar el teu nadó.
• Mode VOX: Activate VOX mode through the menu settings to conserve battery life. The screen will turn off, but the monitor will activate and alert you when sound is detected in the baby's room.
• Monitorització de la temperatura: The current room temperature is displayed on the parent unit screen, allowing you to ensure a comfortable environment for your baby.
• Cançons de bressol: Access the menu to select and play built-in lullabies to help soothe your baby.
• Opcions del menú: The menu button provides access to various settings, including volume control, screen brightness, alarm settings, and more.

6. Manteniment

To ensure the longevity and optimal performance of your HelloBaby monitor, follow these maintenance guidelines:

• Neteja: Use a soft, dry cloth to clean the surfaces of both the camera and parent units. Do not use abrasive cleaners or solvents.
• Cura de la bateria: For the parent unit's rechargeable battery, avoid extreme temperatures and prolonged periods of non-use. Charge regularly to maintain battery health.
• Emmagatzematge: If storing the monitor for an extended period, ensure both units are powered off and stored in a cool, dry place.
• Eviteu l'aigua: Keep both units away from water and moisture. This product is designed for indoor use only.

7. Solució De Problemes

If you encounter any issues with your HelloBaby monitor, please refer to the following common solutions:

8. Especificacions

9. Garantia i Suport

HelloBaby is committed to providing high-quality products and excellent customer service. While specific warranty periods may vary by region, the company strives to offer reliable support for its products.

If you experience any issues or have questions regarding your HelloBaby HB6233 Baby Monitor, please contact HelloBaby customer support. You may also reach out to the authorized representatives in your region:

• Representant europeu autoritzat: APEX CE SPECIALISTS GMBH
  Contacte: Wells
  Correu electrònic: info@apex-ce.com
  Address: Habichtsweg 1, 41468 Neuss, Germany
• Representant autoritzat del Regne Unit: APEX CE SPECIALISTS LIMITED
  Contacte: Wells
  Correu electrònic: info@apex-ce.com
  Address: 89 Princess Street, M14 4HT, UK

Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia o consulta d'assistència.
