Winado D-417

Winado Compact Laundry Dryer D-417 Instruction Manual

Model: D-417 | Brand: Winado

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Winado Compact Laundry Dryer D-417. Please read this manual thoroughly before using the appliance and retain it for future reference.

Característiques del producte:

  • Gran capacitat: Dries up to 13.2 pounds of clothing.
  • Anti-Tangle Drum: Features positive and negative drum movements to prevent clothing wear, tear, and tangling.
  • Interfície fàcil d'utilitzar: Equipped with an LCD screen and multi-function button interface for easy operation.
  • Apagat automàtic: The dryer automatically powers off if the door is opened during operation, enhancing safety and allowing for mid-cycle additions.
  • Eficient energètic: Designed for low power consumption and quiet operation.
  • Compacte i portàtil: Lightweight and compact size, suitable for apartments, dormitories, and small spaces.

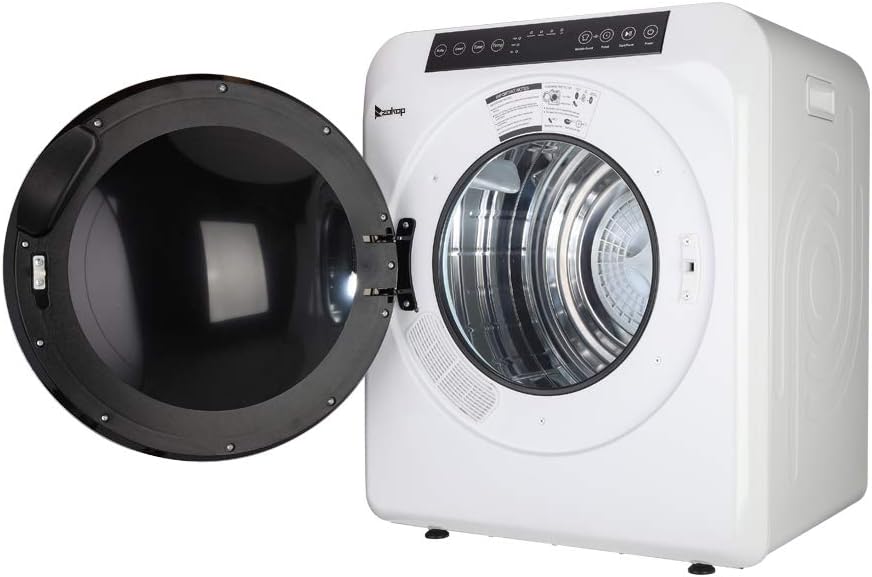

Winado Compact Laundry Dryer with door open
Figure 1.1: Winado Compact Laundry Dryer D-417 with the door open, showing the stainless steel drum.

The Winado Compact Laundry Dryer D-417 is designed to provide efficient and convenient clothes drying. Its forward and reverse drum movements help to reduce wrinkles and restore the fluffiness of fabrics. The quiet operation allows for use without significant noise disruption.

2. Contingut del paquet

Si us plau, comproveu el contingut del paquet en rebre'l per assegurar-vos que tots els articles hi són i no estan danyats:

  • Winado Compact Laundry Dryer Unit
  • Manual d'instruccions (aquest document)
  • Plastic Exhaust Pipe

3. Configuració i instal·lació

Proper setup is crucial for the safe and optimal performance of your dryer. Follow these steps carefully:

3.1 Col·locació

  • Place the dryer on a solid, flat, and level surface. Ensure there is adequate space around the unit for ventilation.
  • Avoid placing the dryer in areas with excessive humidity or direct sunlight.
  • Assegureu-vos que la presa de corrent sigui fàcilment accessible.
Winado Compact Laundry Dryer placed in a room next to a laundry basket
Figura 3.1: Example placement of the compact dryer in a living space.

3.2 Connexió d'alimentació

  • Connect the dryer to a standard 120V, 1300W electrical outlet. Do not use extension cords or adapters.
  • Ensure the electrical supply meets the dryer's requirements to prevent damage or fire hazards.

3.3 Exhaust Pipe Installation

  • Attach the provided plastic exhaust pipe to the designated exhaust port on the back of the dryer.
  • Direct the exhaust pipe to an outdoor vent or a well-ventilated area to allow hot, moist air to escape. Proper ventilation prevents moisture buildup and improves drying efficiency.

4. Instruccions de funcionament

Follow these steps to operate your Winado Compact Laundry Dryer:

4.1 Carregar la roba

  • Obriu la porta de l’assecadora.
  • Load clothes into the stainless steel drum. Do not overload the dryer; ensure clothes can tumble freely. The maximum capacity is 13.2 pounds.
  • Tanqueu bé la porta de l'assecadora. L'assecadora no funcionarà si la porta no està completament tancada.
Image showing clothes being loaded into the dryer, with 'Before' and 'After' sections demonstrating wrinkle reduction.
Figure 4.1: Loading clothes into the dryer. The dryer's tumbling action helps reduce wrinkles.
Examples of items suitable for drying: bed sheets, towels, t-shirts, and pants.
Figure 4.2: The dryer can accommodate various items such as bed sheets, towels, t-shirts, and pants.

4.2 Selecció d'un programa

The dryer features an LCD screen and multi-function buttons for program selection. Refer to the control panel for specific options:

  • Botó d'encesa: Premeu per encendre/apagar l'assecadora.
  • Selecció del programa: Use the program buttons (e.g., 'Damp', 'Smart', 'Time', 'Temp') to choose the desired drying cycle based on fabric type and moisture level.
  • Ajust de temps/temperatura: Adjust drying time or temperature as needed for specific loads.
  • Botó d'inici/pausa: Premeu per iniciar o aturar el cicle d'assecat.
Diagram highlighting key features of the dryer: air intake filter, see-through window, auto stop when door opens, stainless steel inner drum, multi-function button interface, and important notes.
Figure 4.3: Key features of the dryer, including the control panel and drum.

4.3 Inici del cicle

After loading clothes and selecting your desired program, press the Start button to begin the drying cycle. The LCD screen will display the remaining time.

4.4 Safety Feature: Auto Stop

If the dryer door is opened during operation, the unit will automatically pause and power off. This safety feature protects users and allows for adding or removing items mid-cycle. Close the door and press Start to resume.

4.5 Internal Sterilization Light

The dryer is equipped with an internal blue sterilization light that activates during operation to help sanitize clothes.

Video 4.1: Demonstration of loading clothes, the internal blue sterilization light, and the dryer's quiet operation. The video also shows the exhaust pipe setup and the control panel displaying the remaining time.

5. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment eficient de la teva assecadora.

5.1 Neteja del filtre de borrissol

  • The lint filter should be cleaned after every load to maintain optimal drying performance and prevent fire hazards.
  • Locate the lint filter inside the drum (refer to Figure 4.3).
  • Pull out the filter, remove accumulated lint, and reinsert it securely.

5.2 Neteja del tambor

  • Wipe the interior of the stainless steel drum with a soft, damp cloth periodically to remove any residue.
  • No utilitzeu netejadors abrasius ni productes químics durs.

5.3 Neteja exterior

  • Netegeu les superfícies exteriors amb un drap suau iamp tela.
  • Eviteu ruixar aigua directament sobre el tauler de control o els components elèctrics.

6. Solució De Problemes

If you encounter issues with your dryer, refer to the following common problems and solutions:

ProblemaCausa possibleSolució
L'assecador no s'engegaCable d’alimentació desconnectat
Porta no tancada correctament
L'interruptor automàtic es va disparar
Assegureu-vos que el cable d'alimentació estigui ben connectat
Close the door firmly until it latches
Comproveu i reinicieu l'interruptor
La roba no s'asseca completamentOverloaded dryer
Lint filter clogged
Improper program selection
Poca ventilació
Reduce load size
Netegeu el filtre de pelusa
Select a longer or hotter drying cycle
Ensure exhaust pipe is clear and properly vented
Soroll excessiu durant el funcionamentDryer not level
Foreign objects in drum
Adjust leveling feet to ensure stability
Check drum for loose items (coins, buttons)
L'assecadora s'atura a mig ciclePorta oberta
Sobreescalfament
Close door and press Start to resume
Ensure proper ventilation; clean lint filter

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

Technical specifications for the Winado Compact Laundry Dryer D-417:

  • Model: D-417
  • Marca: Winado
  • Dimensions (L x A x A): 23.43 x 20.08 x 26.81 polzades (59.50 x 51.00 x 68.10 cm)
  • Pes: 59.52 lliures (27 kg)
  • Capacitat: 13.2 lliures (3.5 peus cúbics)
  • Material: Steel, Stainless Steel, ABS
  • Color: Blanc
  • Voltage: 120 Volts
  • Wattage: 1300 watts
  • Factor de forma: Càrrega frontal
  • Lloc d'accés: Càrrega frontal

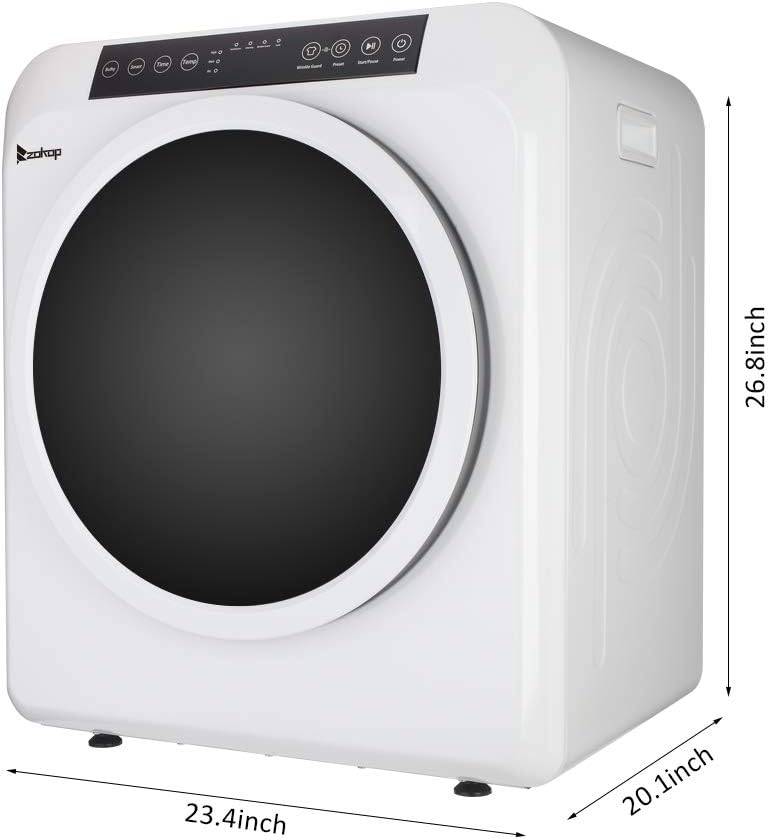

Diagram showing the dimensions of the Winado Compact Laundry Dryer: 26.8 inches height, 23.4 inches width, and 20.1 inches depth.
Figure 7.1: Product dimensions of the Winado Compact Laundry Dryer D-417.

8. Informació de seguretat

Per reduir el risc d'incendi, descàrrega elèctrica o lesions quan utilitzeu l'aparell, seguiu aquestes precaucions bàsiques:

  • Llegiu totes les instruccions abans d'utilitzar l'assecador.
  • No assequeu articles que s'hagin netejat, rentat, remullat o tacat prèviament amb gasolina, dissolvents de neteja en sec o altres substàncies inflamables o explosives, ja que emeten vapors que podrien encendre's o explotar.
  • No permeteu que els nens juguin sobre o dins de l'aparell. És necessària una supervisió estreta dels nens quan l'aparell s'utilitza a prop dels nens.
  • No introduïu la mà a l'aparell si el tambor es mou.
  • No instal·leu ni emmagatzemeu aquest aparell on estigui exposat a la intempèrie.
  • No tampeh amb controls.
  • No repareu ni substituïu cap peça de l'aparell ni intenteu fer-ne el manteniment, llevat que s'ho recomani específicament en aquest manual o en les instruccions de reparació per a l'usuari publicades que entengueu i tingueu les habilitats per dur a terme.
  • Desconnecteu sempre l'aparell de la xarxa elèctrica abans de netejar-lo o fer-ne qualsevol manteniment.

9. Garantia i Suport

Your Winado Compact Laundry Dryer D-417 comes with a standard manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your purchase or visit the official Winado weblloc.

Atenció al client:

If you have any questions, require technical assistance, or need to report an issue with your dryer, please contact Winado customer support through the following channels:

  • Weblloc: Visit the official Winado weblloc web per a preguntes freqüents i informació de contacte d'assistència.
  • Correu electrònic: Refer to your warranty documentation for the customer service email address.
  • Telèfon: Refer to your warranty documentation for the customer service phone number.

Please have your model number (D-417) and purchase date ready when contacting support to expedite assistance.
