1. Instruccions de seguretat importants
Read all instructions before using the appliance. To reduce the risk of fire, electric shock, or injury to persons, observe basic precautions, including the following:
- Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they emit vapors that could ignite or explode.
- No afegiu gasolina, dissolvents de neteja en sec ni altres substàncies inflamables o explosives a l'aigua de rentat. Aquestes substàncies desprenen vapors que poden encendre o explotar.
- No permeteu que els nens juguin sobre o dins de l'aparell. És necessària una supervisió estreta dels nens quan l'aparell s'utilitza a prop dels nens.
- No introduïu la mà a l'aparell si la tina o l'agitador es mou.
- No instal·leu ni emmagatzemeu aquest aparell on estigui exposat a la intempèrie.
- No tampeh amb controls.
- No repareu ni substituïu cap peça de l'aparell ni intenteu fer-ne el manteniment, llevat que s'ho recomani específicament en aquest manual o en les instruccions de reparació per a l'usuari publicades que entengueu i tingueu les habilitats per dur a terme.
- Desconnecteu sempre l'aparell de la xarxa elèctrica abans d'intentar qualsevol reparació.
2. Producte acabatview
El maigtag 8 kg Top Load Washer is designed for efficient and thorough cleaning of your laundry. Familiarize yourself with its components before operation.

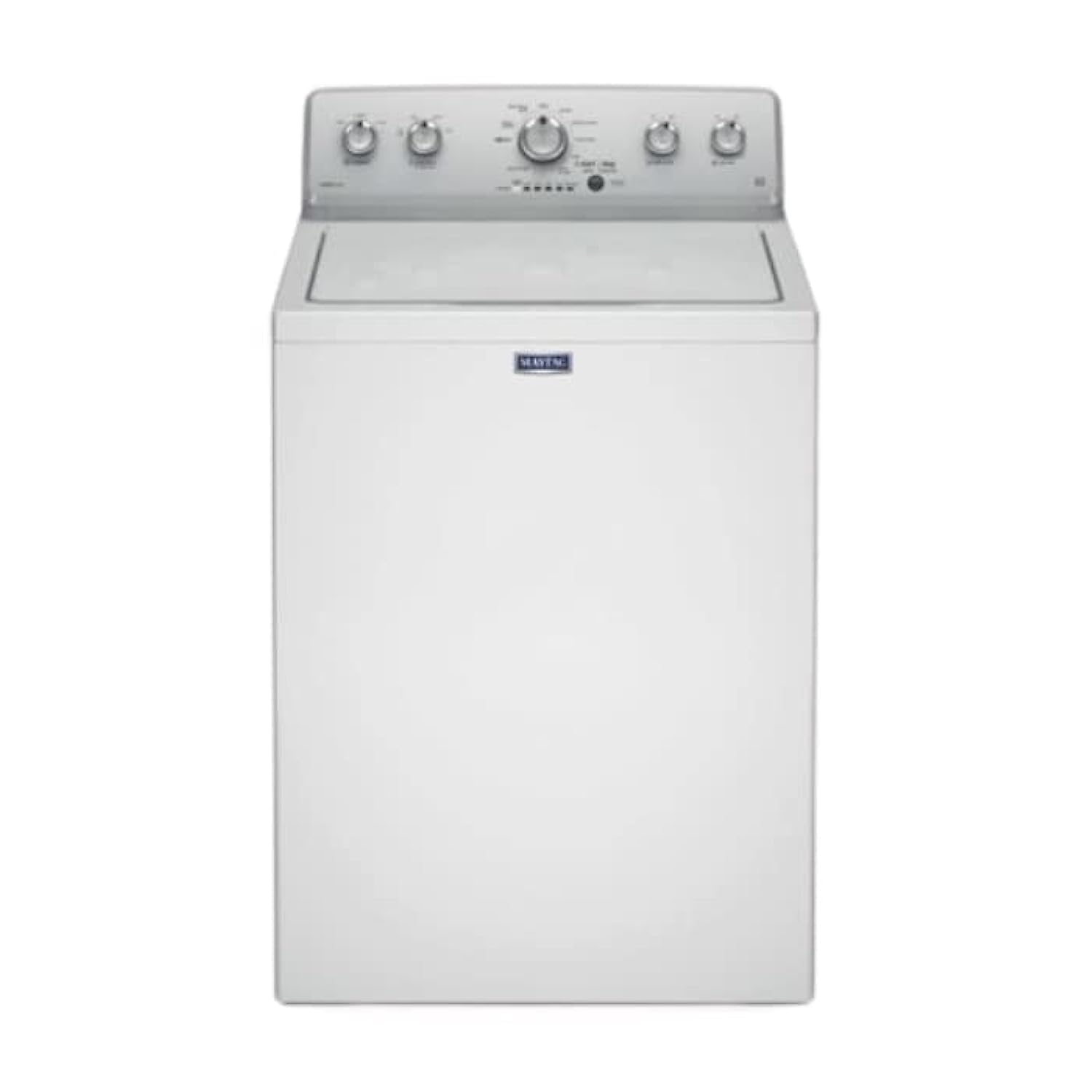

Figura 1: Davant view del maigtag 8 kg Top Load Washer. This image shows the control panel, lid, and main body of the washing machine.
3. Configuració i instal·lació
3.1 Desembalatge
Carefully remove all packaging materials, including the base packaging and any shipping bolts or foam inserts. Ensure no parts are left inside the washer tub.
3.2 Requisits d'ubicació
Install the washer on a firm, level floor. Ensure there is adequate space for water connections, drainage, and electrical access. Avoid installing in areas where temperatures may drop below freezing.
3.3 Connexió de mànegues d'aigua
- Connect the hot water inlet hose to the hot water faucet and the 'H' inlet on the washer.
- Connect the cold water inlet hose to the cold water faucet and the 'C' inlet on the washer.
- Tighten all connections securely by hand, then an additional two-thirds turn with pliers. Do not overtighten.
- Obriu el subministrament d'aigua i comproveu si hi ha fuites.
3.4 Instal·lació de la mànega de desguàs
Securely attach the drain hose to the drain outlet at the back of the washer. Place the other end of the drain hose into a standpipe or laundry tub. Ensure the drain hose is properly secured to prevent it from dislodging during the wash cycle.
3.5 Connexió elèctrica
Plug the washer's power cord into a grounded 3-prong outlet. Do not remove the grounding prong. Do not use an extension cord. Ensure the electrical supply meets the specifications listed in this manual.
3.6 Anivellament de la rentadora
Use a level to check if the washer is balanced. Adjust the leveling feet at the bottom of the washer by turning them clockwise to raise or counter-clockwise to lower. Ensure all four feet are firmly on the floor to prevent vibration.
4. Instruccions de funcionament
4.1 Càrrega de la roba
Load dry, unsoiled items loosely into the washer tub. Do not overload the washer; leave enough space for items to move freely for effective cleaning. Mix large and small items for balanced loads.
4.2 Afegir detergent i additius
Add the recommended amount of high-efficiency (HE) detergent to the dispenser. For other additives like fabric softener or bleach, follow the instructions on the product packaging and use the designated dispenser compartments.
4.3 Selecció d'un cicle de rentat
Turn the cycle selector knob or press the cycle buttons on the control panel to choose the appropriate wash cycle for your laundry type (e.g., Normal, Delicates, Heavy Duty).
4.4 Ajustar la configuració
Customize your wash by selecting options such as water temperature (Hot, Warm, Cold), spin speed (High, Medium, Low), and soil level (Light, Normal, Heavy) using the corresponding buttons or knobs on the control panel.
4.5 Starting the Washer
Close the washer lid. Press the 'Start/Pause' button to begin the wash cycle. The lid will lock, and the washer will start filling with water.
4.6 Cycle Completion
Once the wash cycle is complete, the washer will signal with an audible alert (if enabled) and the lid will unlock. Remove your laundry promptly to prevent wrinkles and odors.
5. Manteniment i cura
5.1 Cleaning the Dispenser
Periodically remove and clean the detergent and additive dispensers to prevent buildup. Rinse with warm water and a soft brush, then reinsert.
5.2 Cleaning the Washer Interior
Run a 'Clean Washer' cycle (if available) or a regular cycle with hot water and a washer cleaner (e.g., affresh® Washer Cleaner) once a month to remove detergent residue and odor-causing bacteria.
5.3 Neteja de l'exterior
Wipe the exterior surfaces of the washer with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
5.4 Water Inlet Hoses
Inspect the water inlet hoses for cracks, bulges, or leaks every few months. Replace hoses every five years, even if they appear to be in good condition, to prevent potential water damage.
5.5 Winterizing (for non-heated locations)
If the washer is stored in an area subject to freezing temperatures, follow these steps to prevent damage: Disconnect water supply hoses, drain all water from hoses and washer, and run a short drain/spin cycle to remove residual water. Consult the full manual for detailed winterization instructions.
6. Guia de resolució de problemes
Abans de trucar al servei, review this section for potential solutions to common issues.
| Problema | Causa possible | Solució |
|---|---|---|
| La rentadora no arrenca | Cable d'alimentació desconnectat; tapa no tancada; interruptor automàtic saltat. | Ensure power cord is securely plugged in; Close lid completely; Reset circuit breaker. |
| Washer does not fill | Water supply turned off; Inlet hoses kinked; Water inlet screens clogged. | Turn on water supply; Straighten hoses; Clean inlet screens. |
| Washer does not drain/spin | Drain hose kinked or clogged; Lid open during spin cycle; Unbalanced load. | Straighten drain hose; Close lid; Redistribute laundry evenly. |
| Vibració excessiva | Washer not level; Shipping materials not removed; Unbalanced load. | Level the washer; Ensure all shipping materials are removed; Redistribute laundry. |
| Fuites d'aigua | Hose connections loose; Drain hose not properly secured; Excessive suds. | Tighten hose connections; Secure drain hose; Use less detergent. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | maigtag |
| Número de model | 4KMVWC430JW (Item Model Number: 624810) |
| Tipus de producte | Rentadora de càrrega superior |
| Capacitat | 8 kg |
| Dimensions (P x A x A) | 68.6 cm x 71.1 cm x 116.8 cm |
| Pes | 61.2 kg |
| Material | ABS |
| Interfície d'usuari | Botons |
| Components inclosos | Washer unit |
| Primera data disponible | 21 de desembre de 2022 |
8. Informació de la garantia
Aquest maigtag appliance comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Maytag weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
9. Atenció al client
If you require further assistance, have questions not covered in this manual, or need to schedule service, please contact Maytag Customer Service. Contact information can typically be found on the Maytag website or on the warranty documentation provided with your appliance.
