Introducció
This manual provides detailed instructions for the safe and effective use of your Dragonhawk X7 Tattoo Pen Machine. Please read this manual thoroughly before operation to ensure proper handling and to maximize the lifespan of your device.
Image: The Dragonhawk X7 Tattoo Pen Machine, a wireless rotary tattoo gun with a smart display.
Informació de seguretat
Always use with caution to avoid self-injury. This device is intended for professional use by trained individuals. Ensure proper sterilization and hygiene practices are followed before, during, and after each use.
Guia de configuració
- Càrrega de la bateria: Fully charge the tattoo machine before initial use. The device features a long-lasting battery, offering up to 12 hours of cordless run time. The charger is USB compatible for convenient charging via car, computer, or wall outlet.
- Attaching the Cartridge Needle: Securely attach the desired cartridge needle to the machine. The 3.5mm stroke length is designed to accurately and forcefully push the needle, accommodating most tattoo cartridge needles on the market.
- Encès: Press and hold the switch button to power on the device. The smart screen display will illuminate, providing clear information.
Image: The integrated appearance of the Dragonhawk X7 Tattoo Pen Machine, highlighting its sleek design and embedded high-definition screen.
Instruccions de funcionament
- Smart Screen Display: The Dragonhawk X7 features a smart screen for easy reading and control of different modes. The larger, brighter display enhances visibility during operation.
- Voltage Ajust: Ajusteu el voltagi utilitzant el voltage increase (+) and voltage reduction (-) keys according to the desired effect. The smart screen allows you to check different 5 levels and update the voltage llista.
- Selecció del mode: Set the machine for liner or shader levels. Utilize your favorite mode for lining, blending, layering, coloring, and detailing.
- Advanced Direct Drive System: The professional advanced direct drive system ensures smooth, precise, soft, and quiet operation. This system offers flexibility for every style, gently and smoothly transferring ink to the skin.
- Prova inicial: Before applying to skin, always start by testing on artificial skin to familiarize yourself with the machine's settings and performance.
Image: A close-up of the high-resolution color screen on the Dragonhawk X7, showing battery display, working time, voltage display, and pause page, along with humanized preset parameters (M1, M2, M3).
Image: Detail of the 3.5mm stroke mechanism, illustrating the brushless motor and direct drive system for high speed and low noise operation.
Manteniment
- Neteja: Clean the machine and the surrounding area thoroughly after each use to maintain hygiene and device performance. The aluminum alloy construction allows for easy cleaning.
- Emmagatzematge: Store the tattoo machine in a dry and clean place when not in use.
- Cura de la bateria: The device is designed for easy disassembly, maintenance, and replacement of its two 1800mAh batteries. Proper battery care ensures optimal cordless run time.
Image: The large-capacity battery system of the Dragonhawk X7, equipped with two replaceable 1800mAh batteries for extended, worry-free operation.
Resolució de problemes
No specific troubleshooting steps are provided in the product information. For any operational issues or concerns, please refer to the support section for assistance.
Especificacions
| Característica | Detall |
|---|---|
| Pes | 180 g (sense bateria) |
| Diameter & Length | 33 mm * 135 mm |
| Freqüència de sortida | 1-999 Hz |
| Capacitat de la bateria | 1800 mAh * 2 |
| Vol. De sortidatage | 4-13V |
| Tipus de motor | Brushless Motor by Mcore |
| Temps de treball | 8-12 hours (depending on usage) |
| Velocitat del motor | 12V/10500Rpm |
| Longitud del traç | 3.5 mm |
| Material | Aluminum Alloy (Precision CNC Technology) |
| Cognitive Chip | Built-in Mastlabs Smarter Intelligent Cognitive Chip |

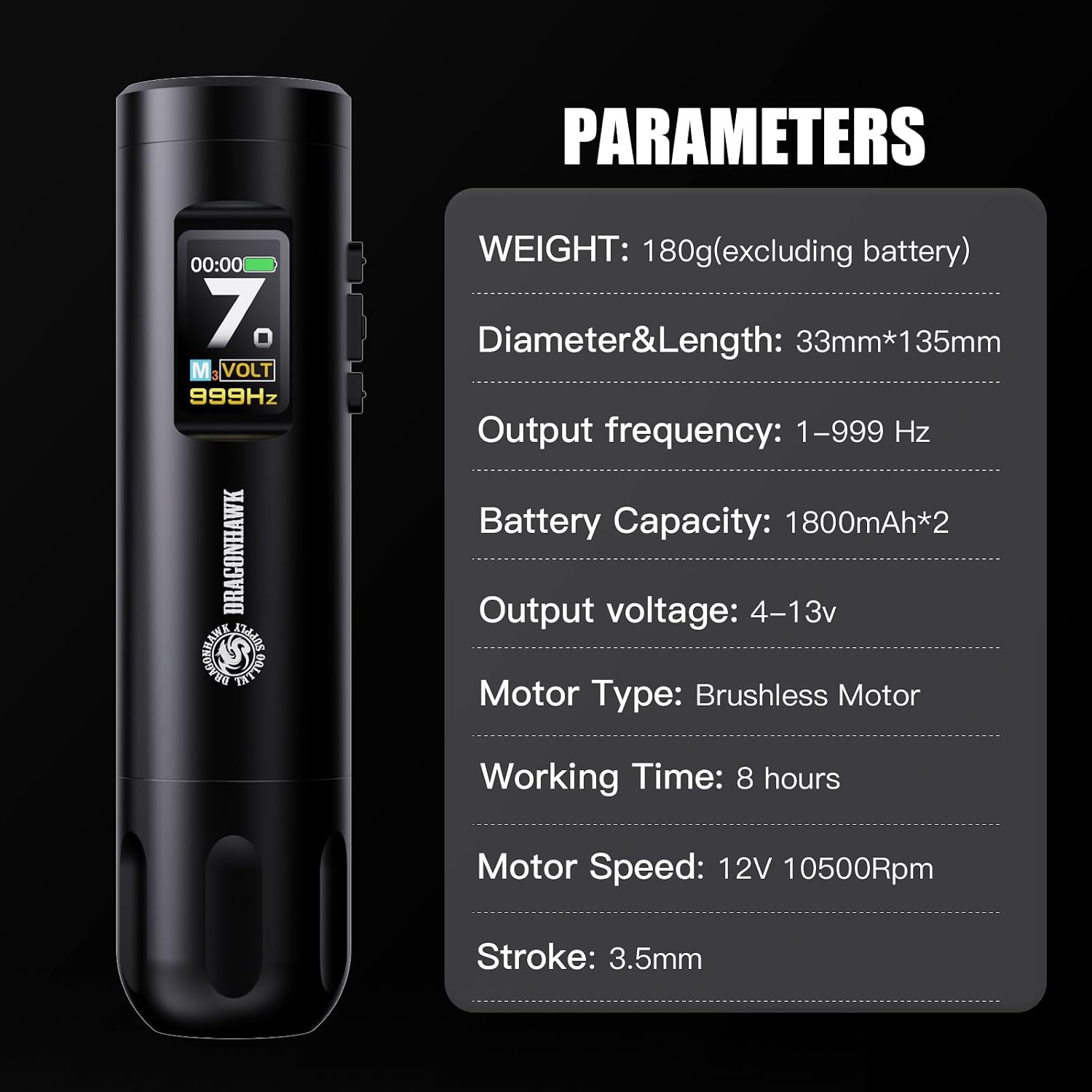

Image: Visual representation of the Dragonhawk X7 Tattoo Pen Machine alongside its key technical parameters.
Imatge: Una imatge detallada view of the Mastlabs Smarter Intelligent Cognitive Chip, emphasizing its role in ensuring precise and powerful needle operation by sensing needle resistance and adjusting motor torque.
Garantia i suport
Dragonhawk provides coverage for your peace of mind. For any inquiries or support needs, please reach out through Amazon's messaging system.
Additionally, you can visit Youtube.com/@Dragonhawkofficial for video tutorials, setup guides, and professional tips on machine maintenance and technique breakdowns.
