1. Introducció
Thank you for choosing the Alpicool XD55 Portable Fridge. This versatile 42-quart unit functions as both a refrigerator and a freezer, providing reliable cooling for your outdoor adventures, road trips, camping, fishing, and more. Designed for convenience and efficiency, it operates on 12V/24V DC and 100-240V AC power sources. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
Image: The Alpicool XD55 Portable Fridge with its dual lids open, revealing the two separate cooling compartments.
2. Instruccions de seguretat
To prevent injury to yourself and others or damage to your appliance, please observe the following safety instructions:
- Assegureu-vos que la font d'alimentació voltage coincideix amb el voltags'especifica a l'etiqueta de classificació de l'aparell.
- No feu servir l'aparell si està visiblement danyat.
- No bloquegeu les obertures de ventilació; assegureu-vos que hi hagi un flux d'aire adequat al voltant de la unitat.
- Avoid placing the appliance near heat sources or in direct sunlight.
- No feu servir aparells elèctrics dins de la nevera si no ho recomana el fabricant.
- Keep the appliance dry and avoid contact with water or other liquids.
- Desconnecteu sempre l'alimentació abans de netejar o realitzar tasques de manteniment.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
3. Característiques del producte
The Alpicool XD55 Portable Fridge is equipped with several features designed for optimal performance and user convenience:
- Panell de control digital: Features dual temperature control, allowing you to use the unit as both a freezer and a fridge simultaneously.
- Practical Door Lid: Includes two integrated cup holders to prevent spills.
- Capacitat generosa: A 42-quart capacity, capable of holding up to 58 cans of 330ml cola or 47 bottles of 500ml water.
- Neteja fàcil: Designed with a bottom drain plug for convenient cleaning.
- Portabilitat: Recessed handles facilitate easy movement and transport.
- Aplicació versàtil: Ideal for use in trucks, vehicles, RVs, road trips, fishing, and other outdoor activities.
- Funció de memòria de temperatura: Conserva l'última configuració de temperatura.
- Protecció de la bateria de 3 nivells: Offers Low, Med, and High settings to protect your vehicle's battery from running down.
- Powerful Chilling Performance: Achieves temperatures from -4°F (-20°C) to 68°F (20°C).
- Efficient Insulation: Features reliable sealing and thick, high-density foam insulation for sustained cooling performance.
Imatge: Detallada views of the Alpicool XD55's key features, including its detachable door, integrated cup holders, recessed handle, LED display, durable latch, and convenient drain plug.

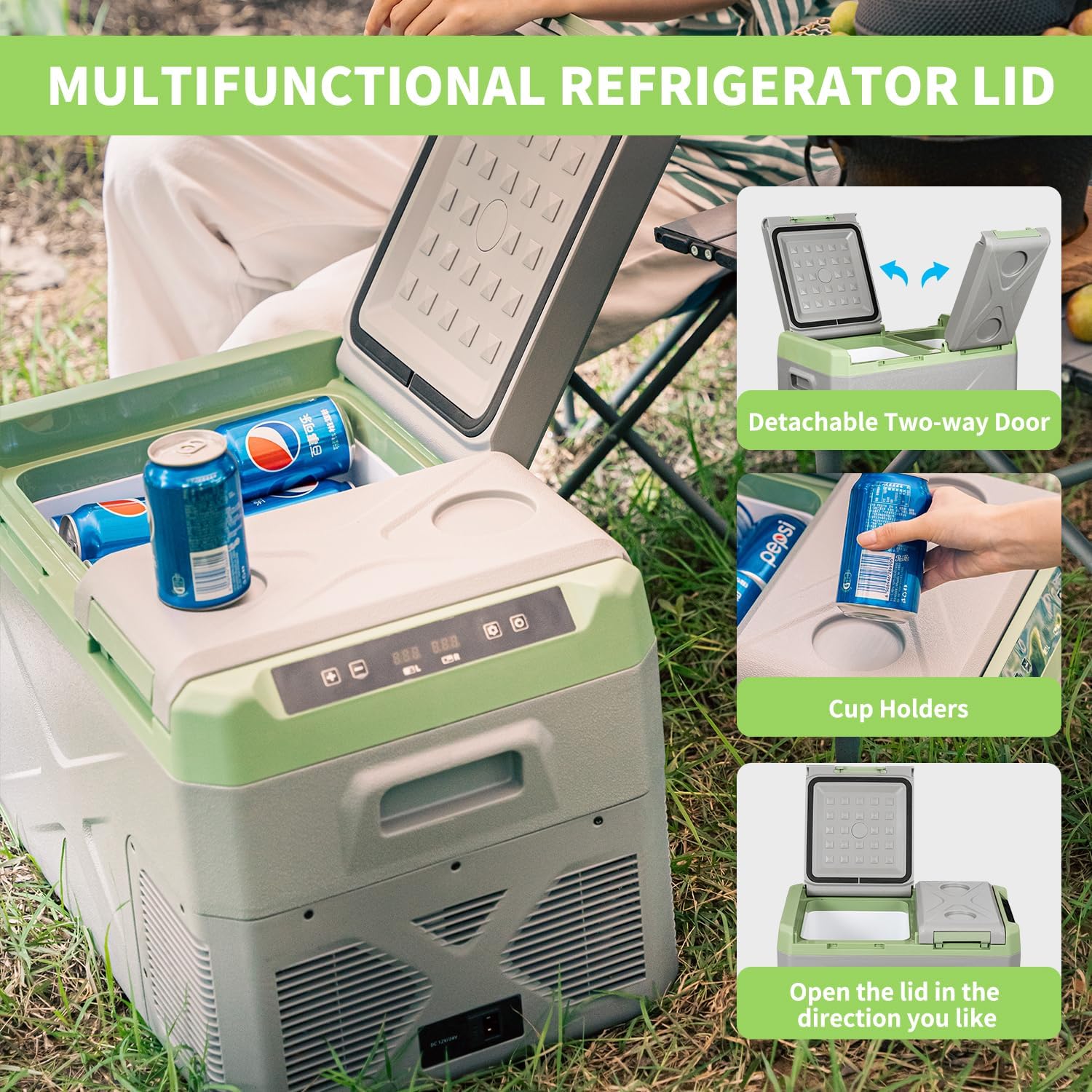

Image: Illustrations highlighting the multifunctional lid, showcasing its detachable two-way door and built-in cup holders for user convenience.
4. Configuració
4.1 Desembalatge
Carefully remove the Alpicool XD55 from its packaging. Inspect the unit for any signs of damage. Retain the packaging for future transport or storage.
4.2 Col·locació i ventilació
Place the portable fridge on a stable, level surface. Ensure there is adequate space around the unit for proper ventilation. Do not block the air vents on the sides or back of the unit.
4.3 Connexió d'alimentació
The Alpicool XD55 supports both DC (12V/24V) and AC (100-240V) power inputs.
- Potència CC: Connect the DC power cable to the DC 12V/24V input port on the unit and then to your vehicle's cigarette lighter socket or a compatible 12V/24V power source.
- Alimentació CA: Connect the AC power adapter to the AC input port on the unit, then plug the adapter into a standard 100-240V AC wall outlet.
Video: An official Alpicool video demonstrating the setup and key features of the portable car refrigerator, including power connection and lid operation.
Image: Visual representation of the flexible power options for the Alpicool XD55, including outdoor solar/power station, standard AC, and vehicle DC connections.
4.4 Reversible Doors
The XD55 features reversible doors, allowing you to change the opening direction to suit your preference or space constraints. To reverse the doors, carefully detach them and re-attach them on the opposite side according to the instructions provided in the packaging or online resources.
Image: A diagram illustrating the reversible door feature of the Alpicool XD55, showing how the lids can be installed to open from either the left or right side.
5. Instruccions de funcionament
5.1 Tauler de control acabatview
The Alpicool XD55 features an intuitive digital control panel for easy operation:
- Botó '+': Augmenteu la configuració de temperatura.
- Botó '-': Disminueix la configuració de temperatura.
- 'L' Indicator: Indicates the left compartment.
- 'R' Indicator: Indicates the right compartment.
- Botó de configuració: Access various settings, including battery protection mode.
- Botó On/Off: Engegueu o apagueu la unitat.
Imatge: Una imatge detallada view of the simple control panel and its easy-to-understand operation icons for the Alpicool XD55.
5.2 Configuració de la temperatura
To set the desired temperature for each compartment:
- Press the 'Setting' button to select the compartment you wish to adjust (L or R).
- Use the '+' or '-' buttons to increase or decrease the temperature. The display will show the target temperature.
- La unitat s'ajustarà automàticament per assolir i mantenir la temperatura configurada.
The Alpicool XD55 can maintain temperatures from -4°F (-20°C) to 68°F (20°C). For optimal cooling, it is recommended to pre-cool the unit before loading it with items.
Image: Information on maintaining food freshness, including suggested temperatures for various items and the energy-saving ECO (45W) and fast-cooling MAX (60W) modes.
5.3 Configuració de la protecció de la bateria
The unit features a 3-level battery protection system to prevent your vehicle's battery from draining. To adjust this setting:
- With the unit powered on, press and hold the 'Setting' button for 3 seconds.
- The current battery protection mode (H, M, or L) will flash on the display.
- Press the 'Setting' button repeatedly to cycle through the modes: H (High), M (Medium), L (Low).
- Release the button to select the desired mode. The setting will be saved automatically.
- Alt (H): Provides the most protection for your vehicle battery, cutting off power at a higher voltage. Recommended for starting batteries.
- Mitjà (M): A balanced setting for most applications.
- Baix (L): Allows the unit to draw power for longer, cutting off at a lower voltage. Recommended for deep cycle batteries or when the engine is running.

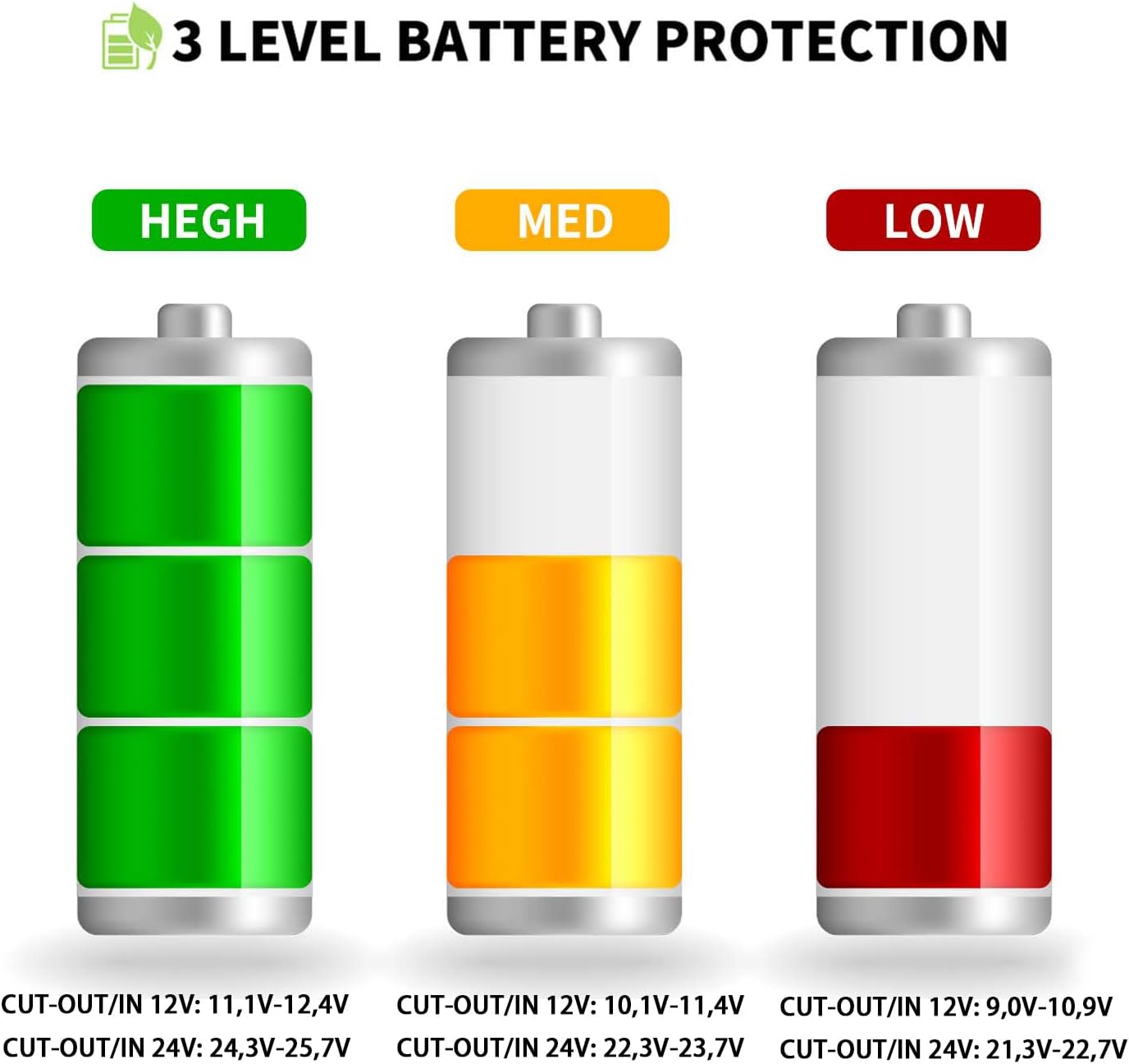

Image: A visual guide to the 3-level battery protection system, showing the voltage thresholds for High, Medium, and Low settings for both 12V and 24V systems.
6. Manteniment
6.1 Neteja
Regular cleaning helps maintain the efficiency and longevity of your portable fridge.
- Disconnect the unit from all power sources.
- Buida el contingut.
- Use the bottom drain plug to remove any accumulated water or melted ice.
- Netegeu l'interior i l'exterior amb anunciamp drap i detergent suau. Eviteu productes de neteja o dissolvents abrasius.
- Assegureu-vos que la unitat estigui completament seca abans de tornar a connectar l'alimentació o emmagatzemar-la.
6.2 Emmagatzematge
When storing the unit for extended periods, ensure it is clean and dry. Leave the lids slightly ajar to prevent odors and mildew growth. Store in a dry, well-ventilated area.
7. Solució De Problemes
If you encounter issues with your Alpicool XD55, please refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power supply; loose connection; vehicle battery low; blown fuse. | Check power cable connections; ensure power source is active; adjust battery protection mode to 'Low' or charge vehicle battery; check vehicle's fuse box. |
| No refredar prou | Lids not closed properly; blocked ventilation; ambient temperature too high; too many items loaded; ECO mode selected. | Ensure lids are sealed; clear vents; move unit to cooler area; reduce load; switch to MAX mode. |
| Mostra els codis d'error | Falla interna. | Consulteu el manual d'usuari complet per obtenir els significats específics dels codis d'error o poseu-vos en contacte amb el servei d'atenció al client. |
| Soroll excessiu | Unitat no anivellada; obstrucció del ventilador. | Ensure unit is on a flat surface; check for debris near fan. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client d'Alpicool per obtenir més ajuda.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | Alpicool |
| Nom del model | XD55 Portable Fridge |
| Pes de l'article | 29.1 lliures |
| Dimensions del producte | 14.38 x 23.93 x 20.19 polzades |
| Tipus d'instal·lació | Autònom |
| Color | Verd |
| Voltage | 12 volts (CC), 100-240 volts (CA) |
| Wattage | 60 watts |
| Frontisses de portes | A dalt |
| Tipus de material de la porta | Plàstic |
| Prestatges | 1 |
| Capacitat | 42 Quart |
| Interval de temperatura | -4 °C (20 °F) a 68 °C (20 °F) |

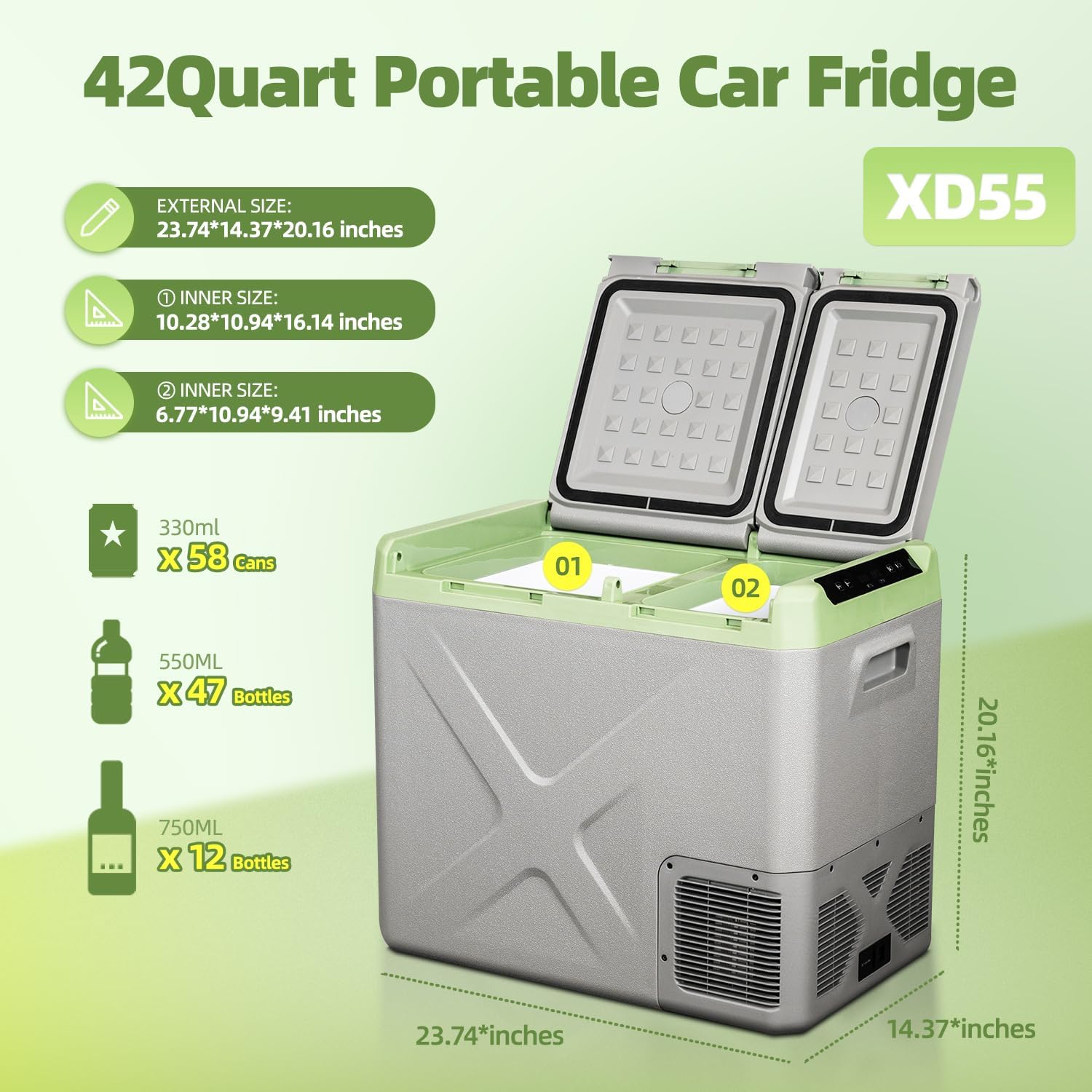

Image: A detailed infographic displaying the external and internal dimensions of the Alpicool XD55, alongside its capacity for various beverage sizes.
9. Garantia i Suport
Alpicool products are manufactured to the highest quality standards. This product comes with a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Alpicool weblloc.
For technical support, troubleshooting assistance, or warranty claims, please contact Alpicool customer service through their official channels. When contacting support, please have your product model (XD55) and purchase information ready.
