STIGA Collector 140e Kit Cordless Lawn Mower User Manual

1. Introducció i finalview

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your STIGA Collector 140e Kit Cordless Lawn Mower. Please read this manual thoroughly before using the product and keep it for future reference.

Característiques principals:

• Cordless & Battery Powered: Operates with 2 x 20V 4Ah ePower batteries for quiet, cable-free mowing of lawns up to 350 m².
• Alçada de tall ajustable: 38 cm cutting width with 6 height settings (25-75 mm), easily adjusted with a single lever.
• Large 40 L Grass Collector: Hybrid grass collector with a textile bottom retains more clippings, reducing emptying frequency.
• Comfortable & Compact Design: Ergonomic adjustable handlebar with soft grip folds completely for space-saving storage.
• Motor sense escombretes eficient: The 550W motor is 30% more efficient and lasts longer than brushed alternatives, requiring less maintenance.

2. Informació de seguretat

Prioritzeu sempre la seguretat quan feu servir eines elèctriques. Si no seguiu les instruccions de seguretat, podeu patir lesions greus.

Pautes generals de seguretat:

• Llegiu i enteneu totes les instruccions abans de fer funcionar la tallagespa.
• Utilitzeu equips de protecció individual (EPI) adequats, incloent-hi protecció ocular, calçat resistent i protecció auditiva.
• Mantingueu els nens i les mascotes lluny de la zona de sega.
• Inspeccioneu la zona per detectar objectes que la fulla podria llançar abans de segar la gespa.
• No feu servir mai la tallagespa sobre herba mullada o pluja.
• Always turn off the mower and remove the battery before performing any adjustments, cleaning, or maintenance.
• Do not use the mower if any parts are damaged or missing.

3. Components del producte

Familiarize yourself with the main parts of your STIGA Collector 140e Kit lawn mower.

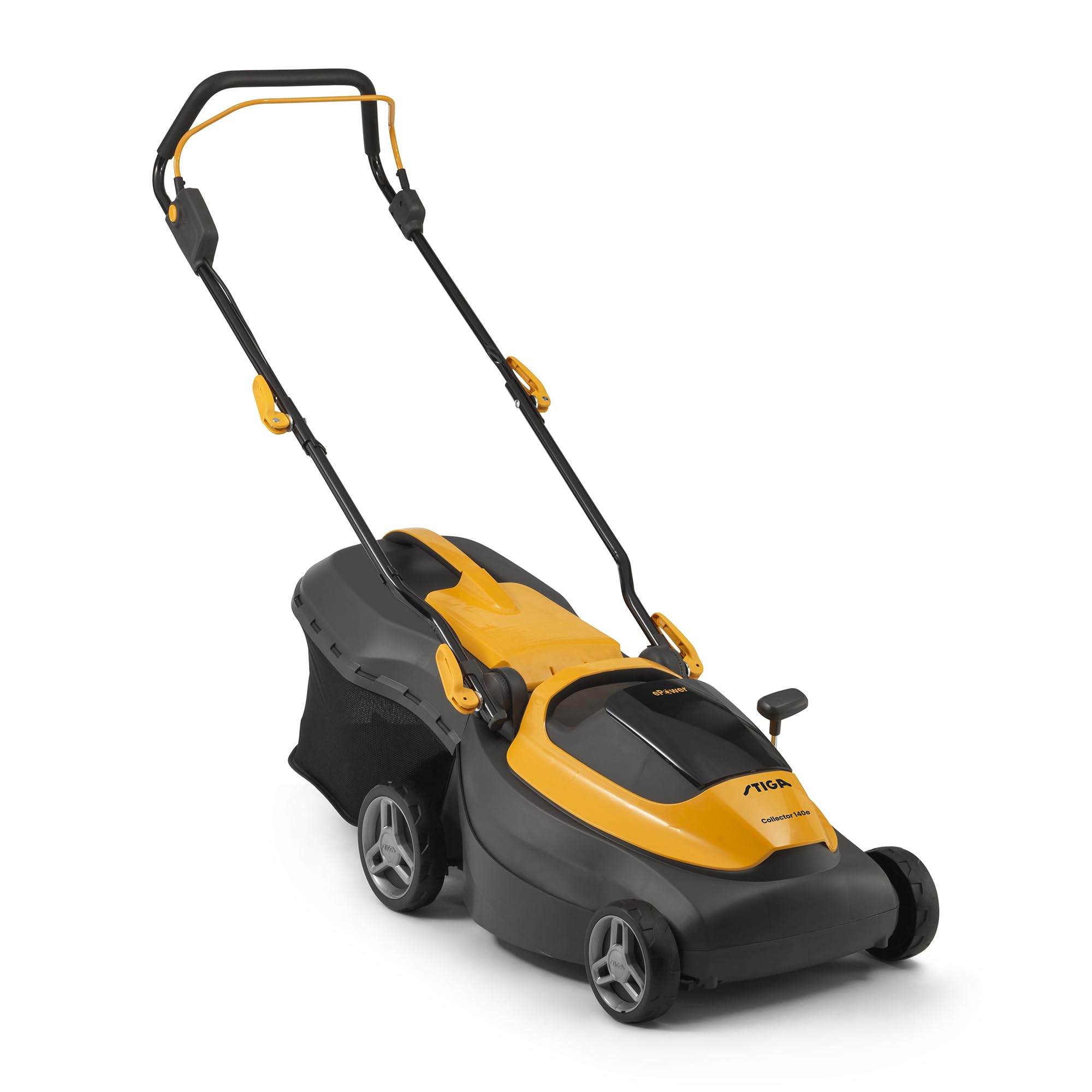

Figura 3.1: Principal view of the STIGA Collector 140e Kit Cordless Lawn Mower.

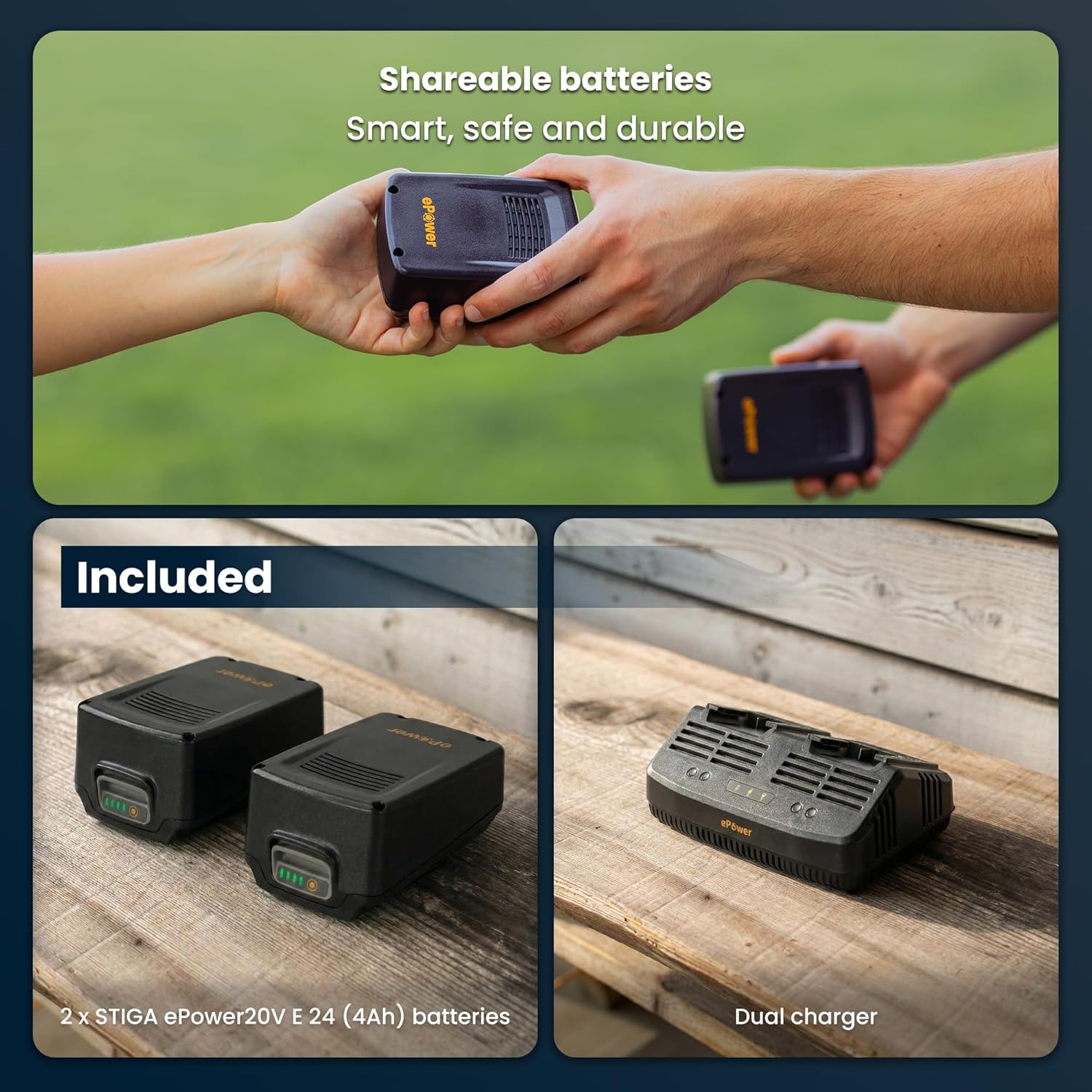

Figure 3.2: The lawn mower kit, including two 20V ePower batteries and a dual charger.

Figure 3.3: Diagram highlighting key features such as 40L hybrid grass collector, 40cm cutting width, 6 height positions (25-75mm), and 0.55kW motor.

4. Configuració

Segueix aquests passos per preparar la tallagespa per al primer ús.

4.1 Muntatge del manillar

1. Unfold the handlebar sections and align the holes.
2. Secure the handlebar using the provided knobs and bolts. Ensure all connections are tight.
3. Adjust the handlebar height to a comfortable position using the quick-release levers.

4.2 Grass Collector Assembly

1. Assemble the fabric grass bag onto the plastic frame, ensuring it is securely attached.
2. Aixequeu la tapa de descàrrega posterior de la tallagespa.
3. Hook the assembled grass collector onto the mower chassis. Ensure it is firmly seated to prevent grass clippings from escaping.

4.3 Instal·lació i càrrega de la bateria

1. Fully charge both 20V ePower batteries using the dual charger before first use. Refer to the battery charger manual for detailed instructions.
2. Open the battery compartment cover on the top of the mower.
3. Introduïu les dues piles carregades a les seves respectives ranures fins que encaixin al seu lloc.
4. Tanqueu bé la tapa del compartiment de la bateria.

5. Instruccions de funcionament

Learn how to safely and effectively operate your lawn mower.

5.1 Engegar la tallagespa

1. Ensure the batteries are fully charged and correctly installed.
2. Premeu i manteniu premut el botó de seguretat del manillar.
3. Pull the bail lever towards the handlebar. The motor will start.
4. Release the safety button while keeping the bail lever engaged to continue operation.

5.2 Ajust de l'alçada de tall

1. Turn off the mower and remove the batteries for safety.
2. Locate the single height adjustment lever on the side of the mower.
3. Pull the lever outwards and move it to the desired cutting height position (25-75 mm, 6 settings).
4. Ensure the lever locks firmly into place before resuming operation.

Figure 5.2: The mower in use, illustrating its 38 cm cutting width and the height adjustment lever.

5.3 Tècniques de sega

• Talleu la gespa en línies rectes i superposades per obtenir un tall uniforme.
• Avoid overloading the motor by mowing excessively long or wet grass. Adjust cutting height if necessary.
• Per obtenir els millors resultats, talleu la gespa quan estigui seca.

Figura 5.3: Una vista aèria view demonstrating the mower's capability to cover a mowing area of up to 450 m².

5.4 Emptying the Grass Collector

1. When the grass collector is full (indicated by reduced grass collection or a full indicator, if present), turn off the mower and remove the batteries.
2. Aixequeu la tapa de descàrrega posterior.
3. Carefully unhook and remove the grass collector.
4. Empty the grass clippings into a suitable waste receptacle.
5. Reattach the grass collector securely before resuming operation.

Figure 5.4: The mower effectively collecting grass clippings into its 40-liter hybrid grass collector.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la tallagespa.

6.1 Neteja

• After each use, turn off the mower and remove the batteries.
• Clean the underside of the cutting deck to remove grass clippings and debris. Use a brush or scraper; avoid using water directly on electrical components.
• Netegeu l'exterior de la tallagespa amb anuncisamp tela.
• Clean the grass collector thoroughly.

6.2 Cura de la fulla

• Inspeccioneu regularment la fulla per comprovar si està esmolada i si està danyat. Una fulla desafilada pot esquinçar l'herba i deixar la gespa insalubre.
• If the blade is dull, have it sharpened by a qualified service technician.
• If the blade is bent or damaged, it must be replaced immediately to prevent vibration and potential injury. Always use genuine STIGA replacement parts.

6.3 Cura de la bateria

• Guardeu les piles en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• No emmagatzemeu les piles descarregades durant períodes prolongats. Carregueu-les periòdicament si no les feu servir.
• Utilitzeu només el carregador subministrat amb el producte.

6.4 Emmagatzematge

• Netegeu bé la tallagespa abans de guardar-la.
• Remove the batteries from the mower before long-term storage.
• Fold the handlebar for compact storage.
• Guardeu la tallagespa en un lloc sec i segur, fora de l'abast dels nens.

7. Solució De Problemes

Consulteu aquesta secció per conèixer els problemes comuns i les seves solucions.

8. Especificacions

Technical specifications for the STIGA Collector 140e Kit Cordless Lawn Mower.

9. Garantia i Suport

STIGA products are manufactured to high-quality standards and are guaranteed against manufacturing defects. Please retain your proof of purchase for warranty claims.

Informació de la garantia:

• The warranty period typically covers manufacturing defects under normal use. Specific terms and conditions may vary by region.
• Damage caused by improper use, neglect, or unauthorized repairs is not covered by the warranty.
• Spare parts availability is generally 5 years from the date of purchase.

Atenció al client:

For technical assistance, spare parts, or warranty inquiries, please contact your local STIGA dealer or visit the official STIGA weblloc web per obtenir informació de contacte d'assistència.
