ODK LED Gaming Desk User Manual

1. Introducció

Thank you for choosing the ODK LED Gaming Desk. This L-shaped gaming desk is designed to provide a robust and functional workspace for gaming, studying, or working. It features integrated LED lighting with multiple color and mode options, convenient power outlets, and USB ports to keep your devices charged and organized. The elevated monitor stand promotes ergonomic posture, and the sturdy construction ensures durability. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to help you get the most out of your new desk.

Figure 1: ODK LED Gaming Desk in a typical setup.

2. Informació de seguretat

• Llegiu atentament totes les instruccions abans de muntar i utilitzar.
• Mantingueu totes les peces petites i els materials d'embalatge fora de l'abast dels nens i les mascotes per evitar riscos d'asfíxia.
• Munta l'escriptori sobre una superfície suau i neta per evitar ratllades.
• Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los. Comproveu-los periòdicament i torneu-los a apretar segons calgui.
• Do not overload the desk. Refer to the specifications for weight capacity.
• Keep liquids away from electrical components (power outlets, USB ports, LED strip) to prevent electric shock.
• Use only the provided power cable and ensure it is properly connected to a grounded outlet.

3. Contingut del paquet

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact ODK customer support.

• Desk Panels (L-shaped main desktop, monitor stand sections)
• Metal Frame Components (legs, support bars)
• Tira de llum LED amb controlador
• Integrated Power Strip (2 AC outlets, 2 USB ports)
• Power Cable (200cm)
• Portavasos
• Headphone Hooks (x2)
• Assembly Hardware (screws, bolts, washers, nuts)
• Assembly Tools (screwdriver, Allen keys)
• Manual d'usuari

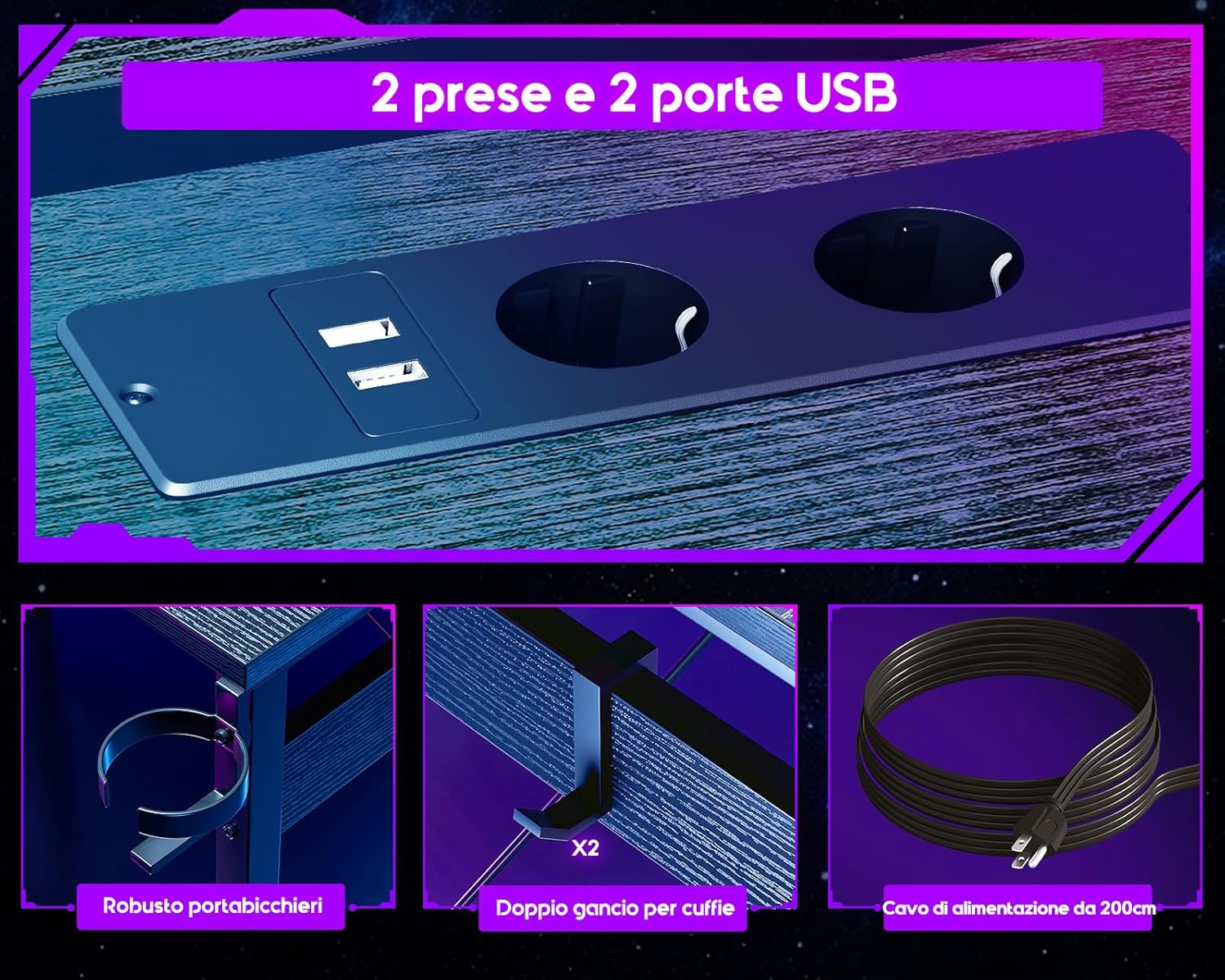

Figure 2: Included accessories: robust cup holder, double headphone hooks, and 200cm power cable.

4. Configuració i muntatge

Assembly is designed to be straightforward. It is recommended to have two people for easier and faster assembly. Lay out all parts on a soft, clean surface to prevent damage.

1. Desempaquetar i identificar les peces: Carefully remove all components from the packaging. Refer to the parts list in this manual and the included assembly diagram to identify each piece.
2. Muntar el marc principal: Begin by connecting the metal leg frames and support bars according to the numbered steps in the assembly diagram. Use the provided screws and Allen keys. Do not fully tighten screws until all parts are loosely assembled.
3. Adjunta els panells d'escriptori: Carefully place the L-shaped desktop panels onto the assembled metal frame. Align the pre-drilled holes with the frame. Secure the desktop panels using the appropriate screws. Once all panels are in place, gradually tighten all screws on the entire frame until secure.
4. Instal·leu el suport del monitor: Attach the elevated monitor stand sections to the main desktop. Ensure they are securely fastened to provide a stable platform for your monitors.
5. Integrate Power Unit: Insert the integrated power strip (with AC outlets and USB ports) into its designated slot on the desktop. Connect the power cable to the unit and route it neatly.
6. Connecteu la tira de LED: Adhere the LED light strip to the underside of the monitor stand or desired location using its adhesive backing. Connect the LED strip to its controller and then to a power source (often integrated with the main power unit or a separate USB connection).
7. Instal·lació d'accessoris: Attach the cup holder and headphone hooks to the designated points on the desk frame.
8. Comprovació final: Ensure all connections are tight and the desk is stable. Adjust the leveling feet at the bottom of the legs if necessary to prevent wobbling.

5. Instruccions de funcionament

Sistema d'il·luminació LED 5.1

The integrated LED lighting system offers customizable ambiance for your gaming or work environment.

• Encès/apagat: Use the power button on the LED controller to turn the lights on or off.
• Selecció de color: Cycle through 7 different static color options using the 'Color' button on the controller.
• Modes dinàmics: Select from 13 dynamic lighting modes (e.g., flashing, fading, pulsing) using the 'Mode' button.
• Ajust de brillantor: Adjust the brightness level (8 levels available) using the '+' and '-' buttons on the controller.

Figure 3: Detail of the LED lighting and integrated power unit.

5.2 Integrated Power Outlets and USB Ports

L'escriptori inclou un reglet integrat per a un accés còmode a la xarxa elèctrica.

• Preses de CA: Two standard AC power outlets (220-250V/15A) are available for powering monitors, computers, or other electronics.
• Ports USB: Two USB ports (5V/2.1A) are provided for charging mobile devices, headphones, or other USB-powered accessories.
• Ús: Simply plug your devices into the appropriate outlets. Ensure the desk's main power cable is connected to a wall outlet.

5.3 Monitor Stand

The elevated monitor stand helps maintain an ergonomic viewangle de ing.

• Place your monitor(s) directly on the stand.
• The elevated position helps reduce neck and back strain by promoting a correct sitting posture.

Figure 4: Proper ergonomic posture facilitated by the monitor stand.

6. Manteniment

• Neteja: Netegeu les superfícies de l'escriptori amb un drap suau iamp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. For the desktop, a microfiber cloth is recommended to prevent smudges.
• Pols: Regularly dust the desk, especially around the LED strip and power outlets, to prevent dust buildup.
• Cargols de tensió: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as necessary to maintain desk stability.
• Gestió de cables: Keep cables organized and secured to prevent tripping hazards and maintain a tidy workspace.

7. Solució De Problemes

8. Especificacions

• Marca: ODK
• Model: ZJZ-QTMDCZ
• Color: Negre
• Dimensions del producte: 129 cm (profunditat) x 129 cm (amplada) x 89 cm (alçada)
• Material: Wood (Desktop), Metal (Base Frame)
• Pes de l'article: 21 quilos
• Característiques especials: Integrated USB Socket, LED Lighting, Monitor Stand, Cup Holder, Headphone Hooks
• Preses de corrent: 2 x AC (220-250V/15A)
• Ports USB: 2 USB (5V/2.1A)
• Il·luminació LED: 7 Colors, 13 Dynamic Modes, 8 Brightness Levels
• Tipus de muntatge: Muntatge al terra
• Ús recomanat: Gaming, Home Office, Study

Figure 5: Detailed dimensions of the ODK LED Gaming Desk.

9. Garantia i assistència

ODK is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims. For assistance with assembly, missing parts, or any operational issues, please contact ODK customer support through the retailer where you purchased the product. Our specialized customer support team is ready to assist you.

For returns, please refer to the retailer's return policy. Typically, products are returnable within 30 days of receipt.
