Phomemo M220 Thermal Label Printer User Manual

1. Introducció

Thank you for choosing the Phomemo M220 Thermal Label Printer. This manual provides essential information for the safe and efficient use of your device. The M220 is an upgraded thermal label printer designed for various labeling needs, offering high-quality 203 DPI printing without the need for ink or toner. It supports label widths from 20mm to 75mm and connects via Bluetooth to mobile devices and USB to computers.

Please read this manual thoroughly before operating the printer and keep it for future reference.

2. Informació de seguretat

Per garantir un funcionament segur i evitar danys, observeu les precaucions següents:

• Do not disassemble, repair, or modify the printer yourself.
• Mantingueu la impressora allunyada de l'aigua, la humitat i la llum solar directa.
• Use only Phomemo-approved power adapters and accessories.
• Eviteu deixar caure la impressora ni sotmetre-la a impactes forts.
• Mantenir fora de l'abast dels nens.
• Do not touch the print head immediately after printing, as it may be hot.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• Phomemo M220 Thermal Label Printer
• Cable de càrrega USB (tipus C)
• Manual d'usuari (aquest document)
• Label Rolls (e.g., 1 roll of 40x30mm, 1 roll of 50x30mm, 1 roll of 70x80mm)
• Label Storage Case (may vary by package)

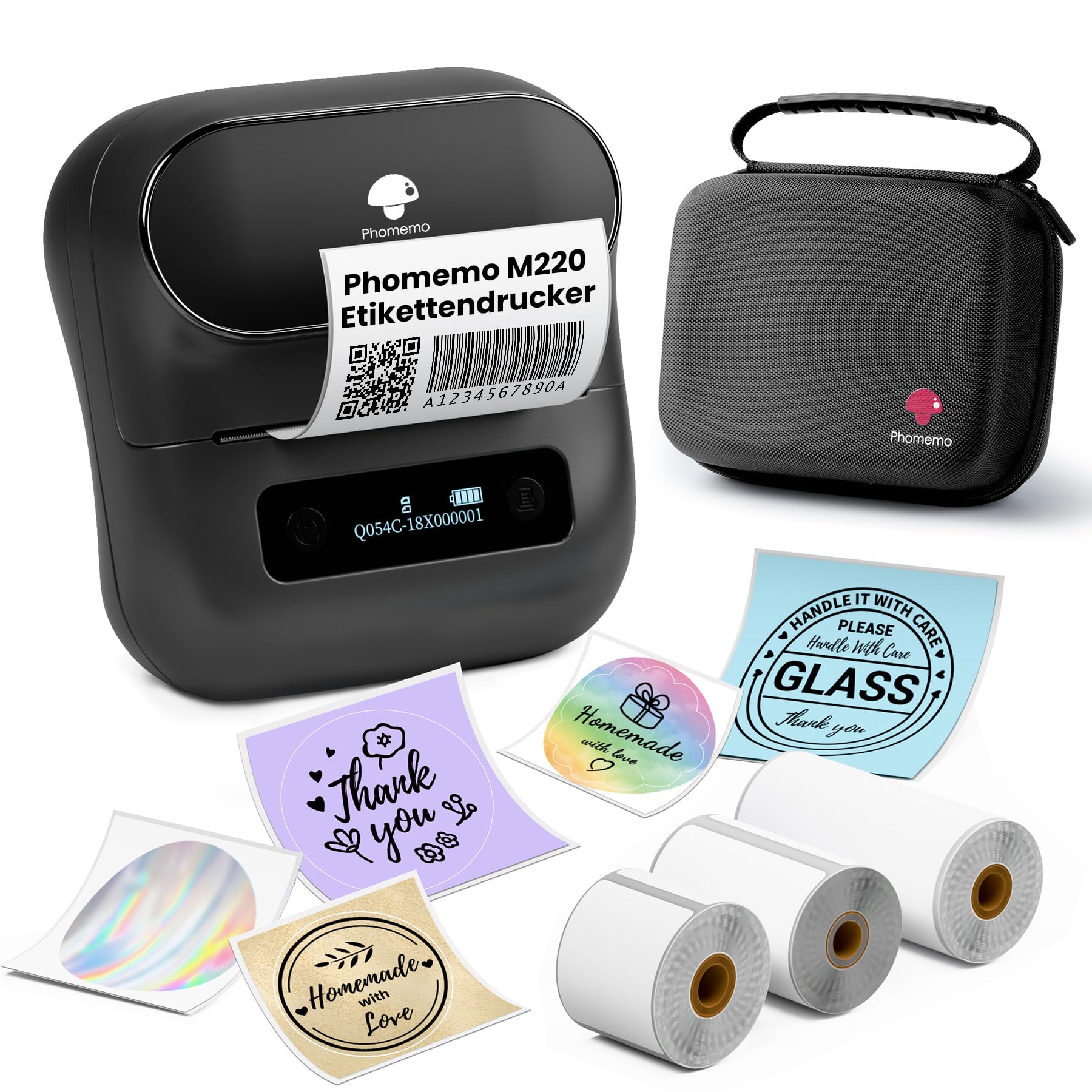

Image: Phomemo M220 printer with included accessories and labels.

4. Configuració

4.1 Càrrega de la impressora

The Phomemo M220 printer has a built-in 2200 mAh rechargeable battery.

1. Connect the provided USB Type-C cable to the printer's charging port.
2. Connecteu l'altre extrem del cable a un adaptador de corrent USB (no inclòs) o al port USB d'un ordinador.
3. The indicator light will show charging status. Charge fully before first use.

Image: Phomemo M220 printer highlighting its 2200mAh battery and Type-C charging port.

4.2 Loading Label Rolls

Follow these steps to load a label roll into the printer:

1. Obriu la coberta de la impressora.
2. Insert the label roll with the printing side facing up.
3. Pull a small portion of the labels out past the print head.
4. Close the printer cover firmly until it clicks. The printer will automatically calibrate the label position.

Image: Phomemo M220 printer with an open cover, showing how to load a label roll.

4.3 Instal·lació i connexió de l'aplicació

The Phomemo M220 printer connects via Bluetooth to mobile devices and via USB to computers.

Per a dispositius mòbils (iOS/Android):

1. Download the "Print Master" app from the App Store (iOS) or Google Play Store (Android).
2. Assegureu-vos que el Bluetooth del telèfon estigui activat.
3. Open the "Print Master" app.
4. Engegueu la impressora M220.
5. In the app, tap the "printer" icon (usually in the top right corner) to search for and connect to your M220 printer. Note: Do not connect directly via your phone's Bluetooth settings; connect through the app.

For Computers (Mac OS/Windows/Linux/Chromebook):

1. Download the "Labelife" software from the official Phomemo weblloc.
2. Instal·leu el programari al vostre ordinador.
3. Connect the M220 printer to your computer using the provided USB cable.
4. Follow the software instructions to set up and print.

Image: Diagram illustrating various connection methods for the Phomemo M220 printer, including Bluetooth for mobile devices and USB for computers.

5. Instruccions de funcionament

5.1 Using the "Print Master" App (Mobile)

The "Print Master" app offers a wide range of features for designing and printing labels.

1. Dissenyeu la vostra etiqueta: Use the app's interface to create custom labels. Features include:
   • Text input (multi-line)
   • Barcode and QR code generation
   • Image insertion
   • Scanning functionality
   • OCR (Optical Character Recognition)
   • Reconeixement de veu
   • Various templates and icons
   • Excel and PDF input for batch printing
2. Preview: Before printing, use the preview function to ensure the label design is correct.
3. Imprimeix: Once satisfied with the design, tap the print button in the app.

Image: Screenshot of the "Print Master" app interface, showing various design options like text, barcode, image, and templates.

5.2 Aplicacions d'etiquetes

The M220 printer is versatile and can be used for various labeling purposes:

• Barcode and QR Code labels
• Address and Shipping labels
• Product identification (logos, prices)
• Document and file organització
• Storage labels
• School and home labeling

Imatge: Examples of labels created with the Phomemo M220, demonstrating applications for barcodes, addresses, prices, and organization.

6. Manteniment

6.1 Neteja de la impressora

Una neteja regular ajuda a mantenir la qualitat d'impressió i allarga la vida útil de la impressora.

• Ensure the printer is turned off and unplugged before cleaning.
• Utilitzeu un drap suau i sense pelusa dampened with alcohol to clean the print head.
• Netegeu l'exterior de la impressora amb un drap sec i suau.
• No utilitzeu netejadors abrasius ni dissolvents.

6.2 Cura de la bateria

• Carregueu la impressora regularment, fins i tot si no l'utilitzeu amb freqüència, per mantenir la bateria en bon estat.
• Eviteu exposar la impressora a temperatures extremes.
• If storing for an extended period, charge the battery to about 50% and store in a cool, dry place.

7. Solució De Problemes

If you encounter issues with your Phomemo M220 printer, refer to the table below for common problems and solutions.

If the problem persists, please contact Phomemo customer support for assistance.

8. Especificacions

9. Garantia i assistència

9.1 Informació de la garantia

The Phomemo M220 Thermal Label Printer comes with a limited warranty. For specific terms and conditions, including warranty duration and coverage, please refer to the warranty card included in your product packaging or visit the official Phomemo weblloc.

9.2 Atenció al client

If you require technical assistance, have questions about your product, or need to report an issue, please contact Phomemo customer support.

• Weblloc: Visita el lloc web oficial de Phomemo weblloc web per a preguntes freqüents, descàrregues de controladors i informació de contacte.
• Correu electrònic: Refer to your product packaging or the Phomemo weblloc web per a l'adreça de correu electrònic d'atenció al client.
