Arikasen Bluetooth 5.0 Wireless Earbuds User Manual

1. Introducció

Thank you for choosing the Arikasen Bluetooth 5.0 Wireless Earbuds. This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your new earbuds. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

Figure 1.1: Arikasen Bluetooth 5.0 Wireless Earbuds (Red model shown).

2. Contingut del paquet

Abans de començar, comproveu el contingut del paquet per assegurar-vos que hi ha tots els elements:

• Arikasen Bluetooth 5.0 Wireless Earbuds
• Cable de càrrega USB
• Manual d'usuari
• Optional: Detachable Boom Microphone (if purchased with this accessory)

3. Configuració

3.1. Càrrega dels auriculars

Before first use, fully charge the earbuds. Connect the provided USB charging cable to the charging port on the earbuds and plug the other end into a USB power source (e.g., computer USB port, wall adapter). The indicator light will show charging status and turn off or change color when fully charged.

3.2. Posar-se els auriculars

The earbuds are designed for on-ear comfort. Gently place the earbud over your ear, ensuring the ear hook sits securely behind your ear. The soft protein earpads provide a comfortable fit without pressure.

Figure 3.1: Proper placement of the earbud for comfortable on-ear wear.

Figure 3.2: Close-up of the soft protein earpads designed for long-lasting comfort.

4. Instruccions de funcionament

4.1. Encendre/apagar

• Encès: Press and hold the multi-function button for approximately 3 seconds until the indicator light flashes.
• Apagar: Press and hold the multi-function button for approximately 5 seconds until the indicator light turns off.

4.2. Emparellament Bluetooth

Per emparellar els auriculars amb un dispositiu:

1. Assegureu-vos que els auriculars estiguin apagats.
2. Press and hold the multi-function button for about 5-7 seconds until the indicator light flashes red and blue alternately. This indicates pairing mode.
3. Al dispositiu (telèfon intel·ligent, tauleta, ordinador), activeu el Bluetooth i cerqueu els dispositius disponibles.
4. Select "Arikasen Earbuds" (or similar name) from the list of found devices.
5. Once connected, the indicator light on the earbuds will flash blue slowly or turn off, and you will hear a confirmation tone.

Figure 4.1: The compact design of the earbud, featuring Bluetooth 5.0 for low-latency transmission.

4.3. Reproducció de música

• Reproduir/pausa: Premeu el botó multifunció una vegada.
• Pista següent: Mantingueu premut el botó Volum +.
• Pista anterior: Mantingueu premut el botó de volum -.
• Pujar el volum: Premeu breument el botó Volum +.
• Baixar el volum: Premeu breument el botó de volum -.

4.4. Gestió de trucades

• Respondre/Finalitzar la trucada: Premeu el botó multifunció una vegada.
• Rebutja la trucada: Manteniu premut el botó multifunció durant 2 segons.
• Torna a marcar l'últim número: Premeu dues vegades el botó multifunció.

4.5. Using the Optional Boom Microphone

If your earbuds include the detachable boom microphone, you can attach it to the designated port for enhanced voice clarity, especially during gaming or calls.

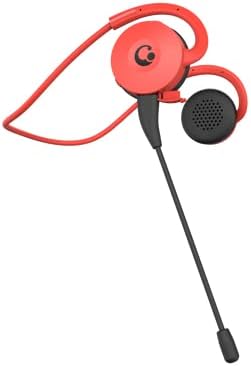

Figure 4.2: The earbud shown with the optional boom microphone attached for improved audio input.

5. Manteniment

To ensure the longevity and optimal performance of your Arikasen Wireless Earbuds, follow these maintenance guidelines:

• Neteja: Use a soft, dry, lint-free cloth to clean the earbuds. Do not use abrasive cleaners, alcohol, or chemical solvents.
• Coixinets per a les orelles: The protein earpads are durable but can be gently wiped with a damp drap si cal. Assegureu-vos que estiguin completament secs abans d'usar-los.
• Resistència a l'aigua: The earbuds are IPX5 water resistant, meaning they can withstand splashes and sweat. Do not submerge them in water or expose them to heavy rain. Dry them thoroughly if they get wet.
• Emmagatzematge: Guardeu els auriculars en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Càrrega: Eviteu sobrecarregar. Desconnecteu el cable de càrrega un cop els auriculars estiguin completament carregats.

6. Solució De Problemes

If you encounter issues with your earbuds, please refer to the following common problems and solutions:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

Figure 7.1: Internal components highlighting the 27mm powerful speakers.

8. Garantia i Suport

Arikasen is committed to providing high-quality products and excellent customer service. Your earbuds come with a 12 mesos de garantia des de la data de compra.

Cobertura de la garantia: This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.

Garantia de satisfacció del client: If you experience any product quality issues, please do not hesitate to contact us. We are dedicated to ensuring 100% customer satisfaction and will offer a full refund or a new replacement product if necessary.

Contacte amb l'assistència: For warranty claims, technical assistance, or any other inquiries, please refer to the contact information provided on your purchase receipt or the seller's page on Amazon. Please have your model number (B0BX5FGPQ4) and purchase date ready when contacting support.
