CAMECHO Android 13 Car Stereo User Manual

1. Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of your CAMECHO 9-inch Android 13 Car Stereo. This unit is designed for BMW 1 Series E81, E82, E87, E88 models from 2008-2012 (Auto AC). It integrates advanced features such as Wireless CarPlay, Android Auto, GPS Navigation, WiFi, Bluetooth, FM/RDS radio, and support for an AHD rear camera, enhancing your in-car entertainment and connectivity experience.

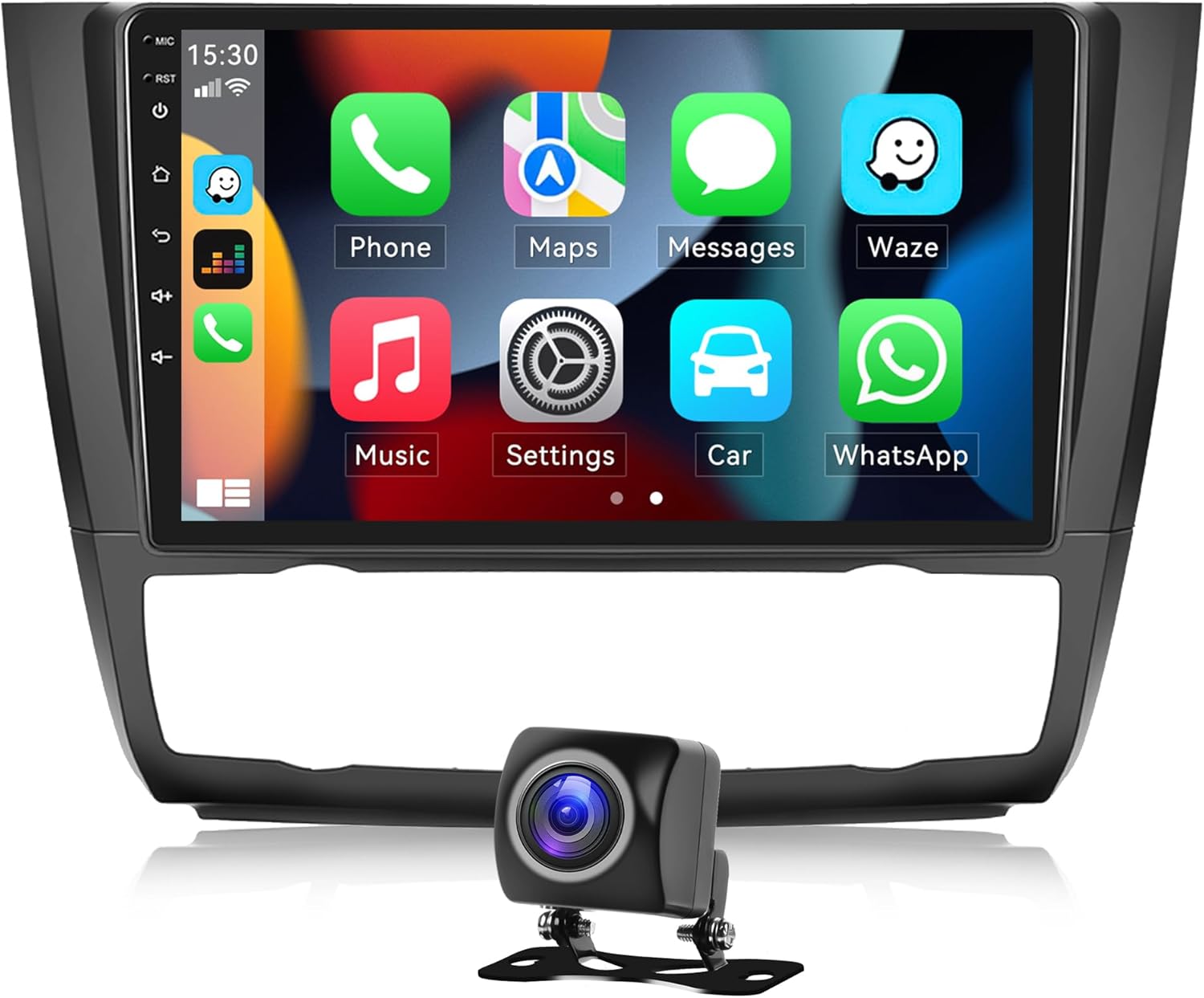

Figure 1.1: CAMECHO 9-inch Android 13 Car Stereo with its user interface displaying common applications and an included AHD rear camera.

2. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació siguin presents al vostre paquet. Si falta algun element o hi ha algun malmès, poseu-vos en contacte amb el servei d'atenció al client.

Figura 2.1: Mésview of the car stereo dimensions and all included accessories.

• CAMECHO 9-inch Android 13 Car Stereo Unit
• Càmera posterior AHD
• Cable d'alimentació
• Cable RCA
• Cables USB (2)
• Antena GPS
• Micròfon extern
• CANBUS Decoder
• Adaptador d'antena de ràdio
• Eines d'instal·lació
• Manual d'usuari (aquest document)

3. Configuració i instal·lació

3.1 Comprovació de compatibilitat

This car stereo is specifically designed for BMW 1 Series E81, E82, E87, E88 models manufactured between 2008 and 2012, equipped with Automatic Climate Control (Auto AC). Please ensure your vehicle matches these specifications before proceeding with installation.

Figure 3.1: Visual guide for installation compatibility and the appearance of the dashboard before and after the stereo unit is installed.

3.2 Passos d'instal·lació (es recomana la instal·lació professional)

Due to the complexity of automotive electrical systems, professional installation is highly recommended. Incorrect installation can lead to damage to the unit or vehicle. The following is a general guide:

1. Desconnecta la bateria: Abans d'arrencar, desconnecteu el terminal negatiu de la bateria del vehicle per evitar curtcircuits.
2. Treure la unitat original: Carefully remove the existing car stereo unit and trim panels using appropriate tools. Refer to your vehicle's service manual for specific instructions.
3. Connecteu l'arnès de cablejat: Connect the provided power cable, RCA cables, USB cables, GPS antenna, and external microphone to the corresponding ports on the new CAMECHO unit. Ensure the CANBUS decoder is correctly integrated into the wiring harness.
4. Connect AHD Rear Camera: Route the AHD rear camera cable from the rear of the vehicle to the stereo unit and connect it to the dedicated camera input.
5. Prova de connexions: Before fully reassembling, reconnect the battery and briefly test the unit's basic functions (power on, audio, touch screen, camera input).
6. Unitat segura: Mount the new stereo unit securely into the dashboard opening.
7. Torneu a muntar: Torneu a instal·lar tots els panells de guarnició i fixeu-los correctament.
8. Prova final: Perform a comprehensive test of all features, including GPS, Bluetooth, CarPlay/Android Auto, and steering wheel controls.

4. Instruccions de funcionament

4.1 Funcionament bàsic

• Encès/apagat: The unit powers on automatically with the vehicle's ignition. To manually turn off the screen, press the power button (if available) or use the system settings.
• Pantalla tàctil: The 9-inch full-capacity touch screen allows for intuitive control. Tap, swipe, and pinch-to-zoom as you would on a smartphone.
• Control de volum: Adjust volume using the physical buttons on the unit or via steering wheel controls.

4.2 Característiques clau

4.2.1 CarPlay sense fil i Android Auto

Connect your Apple or Android smartphone wirelessly or via USB to access navigation, calls, messages, music, and more directly on the car stereo display. Supports voice control for hands-free operation.

Figure 4.1: Wireless CarPlay and Android Auto interfaces for seamless smartphone integration.

4.2.2 Navegació GPS

The unit features built-in GPS navigation. You can download offline maps from the Play Store or use online navigation apps like Google Maps when connected to WiFi. The system provides accurate positioning and real-time traffic information (with internet connection).

Figure 4.2: GPS Navigation interface providing route guidance and map display.

4.2.3 Connectivitat Wi-Fi

Connect the car stereo to a WiFi hotspot (e.g., from your smartphone) to access online features, download apps, browse the internet, and stream content.

Figure 4.3: WiFi connection enables online maps, app downloads, and media streaming.

4.2.4 Funcionalitat Bluetooth

Pair your smartphone via Bluetooth for hands-free calling, audio streaming (A2DP), and automatic phonebook synchronization. This allows you to make and receive calls safely while driving and enjoy your music wirelessly.

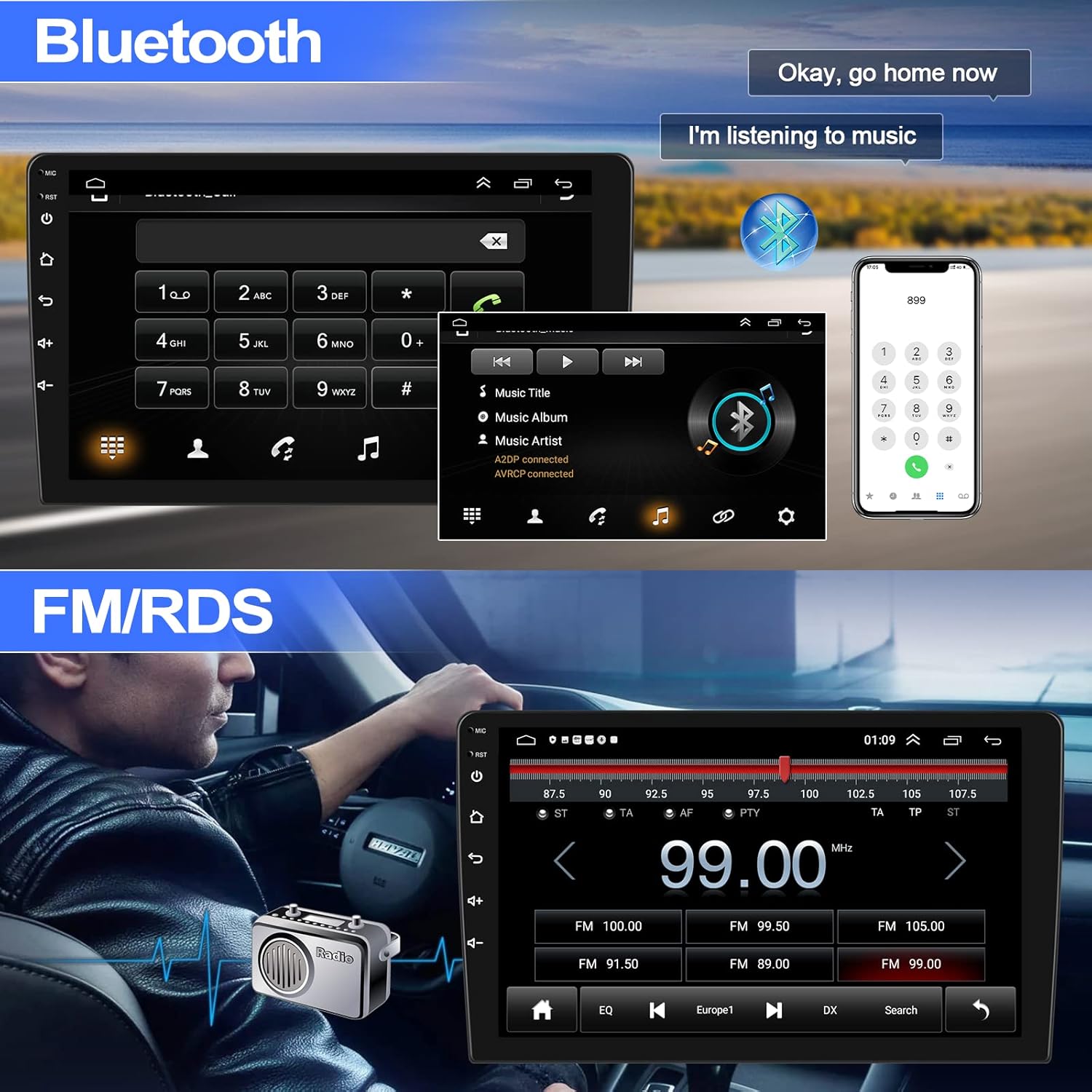

Figure 4.4: Bluetooth interface for hands-free calls and music streaming.

Ràdio 4.2.5 FM/RDS

Enjoy your favorite radio stations with the built-in FM tuner. The Radio Data System (RDS) provides additional information like station name and song title where available. The unit supports 18 preset stations.

Figure 4.5: FM/RDS radio interface for tuning and managing radio stations.

4.2.6 Hi-Fi Audio Function

Experience high-fidelity audio reproduction that closely matches the original sound. The built-in equalizer allows you to customize sound settings to your preference, with various presets like Pop, Rock, Jazz, and Custom options.

Figure 4.6: Hi-Fi audio equalizer for personalized sound settings.

4.2.7 Comandaments al volant

The unit supports integration with your vehicle's existing steering wheel controls, allowing you to manage audio playback, calls, and navigation functions without taking your hands off the wheel. This enhances driving safety and convenience.

Figure 4.7: Steering wheel control learning interface for custom button mapping.

4.2.8 Funció de pantalla dividida

Utilize the split-screen feature to run two applications simultaneously, such as navigation on one side and music playback on the other. This maximizes the utility of the large 9-inch display.

Figure 4.8: Split screen functionality displaying navigation and media simultaneously.

4.2.9 AHD Rear Camera & External Microphone

The included AHD rear camera provides a high-definition 720P view of the area behind your vehicle, automatically displaying when reversing. The external omnidirectional microphone ensures clear audio for hands-free calls and voice commands, with a 145cm shielded cable for optimal placement.

Figure 4.9: AHD Rear Camera view with parking assistance lines.

Figure 4.10: External omnidirectional microphone for clear audio input.

5. Manteniment

• Neteja de pantalla: Utilitzeu un drap suau i sense pelusa lleugerament dampened with water or a screen cleaner specifically designed for electronics. Do not use abrasive cleaners or solvents.
• Atenció general: Keep the unit free from dust and debris. Avoid exposing the unit to extreme temperatures or direct sunlight for prolonged periods.
• Actualitzacions de programari: Periodically check for software updates through the unit's system settings (requires WiFi connection) to ensure optimal performance and access to new features.

6. Solució De Problemes

If the problem persists after attempting these solutions, please contact CAMECHO customer support.

7. Especificacions

8. Garantia i Suport

The CAMECHO Android 13 Car Stereo comes with a Garantia del fabricant de 1 anys des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.
