FABATO 8-Drawer Dresser (Model FA3258-BLK) Instruction Manual

1. Producte acabatview

The FABATO 8-Drawer Dresser is a versatile storage unit designed for organizing clothing, accessories, and other household items. It features eight separate fabric drawers, a sturdy steel frame, and a durable wooden top surface. Its compact design makes it suitable for various rooms, including bedrooms, living rooms, closets, nurseries, and offices.

Imatge 1: Frontal view of the assembled FABATO 8-Drawer Dresser.

2. Informació de seguretat

• Always use the provided anti-tipping accessories to secure the dresser to a wall. This prevents accidental tipping, especially in households with children or pets.
• Do not allow children to climb on the dresser or drawers.
• No sobrecarregueu els calaixos. Distribuïu el pes uniformement per mantenir l'estabilitat.
• Place the dresser on a level surface. Use the adjustable feet to stabilize the unit on uneven floors.
• Keep small parts and assembly tools away from children during assembly.

3. Contingut del paquet

Abans del muntatge, verifiqueu que totes les peces que s'enumeren a continuació siguin presents i no estiguin danyades. Si hi ha alguna peça que falti o estigui danyada, poseu-vos en contacte amb el servei d'atenció al client.

Imatge 2: Detallada view of all components and hardware included in the package. Note: The image displays parts for a 9-drawer model, but the general components are similar.

Llista de components:

• Steel Frame Components (various sizes for sides, back, and supports)
• Wooden Top Board
• Calaixos de tela (8 unitats)
• Poms de calaix
• Peus ajustables
• Anti-Tipping Hardware (wall anchors, screws)
• Assembly Screws (various sizes)
• Assembly Tools (Allen wrench, screwdriver)

4. Instruccions de muntatge

Follow these steps carefully to assemble your FABATO 8-Drawer Dresser. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

Guia de muntatge visual:

Muntatge pas a pas:

1. Muntar el marc base: Connect the bottom horizontal bars to the vertical side frames using the specified screws. Ensure all connections are secure.
2. Attach Middle Supports: Install the middle support bars and crossbars to create the internal structure for the drawers. Pay attention to the orientation of each piece.
3. Instal·leu el marc superior: Secure the top horizontal bars to the vertical side frames.
4. Attach Back Crossbars: Install the X-shaped back crossbars to enhance stability. Ensure they are tightened properly.
5. Place Wooden Top: Carefully position the wooden top board onto the assembled frame and secure it with the appropriate screws.
6. Instal·leu els peus ajustables: Screw the adjustable feet into the bottom of the frame. Adjust them as needed to level the dresser on your floor.
7. Preparació dels calaixos de tela: Unfold each fabric drawer and insert the bottom panel to create a rigid structure. Attach the drawer knobs to the front of each drawer.
8. Inserir calaixos: Slide the assembled fabric drawers into their respective compartments in the frame.
9. Instal·leu el dispositiu antivuelco: Secure the anti-tipping strap to the top back of the dresser and then to a wall stud using the provided hardware. This is a critical safety step.

5. Instruccions de funcionament

Ús dels calaixos:

• To open a drawer, gently pull the knob. To close, push the drawer back into its compartment until it is fully seated.
• Avoid forcing drawers open or closed.
• The fabric drawers are designed for lightweight items such as clothing, linens, and small accessories. Do not place heavy objects in the drawers as this may cause damage or instability.

Ús de la superfície superior:

• The wooden top surface can hold decorative items, lamps, or small electronics.
• Do not exceed the recommended weight capacity for the top surface to prevent damage or tipping.

6. Manteniment

Neteja:

• Calaixos de tela: Esborra amb anunciamp cloth and mild soap if necessary. Allow to air dry completely. Do not machine wash or tumble dry.
• Wooden Top & Steel Frame: Netegeu amb un drap suau, sec o lleugerament secamp drap. Eviteu productes químics agressius o netejadors abrasius.

Atenció general:

• Reviseu periòdicament tots els cargols i connexions per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.
• Ensure the adjustable feet are properly set to keep the dresser stable.
• Avoid exposing the dresser to direct sunlight or extreme humidity, which can affect the materials.

7. Solució De Problemes

Problemes comuns i solucions:

• Dresser is wobbly:
  Solution: Check that all screws are securely tightened. Adjust the leveling feet on the bottom of the frame to ensure all four corners are making firm contact with the floor. Ensure the anti-tipping device is properly installed.
• Els calaixos no llisquen suaument:
  Solution: Ensure the drawers are correctly assembled and the bottom panel is fully inserted. Check for any obstructions within the drawer compartments. Ensure the dresser frame is not warped or uneven.
• Peces que falten:
  Solution: Refer to the 'Package Contents' section and contact FABATO customer support with your purchase details and the specific missing part number.

8. Especificacions

Image 3: Dimensional diagram of the dresser.

Image 4: Detail of the high-quality drawer material construction.

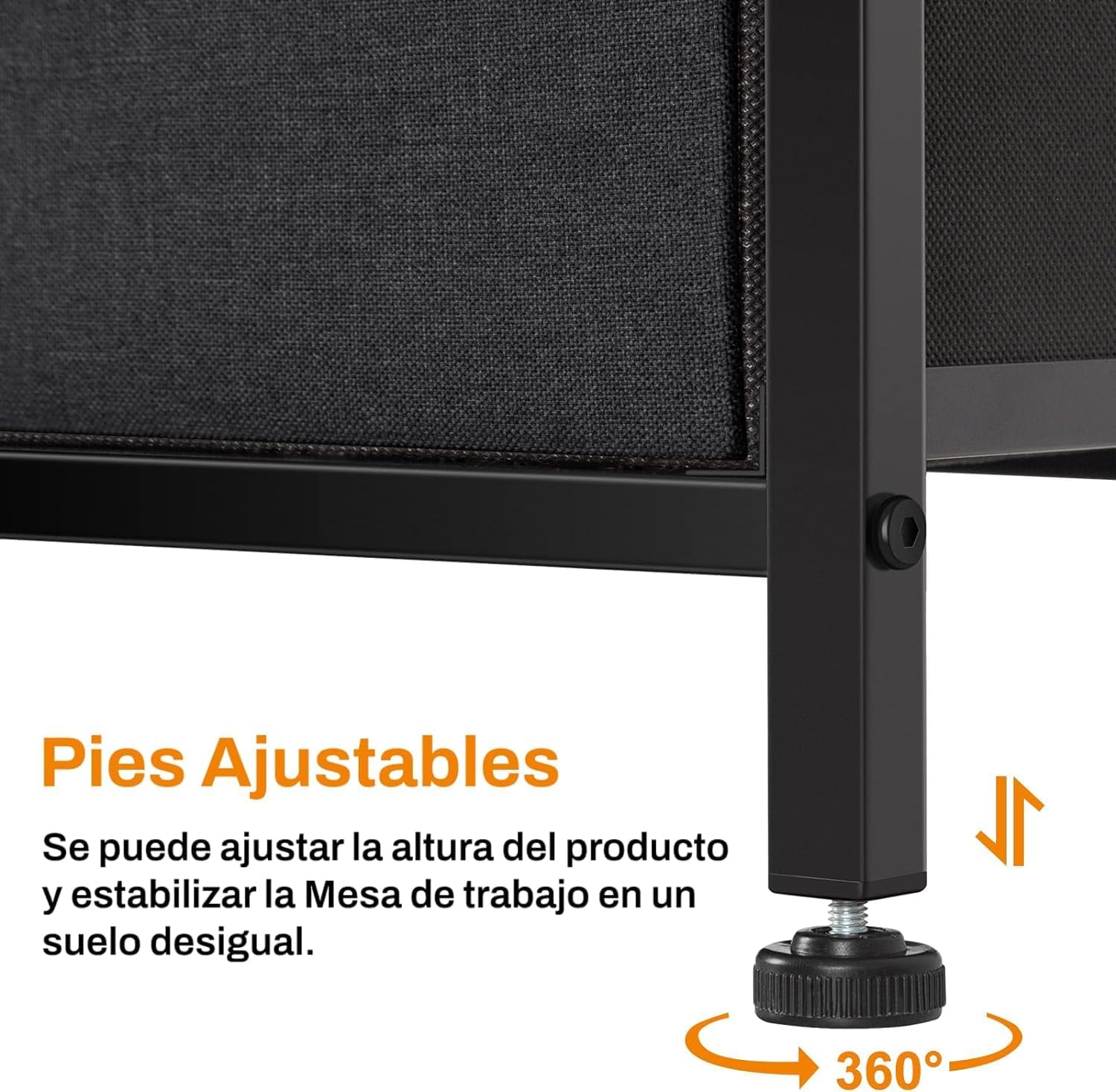

Image 5: Illustration of the adjustable feet for stability on uneven surfaces.

Imatge 6: posterior view highlighting the additional crossbar for enhanced structural integrity.

9. Garantia i Suport

For warranty information, missing parts, or any product-related inquiries, please contact FABATO customer support directly through your purchase platform or the official FABATO website. Please have your model number (FA3258-BLK) and purchase date available when contacting support.
