ODK Reversible Gaming Desk User Manual

1. Introducció

Thank you for choosing the ODK Reversible Gaming Desk. This L-shaped desk is designed to provide a versatile and ergonomic workspace for gaming, work, and study. It features integrated LED lighting, convenient power outlets, USB charging ports, and ample storage. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your desk.

2. Instruccions de seguretat

• Llegiu atentament totes les instruccions abans de muntar i utilitzar.
• Mantingueu totes les peces petites i els materials d'embalatge fora de l'abast dels nens i les mascotes per evitar riscos d'asfíxia.
• Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los. Comproveu-los periòdicament i torneu-los a apretar si cal.
• Do not overload the desk or shelves. Refer to specifications for weight limits.
• Col·loqueu l'escriptori sobre una superfície plana i estable per evitar que bolqui.
• Do not expose the desk to excessive moisture or direct sunlight, as this may damage the material and electronic components.
• Only use the integrated power outlets and USB ports with compatible devices and within specified voltage/current limits.
• If any part is damaged or missing, do not attempt to assemble or use the desk. Contact customer support immediately.

3. Contingut del paquet

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact ODK customer service.

• Desk Panels (Main, Side, Monitor Shelf)
• Components del marc metàl·lic
• Integrated Power Outlet with 2 AC Sockets and 2 USB Ports
• Tira de llum LED amb comandament a distància
• Adjustable Storage Shelves (2-tier)
• Assembly Hardware (Screws, Bolts, Allen Wrench, etc.)
• Manual d'instruccions

Note: The exact number and type of fasteners may vary slightly. Refer to the included assembly diagram for precise details.

4. Muntatge i muntatge

The ODK Gaming Desk features a reversible design, allowing you to configure the L-shape to either the left or right side to best suit your room layout. Follow the steps below for assembly.

4.1 Disseny reversible

The desk can be assembled with the longer section on either the left or right side. Decide your preferred orientation before starting assembly.

Figure 4.1: Reversible design and key dimensions (168cm x 120cm x 88.7cm height). The monitor shelf is 13cm high.

4.2 Passos de muntatge

1. Desempaquetar i identificar les peces: Lay out all components on a clean, soft surface to prevent scratches. Identify each part using the labels or diagrams in the included assembly guide.
2. Muntatge del marc: Begin by assembling the metal frame components according to the step-by-step instructions provided in the separate assembly manual. Ensure all connections are secure but do not fully tighten screws until all parts are aligned.
3. Enganxar panells d'escriptori: Secure the main desk panels to the assembled frame. Pay attention to the orientation for the reversible design.
4. Install Monitor Shelf: Attach the elevated monitor shelf to the main desk surface. This shelf is designed to improve ergonomic posture.
5. Integrar presa de corrent: Carefully install the built-in power outlet and USB charging module into the designated cutout on the desk surface. Connect the power cable.
6. Fixeu els prestatges d'emmagatzematge: Install the two-tier storage shelves on the side of the desk. These shelves are adjustable in height to accommodate various items.
7. Ajustament final: Once all parts are correctly aligned, fully tighten all screws and fasteners.
8. Gestió de cables: Utilize the provided cable management features (if any) to organize power cords and device cables for a tidy setup.

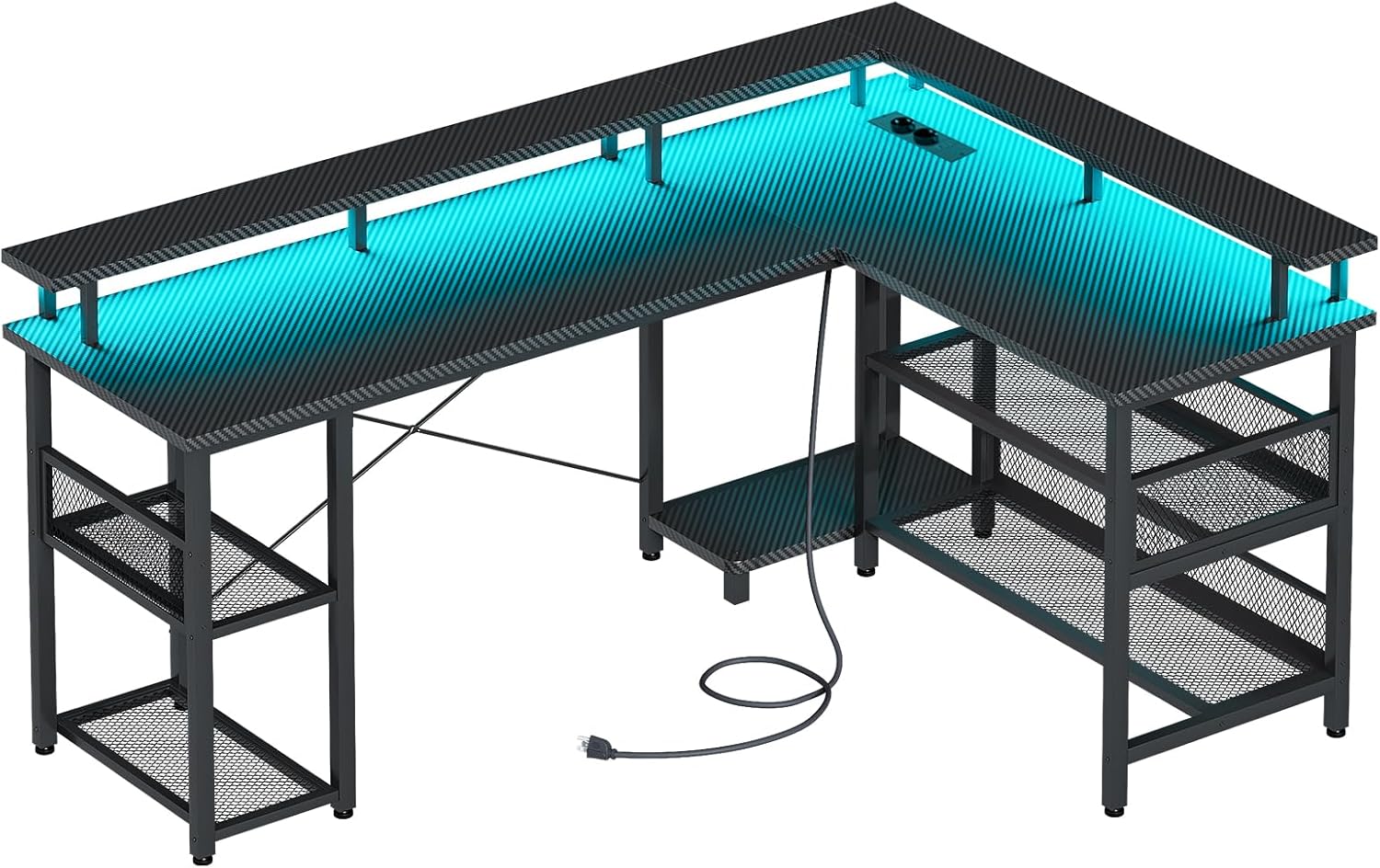

Figure 4.2: Assembled ODK Gaming Desk with LED lighting and power features.

5. Instruccions de funcionament

Sistema d'il·luminació LED 5.1

The desk is equipped with an LED light strip offering various lighting modes and colors to enhance your environment.

• Encès/apagat: Use the included remote control or the button on the LED strip controller to turn the lights on or off.
• Selecció del mode: Cycle through 13 different lighting modes using the remote control. These modes may include static colors, flashing, fading, and dynamic effects.
• Canvi de color: Select from 7 distinct color variations to match your preference or mood.
• Ajust de brillantor: Adjust the brightness level of the LEDs using the remote control.

Figure 5.1: Integrated power hub and LED color options.

5.2 Integrated Power Outlets and USB Ports

The desk includes 2 standard AC power outlets and 2 USB charging ports for convenient access to power for your devices.

• Preses de CA: Plug in your computer, monitor, or other electronic devices into the 220-250V/15A AC outlets.
• Ports USB: Use the 5V/2.1A USB ports to charge smartphones, tablets, and other USB-powered devices.
• Cable de corrent: Ensure the 150cm power cable is securely plugged into a wall outlet.

5.3 Storage Shelves

The desk features multi-functional two-tier storage shelves. The height of these shelves is adjustable to suit your storage needs.

• Ajust de l'alçada del prestatge: Refer to the assembly manual for specific instructions on how to adjust or re-position the shelves. This typically involves removing and re-inserting fasteners into different pre-drilled holes.
• CPU Tower Placement: The design allows for a dedicated space for a CPU tower, either on the floor or on a lower shelf, depending on your configuration.

Figure 5.2: Optimized storage and organization areas.

6. Manteniment

Proper maintenance will ensure the longevity and appearance of your ODK Gaming Desk.

• Neteja: Netegeu regularment les superfícies de l'escriptori amb un drap suau iamp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the carbon fiber finish.
• Exposició a la llum solar: Protect the desk from direct sunlight to prevent fading or material degradation.
• Vessaments de líquids: Immediately wipe up any liquid spills to prevent damage to the desk surface or electronic components.
• Comprovació de fixació: Reviseu periòdicament tots els cargols i elements de fixació per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal per mantenir l'estabilitat.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

ODK is committed to providing high-quality products and customer satisfaction. For any questions regarding assembly, missing parts, product defects, or operational issues, please contact ODK customer support.

Please have your model number (ZJZ-SBWJDDD) and purchase information ready when contacting support to facilitate faster service.

For more information, visit the official ODK store or contact your retailer.

Note: Specific warranty terms and conditions may vary by region and retailer. Please refer to your purchase documentation for detailed warranty information.
