Manual d'usuari de l'aire condicionat portàtil PETSITE de 9000 BTU

1. Producte acabatview

The PETSITE 9000 BTU Portable Air Conditioner is a versatile 3-in-1 unit designed to provide cooling, dehumidification, and fan functions for rooms up to 280 sq.ft. Its compact design and portability make it suitable for various living spaces.

Image: The PETSITE portable air conditioner unit shown with its remote control, illustrating its compact design and air output.

Característiques principals:

• Whole Room Cooling: 9000 BTU ASHRAE (6000 BTU SACC) capacity effectively cools rooms up to 280 sq.ft. Adjustable air supply direction (manual swing 115° up/down, 96° left/right) ensures comprehensive cooling.


Image: Visual representation of the air conditioner's cooling capacity, indicating 9000 BTU ASHRAE, 6000 BTU SACC, 163 CFM airflow, and a cooling area of 280 sq.ft.

• Funcionalitat 3 en 1: Offers cooling, dehumidifying (50 pints/day capacity), and fan modes with two speed settings (high/low).

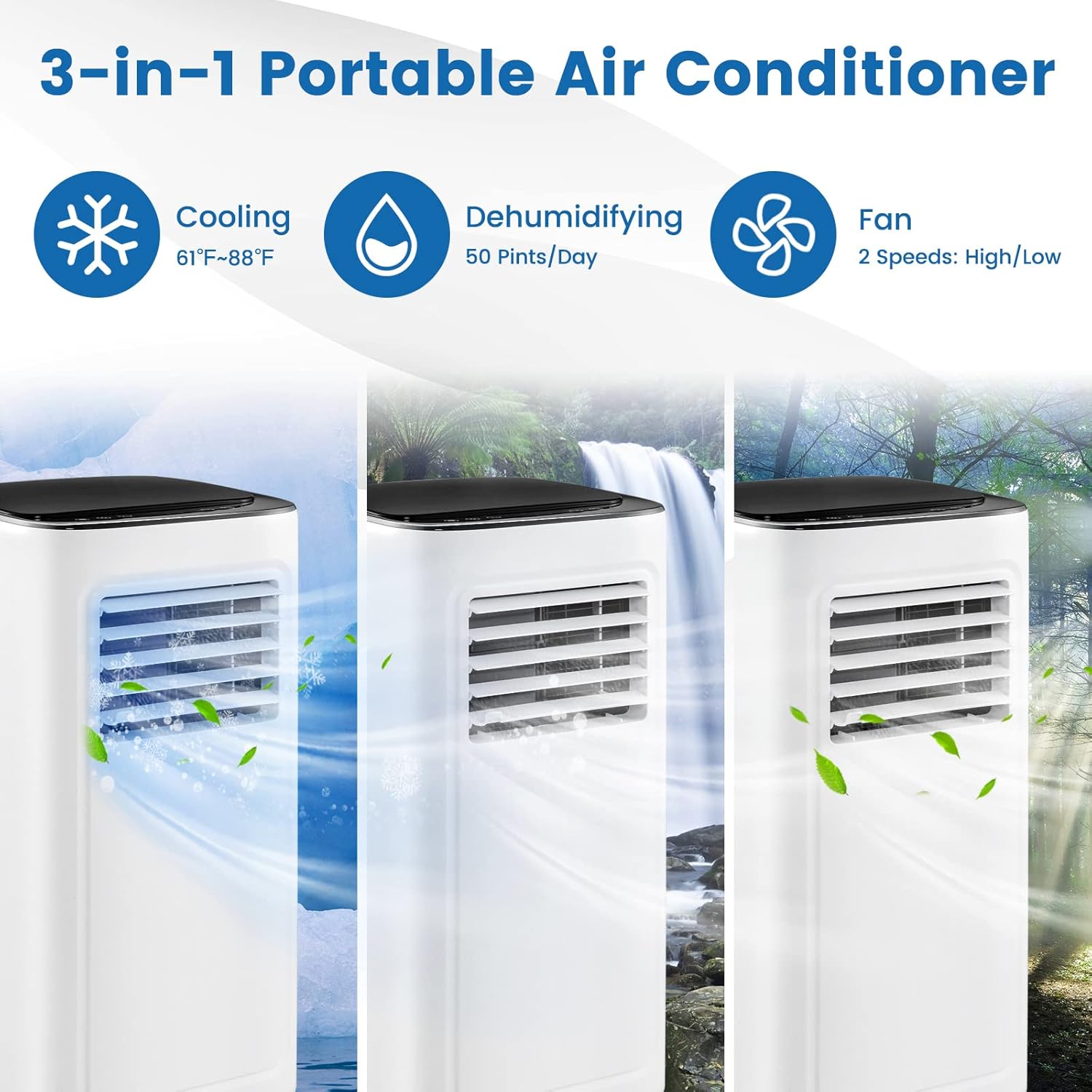

Image: Depicts the three primary functions: Cooling (61°F-88°F), Dehumidifying (50 Pints/Day), and Fan (2 Speeds: High/Low).
• Dual Control & Low Noise: Features an LED touch panel and a remote control for easy operation. Quiet sleep mode and a 1-24 hour timer ensure undisturbed rest.


Image: Shows the LED touch panel with controls for Timer, Speed, Up, Down, Mode, and Power On/Off, alongside the remote control.

• Humanized Design & Easy Maintenance: Equipped with two drain holes and a drain hose for continuous or manual drainage. The filter is detachable and washable for easy cleaning.

Image: Highlights key design elements: adjustable air supply direction, detachable & washable filter, built-in handles, and 360° universal casters.
• Portabilitat: Built-in handles and universal casters allow for easy movement between rooms.

2. Configuració i instal·lació

Proper setup is crucial for optimal performance. This unit is designed for easy installation in vertical or horizontal sliding windows.

Components inclosos:

• 1 x Aire condicionat portàtil
• 1 x Exhaust Hose (4.9 ft length, 6" diameter)
• 1 x Connector de mànega
• 1 x adaptador
• 1 x Window Kit (Applicable window width/height: 25.5"-47")
• 1 x Drain Hose (2 ft length)
• 1 x comandament a distància
• 1 x Guia d'usuari

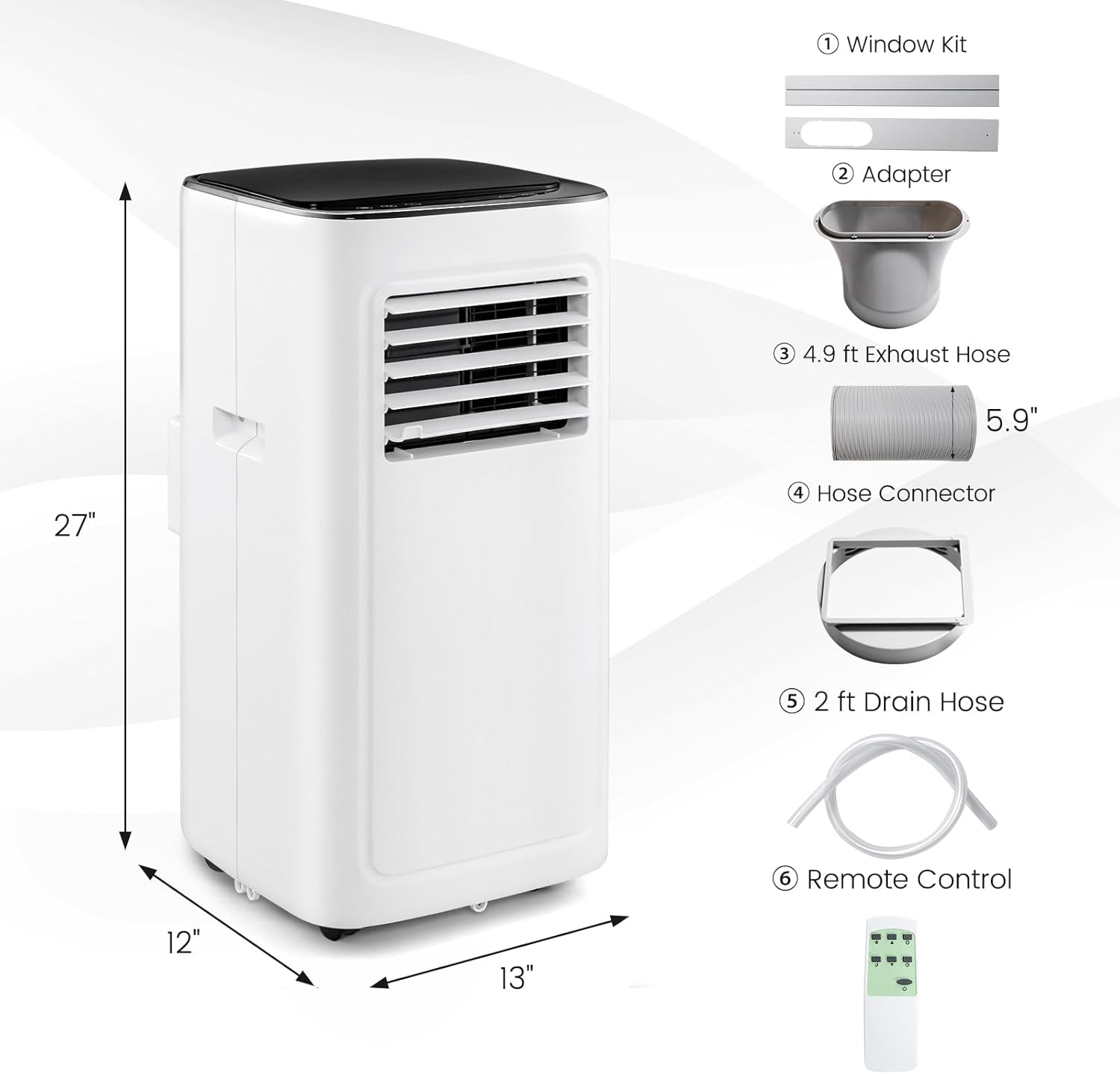

Image: Illustrates the product dimensions (13"L x 12"W x 27"H) and lists the included accessories: Window Kit, Adapter, Exhaust Hose, Hose Connector, Drain Hose, and Remote Control.

Passos d'instal·lació:

1. Attach the exhaust hose to the air conditioner unit.
2. Connect the hose adapter to the other end of the exhaust hose.
3. Install the window kit into your chosen window (vertical or horizontal sliding). Ensure a secure fit to prevent air leakage.
4. Insert the hose adapter into the opening of the window kit.
5. Position the unit near the window, ensuring the exhaust hose is not kinked or obstructed.
6. For dehumidification or continuous drainage, connect the drain hose to the appropriate drain hole and direct it to a suitable container or drain.

Image: Demonstrates the ease of installation, showing how to connect the exhaust hose to the unit and window kit for both vertical and horizontal sliding windows.

3. Instruccions de funcionament

Your PETSITE portable air conditioner offers multiple modes and settings for personalized comfort.

Tauler de control i control remot:

The unit can be operated using the LED touch panel on top of the unit or the included remote control. The remote control has a maximum distance of 16.5 ft.

Modes de funcionament:

• Mode de refrigeració: Provides powerful cooling with a temperature setting range of 61℉~88℉.
• Mode deshumidificador: Removes up to 50 pints of moisture per day, ideal for humid environments.
• Mode de ventilador: Circulates air with two fan speeds (High/Low) without cooling.

Funcions addicionals:

• Funció de temporitzador: Set the unit to turn on or off automatically within a 1-24 hour period. This helps save energy.
• Mode de repòs: Activates quiet operation (50 dB noise level) for a peaceful sleeping environment.


Image: Illustrates the low noise level of 50dB and the benefits of Sleep Mode and the 1-24H Timer for undisturbed rest.

• Air Supply Direction: Manually adjust the up/down (115°) and left/right (96°) louvers to direct airflow as needed.

4. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament eficient del vostre aire condicionat.

Neteja de filtres:

• The air filter is detachable and washable.
• Clean the filter regularly (e.g., every two weeks or as needed) to maintain air quality and cooling efficiency.
• To clean, remove the filter, rinse it under running water, and allow it to air dry completely before reinserting.

Drenatge d'aigua:

• The unit has two drain holes for convenience.
• For continuous drainage (especially in dehumidifier mode), connect the provided drain hose to the lower drain hole and direct it to a floor drain or a large container.
• For manual drainage, when the internal water tank is full, the unit will indicate with a light and alarm sound. Turn off the unit, place a shallow pan under the drain hole, and remove the drain plug to empty the water.
• Ensure the unit is level or slightly tilted towards the drain hole for complete drainage.

5. Solució De Problemes

Si teniu problemes amb el vostre aire condicionat portàtil, consulteu els següents problemes i solucions habituals:

6. Especificacions

7. Garantia i Suport

For any questions, technical assistance, or warranty claims, please refer to the contact information provided with your purchase documentation or visit the official PETSITE weblloc.

Additional protection plans may be available for purchase to extend coverage beyond the standard manufacturer's warranty. Please check your purchase details for more information on available plans.

També podeu trobar el Manual d'usuari oficial (PDF) d'aquest producte a: https://manuals.plus/m/cefff661bed89e82f36ad0495bc180f4497fc7895e2d81fed41b606feb43f69d
