ODK 54-Inch L-Shaped Desk with Monitor Stand and Storage Shelves Instruction Manual

1. Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your ODK 54-inch L-Shaped Desk. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This desk is designed for home office, study, bedroom, or living room use, offering a spacious work area, integrated storage, and an adjustable monitor stand.

Image 1.1: The ODK L-Shaped Desk with its integrated 5-tier shelf and monitor stand, set up in a home office environment.

2. Instruccions de seguretat

• Always assemble the desk on a soft, clean surface to prevent scratches or damage.
• Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los. Comproveu-los periòdicament i torneu-los a apretar si cal.
• Do not overload the desk or shelves. Refer to the specifications for weight limits.
• Mantingueu les peces petites i els materials d'embalatge fora de l'abast dels nens i les mascotes per evitar riscos d'asfíxia.
• For ease and safety, assembly is recommended with two people.
• Eviteu col·locar objectes calents directament sobre la superfície de l'escriptori sense protecció.
• Do not stand or sit on the desk or shelves.

3. Llista de peces

Before assembly, unpack all components and verify against the included parts list. If any parts are missing or damaged, contact customer support.

• Desk Boards: Main L-shaped desktop surfaces.
• Metal Frame Components: Various metal bars and legs for structural support.
• 5-Tier Shelf Boards: Individual shelves for the storage unit.
• Monitor Stand Components: Elevated platform and supports.
• Coixinets de peu ajustables: For stability and leveling.
• Maquinari: Screws, bolts, and Allen wrenches (specific quantities detailed in the packaging).

4. Instruccions de muntatge

Follow the steps below to assemble your ODK L-Shaped Desk. It is recommended to have a second person assist with assembly.

4.1. Video Assembly Guide

For a visual guide, please refer to the official assembly video:

4.2. Reversible Design Configuration

The L-shaped desk features a reversible design, allowing you to configure the 5-tier shelf on either the left or right side to best suit your space. Plan your desired orientation before attaching the main desktop boards.

Image 4.2: Illustration of the reversible L-shaped desk, demonstrating how the 5-tier shelf can be positioned on either the left or right side of the main desk.

4.3. Adjustable Foot Pads

The desk includes adjustable foot pads to ensure stability on uneven floors. Once the desk is fully assembled and in its desired location, rotate the foot pads at the bottom of each leg to level the desk and prevent wobbling.

Imatge 4.3: Un primer pla view of the adjustable foot pad, illustrating its function for leveling the desk on uneven surfaces.

5. Instruccions de funcionament

5.1. Using the Monitor Stand

The integrated monitor stand is designed to elevate your monitor to an ergonomic height, improving your sitting posture. The stand offers three adjustable height options to suit individual preferences and monitor sizes.

Image 5.1: Visual representation of the monitor stand's three adjustable height settings (3.9, 5.1, and 6.3 inches), allowing for ergonomic customization.

5.2. Utilització de prestatges d'emmagatzematge

The desk includes a 5-tier storage shelf and additional 2-tier shelves under the main desktop. These are suitable for organizing books, printers, office supplies, and computer towers. Distribute weight evenly across the shelves.

Image 5.2: The 5-tier storage shelf, demonstrating its capacity for various items such as books, a printer, and potted plants.

Image 5.3: The 2-tier shelves located under the main desk, providing space for a computer tower or additional storage.

6. Manteniment

To maintain the appearance and longevity of your ODK L-Shaped Desk, follow these simple maintenance guidelines:

• Neteja: Wipe the desk surface with a dry cloth. For spills, use a slightly damp drap i assequeu-lo immediatament. Eviteu productes químics agressius o netejadors abrasius.
• Comprovació de maquinari: Periodically inspect all screws and connections to ensure they remain tight. Re-tighten any loose hardware to maintain stability.
• Eviteu la humitat: While the desk surface is designed to be water-resistant, prolonged exposure to moisture should be avoided. Wipe up spills promptly.
• Exposició a la llum solar: Avoid direct and prolonged exposure to sunlight to prevent fading or discoloration of the desk surface.

7. Solució De Problemes

• Escriptori que tremola: If the desk wobbles, ensure all screws are tightened. Adjust the foot pads at the bottom of the legs to stabilize the desk on uneven surfaces.
• Dificultat durant el muntatge: If you encounter difficulty aligning parts or inserting screws, slightly loosen other screws in the vicinity to allow for minor adjustments, then re-tighten all screws once aligned.
• Peces que falten: If any parts are missing from the package, refer to the parts list and contact ODK customer support for assistance.

8. Especificacions

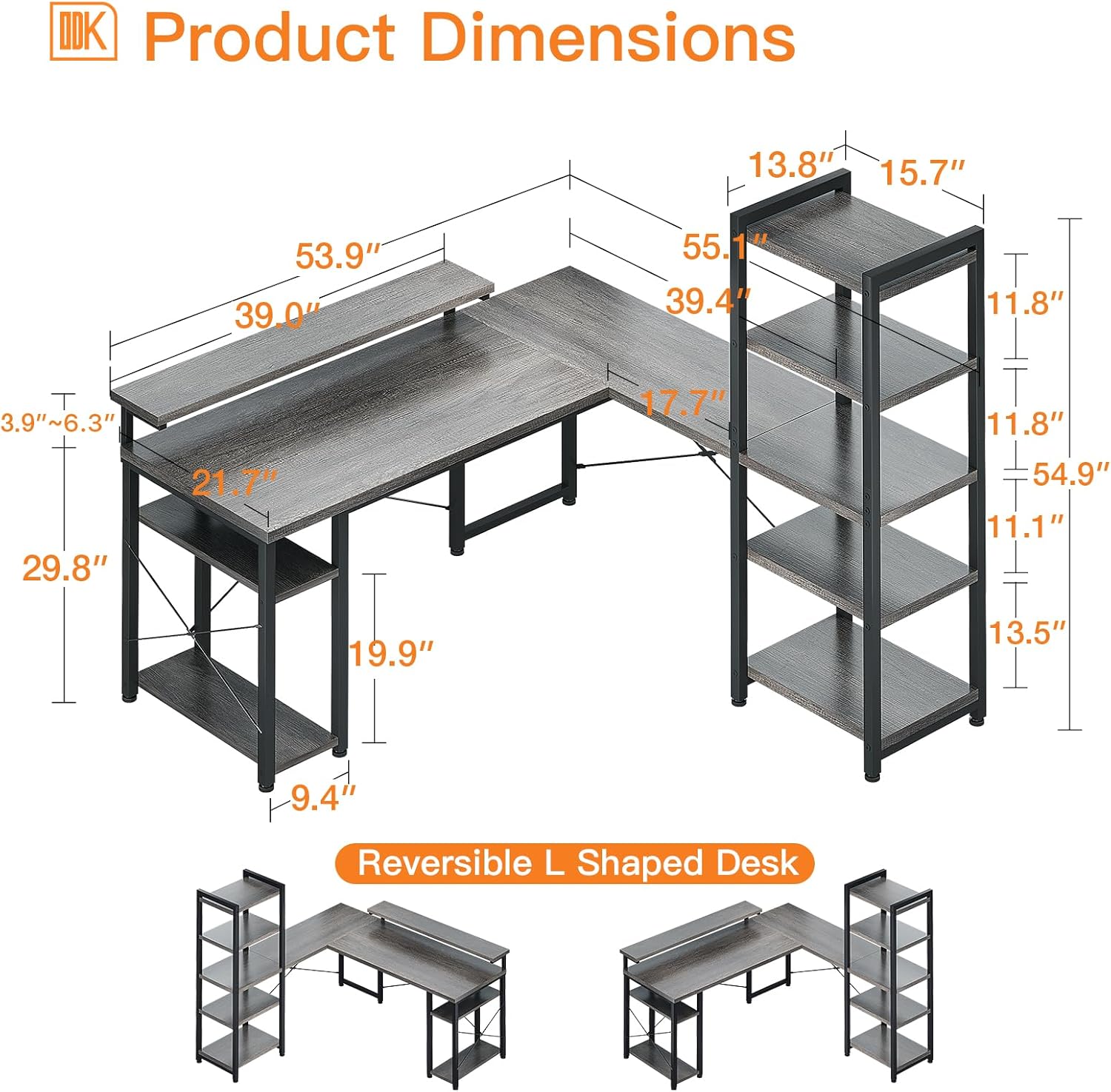

Image 8.1: Comprehensive product dimensions of the ODK L-Shaped Desk, including the main desktop and integrated shelving unit.

9. Garantia i Suport

For any product problems, missing parts, or assembly assistance, please contact ODK customer support. Refer to your purchase documentation for specific warranty details. Your satisfaction is important to us.

La informació de contacte normalment es pot trobar a l'embalatge del producte o al registre del venedor. website where the desk was purchased.
