MAZDA Cube M25 Pool Heat Pump User Manual

1. Introducció

Thank you for choosing the MAZDA Cube M25 Pool Heat Pump. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your heat pump. Please read this manual thoroughly before installation and use, and keep it for future reference.

The MAZDA Cube M25 is specifically designed for heating small pools and spas up to 25 m³, allowing you to enjoy comfortable water temperatures year-round.

2. Informació de seguretat

Observeu sempre les següents precaucions de seguretat per reduir el risc de lesions o danys:

• Ensure the heat pump is installed by a qualified professional in accordance with local electrical and plumbing codes.
• Do not operate the heat pump if it is damaged or malfunctioning.
• Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
• No bloquegeu les sortides d'entrada ni d'escapament d'aire.
• Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o reparació.
• This appliance is for heating pool water only. Do not use it for other purposes.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• MAZDA Cube M25 Pool Heat Pump Unit
• Manual d'usuari
• Connection fittings (if applicable)
• Power cable (if not integrated)

4. Configuració i instal·lació

The MAZDA Cube M25 is designed for easy self-installation. However, professional installation is recommended for optimal performance and safety.

4.1. Col·locació

Choose a well-ventilated outdoor location for the heat pump, away from direct sunlight and sources of heat. Ensure there is sufficient clearance around the unit for proper airflow (at least 50 cm on all sides, especially the air intake/exhaust).

Figura 1: Frontal view of the MAZDA Cube M25 Pool Heat Pump. This image shows the compact design of the unit, with a black top and white sides, suitable for outdoor placement near a pool.

Figure 2: The MAZDA Cube M25 Pool Heat Pump positioned next to a swimming pool, illustrating its intended use and compact size. The image highlights the product's integration into a pool environment.

4.2. Connexions de fontaneria

Connect the heat pump to your pool's filtration system. The heat pump should be installed after the filter and before any chemical feeders. Use appropriate plumbing fittings and ensure all connections are watertight to prevent leaks.

One user review mentioned difficulty with leaks, stating: "Very complicated not to have leaks, you have to put a lot of Teflon, and I haven't managed to get zero leaks yet..." Ensure proper sealing techniques are used during installation.

4.3. Connexió elèctrica

Connect the heat pump to a dedicated electrical circuit with appropriate overcurrent protection. Refer to the specifications section for power requirements. Ensure the power supply matches the unit's requirements.

5. Instruccions de funcionament

The MAZDA Cube M25 operates in heating mode only.

5.1. Posada en marxa inicial

1. Ensure the pool pump is running and water is circulating through the heat pump.
2. Engegueu l'alimentació de la bomba de calor.
3. Set your desired water temperature using the control panel. The unit will automatically begin heating the water to the set temperature.

5.2. Control de temperatura

The heat pump features a digital control panel for setting and monitoring the water temperature. Adjust the temperature incrementally to reach your desired comfort level. The unit is designed to maintain a consistent temperature once reached.

The MAZDA Cube M25 can heat water to 28°C (82.4°F) and is highly energy-efficient, being up to 5 times more efficient than an electric heater.

5.3. Control Bluetooth

The MAZDA Cube M25 supports Bluetooth control for convenient operation via a mobile application. Refer to the specific instructions provided with the unit for pairing and using the Bluetooth feature.

Note: Some users have reported issues with Bluetooth connectivity. If you experience difficulties, refer to the troubleshooting section or contact customer support.

6. Manteniment

Regular maintenance ensures the longevity and efficiency of your MAZDA Cube M25 heat pump.

• Netegeu les bobines: Periodically inspect and clean the evaporator coils to remove dirt, leaves, and debris. A clean coil ensures optimal heat exchange.
• Comproveu el flux d'aire: Ensure that the air intake and exhaust vents are clear of obstructions.
• Inspect Plumbing: Regularly check all plumbing connections for leaks. Tighten or re-seal as necessary.
• Hivernització: If you live in an area with freezing temperatures, follow proper winterization procedures to protect the unit from frost damage. Consult a professional if unsure.

7. Solució De Problemes

This section addresses common issues you might encounter with your heat pump.

8. Especificacions

Technical details for the MAZDA Cube M25 Pool Heat Pump:

• Número de model: 00001789
• Fabricant: MAZDA
• Dimensions (L x A x A): 42 x 35 x 38 cm (16.5 x 13.8 x 15 polzades)
• Volum de piscina recomanat: Fins a 25 m³
• Potència de calefacció: 5 kW
• Consum d'energia: 0.98 kW (at 27 °C air temperature, 26 °C water temperature)
• Energy Type: AC
• Mode de funcionament: Només calefacció

Figura 3: De dalt a baix view of the MAZDA Cube M25 Pool Heat Pump, showing the black top panel with the MAZDA logo and the white side grilles for air circulation.

Figura 4: Part superior inclinada view of the MAZDA Cube M25 Pool Heat Pump, providing a perspective of its overall shape and design from above.

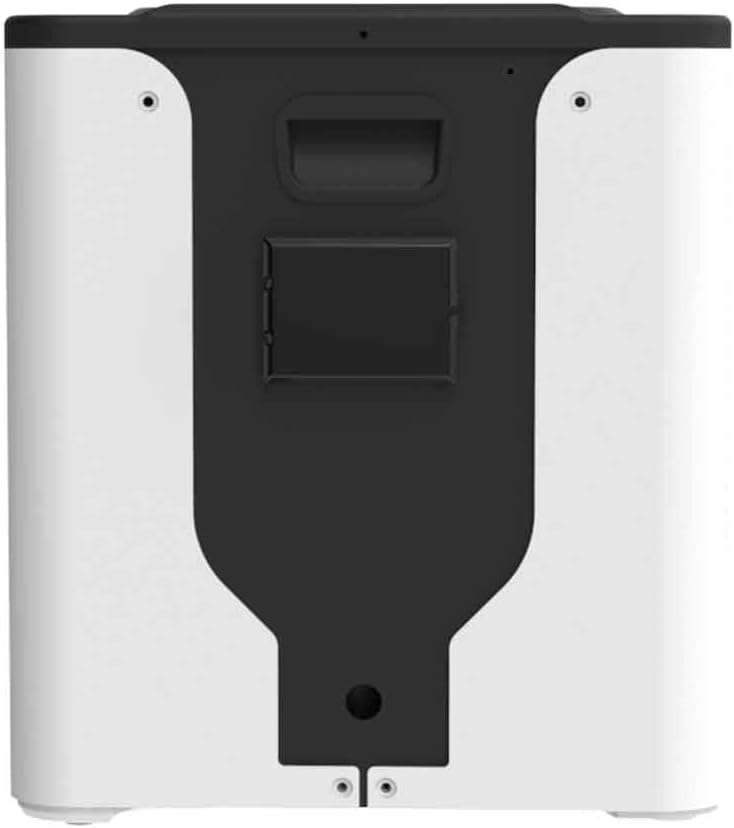

Figura 5: posterior view of the MAZDA Cube M25 Pool Heat Pump, showing the back panel and connection points. This view is important for understanding plumbing and electrical hookups.

9. Garantia i Suport

The MAZDA Cube M25 Pool Heat Pump comes with a 5-year availability for spare parts, ensuring long-term support for your product.

For technical assistance, warranty claims, or to order spare parts, please contact MAZDA customer support or your authorized dealer. Please have your model number (00001789) and purchase date ready when contacting support.
