Bosch Series 4 Bagless Vacuum Cleaner BGS21WPOW Instruction Manual

1. Introducció

Thank you for choosing the Bosch Series 4 Bagless Vacuum Cleaner BGS21WPOW. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and keep them for future reference.

This powerful 2000W vacuum cleaner features ProPower technology, a washable HEPA filter for hygienic cleaning, and a 2-liter dust capacity, designed for effective cleaning across all floor types.

2. Instruccions de seguretat

Observeu sempre les següents precaucions de seguretat per evitar descàrregues elèctriques, incendis o lesions:

• Assegureu-vos que el voltagEl volum indicat a l'aparell coincideix amb la xarxa elèctrica localtage abans de connectar.
• No utilitzeu l'aspiradora sobre superfícies humides ni per recollir líquids.
• Never pick up burning or smoking objects, such as cigarettes, matches, or hot ashes.
• Do not use the appliance without the dust container and filters correctly installed.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• Desendolleu l'aparell de la presa de corrent abans de netejar-lo o fer-ne el manteniment.
• Aquest aparell només és per a ús interior.

3. Contingut del paquet

Your Bosch Series 4 Bagless Vacuum Cleaner package includes the following components:

• Main vacuum unit with dust container
• Mànega flexible
• Tub telescòpic
• Broquet de terra
• Broquet turbo
• Set of additional accessories (e.g., crevice tool, upholstery nozzle)
• Manual d'instruccions

4. Configuració

Seguiu aquests passos per muntar la vostra aspiradora:

1. Connecteu la mànega: Insert the flexible hose into the suction opening on the main vacuum unit until it clicks securely into place.
2. Connecteu el tub telescòpic: Attach the telescopic tube to the handle end of the flexible hose. Extend the tube to your desired length by pressing the adjustment button and pulling.
3. Col·loqueu el broquet: Select the appropriate nozzle for your cleaning task (e.g., floor nozzle for general cleaning, turbo nozzle for deep carpet cleaning) and attach it to the end of the telescopic tube.

Figura 4.1: Attaching an accessory to the telescopic tube. Ensure a secure connection for optimal suction.

Figura 4.2: The vacuum cleaner fully assembled with hose and floor nozzle.

5. Instruccions de funcionament

Operating your Bosch vacuum cleaner is straightforward:

1. Connexió d'alimentació: Desenrotlleu el cable d'alimentació i connecteu-lo a una presa de corrent adequada de 220 V.
2. Encès/apagat: Press the main power button (push button control) located on the vacuum unit to turn the appliance on or off.
3. Ajust de la potència d'aspiració: While the vacuum cleaner has a single main power level, you can adjust suction strength using the electronic touch controls or a dial, if present, on the main unit. Refer to the control panel for specific settings.
4. Neteja: Guide the nozzle over the surface to be cleaned. For optimal results, move the nozzle slowly and steadily.

Figura 5.1: A dalt view of the vacuum cleaner, highlighting the power and control buttons.

Figura 5.2: Demonstrating the vacuum cleaner in use on a hard floor surface.

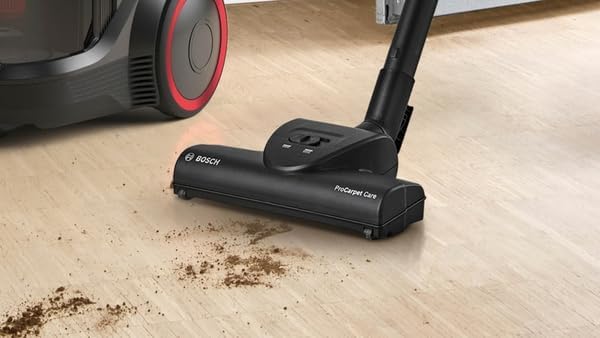

Figura 5.3: The floor nozzle effectively cleaning debris from a wooden floor.

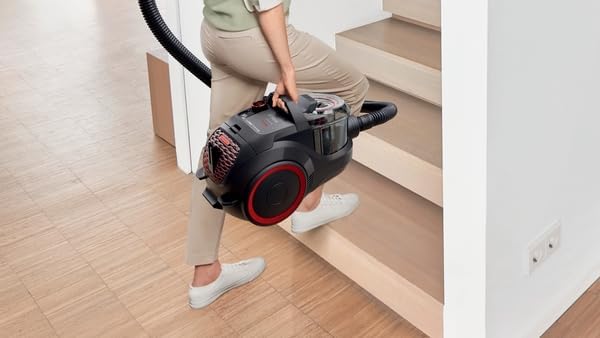

Figura 5.4: The compact design allows for easy transport, such as carrying up stairs.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de l'aspiradora.

6.1. Buidar el contenidor de pols

Empty the dust container when the 'Max' indicator is reached or suction power decreases significantly.

1. Apagueu l'aspiradora i desendolleu-la de la presa de corrent.
2. Press the release button for the dust container and carefully lift it out of the main unit.
3. Position the dust container over a waste bin and open the bottom flap to release the collected dirt.
4. Close the flap and reinsert the dust container into the vacuum cleaner until it clicks into place.

Figura 6.1: Detaching the dust container for emptying.

6.2. Neteja del filtre HEPA

The HEPA filter is washable. Clean it regularly (e.g., every 3-6 months, depending on usage) to maintain filtration efficiency.

1. Traieu el contenidor de pols tal com s'ha descrit anteriorment.
2. Locate and carefully remove the HEPA filter from its housing within the dust container assembly.
3. Rinse the filter under cold running water until the water runs clear. Do not use detergents or brushes.
4. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not expose to direct sunlight or heat.
5. Once dry, reinsert the HEPA filter and then the dust container into the vacuum cleaner.

6.3. Cleaning Nozzles and Accessories

Periodically check nozzles and accessories for blockages or tangled hair. Remove any obstructions to ensure effective cleaning.

7. Solució De Problemes

Si teniu problemes amb l'aspiradora, consulteu els següents problemes i solucions habituals:

8. Especificacions

9. Garantia i Suport

Your Bosch Series 4 Bagless Vacuum Cleaner BGS21WPOW comes with a 5 any de garantia. This warranty covers manufacturing defects and material faults under normal household use.

For warranty claims, technical support, or service inquiries, please contact your local Bosch customer service center. You may need to provide proof of purchase and the model number (BGS21WPOW) of your appliance.

Figura 9.1: Bosch offers a 10-year motor guarantee. Terms and conditions apply, available on www.bosch-home.com.
