Nespresso Vertuo Pop+ Coffee Machine Instruction Manual

1. Acabatview

The Nespresso Vertuo Pop+ is a compact and stylish coffee machine designed to deliver a wide range of coffee experiences. It utilizes the Vertuo system, offering five cup sizes for both hot and iced coffee. Key features include one-touch precision brewing, a 30-second heat-up time, energy-saving auto-off, and connectivity with the Nespresso App for an enhanced experience.

2. Configuració

2.1 Desembalatge

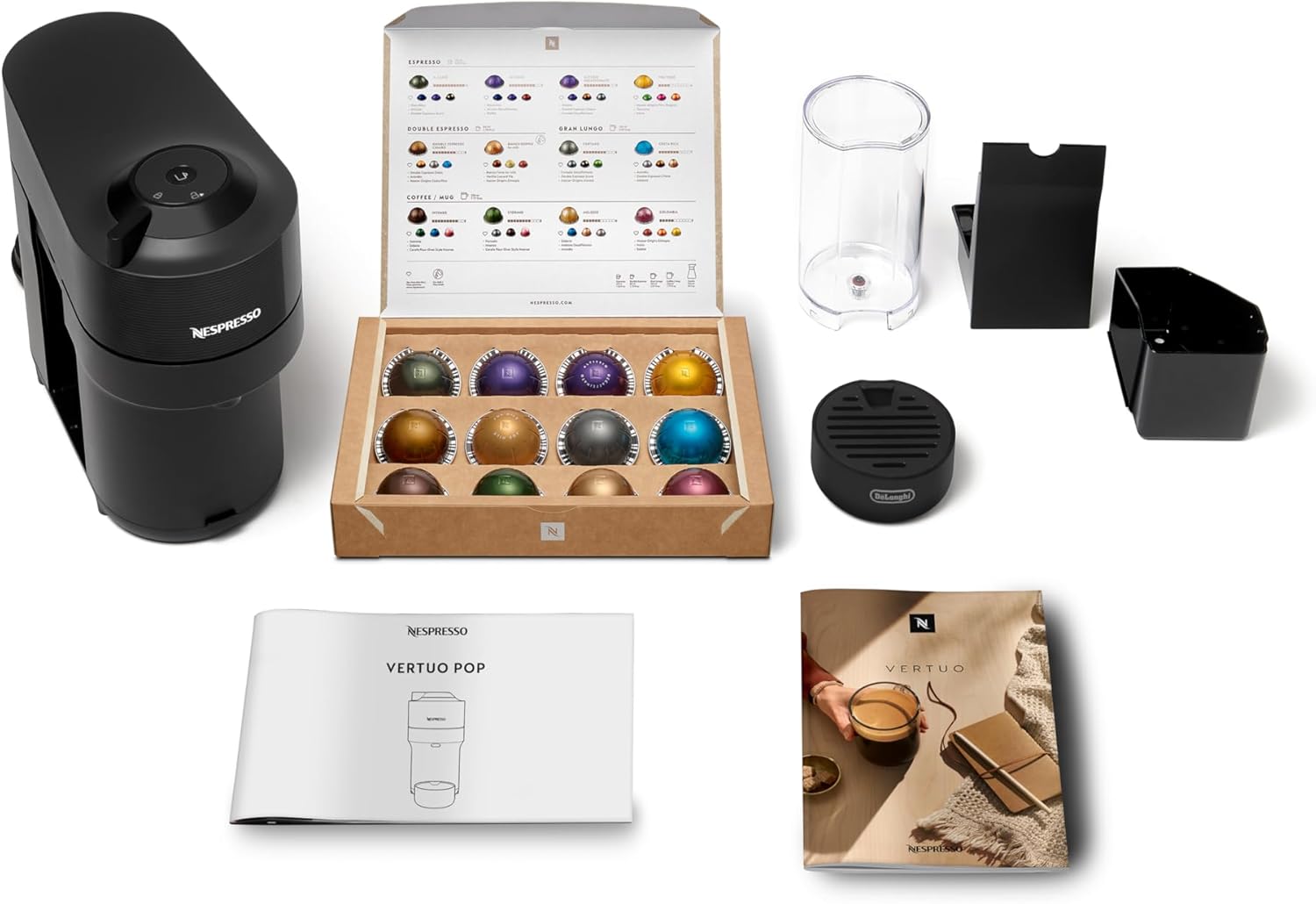

Carefully remove all packaging materials from the machine and its components. Ensure all parts are present: the machine, water tank, drip tray, and used capsule container.

2.2 Instal·lació i ompliment del dipòsit d'aigua

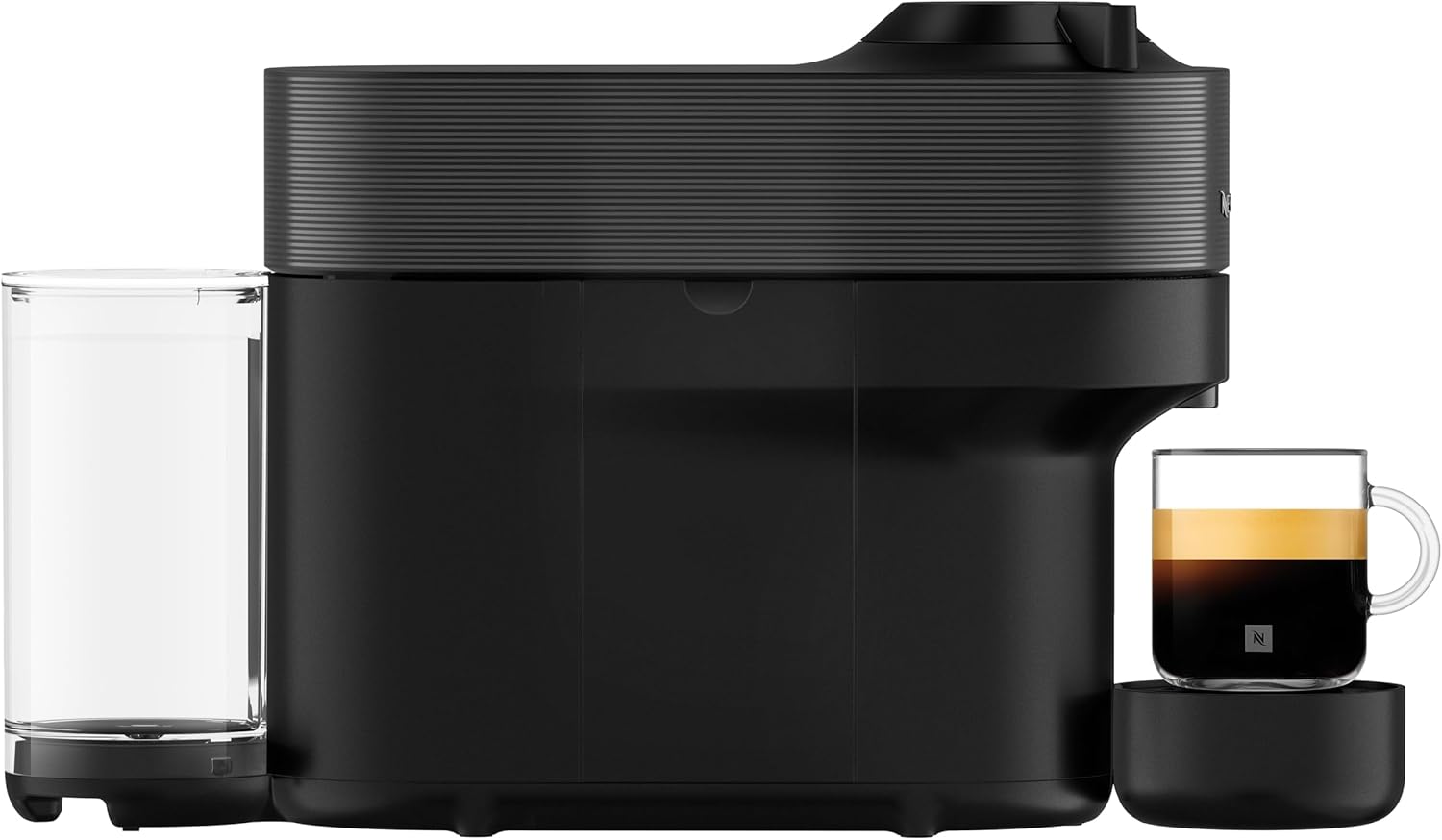

Place the removable water tank (750 ml / 25.4 fl oz capacity) at the back of the machine. Fill the water tank with fresh, potable water up to the 'MAX' level. Ensure the tank is securely seated.

2.3 Connexió d'alimentació

Plug the machine into a grounded electrical outlet. The machine operates on 120 V, 60 Hz, with a power consumption of 1500 W. The power button will illuminate, indicating the machine is ready to heat up.

2.4 Initial Rinse

Before first use, perform an initial rinse cycle to clean the internal components. Fill the water tank, place a large container under the coffee outlet, and press the brew button. Repeat this process 2-3 times until clear water runs through.

3. Instruccions de funcionament

3.1 Engegada i escalfament

Press the brew button to turn on the machine. The machine has a quick 30-second heat-up time. The light on the button will stop blinking and remain steady when ready for brewing.

3.2 Inserting a Capsule

Lift the lever to open the machine head. Insert a Nespresso Vertuo capsule into the capsule holder, ensuring it is correctly positioned. Close the machine head by pushing the lever down until it locks.

3.3 Elaboració de cafè

Place your desired cup under the coffee outlet. Press the brew button once. The machine will automatically recognize the capsule and brew the coffee to the optimal size and style. The brewing process will stop automatically.

3.4 Used Capsule Ejection

After brewing, lift the lever to open the machine head. The used capsule will automatically be ejected into the internal used capsule container.

3.5 Video Demonstration: Capsule Insertion and Brewing

4. Manteniment

4.1 Neteja diària

Regularly clean the drip tray, cup support, and used capsule container with warm water and a mild detergent. Wipe the machine exterior with a damp cloth. Do not immerse the machine in water. The machine is not dishwasher safe.

4.2 Emptying the Used Capsule Container

Empty the used capsule container when full. The container can hold several used capsules before needing to be emptied. Dispose of used capsules responsibly, ideally through Nespresso's recycling program.

4.3 Descalcificació

The machine features a descaling alert. When the descaling indicator light illuminates, it is time to descale the machine. Follow the instructions provided with your Nespresso descaling kit to ensure proper maintenance and longevity of your machine.

4.4 Estalvi energètic

The Vertuo Pop+ automatically powers off after 2 minutes of inactivity to conserve energy.

5. Solució De Problemes

If you encounter issues with your Nespresso Vertuo Pop+ machine, please refer to the following common solutions:

• La màquina no s'encén: Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent que funcioni.
• No coffee flowing: Check if the water tank is filled with water. Ensure a capsule is correctly inserted and the machine head is fully closed and locked.
• El cafè és fred: Allow the machine to fully heat up (light on the button should be steady, not blinking). Pre-heat your cup with hot water if desired.
• Descaling light illuminated: Perform a descaling cycle as described in the 'Maintenance' section.
• Fuga: Check that the water tank is properly seated and not damaged. Ensure the drip tray is correctly positioned.

For more complex issues or persistent problems, please contact Nespresso Customer Service.

6. Especificacions

Note: The product specifications list "Filter, Milk Frother" as included components. Please verify your specific package contents as accessories may vary by region or bundle.

7. Garantia i Suport

For detailed warranty information, please refer to the warranty card included with your Nespresso Vertuo Pop+ machine. Nespresso offers customer support for product assistance, troubleshooting, and warranty claims.

To contact Nespresso Customer Service, please visit the official Nespresso weblloc web o consulteu la informació de contacte que es proporciona a la documentació del producte.
