1. Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your SpeakerCraft SC-DX-FW5-LCR DX-Stage Focus F Series In-Wall LCR Speaker. Please read these instructions thoroughly before proceeding with installation or use to ensure optimal performance and longevity of your product.

The SpeakerCraft DX-Stage Focus F Series In-Wall LCR Speaker is designed to deliver clear, room-filling sound for various audio applications, including music, movies, and gaming. Its design allows for integration into wall structures, providing a discreet audio solution.

Imatge 1.1: Frontal view of the SpeakerCraft SC-DX-FW5-LCR in-wall speaker, featuring two 5.25-inch woofers and a 1-inch pivoting silk dome tweeter, designed for flush in-wall installation.

2. Característiques clau

• Maneig de potència: Up to 110 watts continuous power.
• Impedància: 8 ohms.
• Resposta de freqüència: 48 Hz a 20 kHz.
• Sensibilitat: 90 dB.
• Configuració del controlador: One 1-inch pivoting silk dome tweeter and two 5-1/4-inch injection-molded polypropylene woofer cones.
• Timbre-Matched: Designed to match all Stage Focus F Series speakers for consistent sound.
• Tweeter pivotant: Allows for directing audio towards the listening area.

3. Què hi ha a la caixa

Upon unpacking, please verify that all components are present and undamaged. The package should contain:

• SpeakerCraft SC-DX-FW5-LCR In-Wall LCR Speaker (1 unit)
• Manual d'instruccions (aquest document)

4. Configuració i instal·lació

Proper installation is crucial for the performance of your in-wall speaker. If you are unsure about any steps, it is recommended to consult a professional installer.

4.1 Planning the Installation Location

• Choose a location in the wall that is free from obstructions such as electrical wiring, plumbing, or studs.
• Ensure the wall material can support the speaker's weight and provide a stable mounting surface.
• For LCR (Left, Center, Right) applications, position the speakers to create an optimal soundstage relative to your primary listening position.

4.2 Wall Cutout and Dimensions

Before cutting, carefully measure and mark the desired location. The speaker dimensions are approximately 15.6 inches (Depth) x 3.9 inches (Width) x 7.76 inches (Height). A precise cutout template is typically included with the speaker; use it to mark the opening.

Image 4.1: Dimensional diagram of the SpeakerCraft SC-DX-FW5-LCR speaker, indicating its physical measurements for installation planning.

4.3 Connexions de cablejat

• Run appropriate speaker wire from your amplifier or receiver to the installation location. Ensure the wire gauge is suitable for the length of the run.
• Connect the speaker wires to the terminals on the back of the speaker, observing correct polarity (+ to + and - to -).

4.4 Muntatge de l'altaveu

Once the cutout is made and wiring is connected, insert the speaker into the opening. The speaker typically uses dog-leg clamps that secure it to the wall. Tighten the mounting screws evenly until the speaker is flush and secure. Do not overtighten.

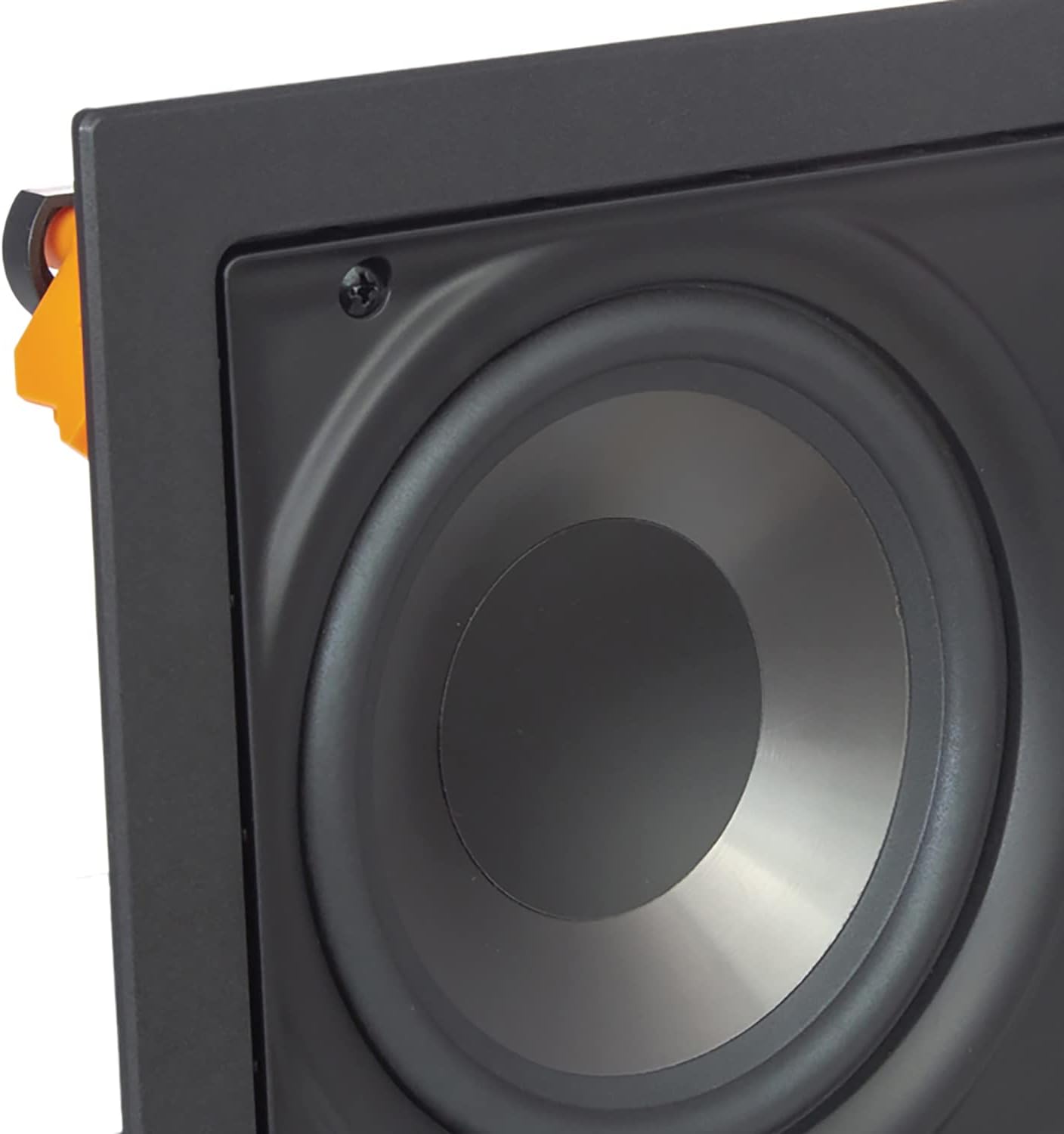

Image 4.2: Detail of the speaker's mounting mechanism, showing a woofer and the orange dog-leg clamp used to secure the speaker within the wall opening.

4.5 Tweeter Adjustment

The 1-inch silk dome tweeter is pivoting. After installation, you can gently adjust its direction to aim the high frequencies towards your primary listening area for optimized sound imaging.

5. Instruccions de funcionament

The SpeakerCraft SC-DX-FW5-LCR is a passive speaker and requires an external amplifier or receiver for operation. Ensure your amplifier is capable of driving an 8-ohm load and provides sufficient power (up to 110 watts continuous) for optimal performance without distortion.

5.1 Connexió a un sistema d'àudio

• Connect the speaker to the appropriate speaker output terminals on your amplificador o receptor.
• For surround sound configurations (e.g., 5.1), ensure the speaker is connected to the designated LCR (Left, Center, Right) channel outputs.

5.2 Compatible Devices and Uses

This speaker is suitable for integration into various home audio setups and is compatible with devices such as:

• Sistemes de cinema a casa
• Consoles de jocs
• Laptops and Desktop Computers
• Smartphones and Tablets (via ampmés viu)
• Televisions (via ampmés viu)

Recommended uses include enhancing audio for movies, music playback, and immersive gaming experiences.

5.3 Mètode de control

As a passive speaker, the primary control for audio output (volume, balance, tone) will be managed through your connected amplifier or receiver. Some advanced receivers may offer touch-based control interfaces for system adjustments.

6. Manteniment i cura

To ensure the longevity and optimal performance of your SpeakerCraft SC-DX-FW5-LCR speaker, follow these simple maintenance guidelines:

• Neteja: Dust the speaker grille and frame regularly with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the speaker components.
• Eviteu líquids: Do not spray cleaning liquids directly onto the speaker.
• Condicions ambientals: Avoid exposing the speaker to extreme temperatures, high humidity, or direct sunlight for extended periods.
• Eliminació de la reixa: If the grille needs to be removed for cleaning or access, do so gently to avoid bending or damaging it.

7. Solució De Problemes

Si teniu problemes amb l'altaveu, consulteu els passos habituals següents per a la resolució de problemes:

• Sense so:
  • Comproveu totes les connexions dels cables de l'altaveu, tant a l'altaveu com a la amplifier/receiver for secure contact and correct polarity.
  • Assegureu-vos el amplifier/receiver is powered on and the correct input source is selected.
  • Verify that the volume is turned up and not muted on your amplificador/receptor.
• So distorsionat:
  • Baixeu el nivell de volum del vostre amplifier/receiver. Overdriving the speaker can cause distortion.
  • Comproveu les connexions dels cables de l'altaveu per si hi ha fils desfilats que puguin estar en curtcircuit.
  • Assegureu-vos el amplifier's power output matches the speaker's power handling capabilities.
• So desigual o imatge deficient:
  • Verify that the pivoting tweeter is aimed towards your primary listening position.
  • Comproveu la configuració del saldo del vostre amplificador/receptor.
  • Ensure all speakers in a multi-channel setup are connected with correct polarity.

Si aquests passos no resolen el problema, poseu-vos en contacte amb l'atenció al client o amb un tècnic qualificat.

8. Especificacions tècniques

9. Garantia i Suport

9.1 Informació de la garantia

This SpeakerCraft product comes with a Limited Warranty. Please refer to the warranty card included with your purchase or visit the manufacturer's official weblloc web per obtenir termes i condicions detallats sobre la cobertura, la durada i el procés de reclamacions.

9.2 Atenció al client

For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact the manufacturer, NORTEK SECURITY & CONTROL, or your authorized SpeakerCraft dealer. Contact information can typically be found on the official SpeakerCraft weblloc.
