1. Introducció
Thank you for choosing the VEVOR 53 Gallon Collapsible Rain Barrel. This product is designed to efficiently collect and store rainwater, providing a sustainable water source for your gardening and outdoor needs. By utilizing rainwater, you can reduce your reliance on municipal water supplies and contribute to environmental conservation. This manual provides detailed instructions for the safe setup, operation, and maintenance of your rain barrel.

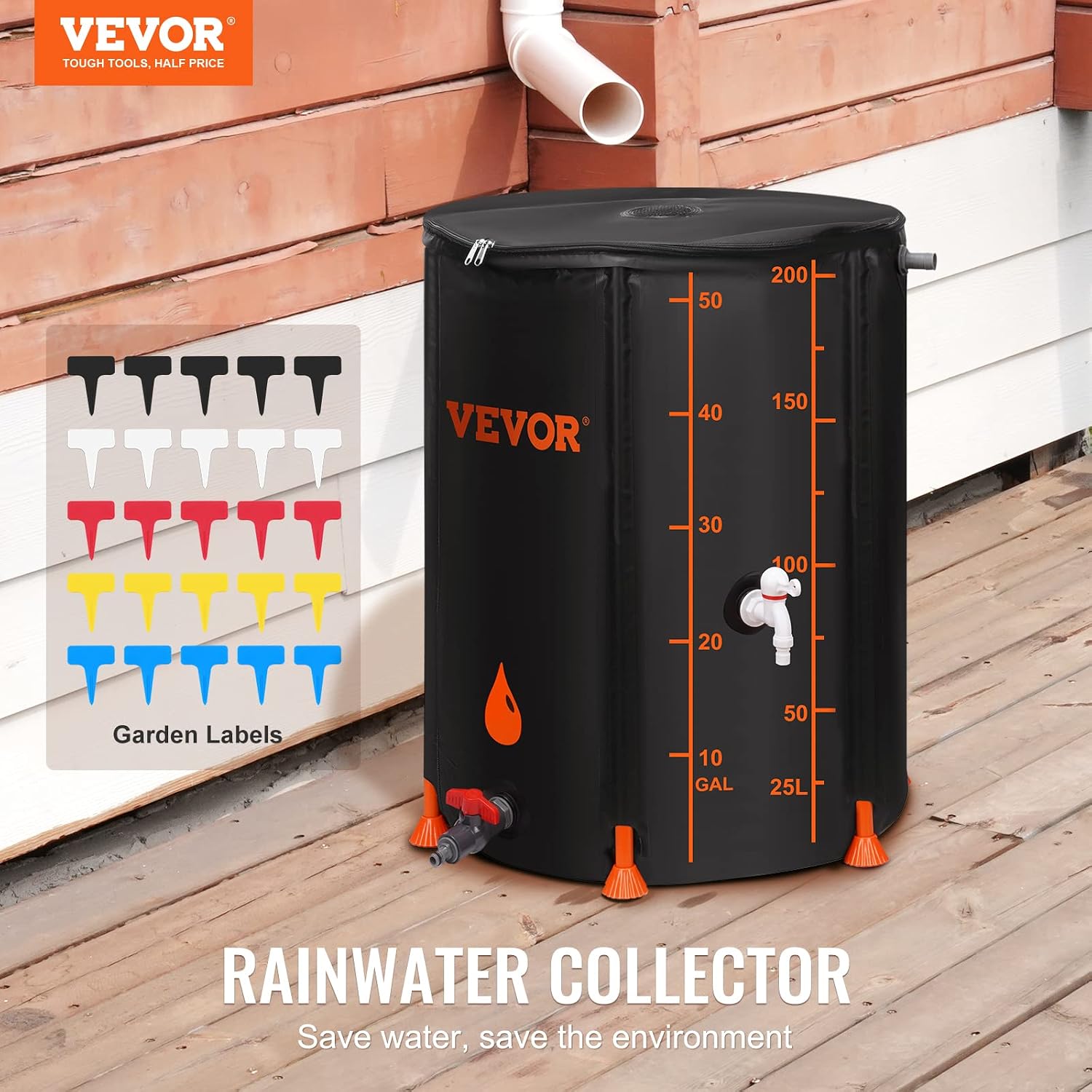

Figure 1.1: VEVOR 53 Gallon Collapsible Rain Barrel.
2. Informació de seguretat
Please read and understand all safety instructions before assembling or using this product. Failure to follow these instructions may result in property damage or personal injury.
- Ensure the rain barrel is placed on a flat, stable surface to prevent tipping, especially when full.
- Keep children and pets away from the rain barrel, particularly when it is filling or full, to prevent drowning hazards.
- Do not drink collected rainwater without proper purification. It is intended for irrigation and non-potable uses only.
- Empty and store the rain barrel indoors or in a protected area during freezing temperatures to prevent damage to the PVC material and fittings.
- Regularly inspect the barrel for any signs of wear, damage, or leaks. Do not use if damaged.
- Ensure the overflow hose is directed away from building foundations to prevent water damage.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats abans de continuar amb el muntatge.
- Collapsible PVC Rain Barrel Body
- Support Rods (Quantity: 6-8 depending on model)
- Aixeta
- 3/4" Shut-off Valve
- Desbordador
- Rubber Washers (Pre-installed or separate)
- Garden Labels (5 sets)
- PTFE Tape (for sealing connections)
Figure 3.1: Main components of the rain barrel system.
4. Instruccions de configuració
Follow these steps to assemble and set up your VEVOR Collapsible Rain Barrel.
- Trieu una ubicació: Select a flat, level surface directly beneath a downspout. Ensure the area can support the weight of a full barrel (approximately 440 lbs for 53 gallons).
- Desempaquetar i desplegar: Carefully remove the rain barrel from its packaging and unfold the PVC body.
- Insert Support Rods: Locate the sleeves around the perimeter of the barrel. Insert the support rods into these sleeves to give the barrel its cylindrical shape. Ensure they are fully seated.
- Install Faucet and Valve:
- Attach the faucet to the designated opening on the side of the barrel, ensuring the rubber washer is properly seated to prevent leaks. Tighten securely.
- Attach the 3/4" shut-off valve to the lower opening near the base of the barrel. Use PTFE tape on the threads for a watertight seal and ensure the rubber washer is in place.
- Instal·leu el sobreeixidor: Attach the overflow spout to the upper opening on the side of the barrel. Direct the overflow hose away from your home's foundation.
- Position Under Downspout: Place the assembled rain barrel directly under your downspout. The top mesh filter should be positioned to catch the rainwater flow.
Figure 4.1: Inserting support rods during assembly.
Figure 4.2: Pre-installed water outlets and leakproof rubber washers.
Video 4.1: VEVOR Collapsible Rain Barrel assembly and feature overview. This video demonstrates the setup process and highlights key features of the rain barrel.
5. Funcionament
Using your VEVOR Rain Barrel is straightforward once assembled.
- Collecting Rainwater: When it rains, water will flow from your downspout onto the top mesh filter of the barrel. This mesh prevents leaves, debris, and insects from entering the stored water.
- Monitorització del nivell de l'aigua: The barrel features clear markings for both gallons and liters, allowing you to easily monitor the water level.
- Distribució d'aigua:
- Use the faucet to fill watering cans or buckets for manual irrigation.
- Connect a standard garden hose to the 3/4" shut-off valve for larger watering tasks, such as irrigating your garden or washing a car.
- Funció de desbordament: If the rain barrel becomes full, excess water will exit through the overflow spout, preventing the barrel from overfilling and potentially damaging your property.
Figure 5.1: The inlet filter mesh keeps debris out of collected rainwater.

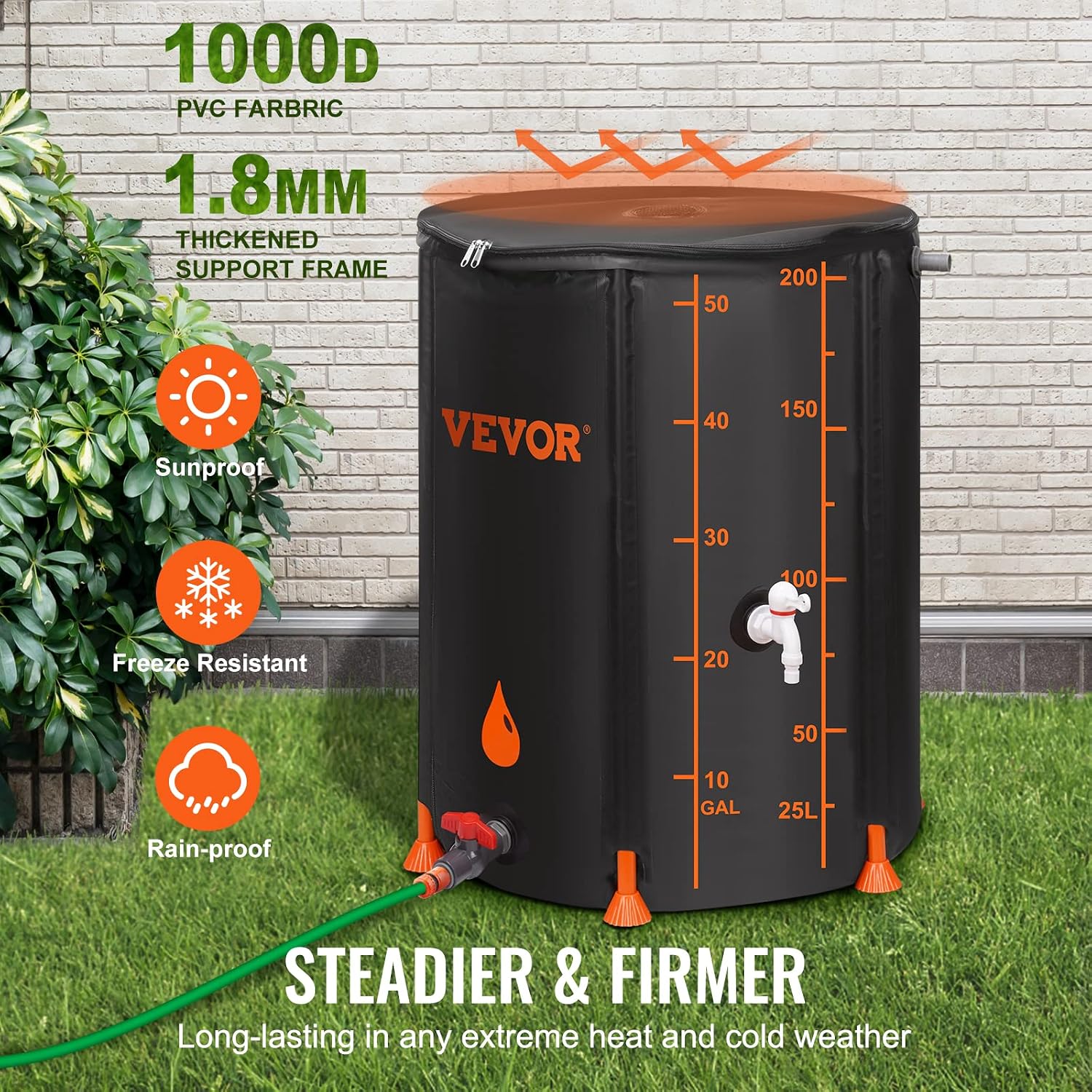

Figure 5.2: Rain barrel in use, demonstrating water collection and dispensing.
6. Manteniment
Proper maintenance ensures the longevity and efficient operation of your rain barrel.
- Neteja regular: Periodically check and clean the top mesh filter to remove accumulated leaves and debris. This prevents clogging and ensures efficient water collection.
- Neteja interior: Every few months, or as needed, empty the barrel and rinse its interior with clean water to prevent algae buildup. A mild soap solution can be used, followed by thorough rinsing.
- Inspecció de fuites: Regularly inspect all connections (faucet, valve, overflow) for leaks. Tighten connections or replace rubber washers if necessary.
- Emmagatzematge d'hivern: Before the first freeze, completely drain the rain barrel. Disconnect all fittings and clean the barrel. Collapse the barrel by removing the support rods and store it in a dry, protected area (e.g., garage or shed) to prevent freeze damage.
Figure 6.1: The collapsible design allows for easy storage during winter months.
7. Solució De Problemes
Refer to the following common issues and their solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Fuga d'aigua | Loose connections at faucet, valve, or overflow; damaged rubber washer; puncture in barrel. | Tighten all connections. Ensure rubber washers are correctly seated. Apply PTFE tape to threaded connections. Inspect barrel for damage; if punctured, repair or replace. |
| Slow Water Collection | Clogged top mesh filter; downspout not properly aligned. | Clean the top mesh filter of leaves and debris. Adjust the barrel's position to ensure the downspout directs water directly onto the filter. |
| Barrel Instability | Uneven ground; insufficient support rods. | Ensure the barrel is placed on a completely flat and level surface. Verify all support rods are correctly inserted and fully seated. |
| Aigua Stagnation/Odor | Algae or bacterial growth due to prolonged storage or exposure to sunlight. | Empty and thoroughly clean the barrel. Consider placing the barrel in a shaded area to minimize direct sunlight exposure. |
8. Especificacions
Key technical specifications for the VEVOR 53 Gallon Collapsible Rain Barrel.
- Model: RB-0200
- Capacitat: 53 galons (201 litres)
- Material: 1000D PVC Fabric
- Dimensions del producte (L x A x A): 23.6" x 23.6" x 29.1" (60 cm x 60 cm x 74 cm)
- Pes de l'article: 7.1 lliures (3.2 kg)
- Gruix: 1/50 de polzada (0.5 mm)
- Adaptation Temperature: -30 °C a +70 °C (-22 °F a 158 °F)
- UPC: 840349966342
Figura 8.1: Dimensions i especificacions del producte.
9. Garantia i Suport
For warranty information, technical support, or assistance with your VEVOR product, please contact VEVOR customer service. You can typically find contact details on the VEVOR official weblloc web o a través de la vostra plataforma de compra.
Please have your model number (RB-0200) and purchase information ready when contacting support.
