HOTWAV Cyber X Rugged Smartphone User Manual

1. Introducció

The HOTWAV Cyber X is a rugged smartphone designed for durability and performance in challenging environments. It features a large display, a powerful battery, advanced camera capabilities, and robust protection against water, dust, and drops. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

2. Què hi ha a la caixa

Si us plau, comproveu el contingut del paquet per assegurar-vos que hi hagi tots els elements:

• 1 x HOTWAV Cyber X Outdoor Smartphone
• 1 x Charger (33W)
• 1 cable de dades USB-C
• 1 x SIM Ejector Tool
• 1 x OTG Cable
• 1 x Audio Adapter Cable (USB-C to 3.5mm Jack)
• 1 x Manual d'usuari
• 1 x Kit de neteja
• 1 x Protector de pantalla de vidre temperat

3. Configuració

3.1. SIM Card and Micro-SD Card Installation

The device supports two Nano-SIM cards or one Nano-SIM card and one Micro-SD card for expandable storage up to 2TB.

1. Locate the SIM card tray on the left side of the phone, above the red customizable button.
2. Insert the provided SIM ejector tool into the small hole next to the tray and gently press until the tray pops out.
3. Traieu amb cura la safata de la targeta SIM.
4. Place your Nano-SIM card(s) and/or Micro-SD card into the designated slots with the metal contacts facing downwards. Ensure they are seated correctly.
5. Gently push the tray back into the slot until it is flush with the phone's body. It is recommended to turn the phone face down when reinserting the tray to prevent cards from falling out.

3.2. Càrrega inicial i engegada

Abans del primer ús, es recomana carregar completament el dispositiu.

1. Connect the USB-C data cable to the charging port at the bottom of the phone (under the rubber cover) and to the power adapter. Plug the adapter into a power outlet.
2. Once sufficiently charged, press and hold the power button (located on the right side) until the HOTWAV logo appears and the Android operating system starts.
3. Follow the on-screen instructions to complete the initial Android/Google setup process, including language selection, Wi-Fi connection, and account setup.

4. Instruccions de funcionament

4.1. Característiques de la pantalla

The Cyber X features a dual-display design for enhanced usability.

• Pantalla principal: A 6.78-inch FHD+ (2460x1080 resolution) In-Cell display with a 90Hz refresh rate and 550 NIT brightness. It is protected by Corning Gorilla Glass for scratch resistance.
• Pantalla posterior: A 0.95-inch secondary screen on the back of the device. This display shows essential information such as date, time, battery status, and incoming call notifications. You can configure its settings via the phone's main settings menu under 'Backscreen'.

Image: The 6.78-inch FHD+ main display and the versatile 0.95-inch rear display showing various functions like time, call notifications, and music controls.

4.2. Customizable Key

The red button on the left side of the phone is a customizable key. It can be programmed to quickly access various functions or applications.

• To configure the custom key, navigate to Settings > Custom Key.
• You can assign functions such as SOS emergency calls, flashlight activation, sound recording, screenshot, or launching specific apps like the camera or a game.

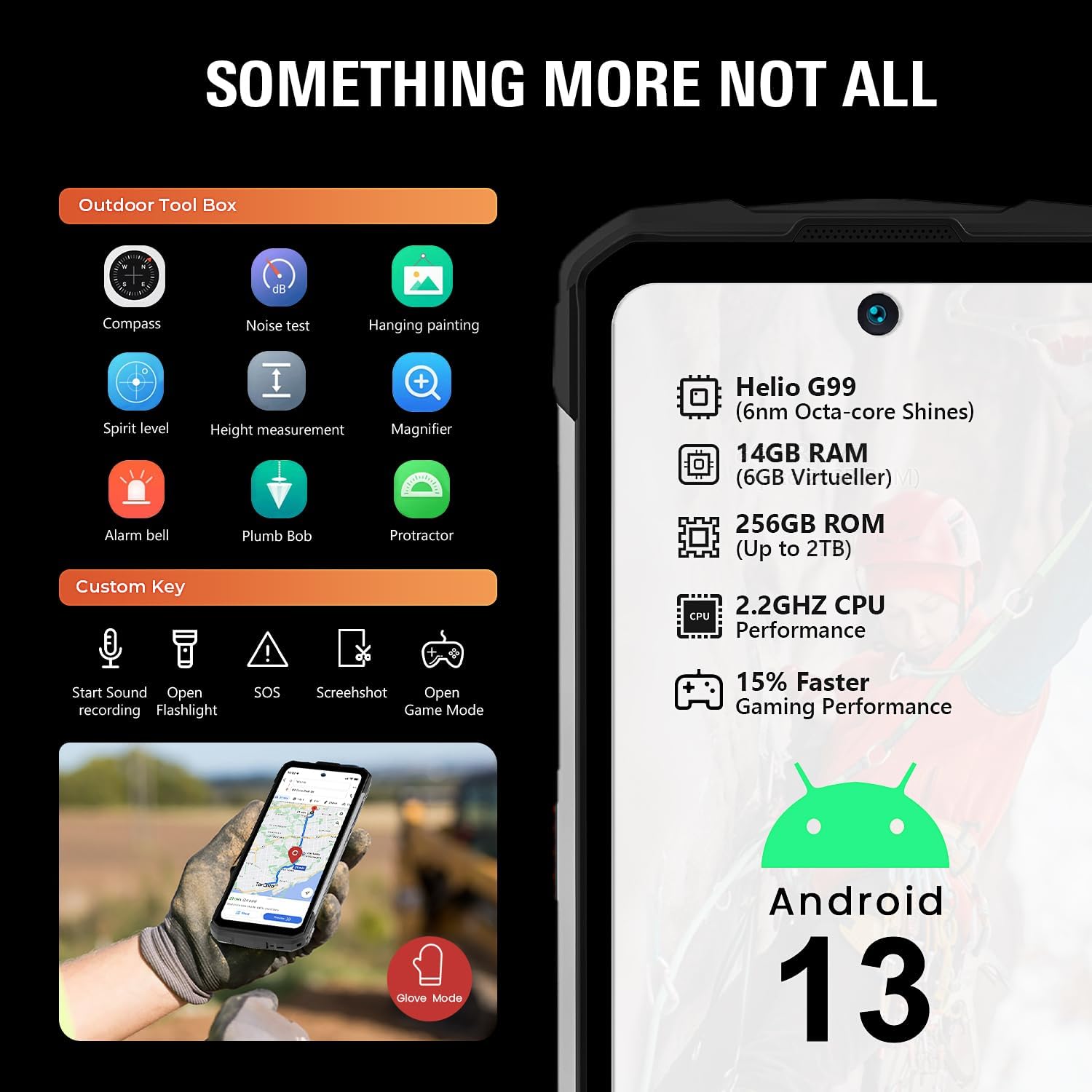

Image: The customizable key options and the Outdoor Tool Box applications available on the HOTWAV Cyber X.

4.3. Funcions de la càmera

The Cyber X is equipped with a versatile camera system to capture your moments.

• Càmera principal: 64 MP Sony sensor for high-resolution photos.
• Càmera frontal: 16 MP per a selfies i videotrucades.
• Càmera de gran angular: 8 MP with a 120° field of view for expansive shots.
• Càmera macro: For detailed close-up photography.
• Visió nocturna: Special mode for capturing images in low-light conditions.
• Mode subaquàtic: Allows you to take photos and videos while submerged, ideal for exploring aquatic environments.
• HDR: High Dynamic Range for improved contrast and detail in varied lighting.

Image: Demonstrates the Underwater Mode and the capabilities of the 64MP main camera for diverse photography scenarios.

4.4. Battery and OTG Functionality

The Cyber X is powered by a large 10200 mAh battery, providing extended usage times.

• Càrrega ràpida: Supports 33W fast charging to quickly replenish the battery.
• OTG (On-The-Go): The device supports OTG functionality, allowing it to act as a power bank to charge other electronic devices using the included OTG cable.

Image: Highlights the 10200 mAh battery, 33W fast charging, and OTG capability, with estimated usage durations for various activities.

4.5. Outdoor Tool Box

The Cyber X includes a suite of useful tools for outdoor activities, accessible via the 'Outdoor Tool Box' application.

• Brúixola
• Prova de soroll
• Hanging Painting (for alignment)
• Nivell d'esperit
• Mesura d’alçada
• Lupa
• Campana d'alarma
• Plumb Bob
• Transportador

4.6. Connectivitat

The device offers various connectivity options:

• NFC: Near Field Communication for contactless payments and data exchange.
• GPS: Integrated GNSS module supporting GPS, GLONASS, Galileo, and BeiDou for accurate positioning.
• Bluetooth: Per connectar accessoris sense fil.
• WLAN: Wi-Fi connectivity for internet access.
• 4G LTE: Cellular technology for mobile data and calls.

5. Manteniment

5.1. Durabilitat i protecció

The HOTWAV Cyber X is built to withstand harsh conditions, featuring:

• Classificació IP68: Water and dust resistant, allowing submersion in water up to 1.5 meters for 30 minutes.
• Classificació IP69K: Protection against close-range high-pressure, high-temperature spray downs.
• MIL-STD-810G Certification: Military-grade durability against drops, shocks, and extreme temperatures (-30°C to 75°C).

Image: Illustrates the rugged certifications of the HOTWAV Cyber X, including MIL-STD 810G, IP69K, and IP68, showcasing its resistance to drops, dust, and water.

5.2. Neteja del dispositiu

Per mantenir el rendiment i l'aspecte del dispositiu:

• Netegeu la pantalla i el cos amb un drap suau i sense borrissol.
• Per a la brutícia tossuda, utilitzeu una mica damp tela. Eviteu productes químics agressius o materials abrasius.
• Ensure all port covers are securely closed after charging or using the USB port to maintain water and dust resistance.

6. Solució De Problemes

If you encounter issues with your HOTWAV Cyber X, try the following solutions:

• El dispositiu no s'encén: Assegureu-vos que la bateria estigui carregada. Connecteu el carregador i espereu uns minuts abans d'intentar tornar-lo a engegar.
• La pantalla no respon: Restart the device by pressing and holding the power button for about 10-15 seconds.
• Senyal de xarxa deficient: Comproveu la instal·lació de la targeta SIM. Traslladeu-vos a una zona amb millor cobertura de xarxa.
• Les aplicacions es bloquegen: Esborra la memòria cau de l'aplicació problemàtica (Configuració > Aplicacions > [Nom de l'aplicació] > Emmagatzematge > Esborra la memòria cau). Si el problema persisteix, prova de reinstal·lar l'aplicació.
• La bateria s'esgota ràpidament: Redueix la brillantor de la pantalla, tanca les aplicacions que no fas servir i desactiva les funcions de connectivitat innecessàries (Wi-Fi, Bluetooth, GPS) quan no les facis servir.
• Water/Dust ingress: Despite its ruggedness, ensure all port covers are properly sealed. If water or dust enters, power off the device immediately and allow it to dry completely before powering on.

For more complex issues, refer to the support section or contact customer service.

7. Especificacions

8. Garantia i Suport

HOTWAV is committed to providing excellent customer service for the Cyber X smartphone:

• Devolucions: Política de devolució de 30 dies sense motiu.
• Garantia: Two-year free warranty.
• Suport tècnic: Suport tècnic de per vida.
• Atenció al client: 24-hour online customer service.

For any inquiries or support needs, please contact HOTWAV customer service through their official channels.
