Zing WB-SCO70M-BK-1P

Magnifique 7 Quart Slow Cooker Instruction Manual

Model: WB-SCO70M-BK-1P

Introducció

Thank you for choosing the Magnifique 7 Quart Oval Manual Slow Cooker. This appliance is designed to simplify your cooking process, allowing you to prepare delicious meals with minimal effort. Its generous capacity and versatile settings make it ideal for family meals and entertaining. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Magnifique 7 Quart Oval Manual Slow Cooker, black stainless steel finish with control dial

The Magnifique 7 Quart Oval Manual Slow Cooker, featuring a sleek black stainless steel finish and a simple control dial.

Garanties importants

Quan s'utilitzen aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat, incloses les següents:

  • Llegiu totes les instruccions abans de fer servir l'olla de cocció lenta.
  • No toqueu superfícies calentes. Utilitzeu nanses o poms.
  • Per protegir-vos contra les descàrregues elèctriques, no submergiu la unitat base, el cable ni l'endoll en aigua ni en altres líquids.
  • És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
  • Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
  • No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
  • L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
  • No utilitzar a l'aire lliure.
  • No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
  • No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
  • Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
  • Connecteu sempre primer l'endoll a l'aparell i després connecteu el cable a la presa de corrent. Per desconnectar, gireu qualsevol control a "OFF" i, a continuació, traieu l'endoll de la presa de corrent.
  • No utilitzeu l'aparell per a un altre ús que el previst.
  • Eviteu els canvis bruscos de temperatura, com ara afegir aliments refrigerats a una olla calenta.
  • The stoneware pot is designed for use in this appliance only. It must not be used on a gas or electric stovetop or in a microwave.
  • Do not use the stoneware pot if it is cracked or chipped.

Parts i característiques

Familiarize yourself with the components of your Magnifique Slow Cooker:

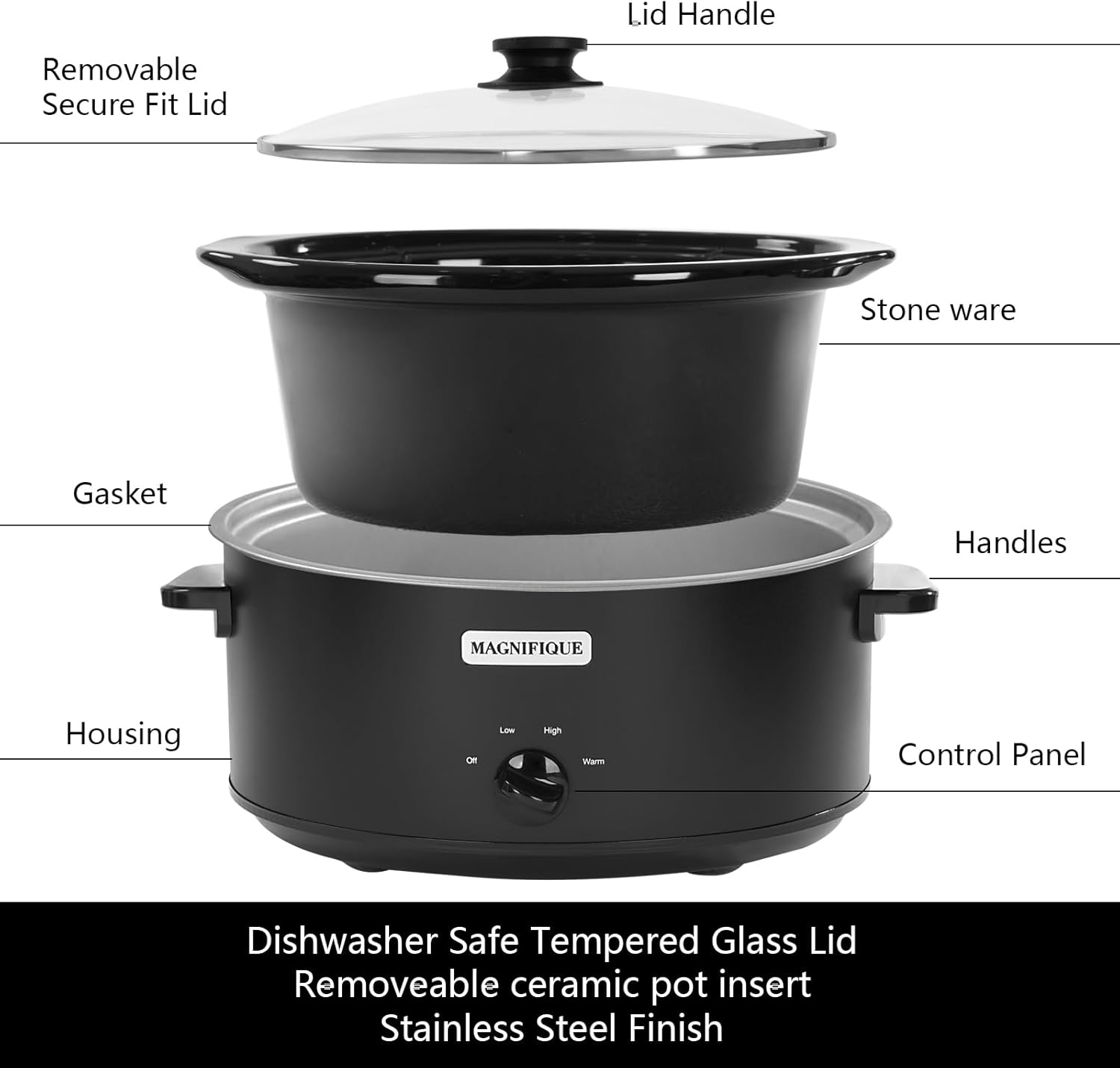

Explotat view of Magnifique Slow Cooker showing Lid Handle, Removable Secure Fit Lid, Stoneware, Gasket, Handles, Housing, and Control Panel.

Un va explotar view illustrating the main components: Lid Handle, Removable Secure Fit Lid, Stoneware pot, Gasket, Handles, Housing, and Control Panel.

  • Mànec de la tapa: For safe lifting of the lid.
  • Removable Secure Fit Lid: Tempered glass lid with a rubber gasket for a tight seal, retaining heat and moisture.
  • Olla de gres: The removable ceramic cooking insert, dishwasher-safe for easy cleaning.
  • Junta: Rubber seal around the lid to prevent spills and maintain temperature.
  • Nanses: Cool-touch handles on the base unit for safe transport.
  • Habitatge: The outer black stainless steel body of the slow cooker.
  • Tauler de control: Features a manual dial for selecting cooking settings.

Configuració

Abans del primer ús, seguiu aquests passos:

  1. Desembalar: Traieu tots els materials d'embalatge, etiquetes i tags de l'olla de cocció lenta.
  2. Neteja: Wash the stoneware pot and glass lid in warm, soapy water. Rinse thoroughly and dry completely. The stoneware pot and glass lid are dishwasher safe.
  3. Base de neteja: Netegeu l'exterior de la unitat base amb anunciamp tela. No submergiu la unitat base en aigua.
  4. Muntar: Place the clean stoneware pot into the heating base. Position the lid securely on top of the stoneware pot.
  5. Col·locació: Place the slow cooker on a flat, stable, heat-resistant surface, away from walls and curtains, ensuring adequate ventilation.

Instruccions de funcionament

The Magnifique Slow Cooker features a simple manual control dial for easy operation.

Close-up of the manual control dial with Off, Low, High, and Warm settings.

The manual control dial allows selection of Off, Low, High, and Warm settings.

  1. Preparar menjar: Place your ingredients into the stoneware pot.
  2. Tapa segura: Place the glass lid onto the stoneware pot.
  3. Connectar: Connecteu el cable d'alimentació a una presa de corrent estàndard de 120 V CA.
  4. Seleccioneu la configuració: Gireu el selector de control a la configuració de cocció desitjada:
    • BAIX: Ideal for slow, gentle cooking over an extended period (typically 6-8 hours).
    • ALTA: Per a una cocció més ràpida (normalment 3-4 hores).
    • CALENT: Maintains food at a serving temperature after cooking is complete. Do not use the WARM setting for cooking.
  5. Cuina: Allow the food to cook for the recommended time. Avoid lifting the lid frequently, as this releases heat and extends cooking time.
  6. Servir: Once cooking is complete, turn the dial to the “OFF” position and unplug the slow cooker. Carefully remove the lid using the handle.

For transport, the lid can be secured with the included rubber ring to prevent spills. Simply stretch the rubber ring over the lid and handles to create a tight seal.

Consells de cuina

Maximize your slow cooking experience with these helpful tips:

  • For best results, fill the stoneware pot between half and three-quarters full.
  • Root vegetables (carrots, potatoes) cook slower than meat. Place them at the bottom of the pot.
  • Dairy products (milk, sour cream, cheese) should be added during the last 30 minutes of cooking to prevent curdling.
  • Pasta should be added during the last 30-60 minutes of cooking to prevent it from becoming mushy.
  • The oval shape is particularly suitable for larger cuts of meat, such as roasts or whole chickens, allowing for more even cooking.
A Magnifique slow cooker with various ingredients, suggesting its versatility for stews, roasts, and pasta.

The slow cooker is versatile for preparing a variety of dishes, including stews, roasts, and pasta.

Cura i Manteniment

Una cura adequada garanteix la longevitat de la teva olla de cocció lenta.

  • Desconnecta sempre the slow cooker and allow it to cool completely before cleaning.
  • Olla i tapa de gres: The stoneware pot and glass lid are dishwasher safe. Alternatively, they can be washed by hand with warm, soapy water. Avoid abrasive cleaners or scouring pads that may scratch the surface.
  • Unitat base: Netegeu l'exterior de la base calefactora amb un drap suau i sec.amp drap. No submergiu la unitat base en aigua ni en cap altre líquid.
  • Residus obstinats: If food sticks to the stoneware pot, fill it with warm, soapy water and let it soak for a few hours before cleaning. A plastic or nylon scouring pad may be used if necessary.
  • Emmagatzematge: Store the slow cooker with the lid inverted on the stoneware pot to prevent odors and allow air circulation. Store in a dry place.
The stoneware pot of the slow cooker placed in a dishwasher for cleaning.

The stoneware pot is dishwasher-safe, making cleanup convenient.

Resolució de problemes

If you encounter issues with your slow cooker, refer to the table below for common problems and solutions.

Problema Causa possible Solució
Slow cooker not heating. Not plugged in; power outlet not working; dial set to 'OFF'. Ensure unit is plugged in; check power outlet; turn dial to 'LOW' or 'HIGH'.
El menjar no es cuina correctament. Tapa aixecada massa sovint; temps de cocció insuficient; configuració incorrecta. Avoid lifting lid; extend cooking time; ensure correct setting (LOW/HIGH) is selected.
Food is burning or sticking. Too little liquid; cooking on 'HIGH' for too long; pot not properly cleaned. Add more liquid; use 'LOW' setting for longer cooks; ensure pot is clean before use.
La tapa no encaixa bé. Stoneware pot not seated correctly; gasket misalignment. Ensure stoneware pot is fully seated in base; check rubber gasket on lid for proper alignment.

Especificacions

Key technical details for your Magnifique Slow Cooker:

Característica Detall
Marca Zing
Número de model WB-SCO70M-BK-1P
Capacitat 7 quarts
Color BK-BK-Manual (Black Stainless Steel)
Material Stainless Steel (Housing), Ceramic (Stoneware Pot), Tempered Glass (Lid)
Dimensions del producte (P x A x A) 11.42 "P x 14.02" W x 9.45" H
Pes de l'article 9.8 lliures
Wattage 270 watts
Voltage 120 Volts
Tipus de control Manual Dial (Off, Low, High, Warm)
Peces aptes per a rentavaixelles Stoneware Pot, Glass Lid
Dimensions of the Magnifique Slow Cooker: 17 inches wide, 6.8 inches high, and 8.5 inches deep.

Approximate dimensions of the slow cooker.

Garantia i Suport

For information regarding warranty coverage, product registration, or customer support, please refer to the warranty card included with your purchase or visit the official Zing weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.

© 2023 Zing. All rights reserved.
