1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your ExBrite 72x36 LED Bathroom Mirror. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image 1.1: The ExBrite 72x36 LED Bathroom Mirror, showcasing its backlit and front-lit design above a modern bathroom vanity.
Característiques principals:
- Funció antiboira: Integrated defogger keeps the mirror clear.
- Il·luminació regulable: Adjustable brightness from 10% to 100%.
- 3 temperatures de color: Select between Warm (3000K), Natural (4000K), and White (6000K) light.
- Backlit & Front Lit: Provides enhanced illumination from both the back and front of the mirror for superior brightness.
Image 1.2: Illustration of the combined backlit and front-lit illumination.
- Funció de memòria: Retains previous brightness settings.
- Vidre temperat: Constructed with 5mm thick, shatter-proof tempered glass for enhanced safety and durability.
Image 1.3: Tempered glass construction for safety.
- Disseny impermeable IP54: Suitable for bathroom environments.
- Instal·lació flexible: Supports both plug-in and hardwired connections, and can be mounted horizontally or vertically.
2. Informació de seguretat
WARNING: This product should be installed by a professional electrician if hardwiring is required. Do not expose the mirror to excessive water or heat to prevent damage and ensure safe operation.
- Desconnecteu sempre l'alimentació abans de la instal·lació o el manteniment.
- Manegeu el mirall amb cura per evitar trencaments.
- Assegureu-vos que la superfície de muntatge sigui estructuralment sòlida i que pugui suportar el pes del mirall.
- Do not use abrasive cleaners or sharp objects on the mirror surface.
- This mirror is designed for indoor use in bathrooms and similar environments.
3. Contingut del paquet
Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact customer support.
- ExBrite 72x36 LED Bathroom Mirror (1 unit)
- Suports de muntatge (2 unitats)
- Cargols i ancoratges de paret
- Manual d'instruccions (aquest document)
4. Especificacions
Image 4.1: Dimensions of the ExBrite 72x36 LED Bathroom Mirror.
| Característica | Detall |
|---|---|
| Marca | ExBrite |
| Model | 72"L x 36"W LED Bathroom Mirror |
| Dimensions del producte | 72" de llargada x 36" d'amplada |
| Material | Vidre temperat |
| Tipus de muntatge | Muntatge de paret |
| Característiques especials | Adjustable Brightness, Fogless, 3 Color Temperatures, Backlit & Front Lit |
| Classificació impermeable | IP54 |
| Opcions d'energia | Plug-in or Hardwire |
| Muntatge obligatori | No |
5. Configuració i instal·lació
The ExBrite LED Bathroom Mirror can be installed using either a plug-in connection or hardwired directly into your electrical system. It supports both horizontal and vertical mounting orientations.
5.1 Opcions de muntatge
Image 5.1: The mirror can be mounted horizontally or vertically to suit your space.
- Muntatge horitzontal: Ideal for wider vanities or a panoramic view.
- Muntatge vertical: Suitable for narrower spaces or full-length reflection.
5.2 Passos d'instal·lació
- Prepara la zona: Ensure the power supply to the installation area is turned off at the circuit breaker. Clear the wall space where the mirror will be mounted.
- Marqueu els punts de muntatge: Hold the mirror against the wall in the desired orientation (horizontal or vertical). Use a pencil to mark the positions for the mounting brackets. Ensure the marks are level.
- Instal·lar els suports: Drill pilot holes at the marked points. Insert wall anchors if necessary, then secure the mounting brackets horizontally to the wall using the provided screws.
- Connectar l'alimentació:
- Connector: If using the plug-in option, ensure the outlet is within reach and properly grounded.
- Cablejat fix: For hardwiring, it is recommended to consult a professional electrician. Connect the mirror's electrical wires to the corresponding household wiring (Live, Neutral, Ground) according to local electrical codes.
- Penja el mirall: Carefully lift the mirror and align the slots on the back of the mirror with the installed mounting brackets. Gently lower the mirror until it is securely seated on the brackets.
- Restaura l'alimentació: Turn on the power supply at the circuit breaker and test the mirror's functions.
6. Instruccions de funcionament
The ExBrite LED Bathroom Mirror features intuitive touch controls for its various functions.

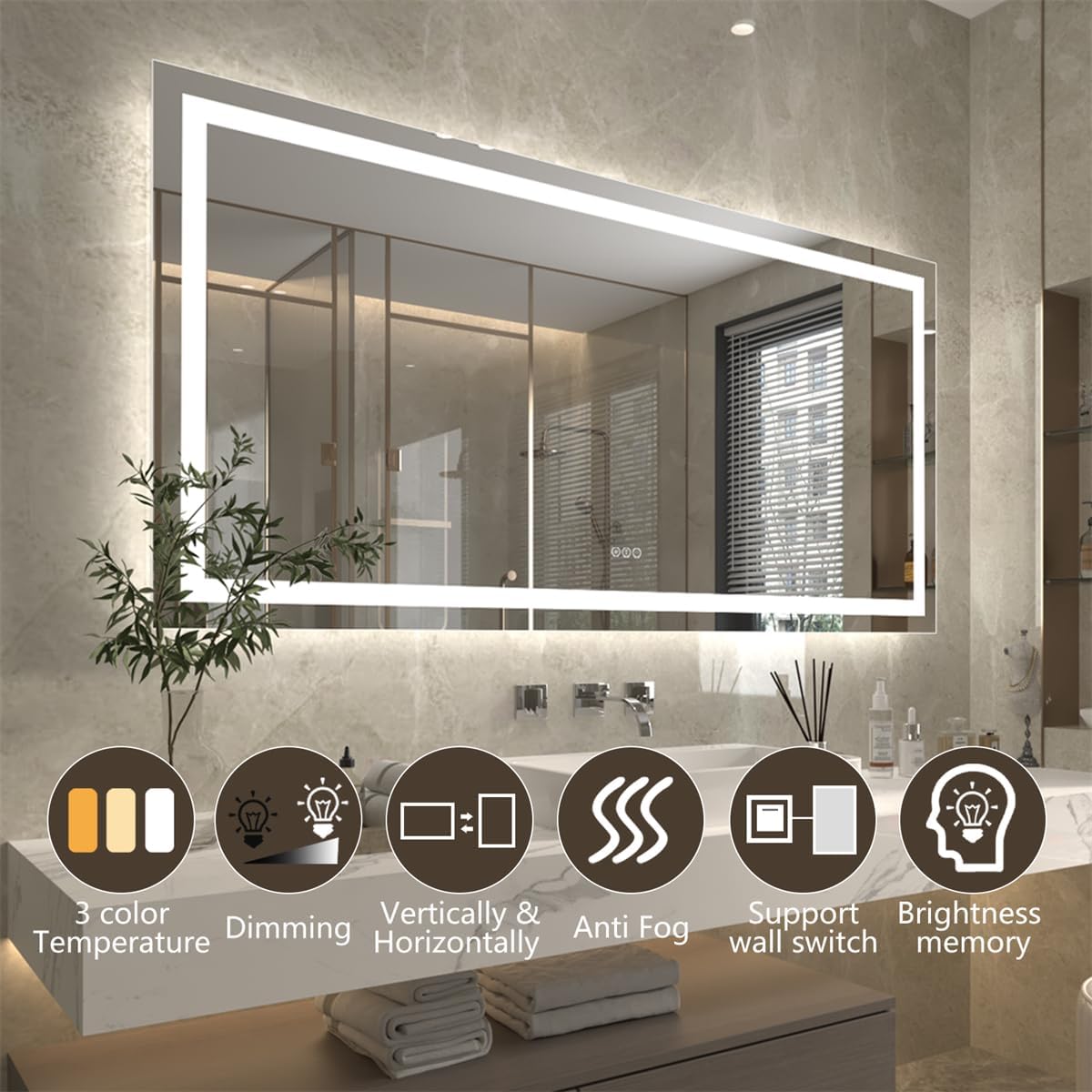

Imatge 6.1: acabatview of the mirror's key functions.
6.1 Toqueu Tauler de control
The touch control panel is located on the mirror surface. It typically includes buttons for power, color temperature adjustment, and anti-fog.
- Power ON/OFF and Brightness Adjustment:
Image 6.2: Adjusting brightness levels.
Tap the power button once to turn the lights ON or OFF. To adjust brightness, press and hold the power button for 2-3 seconds. The brightness will cycle from 10% to 100%. Release the button at your desired brightness level. The mirror will remember your last brightness setting.
- Ajust de temperatura de color:

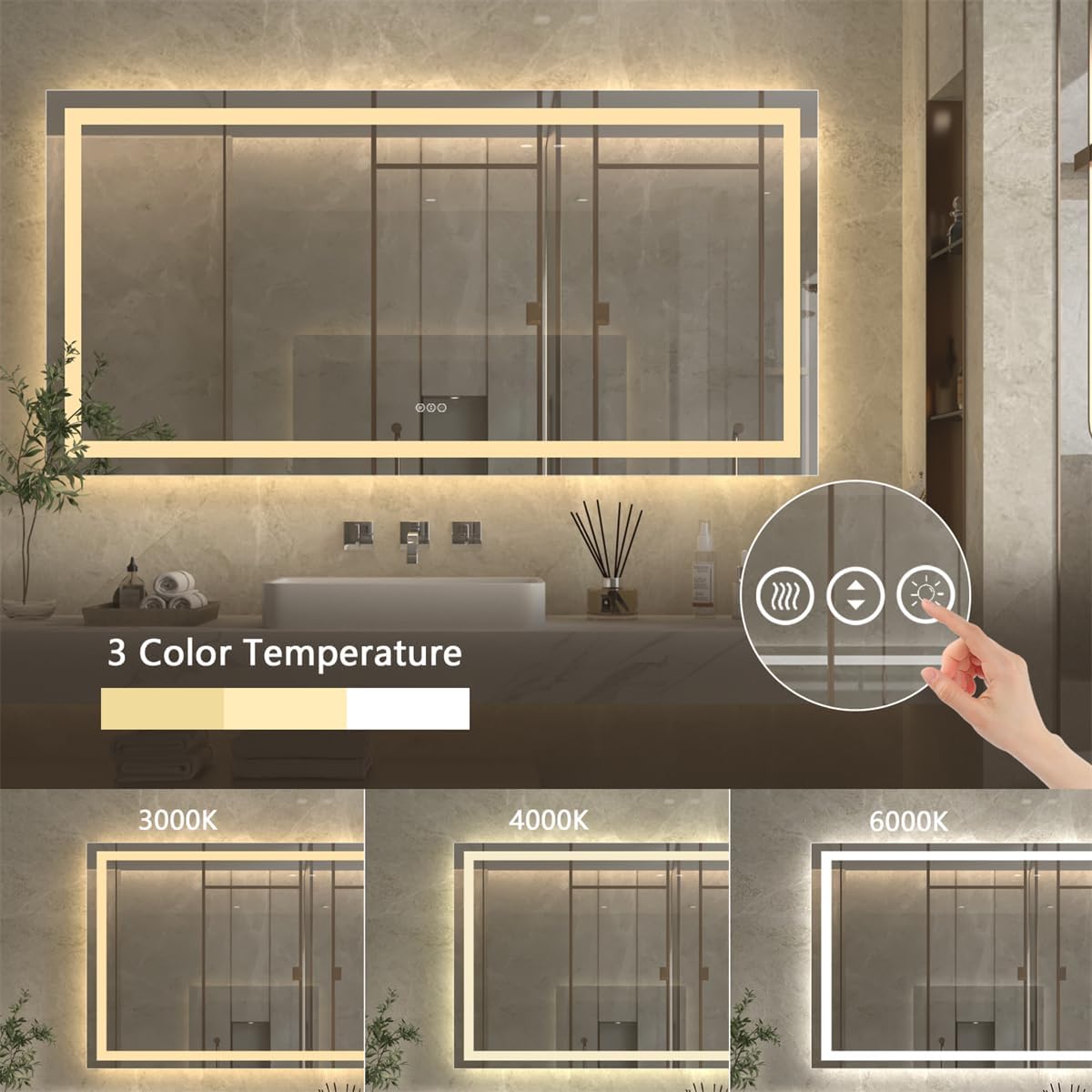

Image 6.3: Changing color temperature settings.
Tap the color temperature button to cycle through the three available light settings: Warm (3000K), Natural (4000K), and White (6000K).
- Funció antiboira:
Image 6.4: Anti-fog function in action.
Tap the anti-fog button to activate or deactivate the defogger. The anti-fog function operates independently and will automatically switch off after 1 hour to save energy.
6.2 Control d'interruptor de paret
The mirror supports control via a standard wall switch. If hardwired, the mirror's lights can be turned ON/OFF using the wall switch. The mirror's memory function will retain the last brightness setting when controlled by the wall switch.
7. Manteniment
- Neteja del mirall: Utilitzeu un suau, damp cloth with a mild glass cleaner. Do not spray cleaner directly onto the mirror, especially near the edges or electrical components. Spray onto the cloth first. Avoid abrasive cleaners or scouring pads.
- Components elèctrics: Ensure the mirror is disconnected from power before cleaning any electrical parts. Do not attempt to service internal components.
- Cura del vidre temperat: While tempered glass is durable, avoid sharp impacts or extreme temperature changes to prevent damage.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums del mirall no s'encenen. | Sense subministrament elèctric; connexió fluixa; interruptor defectuós. | Check power outlet/circuit breaker. Ensure all electrical connections are secure. If hardwired, consult a professional electrician. |
| La funció antiboira no funciona. | Funció antiboira no activada; problema d'alimentació. | Tap the anti-fog button to activate. Ensure the mirror has power. |
| No es pot ajustar la brillantor ni la temperatura del color. | Incorrect operation; temporary glitch. | Refer to Operating Instructions (Section 6). Try turning the mirror off and on again. |
| Mirror appears foggy despite anti-fog being on. | Extreme humidity; defogger not fully warmed up. | Allow a few minutes for the defogger to work. Ensure bathroom ventilation is adequate. |
9. Garantia i Suport
ExBrite is committed to providing high-quality products and customer satisfaction.
- Garantia: This product comes with up to a 1-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
- Devolucions: A 30-day free return policy is available for eligible purchases.
- Atenció al client: For any questions, concerns, or technical assistance, please contact ExBrite customer service. We aim to reply to emails within 24 hours.
- Informació de contacte: Refer to your purchase documentation or the ExBrite official weblloc web per obtenir dades de contacte actuals.
Image 9.1: ExBrite customer service commitments.
