Reolink RLC-811WA 4K 8MP Outdoor Security Camera User Manual

Introducció

This manual provides comprehensive instructions for the installation, configuration, and operation of your Reolink RLC-811WA 4K 8MP Outdoor Security Camera. Please read this manual carefully before using the product to ensure proper setup and functionality. Keep this manual for future reference.

The Reolink RLC-811WA is a high-performance outdoor security camera featuring 4K Ultra HD resolution, 5X optical zoom, dual-band Wi-Fi connectivity, color night vision, and intelligent detection capabilities for humans, vehicles, and pets. It also includes two-way audio and IP67 weatherproofing for reliable outdoor surveillance.

Què hi ha a la caixa

Verifiqueu que tots els components siguin presents al paquet abans de continuar amb la instal·lació.

Image: The image displays the Reolink RLC-811WA camera along with its accessories: power adapter, 1m network cable, 4.5m power extension cable, surveillance sticker, quick start guide, mounting hole template, screw pack, and wrench.

• Reolink RLC-811WA Camera
• Adaptador d'alimentació
• Cable de xarxa d'1 m
• Cable d'extensió d'alimentació de 4.5 m
• Adhesiu de vigilància
• Guia d'inici ràpid
• Plantilla de forat de muntatge
• Paquet de cargols
• Clau anglesa
• Tapa impermeable

Instruccions de configuració

1. Muntatge de la càmera:

   Trieu una ubicació adequada per a la càmera, assegurant-vos que tingui una vista clara view of the area you wish to monitor. Use the provided mounting hole template and screws to securely attach the camera to a wall or ceiling. Ensure the camera is positioned to avoid direct sunlight or strong light sources that could affect image quality.



   Image: The Reolink RLC-811WA camera is shown mounted on an exterior wall, demonstrating its robust, weather-resistant design suitable for outdoor use in various conditions, indicated by the IP67 rating and temperature range.

2. Connexió d'alimentació:

   Connect the power adapter to the camera's power port and plug it into a power outlet. Use the 4.5m power extension cable if needed to reach a power source.

3. Connexió de xarxa:

   For initial setup, it is recommended to connect the camera to your router using the provided 1m network cable. After initial setup, you can configure Wi-Fi connectivity.
4. App Installation and Configuration:

   Download the Reolink App from your smartphone's app store (iOS or Android). Follow the in-app instructions to add your camera. This typically involves scanning a QR code on the camera or manually entering its UID.

5. Configuració Wi-Fi:

   Once the camera is added to the app, navigate to the camera settings to configure its Wi-Fi connection. The RLC-811WA supports both 2.4GHz and 5GHz dual-band Wi-Fi. Choose the appropriate band for your network. 5GHz offers faster speeds for closer distances, while 2.4GHz provides a wider range.



   Image: This diagram illustrates the benefits of Wi-Fi 6 in a home environment, showing how 2.4GHz provides wider coverage and 5GHz offers faster speeds for devices like the Reolink camera. A router supporting Wi-Fi 6 is recommended for optimal performance.

Instruccions de funcionament

4K UHD Video and 5X Optical Zoom

The RLC-811WA captures video in 4K (8MP) Ultra HD resolution, providing clear and detailed images. The 5X optical zoom allows you to magnify distant objects without compromising image quality. Use the zoom function within the Reolink App to adjust the view.

Image: This image demonstrates the superior clarity of 4K resolution with 5X optical zoom, showing a car's license plate clearly visible, compared to a less detailed 2K image of the same scene.

Visió nocturna en color

Equipped with spotlights, the camera can capture full-color video even in low-light conditions, extending up to 30 meters. This feature enhances visibility and detail compared to traditional black-and-white infrared night vision.

Image: The top panel shows a house at night with the camera's spotlights on, providing vivid color night vision. The bottom panel shows the same scene with spotlights off, resulting in standard black-and-white night vision up to 30 meters.

Detecció i alertes intel·ligents

The camera features intelligent detection for humans, vehicles, and pets, minimizing false alarms triggered by irrelevant movements. When motion is detected, you will receive instant alerts on your smartphone.

Image: A smartphone screen displays a notification from the Reolink app indicating detection of a person, vehicle, and animal by the RLC-811WA camera, highlighting its smart alert capabilities.

Two-Way Audio and Active Deterrence

Utilize the built-in microphone and speaker for two-way communication. You can speak to visitors or deter intruders remotely. The camera's spotlights and customizable siren can be activated automatically upon detection to warn off potential threats.

Image: The top panel shows a user interacting with a delivery person via two-way audio. The bottom panel illustrates the camera's active deterrence with spotlights and a siren warning off an intruder at night.

Múltiples opcions d'emmagatzematge

Recordings can be stored locally on a microSD card (up to 256GB, not included), on a Reolink NVR (Network Video Recorder), or uploaded to an FTP server. The camera supports 24/7 continuous recording.

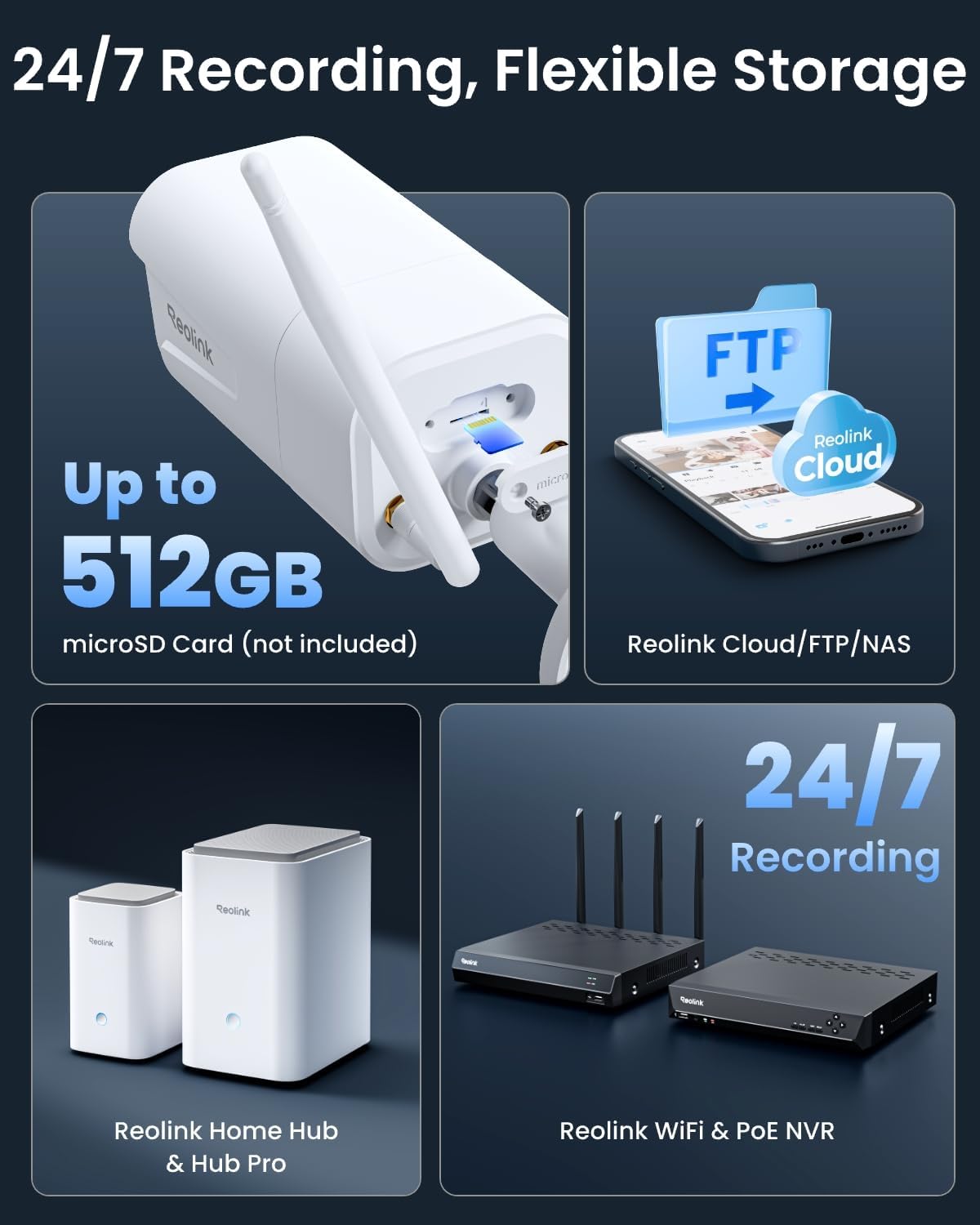

Image: This graphic illustrates the flexible storage solutions for Reolink cameras, including direct microSD card storage (up to 512GB), cloud services (Reolink Cloud, FTP, NAS), and integration with Reolink NVRs and Home Hubs for 24/7 recording.

Manteniment

• Neteja: Netegeu regularment la lent de la càmera amb un drap suau iamp cloth to ensure optimal image clarity. Avoid using harsh chemicals.
• Actualitzacions de firmware: Check for and install firmware updates via the Reolink App to ensure your camera has the latest features and security enhancements.
• Gestió de cables: Ensure all cables are securely connected and protected from environmental elements. Use the waterproof lid for cable connections.
• Font d'alimentació: Use only the original Reolink power adapter to prevent damage to the camera.

Resolució de problemes

• Càmera fora de línia:

  Check the power connection and ensure the camera is receiving power. Verify your Wi-Fi network is operational and the camera is within range. If using 5GHz Wi-Fi, ensure your router supports it and the camera is close enough. Try restarting your router and the camera.

• Mala qualitat d'imatge:

  Netegeu la lent de la càmera. Assegureu-vos que no hi hagi obstruccions en el camp de visió de la càmera. view. Check your network bandwidth; a stable and sufficient internet connection is crucial for 4K streaming. Adjust camera settings for resolution and bitrate if necessary.

• Falses alarmes:

  Adjust the sensitivity settings for human, vehicle, and pet detection in the Reolink App. Define specific motion zones to exclude areas with frequent irrelevant movement (e.g., public roads, swaying trees).
• No Audio/Two-Way Audio Issues:

  Ensure the microphone and speaker are enabled in the camera settings within the app. Check the volume levels on your device and in the app. Ensure there are no physical obstructions blocking the microphone or speaker on the camera.

Especificacions

Garantia i Suport

This Reolink RLC-811WA camera comes with a 2 any de garantia des de la data de compra. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

For technical support, troubleshooting assistance, or warranty inquiries, please visit the official Reolink support weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Podeu trobar més informació i recursos al Reolink Store on Amazon.
