REIZIX HD130 Dash Cam User Manual

1. Introducció

Thank you for choosing the REIZIX HD130 Dash Cam. This manual provides detailed instructions for setting up, operating, and maintaining your dash cam to ensure optimal performance and longevity. The REIZIX HD130 is designed to capture high-quality video footage of your journeys, offering features such as 1080P Full HD recording, a 1700 wide-angle lens, loop recording, parking monitoring, and G-sensor functionality for enhanced safety and evidence preservation.

Figure 1: REIZIX HD130 Dash Cam with included 64GB SD card and suction cup mount.

2. Què hi ha a la caixa

En obrir el paquet, comproveu que hi hagi tots els elements següents:

• 1 x REIZIX HD130 1080p Dash Cam
• 1 x Suction cup; 1 x 64GB TF Card
• 1 cable d'alimentació de 11.5 peus amb carregador de cotxe
• 1 x cable de dades USB
• Manual d'usuari

Figure 2: All components included in the REIZIX HD130 Dash Cam package.

3. Producte acabatview

Familiarize yourself with the various parts and functions of your REIZIX HD130 Dash Cam.

3.1. Disseny del dispositiu

Figura 3: Frontal view of the dash cam, highlighting the 1700 wide angle lens and 3-inch IPS LCD display.

• 1080P Resolution: Records full HD videos for clear details.
• 1700 Wide Angle: Reduces blind spots and captures a broader view de la carretera.
• 3 Inch IPS LCD Display: Provides a clear and wide viewAngle d'inclinació per a la reproducció i la configuració.
• Sensor G: Detecta automàticament les col·lisions i bloqueja footage.
• Mode d'aparcament: Monitors your vehicle when parked, activating recording upon impact.
• Enregistrament en bucle: Sobreescriu el menjar més antictage when the SD card is full, ensuring continuous recording.
• WDR (ampli rang dinàmic): Improves video quality in varying light conditions, especially at night.
• Detecció de moviment: Starts recording when motion is detected in front of the camera.
• Support up to 64GB SD Card: Compatible with high-speed micro SD cards for ampl'emmagatzematge.

4. Configuració i instal·lació

Follow these steps to properly set up and install your dash cam in your vehicle.

4.1. Inserció de la targeta Micro SD

1. Assegureu-vos que la càmera del salpicader estigui apagada.
2. Localitza la ranura per a targetes Micro SD al lateral del dispositiu.
3. Insert the 64GB TF card (included) into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
4. Important: Format the new SD card on the dash cam during first use to ensure compatibility and optimal performance.

Figure 4: Proper insertion of the 64GB Micro SD card into the dash cam.

4.2. Muntatge de la Dash Cam

1. Netegeu la zona del parabrisa on voleu muntar la càmera del salpicader.
2. Attach the suction cup mount to the dash cam's mount socket.
3. Press the suction cup firmly against the windshield and flip the lever to secure it. Position the dash cam behind your rearview mirror for minimal obstruction of your driving view.
4. Adjust the angle of the camera to ensure it captures the road ahead clearly. The body can be rotated 1800 for optimal positioning.

Figure 5: Dash cam mounted on the windshield, positioned for optimal road view.

4.3. Connexió d'alimentació

1. Connect the 11.5ft power supply cable to the dash cam's Mini USB Power port.
2. Plug the car charger end into your vehicle's cigarette lighter socket.
3. Route the cable neatly along the edge of the windshield and dashboard to avoid obstructing your view o interferir en la conducció.
4. The dash cam is designed to power on and begin recording automatically when the vehicle's ignition is turned on, and power off after 5 seconds when the external power connection is removed.

5. Instruccions de funcionament

Understand the basic operations and functions of your REIZIX HD130 Dash Cam.

5.1. Botons i ports

The dash cam features several buttons and ports for easy control and connectivity:

• Botó D'acord: Confirms selections, stops recording (when recording), or starts recording (when not recording).
• Botó de mode: Switches between Video Recording Mode, Photo Mode, and Playback Mode.
• Botó de bloqueig: Manually locks the current video file to prevent it from being overwritten during loop recording.
• Botó d'encesa: Encén/apaga el dispositiu.
• Botons amunt / avall: Navigate through menu options or adjust settings.
• Ranura per a targetes: For Micro SD card insertion.
• Mini USB Power: For power supply and data transfer.
• Botó de restabliment: S'utilitza per reiniciar el dispositiu si deixa de respondre.
• Micròfon: Grava àudio.

5.2. Mode de gravació de vídeo

When connected to a car charger and powered on, the dash cam will automatically start video recording. The red dot on the screen will flash, indicating recording is in progress.

• Premeu el botó OK button to stop recording. Press it again to resume.
• Premeu el botó Bloqueig button to protect the current recording from being overwritten.

Figure 6: Dash cam display during 1080P Full HD video recording.

5.3. Mode de fotografia

From Video Recording Mode, press the Mode button once to enter Photo Mode. The camera icon will appear on the screen.

• Premeu el botó OK botó per fer una foto.

5.4. Mode de reproducció

From Photo Mode, press the Mode button once to enter Playback Mode. The playback icon will appear on the screen.

• Utilitza el Amunt/Avall buttons to scroll through recorded videos and photos.
• Premeu el botó OK botó per reproduir un vídeo seleccionat o view una foto.

6. Característiques i configuracions principals

The REIZIX HD130 Dash Cam offers several advanced features to enhance your driving experience and vehicle security.

6.1. Enregistrament en bucle

This feature ensures continuous recording by overwriting the oldest video files when the Micro SD card is full. This prevents the need for manual deletion and ensures you never miss a moment of your drive.

Figure 7: Loop recording ensures continuous video capture by overwriting older files.

6.2. Sensor G (sensor de gravetat)

The built-in G-sensor automatically detects sudden shakes or collisions. When an event is detected, the dash cam will automatically save and lock the current video segment, preventing it from being overwritten. This footage serves as crucial evidence in case of an accident.

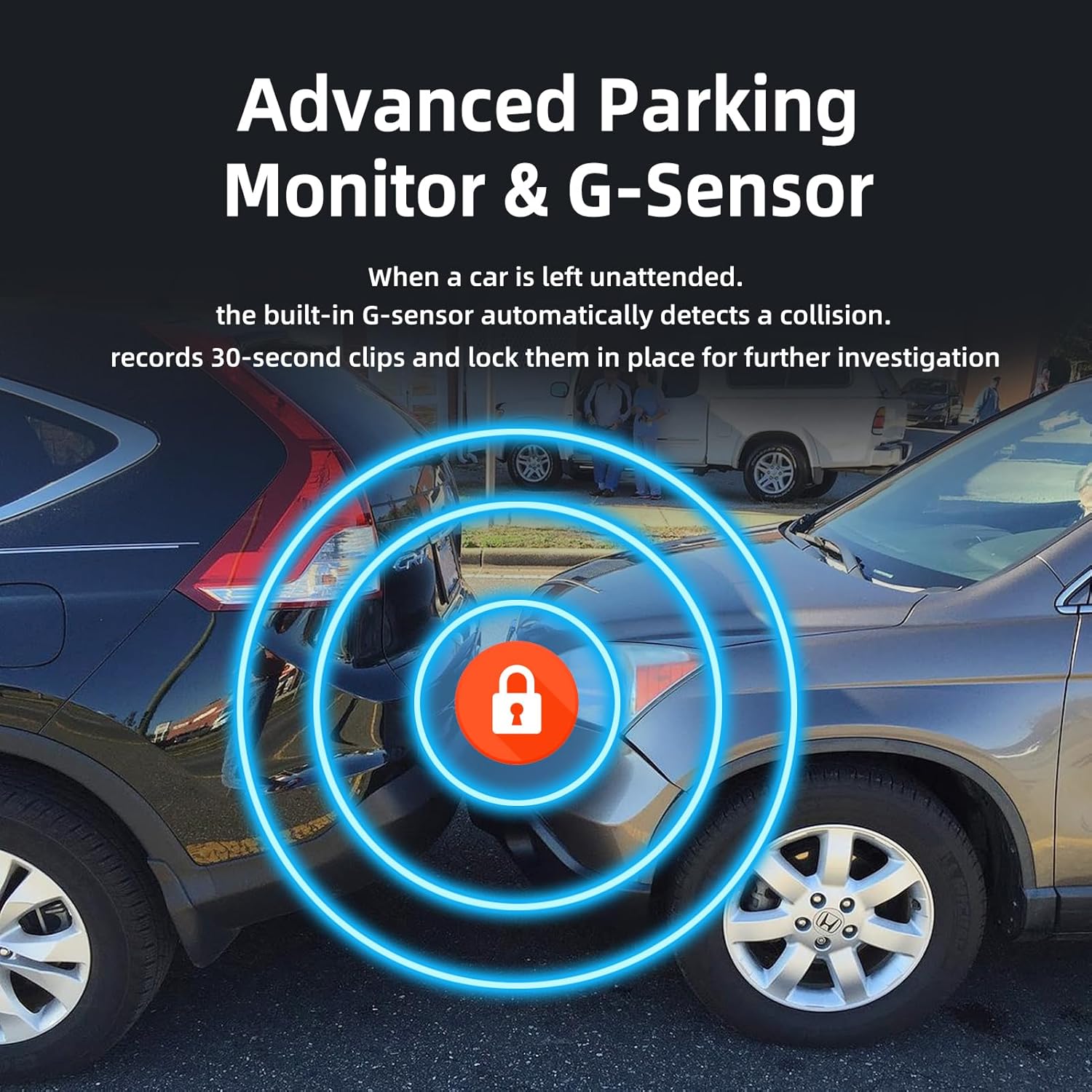

Figure 8: The G-sensor detects impacts and automatically locks important video footage.

6.3. Parking Monitor & Motion Detection

These functions provide surveillance for your parked vehicle. When motion is detected or an impact occurs (via G-sensor), the dash cam will automatically turn on and record a short video clip (e.g., 30 seconds), preserving evidence even when you are away from your vehicle.

• Nota: It is recommended to turn off motion detection and parking monitoring functions while driving to prevent unnecessary file locking and memory card filling.

Figure 9: Parking Monitor feature activates recording when an impact or motion is detected around the parked vehicle.

6.4. WDR (Rang dinàmic ampli)

WDR technology balances exposure to provide clear video footage in both bright and dark areas, significantly improving visibility in low-light conditions or when transitioning between different lighting environments (e.g., entering/exiting tunnels).

Figure 10: WDR technology enhances video clarity in challenging lighting conditions.

7. Manteniment

Un manteniment adequat garanteix la longevitat i el rendiment òptim de la càmera del salpicader.

• Formatació regular: Format your Micro SD card monthly to prevent data corruption and ensure smooth loop recording. This can be done directly through the dash cam's settings menu.
• Neteja: Use a soft, dry cloth to clean the lens and screen. Avoid abrasive materials or chemical cleaners.
• Temperatura: Operate the dash cam within the recommended temperature range (-40F to 1400F / -200C to 600C). Extreme temperatures can affect performance and battery life.
• Bateria: The built-in 200mAh battery is for emergency recording and saving settings only. Keep the dash cam plugged in for continuous operation.

8. Solució De Problemes

Aquests són alguns problemes comuns i les seves solucions:

9. Especificacions

10. Garantia i Suport

REIZIX offers a 1-year warranty for the HD130 Dash Cam. If you encounter any issues or have questions regarding your product, please do not hesitate to contact our customer support team.

• Suport per correu electrònic: 51612827@qq.com
• Període de garantia: 1 any

We are committed to providing prompt and authoritative replies to resolve your problems as soon as possible.
