GJEMAX 18V 520Nm Cordless Impact Wrench User Manual

Introducció

The GJEMAX 18V 520Nm Cordless Impact Wrench is a powerful and versatile tool designed for efficient and robust work. Whether for daily tasks like changing tires or for demanding applications in construction and industrial projects, this impact wrench provides exceptional performance. It features a brushless motor and a 2-in-1 chuck that includes both an internal hexagon for bit holders and a half-inch square drive. The included 18V 6.0Ah Lithium battery ensures long-lasting and reliable power without the need for cables.

Què hi ha a la caixa

The GJEMAX Cordless Impact Wrench package typically includes the following components:

• GJEMAX 18V 520Nm Cordless Impact Wrench
• 1x 6.0Ah Lithium Battery
• 1x Carregador ràpid
• Estoig d'emmagatzematge
• Assorted Drill Bits and Screwdriver Bits (as shown in image)
• Various Sockets (as shown in image)

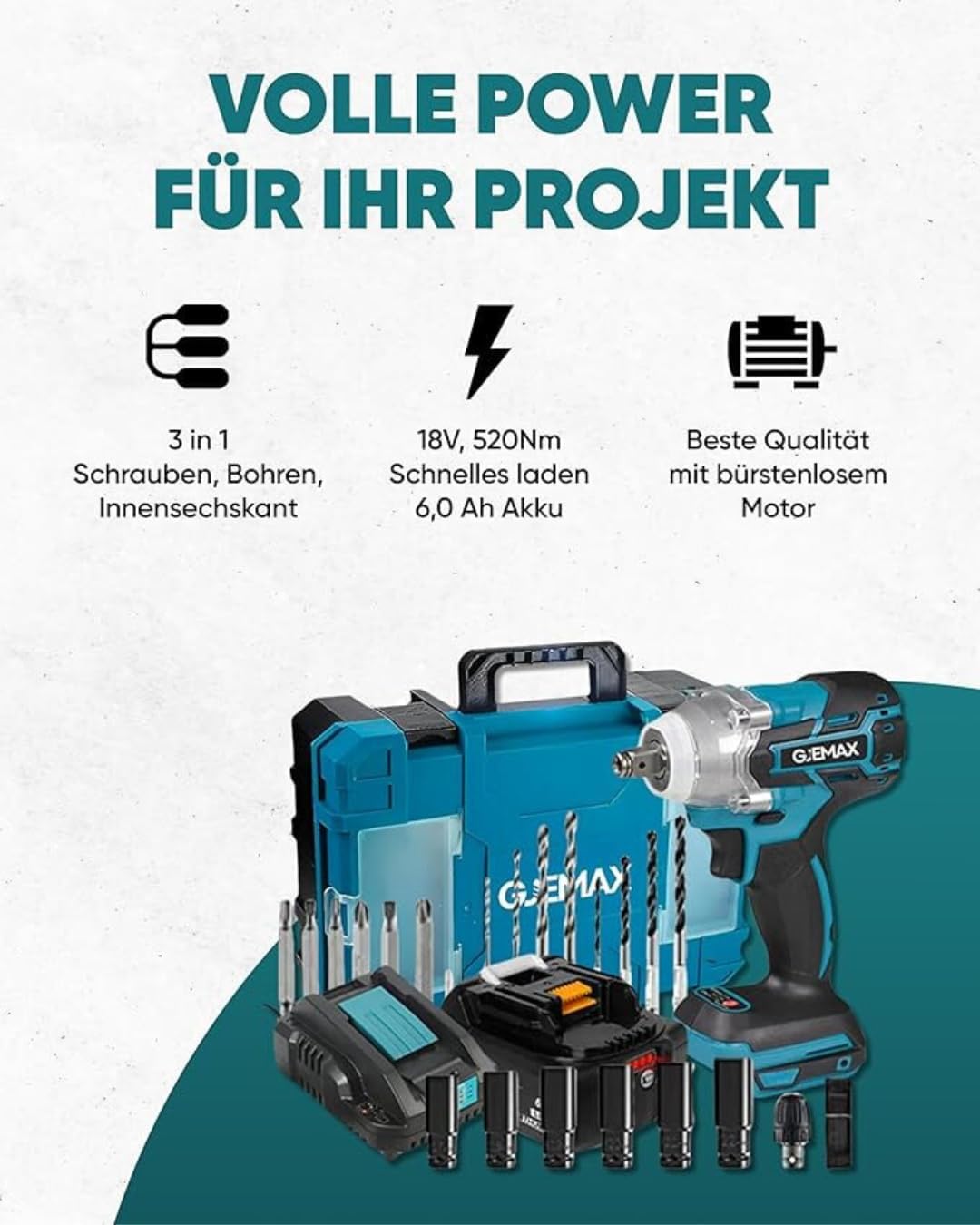

Image Description: A comprehensive view of the GJEMAX impact wrench kit, showcasing the main tool, a blue carrying case, an 18V 6.0Ah battery, a fast charger, and a variety of drill bits, screwdriver bits, and sockets, indicating an 18-piece complete package.

Configuració

1. Carregant la bateria

Before first use, fully charge the 6.0Ah Lithium battery. Connect the fast charger to a power outlet and then connect the battery to the charger. The charger will indicate when the battery is fully charged (refer to charger's LED indicators for status).

2. Instal·lació de la bateria

Align the battery with the battery slot at the base of the impact wrench handle. Slide the battery firmly into place until it clicks, ensuring it is securely seated.

3. Fixació d'accessoris

The GJEMAX impact wrench features a 2-in-1 chuck. For 1/2 inch square drive sockets, simply push the socket onto the square drive until it locks. For screwdriver bits or drill bits, use the internal hexagon chuck. Insert the bit into the hexagonal opening until it is firmly seated.

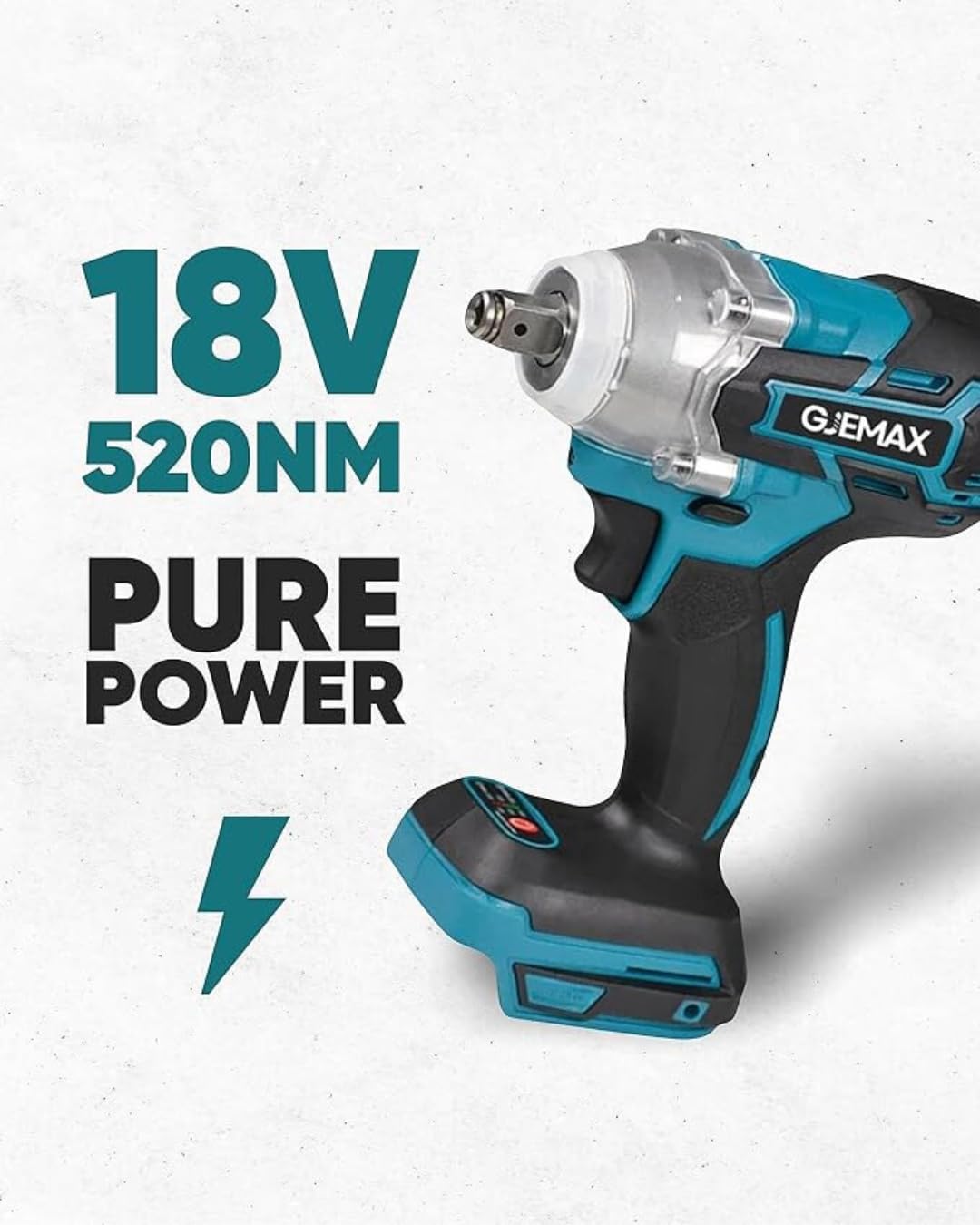

Descripció de la imatge: Un primer pla view of the GJEMAX 18V 520Nm Cordless Impact Wrench, highlighting its robust design and the 1/2 inch square drive, emphasizing its power capabilities.

Instruccions de funcionament

1. Encès / apagat

To power on the tool, press the trigger switch. Release the trigger to power off. The tool is equipped with an intelligent control panel for mode selection.

2. Adjusting Speed and Torque

The intelligent control panel allows you to switch between different power modes to suit your task. Use the mode selection button (often indicated by a power symbol or mode icon) to cycle through settings such as "HIGH" and "LOW" torque/speed modes. The LED indicators on the panel will show the currently selected mode and battery level.

Image Description: A detailed view of the GJEMAX impact wrench's intelligent control panel, showing LED indicators for battery level and selectable modes labeled "HOCH" (High) and "NIEDRIG" (Low), along with a power/mode switch button.

3. Rotació endavant/enrere

A switch located near the trigger allows you to select the direction of rotation (forward for tightening, reverse for loosening). Ensure the switch is fully engaged in the desired position before operating the tool.

4. Safety Precautions During Operation

• Utilitzeu sempre l'equip de protecció individual (EPI) adequat, incloent-hi ulleres i guants de seguretat.
• Ensure the workpiece is stable and secured before applying torque.
• Do not force the tool; let the impact mechanism do the work.
• Mantingueu les mans i la roba solta allunyades de les peces giratòries.
• Avoid operating the tool in wet conditions or near flammable liquids/gases.

Manteniment

1. Neteja

Netegeu regularment les obertures de ventilació de l'eina per evitar el sobreescalfament. Feu servir un drap suau i sec.amp drap per netejar l'exterior. No utilitzeu productes químics agressius ni netejadors abrasius.

2. Cura de la bateria

• Emmagatzemeu les bateries en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
• No emmagatzemeu les piles completament descarregades durant períodes prolongats. Carregueu-les periòdicament si no les feu servir.
• Avoid dropping or physically damaging the battery pack.

3. Emmagatzematge

When not in use, store the impact wrench, battery, and charger in the provided carrying case in a secure, dry location, out of reach of children.

Resolució de problemes

Especificacions

Garantia i Suport

For information regarding warranty coverage, claims, or technical support, please refer to the documentation included with your product or visit the official GJEMAX weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol consulta relacionada amb la garantia.

For further assistance, please contact GJEMAX customer service.
