1. Introducció
Thank you for choosing the MHW-3BOMBER ES6029B Mini Digital Coffee Scale. This precision instrument is designed to enhance your coffee brewing experience with accurate measurements and intelligent features. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your device.
Image: The MHW-3BOMBER Mini Digital Coffee Scale in a coffee brewing setup.
2. Informació de seguretat
- No submergiu la bàscula en aigua o altres líquids.
- Eviteu col·locar la bàscula a prop de fonts de calor extrema o sota la llum solar directa.
- No sobrecarregueu la bàscula més enllà de la seva capacitat màxima de 2000 g.
- Handle with care; this is a precision instrument. Avoid dropping or subjecting it to strong impacts.
- Use only the recommended 5V, 1A/2A adapter for charging.
- Mantenir fora de l'abast dels nens.
3. Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- MHW-3BOMBER ES6029B Mini Digital Coffee Scale
- Cable de càrrega USB tipus C
- Silicone Heat Insulation Pad
- Manual d'usuari
4. Producte acabatview
The MHW-3BOMBER ES6029B is a compact and versatile digital scale designed for coffee enthusiasts. It features a high-precision sensor, an integrated timer, and multiple intelligent modes to assist in achieving consistent and delicious brews.
- Alta precisió: Measures from 0.1g up to 2000g.
- Temporitzador integrat: Essential for precise brewing control.
- Gravity Sensing Device: Automatic power-on and tare function when an object over 100g is placed on the scale.
- Mode intel·ligent: Automatically starts the timer upon liquid detection, displaying time, liquid weight, and brew ratio.
- Funció de silenci: Option to permanently disable beep sounds for a quiet brewing environment.
- Compacte i portàtil: Dimensions of 10.4 x 10.4 x 1.9 cm (4.1 x 4.1 x 0.75 inches) and a weight of 0.27 kg (0.6 lbs).
- USB recarregable: Equipped with a 700mAh lithium battery for convenience and environmental friendliness.

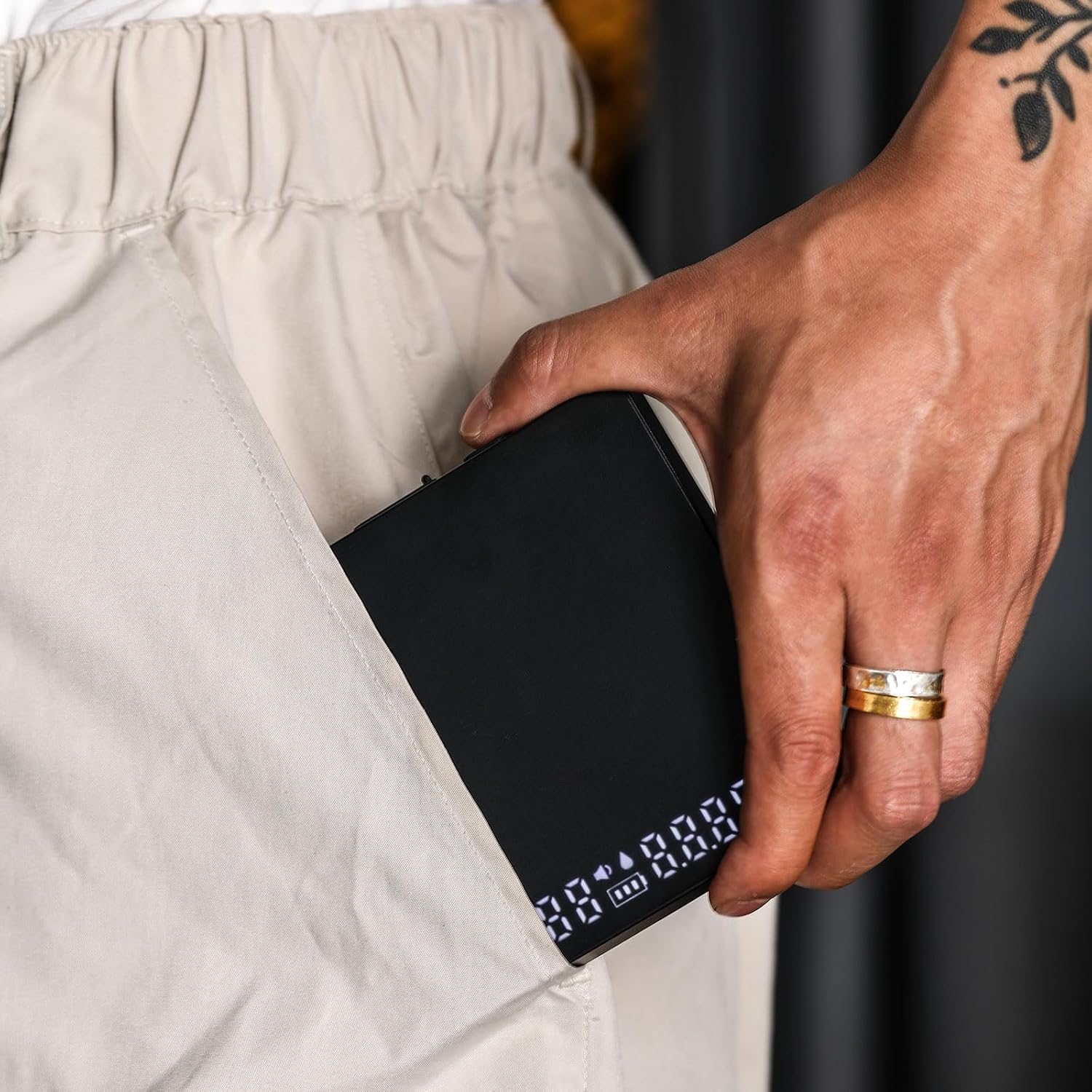

Image: The compact size of the MHW-3BOMBER Mini Digital Coffee Scale, fitting easily into a pocket.
5. Configuració
- Desembalar: Traieu amb cura la bàscula i tots els accessoris de l'embalatge.
- Càrrec inicial: Before first use, fully charge the scale using the provided USB Type-C cable and a 5V, 1A/2A adapter. The charging port is located on the side of the device.
- Col·locació: Col·loqueu la bàscula sobre una superfície plana, estable i anivellada per garantir lectures precises.
- Coixinet de silicona: Always place the silicone heat insulation pad on the weighing platform before placing hot items like coffee pots or cups to protect the scale.
Image: Illustration of the gravity sensing feature, where placing an object on the scale automatically powers it on and tares.
6. Instruccions de funcionament
6.1 Encès/Apagat
- Encès manual: Premeu el botó d'engegada (U symbol) to turn the scale on.
- Gravity Sensing Power On: When the physical switch is ON, placing an object weighing 100g or more on the scale will automatically turn it on and set the weight to zero.
- Apagar: Press and hold the power button to turn the scale off. The scale will also automatically power off after a period of inactivity (default 2 minutes) to conserve battery.
6.2 Funció de tara
To subtract the weight of a container or other items:
- Place the empty container on the weighing platform.
- Press the Tare button (T symbol). The display will reset to zero.
- Afegiu l'article que voleu pesar al contenidor. La pantalla només mostrarà el pes net de l'article.
6.3 Unit Conversion (g/oz)
The scale supports both grams (g) and ounces (oz). To switch between units, press the Unit button (often integrated with the Tare button or a separate button, refer to device markings if different).
6.4 Funció de temporitzador
The integrated timer is crucial for consistent coffee brewing.
- Inici/Parada: Press the Timer button (often integrated with the Power button or a separate button, refer to device markings if different) to start or stop the timer.
- Restablir: Press and hold the Timer button to reset it to zero.
6.5 Intelligent Mode
This advanced mode simplifies the brewing process, especially for pour-over and espresso.
- Activació: The intelligent mode is automatically engaged when the scale detects liquid being poured into a container after taring.
- Temporitzador automàtic: The timer starts automatically when liquid is detected.
- Visualització: The display will alternately show the brewing time, liquid weight, and the liquid weight to powder ratio.
Image: Espresso extraction using the scale's intelligent mode.
Image: Drip coffee brewing with the scale's intelligent mode.
Image: The scale's display showing alternating readings for time, liquid weight, and liquid-to-powder ratio in intelligent mode.
6.6 Funció de silenci
To disable all beeping sounds, refer to the specific instructions in the full manual or product packaging for your model. This function allows for a silent brewing experience.
7. Càrrega
La bàscula està equipada amb una bateria de liti recarregable de 700 mAh.
- Port de càrrega: Use the USB Type-C port located on the side of the scale.
- Adaptador: It is recommended to use a 5V, 1A/2A adapter for charging. Avoid using fast chargers or high-output chargers.
- Indicador de càrrega: The display will show a charging indicator.
- Ús durant la càrrega: No utilitzeu la bàscula mentre s'està carregant.
Image: Close-up of the USB Type-C charging port on the MHW-3BOMBER Mini Digital Coffee Scale.
8. Manteniment
- Neteja: Netegeu la bàscula amb un suau, damp drap. No utilitzeu productes de neteja abrasius ni submergiu la bàscula en aigua.
- Emmagatzematge: Guardeu la bàscula en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: For optimal battery life, avoid completely draining the battery frequently. Charge it regularly.
9. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'escala no s'encén. | Low battery or physical switch is OFF. | Charge the scale. Ensure the physical ON/OFF switch is in the ON position. |
| Lectures inexactes. | Unstable surface, overload, or calibration issue. | Place on a flat, stable surface. Do not exceed 2000g. If issues persist, contact support for calibration guidance. |
| Timer/Tare buttons seem reversed. | This model may have a specific button layout. | Familiarize yourself with the button functions as indicated on the device. Some users have noted a non-standard layout where the 'T' for Tare might be near the timer display and vice-versa. |
| Intelligent mode not activating. | No liquid detected or scale not tared. | Ensure the scale is tared to zero before pouring liquid. The mode activates upon liquid detection. |
If you encounter any issues not listed here, please contact MHW-3BOMBER customer support.
10. Especificacions
| Característica | Especificació |
|---|---|
| Marca | MHW-3BOMBER |
| Número de model | ES6029B |
| Color | Mini Negre |
| Capacitat de pes | 0.1 g a 2000 g |
| Exactitud de lectura | 0.1 g |
| Pes del producte | 0.27 kg (0.6 lliures) |
| Dimensions | 10.4 x 10.4 x 1.9 cm (aprox. 4.1 x 4.1 x 0.75 polzades) |
| Bateria | Bateria de liti recarregable de 700 mAh |
| Port de càrrega | USB tipus C |
11. Garantia i Suport
MHW-3BOMBER products are manufactured with quality and precision. In the unlikely event of a defect in materials or workmanship, please refer to your purchase documentation for specific warranty terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact MHW-3BOMBER customer service through the retailer where you purchased the product or visit the official MHW-3BOMBER website. Please have your model number (ES6029B) and proof of purchase ready.
Image: MHW-3BOMBER offers various support channels including online customer service, social media, and technical support.
