LDHTHOPI PTJ-01 Airless Paint Sprayer Instruction Manual

Informació important de seguretat

Before operating the LDHTHOPI PTJ-01 Airless Paint Sprayer, read and understand all safety warnings and instructions. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Always wear protective clothing, goggles, and gloves when operating the sprayer.
• Avoid pointing the spray gun at people or animals.
• Mantingueu el polvoritzador allunyat de fonts de calor i flames obertes.
• Ensure adequate ventilation in the work area to prevent accumulation of hazardous fumes.
• Never spray flammable liquids near ignition sources.
• Disconnect the power supply before cleaning, servicing, or changing accessories.
• Maintain a firm grip on the spray gun and be aware of the high pressure.

Producte acabatview i Components

The LDHTHOPI PTJ-01 Airless Paint Sprayer is designed for efficient application of various coatings. Familiarize yourself with its components before use.

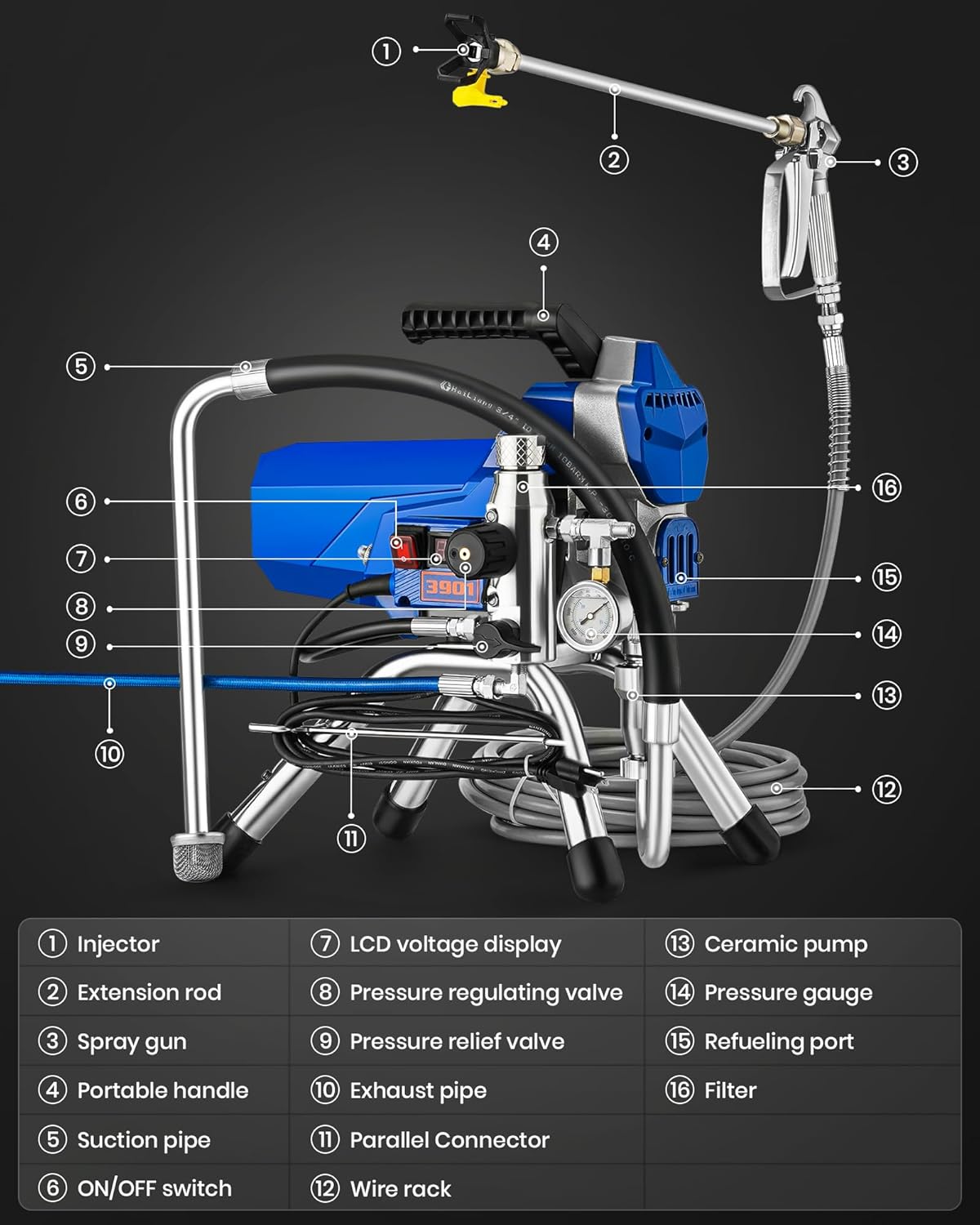

Figura 1: LDHTHOPI PTJ-01 Airless Paint Sprayer Components

1. Injector: Delivers paint into the high-pressure system.
2. Barra d'extensió: Provides extended reach for spraying high or distant areas.
3. Pistola de polvorització: Controls the release of paint.
4. Mànec portàtil: Per facilitar el transport de la unitat.
5. Tub de succió: Agafa pintura del recipient.
6. Interruptor ON / OFF: Activa i desactiva el polvoritzador.
7. LCD Voltage Visualització: Shows the current operating voltage.
8. Vàlvula reguladora de pressió: Ajusta la pressió de polvorització.
9. Vàlvula d'alleujament de pressió: Releases pressure from the system.
10. Tub d'escapament: Part of the internal system.
11. Parallel Connector: Connects various parts of the system.
12. Reixeta de filferro: For organizing cables and hoses.
13. Ceramic Pump: High-performance pump for paint delivery.
14. Manòmetre: Mostra la pressió de funcionament actual.
15. Port de reabasteciment: For adding hydraulic fluid or lubricant (refer to maintenance).
16. Filtre: Prevents debris from entering the system.

Instruccions de configuració

Una configuració adequada garanteix un rendiment i una seguretat òptims.

1. Preparació de l'àrea de treball: Ensure the area is well-ventilated and free from obstructions. Cover surfaces not to be painted.
2. Connecteu les mànegues:
   • Connect the high-pressure hose to the sprayer outlet and the spray gun. Ensure all connections are tight.
   • Attach the suction pipe (5) to the sprayer and place the filter end into the paint container.
3. Seleccioneu el broquet: Choose the appropriate spray tip for your paint and application. Insert it into the spray gun.
4. Preparació del polvoritzador:
   • Turn the pressure regulating valve (8) to the lowest setting.
   • Place the return hose (from the pressure relief valve) into a waste bucket.
   • Turn the ON/OFF switch (6) to ON. The pump will start.
   • Once paint flows smoothly from the return hose, turn the ON/OFF switch to OFF.
5. Spray de prova: Before applying to your project, test the spray pattern on a piece of cardboard or scrap material. Adjust pressure as needed.

Instruccions de funcionament

Follow these steps for effective and consistent paint application.

1. Ajust de pressió: Use the pressure regulating valve (8) to set the desired pressure. Higher viscosity paints typically require higher pressure. The pressure gauge (14) will display the current pressure.
2. Mantenir la distància: Mantingueu la pistola polvoritzadora aproximadament a 25-30 cm de la superfície.
3. Moviment consistent: Move the spray gun at a steady, even pace, overlapping each pass by about 50%.
4. Control del disparador: Press the trigger fully to start spraying and release it fully to stop. Avoid feathering the trigger.
5. Extension Rod Use: For high or hard-to-reach areas, attach the 20-inch extension rod (2) to the spray gun.

Figura 2: Efficient outdoor spraying with the LDHTHOPI Airless Paint Sprayer.

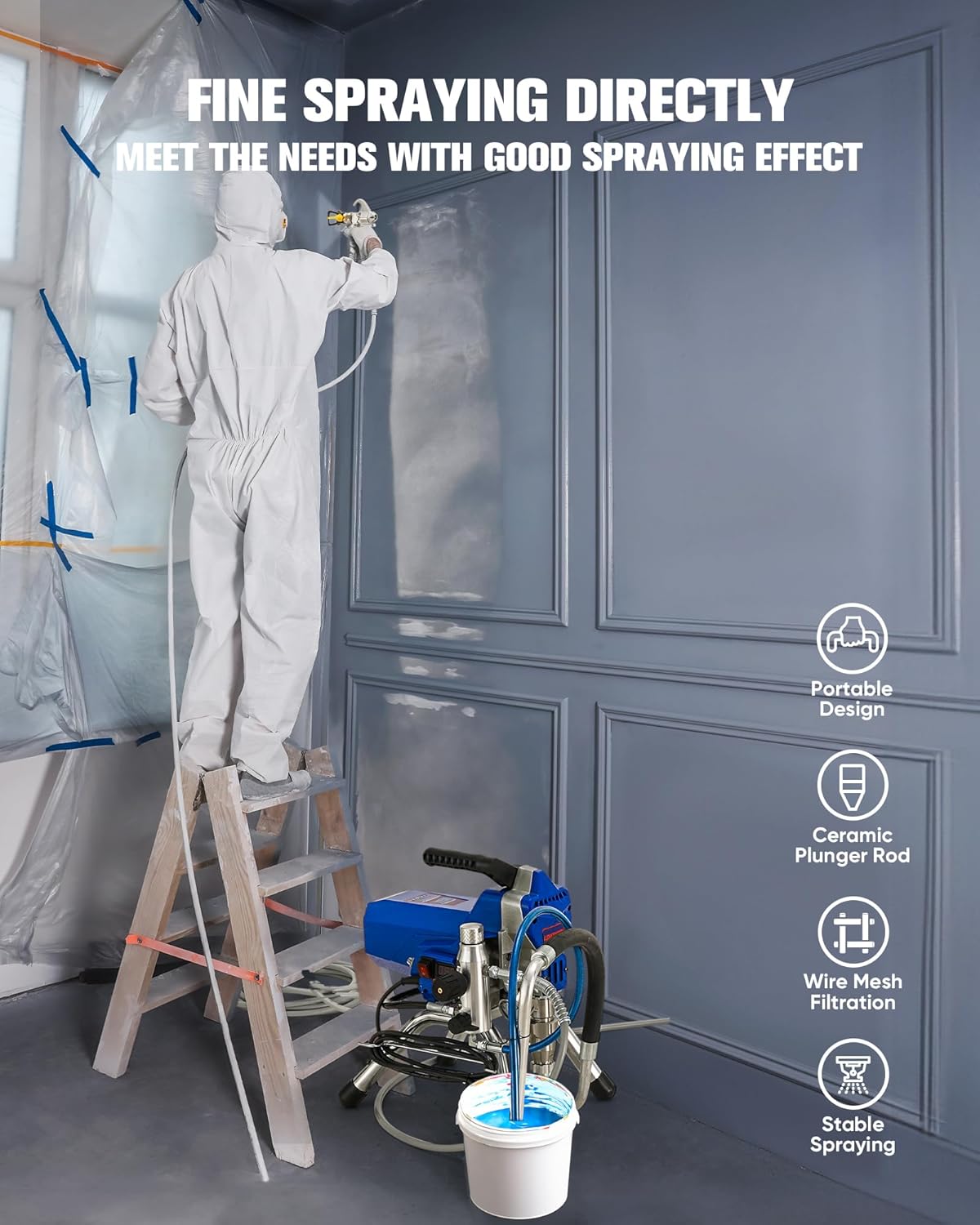

Figura 3: Achieving a fine spray finish indoors with the LDHTHOPI Airless Paint Sprayer.

Manteniment i Neteja

Regular maintenance extends the life of your sprayer and ensures consistent performance.

1. Neteja immediata: Clean the sprayer immediately after each use.
   • Remove the suction pipe from the paint and place it into a bucket of appropriate cleaning solution (water for latex, mineral spirits for oil-based paints).
   • Remove the spray tip and guard. Clean them separately.
   • Turn the sprayer ON and flush the system with the cleaning solution until it runs clear.
   • Turn the sprayer OFF and relieve pressure using the pressure relief valve (9).
2. Neteja de filtres: Regularly inspect and clean the main filter (16) and the filter in the spray gun handle.
3. Lubricació: Periodically add pump protector or hydraulic fluid to the refueling port (15) as recommended by the paint manufacturer or sprayer guidelines to maintain pump health.
4. Emmagatzematge: Guardeu el polvoritzador en un lloc net i sec, protegit de temperatures de congelació.

Figura 4: Cleaning the airless paint sprayer after use.

Guia de resolució de problemes

Aquesta secció tracta els problemes habituals que podeu trobar durant el funcionament.

Especificacions

Technical details for the LDHTHOPI PTJ-01 Airless Paint Sprayer.

• Nom del model: PTJ-01
• Marca: LDHTHOPI
• Potència: 1600W
• Pressió màxima: 3000 PSI (lliura per polzada quadrada)
• Longitud de la mànega: 10 metres (aproximadament 32.8 peus)
• Barra d'extensió: 20 polzades
• Material: Acrilonitril butadiè estirè (ABS), metall
• Dimensions del producte: 20.47 cm d'amplada x 19.09 cm d'alçada
• Usos recomanats: Painting (suitable for various paints including anti-rust, latex, epoxy)

Figura 5: Sprayer specifications and extension rod in action.

Garantia i Suport

For warranty information, technical support, or to inquire about replacement parts, please contact LDHTHOPI customer service. Refer to your purchase documentation for specific warranty terms and contact details.

LDHTHOPI is committed to providing excellent customer service and will assist with any product-related inquiries within 24 hours.
