OTOFIX TireGO 808 TPMS Programming Tool User Manual

1. Introducció

The OTOFIX TireGO 808 is a comprehensive Tire Pressure Monitoring System (TPMS) tool designed for vehicle maintenance professionals and enthusiasts. It provides a range of functions including TPMS status verification, sensor activation, programming of MX-Sensors, relearning of TPMS sensors, and TPMS diagnostics and reset procedures. The device supports both 315 MHz and 433 MHz sensors and offers lifetime software updates to ensure compatibility with new vehicle technologies.

This manual provides detailed instructions for the safe and effective use of your TireGO 808 tool.

2. Configuració

2.1 Desembalatge i inspecció inicial

Carefully unpack the TireGO 808 tool and all accessories. Inspect the device for any signs of damage. If any components are missing or damaged, contact your vendor immediately.

2.2 Càrrega del dispositiu

Before first use, fully charge the device using the provided power cable. The device is powered by a Lithium-Ion battery.

2.3 Engegada/apagada

• Per engegar: premeu i manteniu premut el botó d'engegada fins que la pantalla s'il·lumini.
• To power off: Press and hold the power button, then select "Power Off" on the screen.

2.4 Actualitzacions de programari

The TireGO 808 supports lifetime free updates. It is recommended to update the software regularly to ensure compatibility with the latest vehicle models and TPMS sensors.

• Connecteu el dispositiu a una xarxa Wi-Fi.
• Navigate to the "Update" section on the device menu.
• Follow the on-screen instructions for a one-click update.

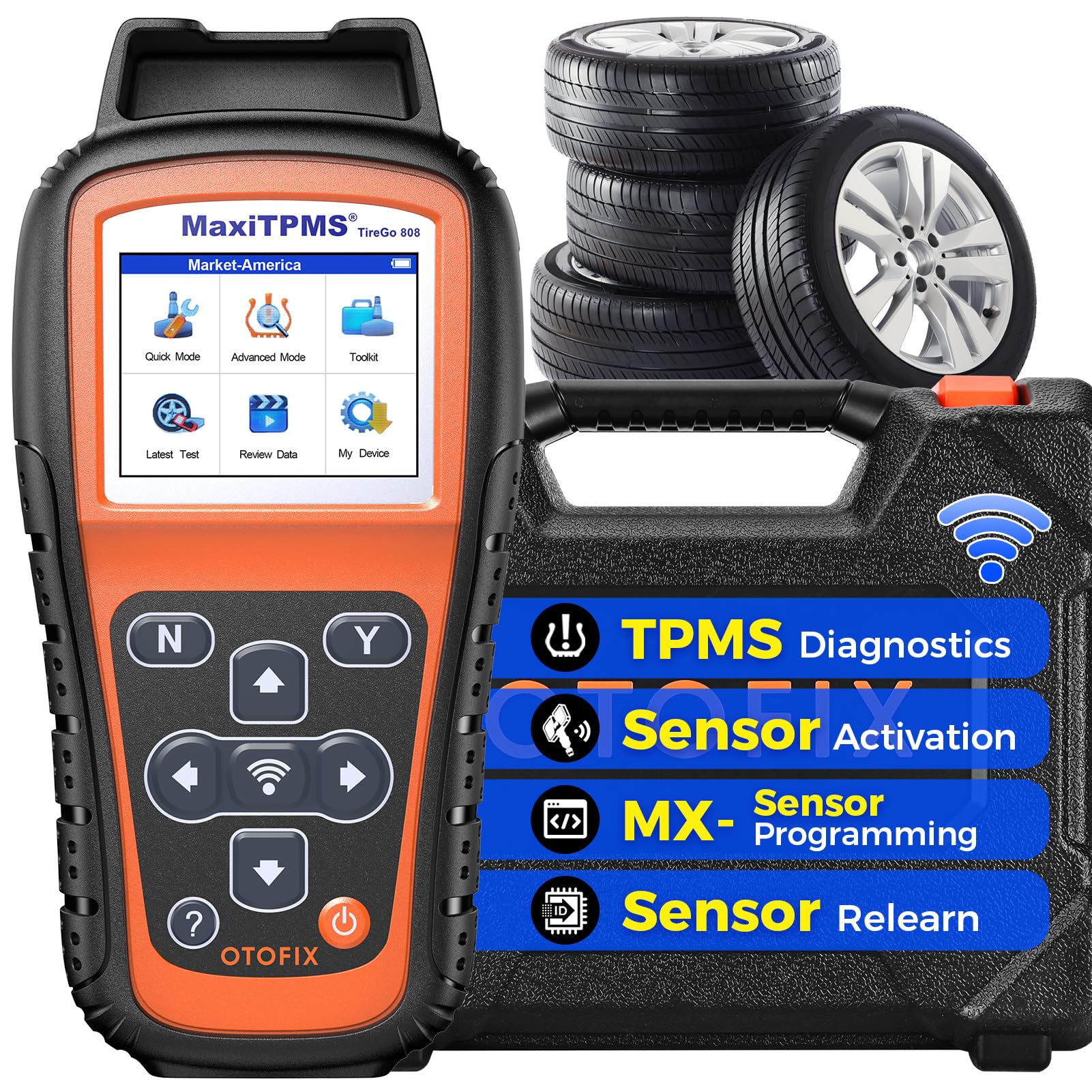

Image: The OTOFIX TireGO 808 device, showing its main interface and key functionalities like WiFi updating and free updates.

3. Instruccions de funcionament

3.1 TPMS Status Check

This function allows for a quick check of the TPMS system status. It can verify sensor health and identify any immediate issues.

3.2 Sensor Activation

The TireGO 808 can activate all universal and OE TPMS sensors operating at 315 MHz and 433 MHz. This process reads sensor IDs, tire pressure, tire temperature, battery status, and sensor position without dismounting the tire.

1. Select the "Activate Sensor" option from the main menu.
2. Follow the on-screen prompts to position the tool near each tire's sensor.
3. The tool will display sensor information upon successful activation.

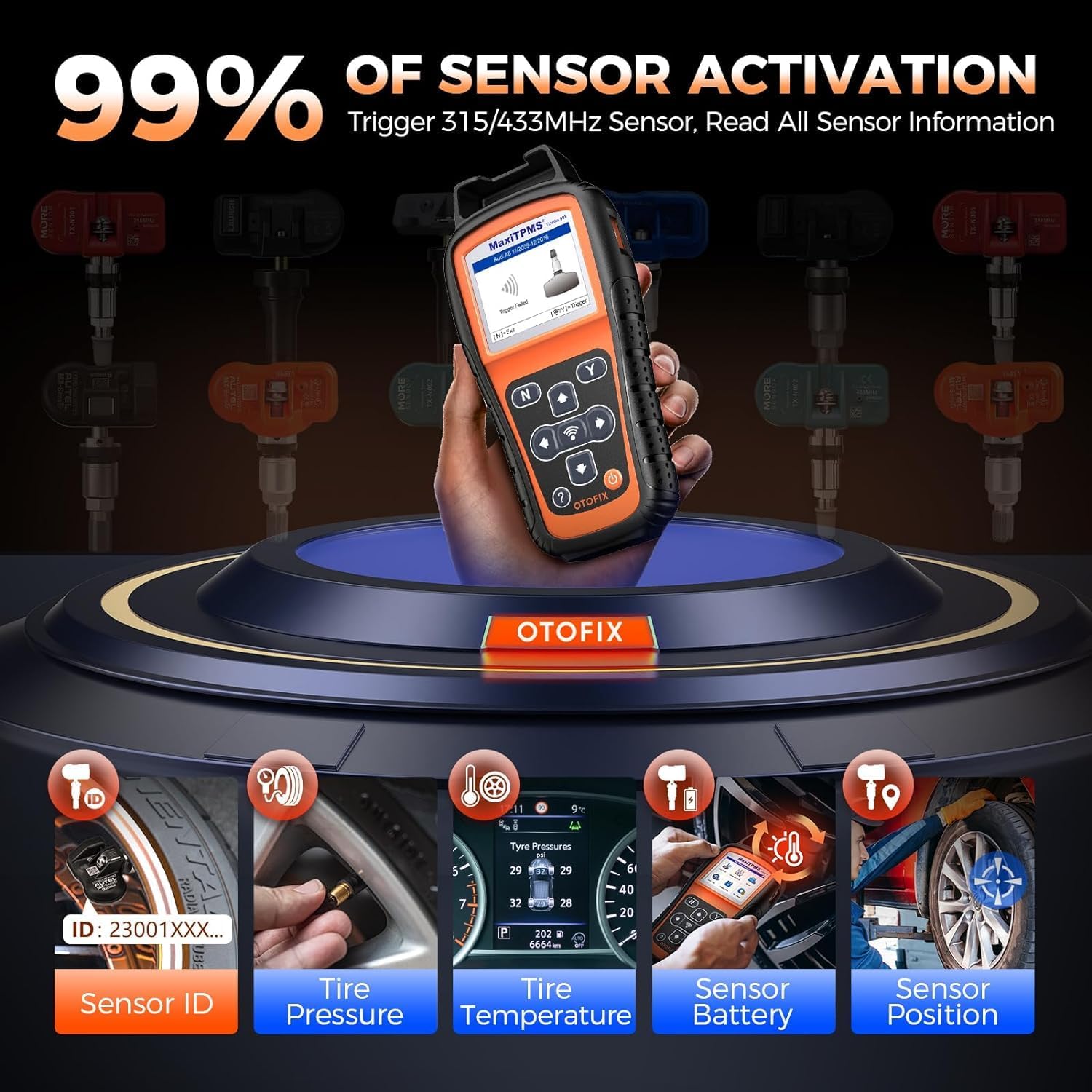

Image: Activating a TPMS sensor with the OTOFIX TireGO 808, displaying real-time sensor data.

3.3 MX-Sensor Programming

This tool is designed to program OTOFIX MX-Sensors. It offers four programming methods:

• Còpia per activació: Copies the ID from an activated original sensor.
• Copy by Manual Input: Allows manual entry of the original sensor ID.
• Creació automàtica: Generates new, unique IDs for up to 16 MX-Sensors simultaneously.
• Còpia per OBD: Copies sensor IDs directly from the vehicle's ECU via the OBD-II port, eliminating the need for relearn procedures.

Note: This function is exclusively for OTOFIX MX-Sensors.

Image: MX-Sensor programming interface, illustrating Auto Create and Copy by OBD methods.

3.4 Sensor Relearn

After replacing TPMS sensors or rotating tires, a relearn procedure is necessary to link the new sensor IDs to the vehicle's ECU. The TireGO 808 supports three relearn methods for most known sensors:

• OBD Relearn: Connects to the vehicle's OBD-II port to write new sensor IDs directly to the ECU.
• Automatic Relearn: Guides the user through a driving procedure to allow the vehicle to automatically learn new sensor IDs.
• Reaprenentatge estacionari: Requires the vehicle to be in a specific mode (often activated via the tool) to learn new sensor IDs while stationary.

Imatge: Més deview of the three sensor relearn methods supported by the tool.

3.5 Diagnòstic TPMS

Perform a comprehensive health check of the entire TPMS system. This function allows you to:

• Scan the TPMS system for issues.
• Read Diagnostic Trouble Codes (DTCs) related to TPMS.
• Clear TPMS DTCs to resolve warning lights.
• Save the last test history for record-keeping.

Image: TPMS diagnostic screen showing a low tire pressure warning and the tool's diagnostic capabilities.

3.6 Quick Mode and Advanced Mode

The TireGO 808 features two operational modes to suit different user needs:

• Mode ràpid: Provides intelligent guided operations for routine tasks such as activating and relearning all TPMS sensors, reading sensor ID, tire pressure, temperature, and battery level, and auto-creating 1-16 sensors. This mode streamlines common TPMS procedures.
• Mode avançat: Designed for more complex TPMS repairs, offering deeper functionalities including full TPMS diagnostics, TPMS reset, reading/clearing TPMS DTCs, sensor position relearn, and advanced auto-create and copy by OBD options.

Image: The device interface highlighting Quick Mode and Advanced Mode for varied TPMS tasks.

3.7 característiques addicionals

• Key Fob Test: Checks key frequency and battery electricity.
• TPMS ECU Unlock: Specific function for Toyota & Lexus vehicles to restart OBD relearn.
• Sensor Data Printing: Allows printing of sensor data via PC connection.
• History Test Record: Maintains a record of past diagnostic and programming sessions.

Image: Visual representation of additional features like Key Fob Test and Sensor Data Printing.

4. Manteniment

4.1 Actualitzacions de programari

Regularly update the device software to ensure optimal performance and access to the latest vehicle and sensor data. Updates are free for life and can be performed via Wi-Fi.

4.2 Neteja del dispositiu

Utilitzeu un suau, damp cloth to clean the exterior of the device. Avoid using abrasive cleaners or solvents that could damage the screen or casing.

4.3 Cura de la bateria

The device is equipped with a Lithium-Ion battery. To prolong battery life:

• Eviteu descarregar completament la bateria amb freqüència.
• Guardeu el dispositiu en un lloc fresc i sec quan no el feu servir durant períodes prolongats.
• Carregueu el dispositiu regularment, fins i tot si no l'esteu fent servir, per mantenir la bateria en bon estat.

5. Solució De Problemes

5.1 El dispositiu no s'encén

• Ensure the battery is sufficiently charged. Connect the device to the power adapter and try again.
• Si el dispositiu encara no s'encén, poseu-vos en contacte amb l'atenció al client.

5.2 Sensor Activation Failure

• Verify that the sensor is a 315 MHz or 433 MHz type.
• Ensure the tool is held correctly and close to the sensor.
• Check the sensor's battery status; a dead sensor battery will prevent activation.
• Confirm the vehicle's make, model, and year are correctly selected in the tool.

5.3 Programming Issues

• Ensure you are using OTOFIX MX-Sensors for programming. The tool is designed specifically for these sensors.
• Follow the programming steps precisely for the chosen method (Copy by Activation, Manual Input, Auto Create, or Copy by OBD).

5.4 DTC Guidance

The device provides on-screen DTC descriptions to help understand and resolve diagnostic trouble codes. Refer to these descriptions for specific fault information.

Image: DTC Guidance screen, providing information on diagnostic trouble codes.

6. Especificacions

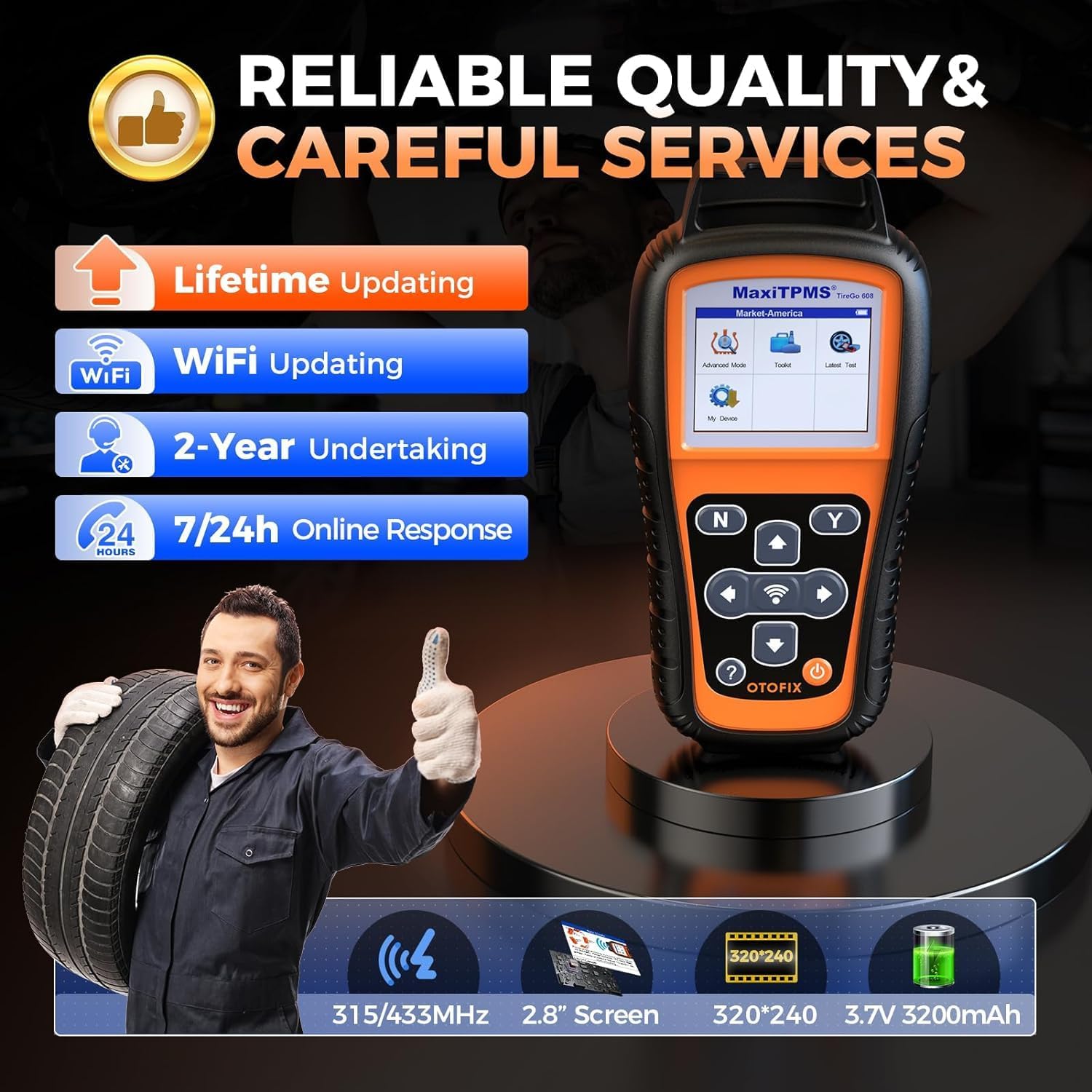

Image: The OTOFIX TireGO 808 tool with its key technical specifications.

7. Garantia i Suport

7.1 Informació de la garantia

The OTOFIX TireGO 808 TPMS Programming Tool comes with a 2-year quality commitment del fabricant. Aquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal.

Addicionalment, a 30-day return and replacement policy is offered, allowing for returns or exchanges within 30 days of purchase if the product does not meet expectations or has issues.

7.2 Atenció al client

For technical assistance, troubleshooting, or warranty claims, OTOFIX provides 7/24h online response. Please refer to the contact information provided with your product packaging or visit the official OTOFIX weblloc per obtenir detalls de suport.
