KXD M3 49cc Mini ATV Quad Electric Starter User Manual

1. Introducció

Thank you for choosing the KXD M3 49cc Mini ATV Quad. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new vehicle. Please read this manual thoroughly before operating the ATV and keep it for future reference. Proper understanding and adherence to these instructions will ensure safe and enjoyable use.

2. Informació de seguretat

Operating an ATV can be hazardous. Failure to follow safety instructions can result in serious injury or death. Always prioritize safety.

• Equip de protecció: Always wear an approved helmet, eye protection, gloves, long pants, and sturdy footwear.
• Supervisió d'adults: This ATV is intended for use under direct adult supervision. Never allow children to operate the ATV unsupervised.
• Entorn de funcionament: Operate only in designated, safe areas free from obstacles, traffic, and pedestrians. Avoid public roads.
• Manipulació de combustible: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or use open flames near fuel.
• Passenger Restriction: This ATV is designed for a single rider only. Do not carry passengers.
• Inspecció prèvia a la marxa: Always perform a pre-ride inspection as detailed in Section 4 before each use.
• No Alcohol/Drugs: Never operate the ATV under the influence of alcohol or drugs.

3. Producte acabatview

The KXD M3 is a 49cc mini ATV quad equipped with an electric starter, designed for recreational use. Familiarize yourself with its components.

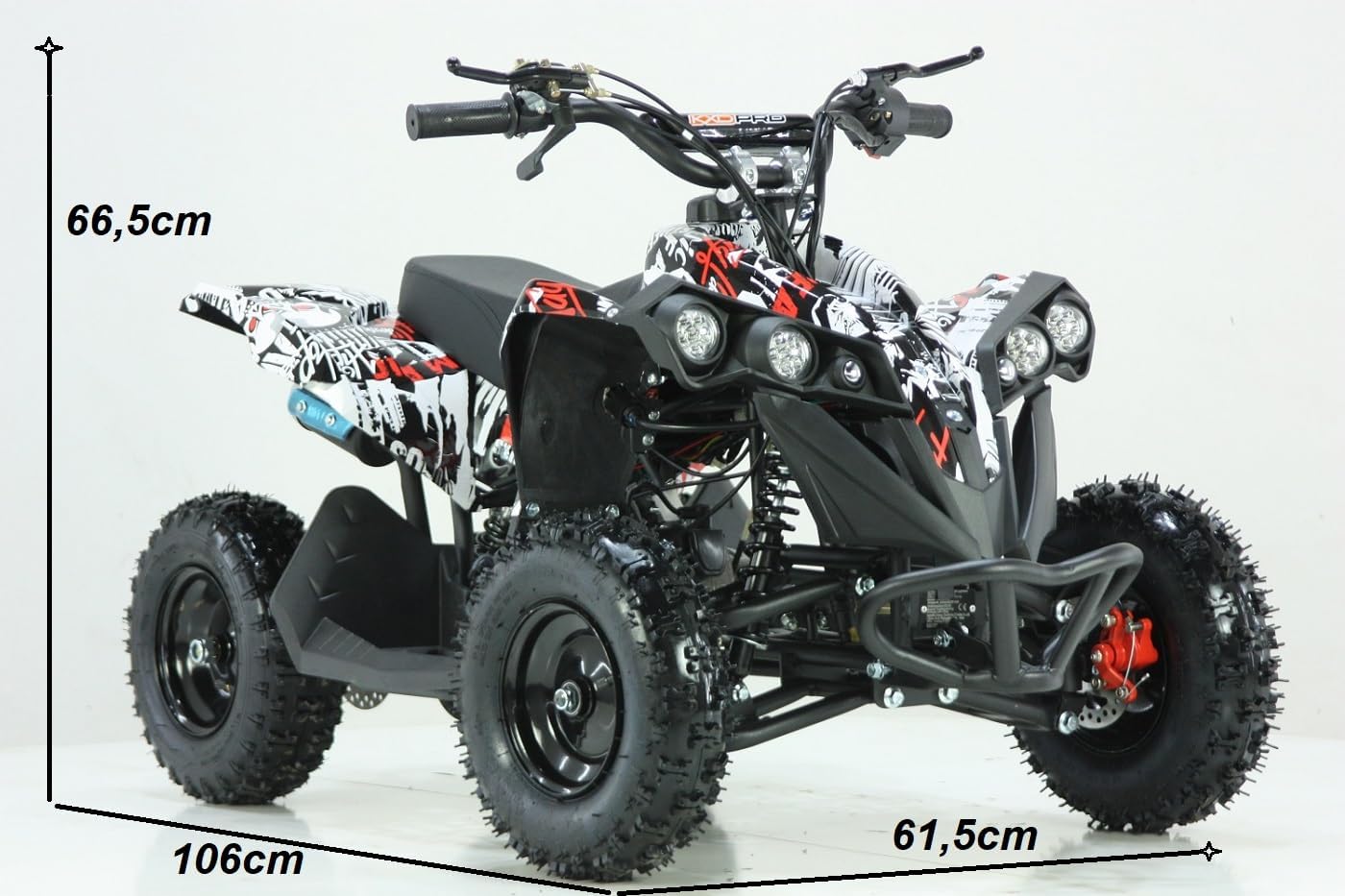

Figure 3.1: KXD M3 Mini ATV with Dimensions. This image shows the overall dimensions of the KXD M3 Mini ATV. The length is approximately 106 cm, the width is 61.5 cm, and the height is 66.5 cm. These measurements are crucial for transport and storage planning.

Figura 3.2: lateral View of KXD M3 Mini ATV. Aquesta imatge mostra el lateral profile of the KXD M3 Mini ATV, highlighting the seat, exhaust system, and the general chassis structure. The green camouflage pattern is visible on the bodywork.

Figura 3.3: Part frontal View of KXD M3 Mini ATV. A dynamic view from the front-side, showcasing the handlebars, front suspension, and the quad's aggressive styling. The front headlights are clearly visible.

Components clau:

• Motor: 49cc 2-stroke gasoline engine.
• Iniciador: Electric starter for easy ignition.
• Frens: Frens de disc davanters i posteriors per a una potència de frenada fiable.
• Suspensió: Front and rear shock absorbers for a smoother ride.
• Pneumàtics: Off-road knobby tires for traction.

Figure 3.4: Front Disc Brake. Un detallat view of the front disc brake assembly, including the caliper and rotor. Regular inspection of brake pads and fluid levels is essential for safety.

Figure 3.5: Exhaust System. This image shows the exhaust muffler and pipe. Ensure the exhaust is securely fastened and free from leaks. The reflector is also visible.

Figure 3.6: Engine and Carburetor Area. A close-up of the 49cc engine and carburetor. This area requires regular checks for fuel line integrity and air filter cleanliness.

Figure 3.7: Front Lights and Ignition. This image highlights the front LED lights and the ignition switch. Ensure all lights are functional before operation.

Figure 3.8: Frame and Suspension. Un detallat view of the ATV's frame and suspension components. Regularly inspect all bolts and welds for security and signs of wear or damage.

4. Muntatge

The KXD M3 ATV is shipped as a kit and requires assembly. Refer to the separate detailed assembly guide included in the packaging for step-by-step instructions. Ensure all components are present and undamaged before beginning assembly.

General Assembly Steps (Refer to separate guide for details):

1. Desembaleu tots els components i verifiqueu-los amb la llista de peces.
2. Attach the handlebars and secure them properly.
3. Install the front and rear wheels, ensuring correct orientation and torque.
4. Connect the battery for the electric starter.
5. Install any remaining body panels or accessories.
6. Perform a thorough inspection of all fasteners and connections.

Important: If you are unsure about any assembly step, seek assistance from a qualified technician.

5. Configuració i comprovacions prèvies a l'operació

Before each ride, perform the following checks to ensure safe operation:

• Nivell de combustible: Check the fuel tank level. Use a fresh 2-stroke fuel mix (gasoline and 2-stroke oil at the recommended ratio, typically 25:1 or 50:1, refer to engine manual).
• Oli de motor: For 2-stroke engines, oil is mixed with fuel. Ensure the correct oil-to-fuel ratio is used.
• Pressió dels pneumàtics: Verify tire pressure is within the recommended range (usually printed on the tire sidewall or in the engine manual).
• Frens: Test both front and rear brakes for proper function and responsiveness. Ensure brake levers have adequate free play.
• Acceleració: Check that the throttle operates smoothly and returns to the idle position when released.
• Tensió de la cadena: Inspect the drive chain for proper tension and lubrication. Adjust if necessary.
• Loose Fasteners: Visually inspect all nuts, bolts, and fasteners for tightness. Tighten any loose components.
• Direcció: Check for smooth steering operation and no excessive play.
• Llums: Ensure all lights (if equipped) are working correctly.
• Interruptor de mort: Verify the engine kill switch functions properly.

6. Instruccions de funcionament

6.1 Starting the Engine (Electric Starter)

1. Assegureu-vos que la vàlvula de combustible estigui a la posició 'ON'.
2. If the engine is cold, engage the choke lever (usually located on the carburetor).
3. Gireu la clau d'encesa a la posició 'ON'.
4. Press the electric start button (typically on the right handlebar). Do not hold for more than 5 seconds at a time to prevent battery drain.
5. Once the engine starts, slowly disengage the choke as the engine warms up.
6. Allow the engine to warm up for a few minutes before riding.

6.2 Riding the ATV

• Control de l'accelerador: Gently apply the thumb throttle to accelerate. Be smooth with throttle inputs.
• Frenatge: Use both front and rear brakes simultaneously for effective stopping. Practice braking at low speeds.
• Direcció: Lean into turns and use the handlebars to guide the ATV.
• Velocitat: Always ride at a speed appropriate for your skill level, terrain, and visibility.
• Terreny: Avoid excessively rough, steep, or slippery terrain.

6.3 Parar el motor

• Release the throttle completely.
• Apply the brakes to come to a complete stop.
• Gireu la clau d'encesa a la posició 'OFF'.
• Turn the fuel valve to the 'OFF' position to prevent fuel flow.

7. Manteniment

Regular maintenance is crucial for the longevity and safe operation of your KXD M3 ATV.

7.1 Daily/Pre-Ride Maintenance

• Perform all pre-operation checks listed in Section 5.
• Clean the ATV after each ride, especially if ridden in muddy or dusty conditions.

7.2 Manteniment periòdic

• Filtre d'aire: Clean or replace the air filter every 10-15 hours of operation, or more frequently in dusty conditions.
• Bujía: Inspect and clean the spark plug every 20-30 hours. Replace if worn or fouled.
• Lubricació de la cadena: Lubricate the drive chain every 5-10 hours of operation with chain lubricant. Adjust tension as needed.
• Sistema de fre: Inspect brake pads for wear and brake lines for damage. Check brake fluid level (if applicable) and top up or bleed as needed.
• Elements de fixació: Periodically check and tighten all nuts, bolts, and fasteners.
• Bateria: Check battery terminals for corrosion and ensure they are tight. Recharge as needed.
• Filtre de combustible: Inspeccioneu i netegeu o substituïu el filtre de combustible periòdicament.

8. Solució De Problemes

This section addresses common issues you might encounter with your KXD M3 ATV.

If you cannot resolve an issue using this guide, please contact customer support or a qualified mechanic.

9. Especificacions

10. Garantia i Suport

For warranty information, please refer to the specific warranty card or documentation included with your purchase. If you require technical support, spare parts, or have questions not covered in this manual, please contact the retailer or manufacturer directly. Keep your proof of purchase handy when contacting support.
