1. Introducció
The LUCCI AIR Array ceiling fan is designed to provide efficient air circulation and illumination for rooms up to 35 m². This modern fan features a durable and quiet DC motor, offering 6 speed settings and a reversible summer/winter mode for year-round comfort. It includes an integrated LED light with a replaceable GX53 bulb (warm white 3000K, 1200 lumens, 12W) and is conveniently controlled via a remote. The fan's ultra-flat design, with a mounting height of only 20 cm, makes it ideal for rooms with ceiling heights up to 2.5 meters.
Please read this manual thoroughly before installation and operation to ensure safe and correct use of your LUCCI AIR Array ceiling fan.
2. Informació de seguretat
Important: Always disconnect power at the main circuit breaker before attempting any installation, maintenance, or repair.
- Installation must be carried out by a qualified electrician in accordance with local wiring regulations.
- Assegureu-vos que l'estructura de muntatge pugui suportar el pes del ventilador (aproximadament 6.5 kg).
- Mantingueu una distància mínima de 2.3 metres (7.5 peus) des del terra fins a les aspes del ventilador.
- No introduïu cap objecte a la trajectòria de les fulles giratòries.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
3. Configuració i instal·lació
The LUCCI AIR Array ceiling fan is designed for easy installation. Follow these general steps. Refer to the detailed installation diagrams provided in the separate installation guide for specific wiring and mounting instructions.
- Preparació per a la instal·lació: Ensure power is off at the circuit breaker. Clear the work area.
- Suport de muntatge: Secure the mounting bracket to a ceiling joist or a suitable, approved support structure using appropriate hardware.
- Cablejat: Connect the fan's electrical wires to the household wiring according to the wiring diagram in your installation guide. Ensure all connections are secure.
- Attach Motor Housing: Lift the fan motor housing and attach it to the mounting bracket, securing it with the provided screws.
- Instal·leu les fulles: Attach the three ABS blades to the motor housing using the provided screws. Ensure they are firmly secured.
- Instal·leu la llum LED: Insert the GX53 LED bulb into its socket. If desired, the included metal cap can be used to cover the light if illumination is not required. Attach the light cover to the fan.
- Bateries de control remot: Introduïu 2 piles AAA (no incloses) al comandament a distància.
Figura 1: global view of the LUCCI AIR Array 137cm 3-Blade Ceiling Fan.
Figura 2: Primer pla view of the fan's motor housing and integrated light fixture. The light can be covered with a metal cap if not needed.
4. Instruccions de funcionament
The LUCCI AIR Array ceiling fan is operated using the included remote control. Ensure the remote has 2 AAA batteries installed.

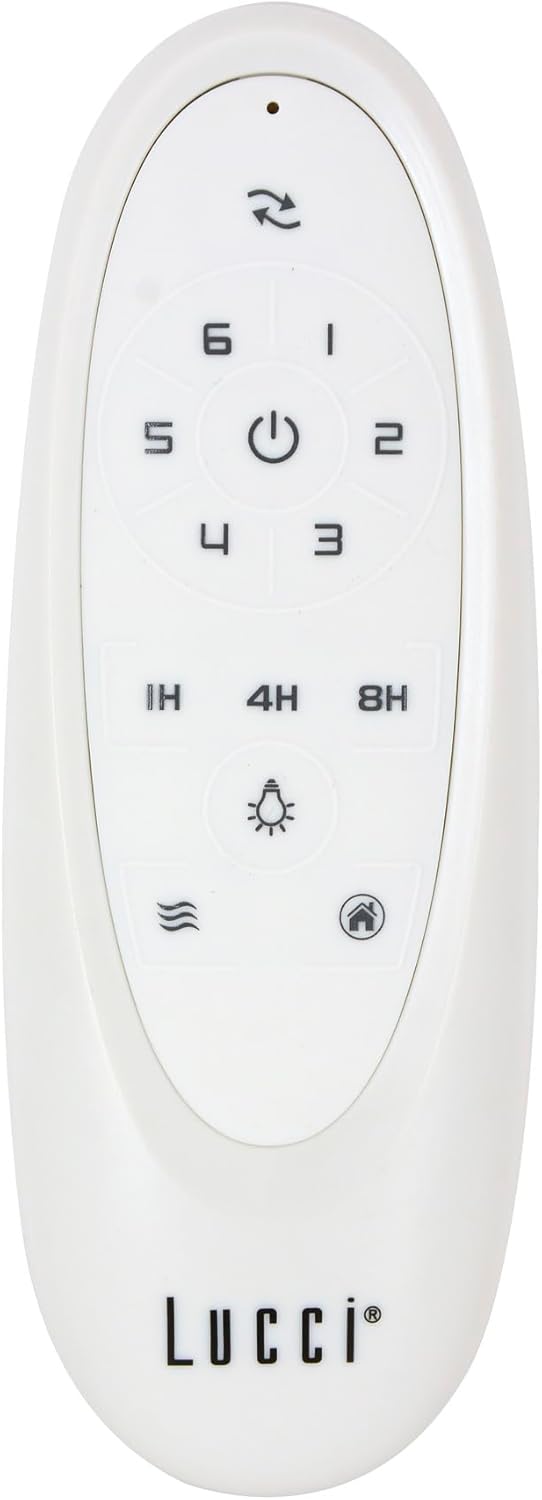

Figure 3: Remote control for the LUCCI AIR Array Ceiling Fan.
Funcions de control remot:
- Botó d'engegada (⏻): Encén o apaga el ventilador.
- Botons de velocitat del ventilador (1-6): Ajusta la velocitat del ventilador d'1 (la més baixa) a 6 (la més alta).
- Botó de llum (💡): Turns the LED light ON or OFF. Pressing repeatedly cycles through 3 dimmable light levels.
- Summer/Winter Mode (⇆): Toggles the fan direction. In summer mode (downward airflow), it creates a cooling breeze. In winter mode (upward airflow), it helps circulate warm air trapped near the ceiling.
- Timer Buttons (1H, 4H, 8H): Sets the fan to automatically turn off after 1, 4, or 8 hours.
Funció de memòria: The fan's memory function saves the last fan speed and light setting when the unit is switched off via a wall switch, restoring them upon power-up.
5. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del ventilador de sostre.
- Neteja: Netegeu periòdicament les aspes del ventilador i la carcassa del motor amb un drap suau i sec.amp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish. Ensure the fan is completely dry before operating.
- Substitució de bombetes: The integrated LED light uses a replaceable GX53 bulb. To replace, ensure power is off, carefully remove the light cover, and twist out the old bulb. Insert the new GX53 bulb and reattach the cover.
- Equilibri de la fulla: If the fan wobbles excessively, check that all blade screws are tight and that the blades are not bent or damaged. A blade balancing kit (not included) can be used if necessary.
- No cal lubricació: El motor de corrent continu del ventilador està lubricat permanentment i no requereix lubricació addicional.
6. Solució De Problemes
If you encounter issues with your LUCCI AIR Array ceiling fan, consult the following table before contacting support.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No power to the fan; Remote control batteries are dead or incorrectly inserted; Loose wiring connection. | Check circuit breaker and wall switch; Replace remote batteries; Ensure wiring connections are secure (consult an electrician if unsure). |
| El ventilador tremola excessivament | Loose mounting screws; Unbalanced blades; Bent blade. | Ensure all mounting and blade screws are tight; Check blades for damage; Use a blade balancing kit. |
| La llum no funciona | Bulb is faulty or loose; Wiring connection to light is loose. | Check if the GX53 bulb is properly seated or needs replacement; Verify light wiring connections. |
| El comandament a distància no respon | Dead batteries; Obstruction between remote and receiver; Remote not paired (if applicable). | Replace batteries; Ensure clear line of sight to the fan; Refer to pairing instructions if the remote needs re-pairing. |
7. Especificacions del producte
| Nom del model | Matriu |
| Número de model | 9333509192800 |
| Marca | LUCCI AIRE |
| Fabricant | Il·luminació de balises |
| Dimensions (L x A x A) | 137 cm x 137 cm x 20 cm |
| Diàmetre del ventilador | 137 cm |
| Alçada de muntatge | 20 cm (ultra-flat) |
| Fulles | 3, ABS Plastic |
| Tipus de motor | Motor de corrent continu |
| Velocitats del ventilador | 6 |
| Consum d'energia (ventilador) | 4-35 W |
| Tipus de llum | Integrated LED (GX53 bulb) |
| Llum Wattage | 12 W |
| Eficàcia lluminosa | 1200 lúmens |
| Temperatura de color | 3000 K (blanc càlid) |
| Regulable | Yes (3 levels via remote) |
| Mètode de control | Control remot |
| Voltage | 240 Volts |
| Mida recomanada de l'habitació | Fins a 35 m² |
| Remote Batteries Required | 2 x AAA (no inclòs) |
8. Garantia i Suport
LUCCI AIR provides a commitment to quality for its products. Spare parts for this model are available for a period of 5 years from the date of purchase.
For warranty claims, technical support, or inquiries regarding spare parts, please contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty-related requests.
