Furitek FX118 Fury Wagon 1/18 RC Rock Crawler Instruction Manual

1. Introducció

The Furitek FX118 Fury Wagon is a 1/18 scale Ready-to-Run (RTR) brushless mini RC rock crawler kit designed for off-road enthusiasts. It features a performance-built chassis, advanced electronics, and durable components for challenging terrains.

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Furitek FX118 Fury Wagon.

Image: Furitek FX118 Fury Wagon 1/18 RC Rock Crawler in blue with flames, highlighting its robust design and large tires.

2. Què hi ha a la caixa

• RC Crawler kit
• 7.4V 2S Lipo 600mAh Battery
• Cable de càrrega USB
• 2.4GHz 4CH RC Transmitter
• Manual de producte

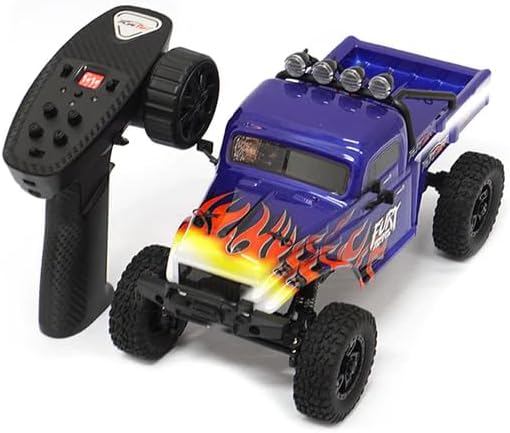

Image: Furitek FX118 Fury Wagon RC Crawler shown with its remote control, USB charging cable, and a small wrench, indicating a complete ready-to-run package.

3. Configuració

3.1 Càrrega de la bateria

Before first use, fully charge the included 7.4V 2S Lipo 600mAh battery using the provided USB charging cable. Connect the USB cable to a compatible USB power source (e.g., computer, USB wall adapter). The indicator light on the charger will show the charging status (typically red for charging, green for fully charged).

3.2 Instal·lació de la bateria

The Furitek FX118 Fury Wagon arrives fully preassembled. To install the battery:

1. Carefully remove the body shell of the RC crawler.
2. Localitzeu el compartiment de la bateria.
3. Connect the fully charged battery to the ESC (Electronic Speed Controller) connector.
4. Secure the battery within its compartment.
5. Reattach the body shell.

3.3 Configuració del transmissor

Ensure the 2.4GHz 4CH RC Transmitter has fresh batteries installed (not included, typically AA batteries). Power on the transmitter before powering on the RC crawler to establish a connection.

Image: Furitek FX118 Fury Wagon RC Crawler with its 2.4GHz 4CH remote control. The crawler is blue with flames, showcasing its robust design and large tires.

4. Instruccions de funcionament

4.1 Power On/Off Sequence

1. Turn on the 2.4GHz 4CH RC Transmitter.
2. Turn on the RC Crawler. The ESC will typically emit a series of beeps indicating successful power-up and battery cell count.
3. After use, turn off the RC Crawler first, then the Transmitter.

4.2 Controls bàsics

• Steering Wheel (Transmitter): Controls left and right movement of the front wheels. The servo-on-axle steering system provides a large steering angle up to 45 degrees for precise maneuvering.
• Throttle Trigger (Transmitter): Pull to move forward, push to brake/reverse. The Furitek Venom brushless motor and Lizard Pro brushless ESC with FOC technology provide smooth and powerful control.
• Gear Shift (Transmitter): The 2-speed transmission allows shifting between high and low gears for different terrains and speeds. Refer to your transmitter's specific instructions for gear shift operation.

4.3 Funcions avançades

• Tracció a les 4 rodes (4WD): Provides superior traction and control on uneven and challenging surfaces.
• Counter-Rotating Drive Shaft: This innovative feature reduces torque twist, enhancing stability and control during acceleration and climbing.
• Connectivitat Bluetooth: The built-in Bluetooth module allows fine-tuning of the ESC and motor parameters via a mobile app. Download the Furitek app from your device's app store for customization options.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your RC crawler.

5.1 Neteja

• After each use, especially in dusty or muddy conditions, clean the vehicle. Use a soft brush or compressed air to remove dirt and debris from the chassis, suspension, and drivetrain.
• Wipe down the body shell with a damp tela.

5.2 Inspecció

• Comproveu regularment que tots els cargols i elements de fixació estiguin ben ajustats.
• Inspeccioneu els pneumàtics per detectar desgast.
• Check the oil-filled big bore shocks for leaks or damage.
• Ensure the full metal gear drivetrain components are free from obstruction and damage.

5.3 Cura de la bateria

• Always store Lipo batteries in a cool, dry place, away from direct sunlight and heat.
• No sobrecarregueu ni descarregueu excessivament la bateria.
• If the battery is damaged, discontinue use immediately and dispose of it properly.

6. Solució De Problemes

• Sense energia:
  • Assegureu-vos que la bateria estigui completament carregada i connectada correctament.
  • Check if the power switch on both the transmitter and the crawler is in the "ON" position.
  • Verifiqueu que les piles del transmissor siguin noves i estiguin correctament instal·lades.
• Loss of Control/Interference:
  • Ensure the transmitter and receiver are properly bound. Refer to the transmitter manual for binding instructions.
  • Operate the crawler within the specified range of the transmitter.
  • Avoid areas with strong electromagnetic interference.
• El motor no respon:
  • Check all wiring connections between the ESC, motor, and receiver.
  • Ensure the throttle trim on the transmitter is centered.
  • If the motor is hot, allow it to cool down before resuming operation.
• Problemes de direcció:
  • Check the steering servo connections and ensure it's functioning correctly.
  • Inspect steering linkages for any obstructions or damage.
  • Adjust steering trim on the transmitter if the vehicle pulls to one side.

7. Especificacions

8. Garantia i Suport

For warranty information, technical support, or replacement parts, please contact the seller or Furitek directly. Keep your purchase receipt as proof of purchase.

Additional protection plans may be available for purchase from the retailer.

9. Informació de seguretat

Avís: Keep away from children. This product is intended for adult use (Age Range Description: Adult, Manufacturer Minimum Age: 12 months, Manufacturer Maximum Age: 48 months - Note: Discrepancy in age range, adult supervision is recommended for all users.)

• Always operate the RC crawler in a safe, open area, away from people, pets, and obstacles.
• Do not operate in wet conditions, despite the water-resistant receiver, to prevent damage to other electronic components.
• Never touch moving parts during operation.
• Desconnecteu sempre la bateria quan no la feu servir.
