MelGeek Modern97 Wireless Mechanical Keyboard User Manual

1. Introducció

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MelGeek Modern97 Wireless Mechanical Keyboard. Please read this manual thoroughly to ensure proper use and to maximize your keyboard's functionality.

2. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• 1 x MelGeek Mechanical Keyboard
• 1 x cable tipus C
• 1 x extractor de tecles
• 1 x Manual d'usuari (aquest document)
• 1 adaptador de 2.4 G
• 8 tecles addicionals

Image: The MelGeek Modern97 keyboard and its included accessories, such as the USB-C cable, 2.4G dongle, keycap puller, and extra keycaps.

3. Configuració

3.1 Càrrega inicial

Before first use, connect the keyboard to a USB power source using the provided Type-C cable to ensure it is fully charged. The charging indicator will provide status feedback.

3.2 Modes de connectivitat

The Modern97 keyboard supports three connection modes: 2.4G wireless, Bluetooth 5.1, and USB-C wired.

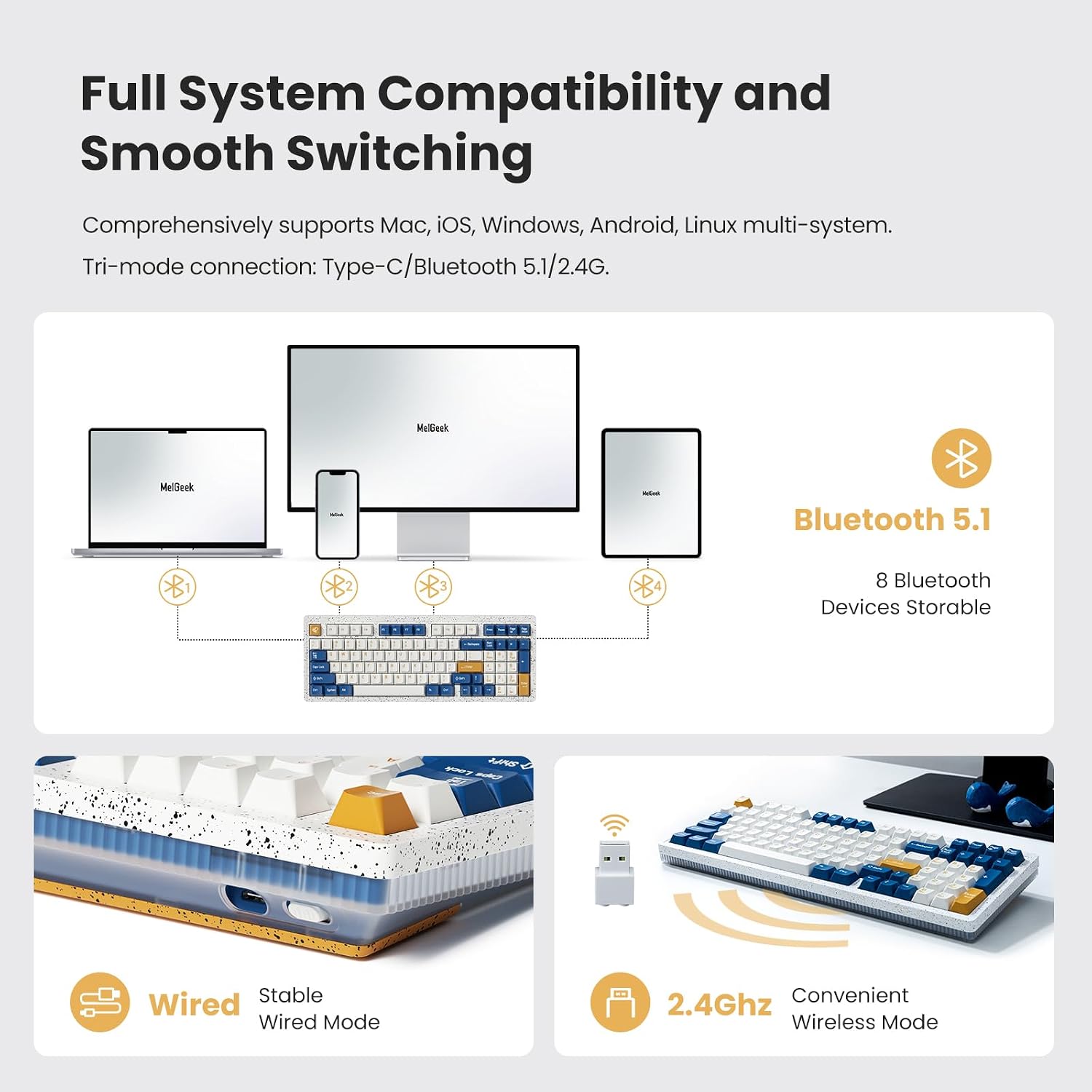

Image: A visual representation of the keyboard's multi-system compatibility and tri-mode connection options, including USB-C, Bluetooth 5.1, and 2.4G wireless.

3.2.1 Mode amb cable USB-C

1. Connect the provided Type-C cable to the keyboard's USB-C port.
2. Connecteu l'altre extrem del cable a un port USB disponible de l'ordinador.
3. The keyboard will be recognized automatically and is ready for use.

3.2.2 Mode sense fil 2.4G

1. Insert the 2.4G USB dongle into an available USB port on your computer.
2. Ensure the keyboard's mode switch (usually located on the back or side) is set to 2.4G mode.
3. El teclat s'hauria de connectar automàticament. Si no, consulteu la secció de resolució de problemes.

3.2.3 Mode Bluetooth 5.1

The Modern97 can store up to 8 Bluetooth devices.

1. Assegureu-vos que el selector de mode del teclat estigui configurat en mode Bluetooth.
2. A l'ordinador o dispositiu, activeu el Bluetooth i cerqueu dispositius nous.
3. Select "MelGeek Modern97" from the list of available devices to pair.
4. Seguiu les indicacions de la pantalla per completar el procés de vinculació.

4. Instruccions de funcionament

4.1 Disposició del teclat

The Modern97 features a compact 97-key layout, retaining essential keys like the numeric keypad while optimizing desk space. This 90% layout provides full functionality in a smaller footprint compared to full-size keyboards.

Image: A visual comparison highlighting the space-saving design of the 97-key mechanical keyboard compared to a traditional full-size keyboard.

4.2 Gasket Mount Design

The keyboard incorporates an advanced Gasket Mount design with a built-in Poron switch mat, Poron foam, and silicone pad. This construction contributes to a soft typing feel and a pleasant acoustic profile.

Image: An exploded diagram showing the internal components of the keyboard, illustrating the gasket mount structure, Poron layers, and slotted PCB for enhanced typing feel and sound.

4.3 Commutadors intercanviables en calent

The Modern97 features a hot-swappable design, allowing users to easily change switches without soldering. This enables customization of typing feel and sound.

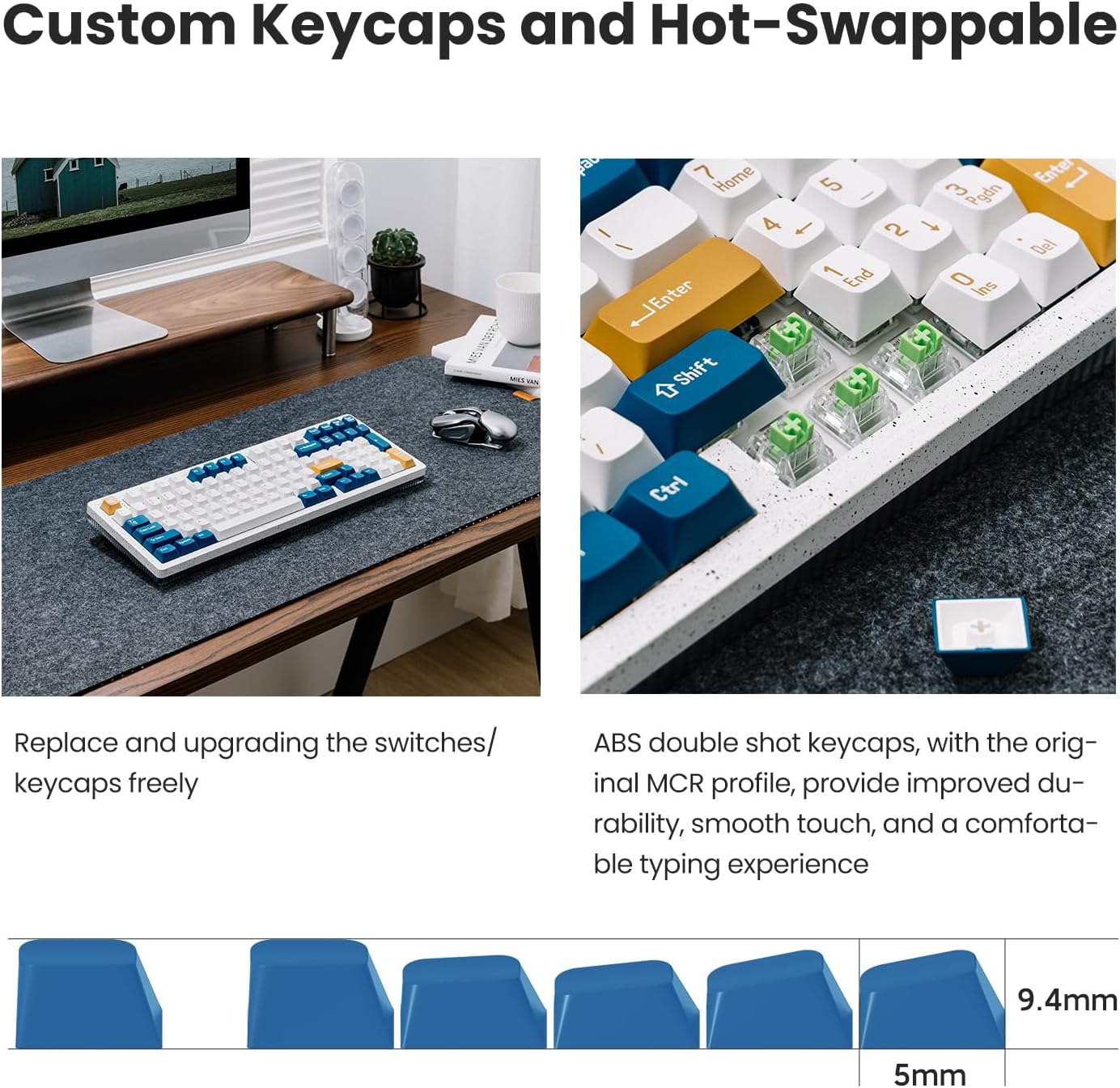

Image: A close-up showing the hot-swappable switch sockets and the process of removing a keycap and switch, demonstrating the ease of customization.

4.4 Customizable RGB Backlight

Each key on the Modern97 has individual RGB backlighting. You can customize lighting effects, colors, and brightness using the dedicated software (MG Hive) or through onboard shortcuts. The keyboard offers 8 different types of RGB lighting.

4.5 Programmable Macros with MG Hive

The MG Hive software allows for extensive customization, including programmable macros, key remapping, and LED control. This feature enhances workflow efficiency and personalizes the keyboard experience.

Image: A computer screen displaying the MG Hive software interface, showing options for key value assignment, LED customization, shortcuts, and macro programming.

5. Manteniment

5.1 Neteja

Per netejar el teclat:

• Desconnecteu el teclat de totes les fonts d'alimentació.
• Utilitzeu un drap suau i sense pelusa lleugerament dampRenteu-les amb aigua o una solució netejadora suau per netejar les tecles i el xassís.
• Per a una neteja més profunda, feu servir l'extractor de tecles inclòs per treure les tecles i netegeu-les per sota amb aire comprimit o un raspall petit.
• Ensure the keyboard is completely dry before reconnecting.

5.2 Substitució de l'interruptor i la tapa de les tecles

Utilize the included keycap and switch pullers for safe removal and installation of keycaps and switches. When replacing switches, ensure the new switches are compatible with the keyboard's 3-pin or 5-pin hot-swap sockets and align the pins carefully to avoid bending.

6. Solució De Problemes

6.1 Problemes de connectivitat

• Connexió per cable: Assegureu-vos que el cable USB-C estigui connectat correctament tant al teclat com a l'ordinador. Proveu un port o cable USB diferent.
• Sense fil 2.4G: Verify the 2.4G dongle is properly inserted and the keyboard is set to 2.4G mode. Move the keyboard closer to the dongle to reduce interference.
• Connexió Bluetooth: Ensure Bluetooth is enabled on your device and the keyboard is in pairing mode. Remove previous pairings and attempt to re-pair. Check the keyboard's battery level.

6.2 Keys Not Responding or Ghosting

• Individual Keys: If a specific key is not responding, try removing the keycap and switch to inspect for debris or damage. Re-seat the switch firmly.
• Ghosting: Ensure the keyboard firmware is up to date. If using wireless modes, try switching to wired mode to rule out wireless interference.

6.3 Problemes de retroiluminació

• If the backlight is not working or is dim, check the brightness settings via the keyboard's function keys or the MG Hive software.
• Assegureu-vos que el teclat tingui prou bateria carregada.

6.4 Software (MG Hive) Issues

• Ensure you have downloaded the correct version of MG Hive for your operating system from the official MelGeek weblloc.
• Reinicieu el programari i/o l'ordinador.
• If issues persist, reinstall the software.

7. Especificacions

8. Garantia i Suport

8.1 Informació de la garantia

MelGeek products are covered by a limited warranty against manufacturing defects. Please refer to the warranty card included in your package for specific terms and conditions, or visit the official MelGeek weblloc web per obtenir informació detallada sobre la política de garantia.

8.2 Atenció al client

For technical assistance, troubleshooting, or general inquiries, please contact MelGeek customer support through their official website or the contact information provided on your warranty card. When contacting support, please have your product model (Modern97) and purchase details ready.
