LITTLE BALANCE 8690 Electric Fondue Maker

Instruccions importants de seguretat

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect operation can cause damage to the appliance and injury to the user.

• Always place the fondue maker on a stable, flat, and heat-resistant surface, away from edges.
• Do not immerse the heating base, cord, or plug in water or any other liquid.
• Assegureu-vos que el voltagEl volum indicat a l'aparell coincideix amb la xarxa elèctrica localtage abans de connectar.
• Keep the appliance and its cord out of reach of children. Close supervision is necessary when the appliance is used by or near children.
• Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way. Contact customer service for repair.
• Always unplug the appliance from the power outlet when not in use, before cleaning, and before adding or removing parts. Allow it to cool completely before handling.
• The fondue pot and its contents will become very hot during use. Use insulated handles and exercise extreme caution to prevent burns.
• Do not use metal utensils in the non-stick pot to avoid scratching the surface.
• Aquest aparell només és per a ús domèstic. No utilitzar a l'aire lliure.
• The appliance features an integrated safety system against overheating. If it overheats, it may temporarily shut off.

Producte acabatview i Components

The LITTLE BALANCE 8690 Electric Fondue Maker is designed for preparing various fondue types for up to 8 people. It features a durable non-stick pot and an adjustable thermostat for precise temperature control.

Imatge 1: The LITTLE BALANCE 8690 Electric Fondue Maker, showing its compact design and overall dimensions (240mm x 240mm). It includes the heating base, fondue pot, and eight forks.

Components:

• Base de calefacció: The main unit containing the heating element and thermostat control. Equipped with non-slip feet for stability and two insulated handles for safe movement.
• Fondue Pot (Caquelon): A large 2-liter capacity pot made of aluminum with a non-stick interior coating. It is removable for easy cleaning.
• Anti-Splash Ring: A removable stainless steel ring that fits over the pot, designed to prevent splashes and features notches to hold the fondue forks.
• Fondue Forks: Eight color-coded forks with insulated handles for individual use.
• Termostat ajustable: A control knob on the heating base to set the desired temperature, with an indicator light.

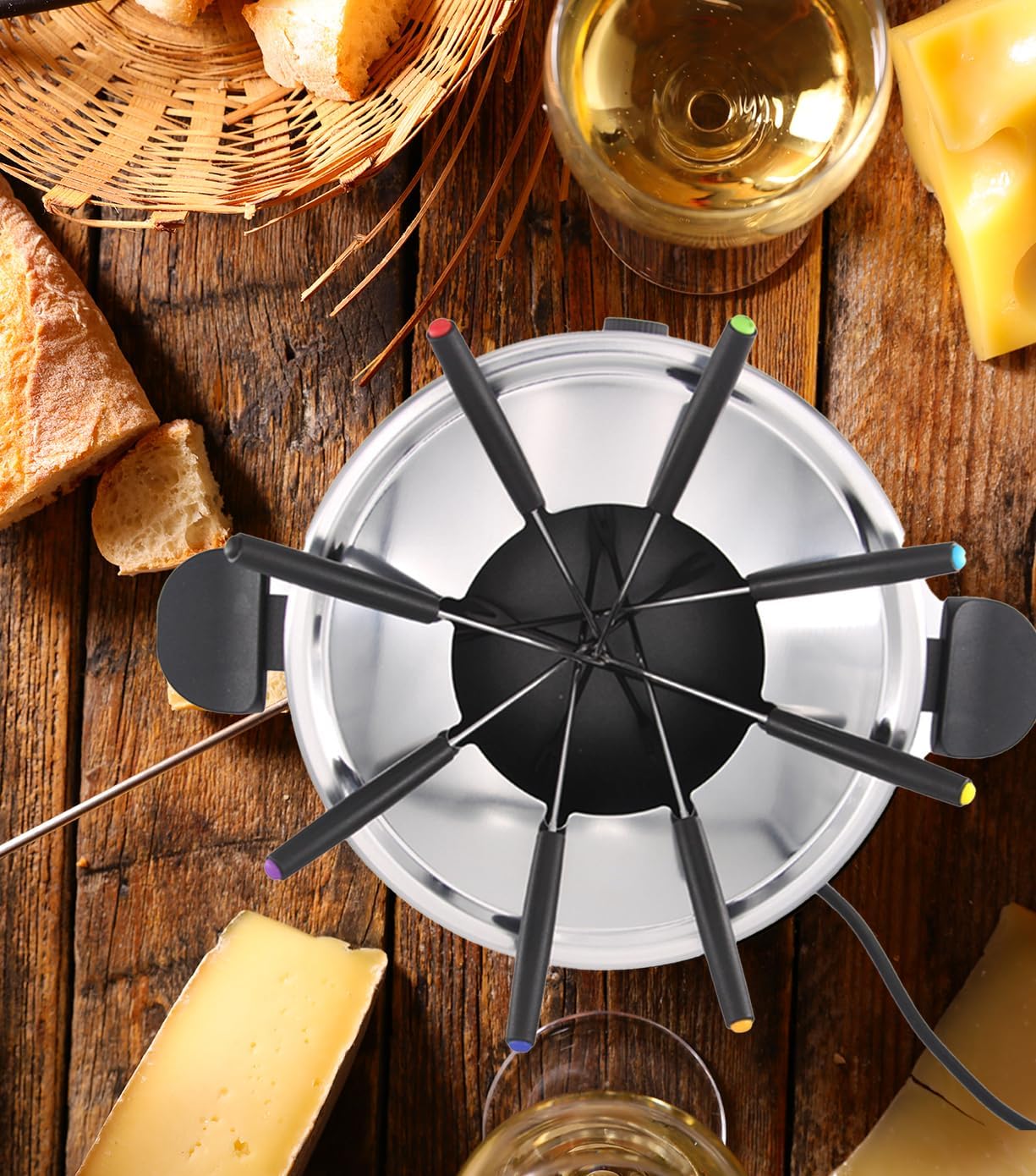

Imatge 2: Un de dalt a baix view of the fondue pot, illustrating the non-stick interior and the anti-splash ring with slots for the eight fondue forks.

Configuració

1. Desembalar: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per emmagatzemar-lo o eliminar-lo.
2. Neteja inicial: Before first use, wash the fondue pot and anti-splash ring in warm, soapy water. Rinse thoroughly and dry completely. Wipe the heating base with a damp drap. No submergiu la base calefactora en aigua.
3. Col·locació: Place the heating base on a stable, flat, heat-resistant, and dry surface. Ensure there is sufficient space around the appliance for ventilation and safe operation.
4. Muntar: Place the clean, dry fondue pot onto the heating base. Then, place the anti-splash ring securely on top of the fondue pot.
5. Preparar els ingredients: Prepare your fondue ingredients (oil, cheese, broth, chocolate, meat, bread, vegetables) according to your recipe.

Instruccions de funcionament

This appliance is suitable for various fondue types, including cheese, oil (Bourguignonne), broth (Chinoise), and chocolate fondues.

Imatge 3: The fondue maker set up in a kitchen environment, ready for use, demonstrating its aesthetic appeal and practical placement.

1. Fill the Pot: Pour your chosen fondue liquid (oil, broth, cheese mixture, chocolate) into the fondue pot. Do not exceed the 'MAX' fill line indicated inside the pot. For oil fondue, ensure the oil level is sufficient to cover the food items without overflowing when food is added.
2. Connectar l'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.
3. Temperatura establerta: Turn the adjustable thermostat knob to your desired temperature setting. The indicator light will illuminate, signaling that the appliance is heating. Start with a higher setting (e.g., MAX) to quickly heat the contents, then reduce it to maintain the desired temperature.
4. Calefacció: Allow the fondue liquid to heat to the required temperature. This may take several minutes depending on the liquid type and volume.
5. Enjoy Fondue: Once the liquid is hot, use the provided fondue forks to dip your ingredients. Place the forks in the anti-splash ring notches when not in use.
6. Ajustar la temperatura: Adjust the thermostat as needed to maintain a consistent cooking temperature throughout your meal. The indicator light will cycle on and off as the thermostat regulates the heat.
7. Després de l'ús: When finished, turn the thermostat knob to the 'MIN' or 'OFF' position and unplug the appliance from the power outlet. Allow the appliance to cool completely before cleaning.

Imatge 4: The fondue maker displayed with an assortment of fondue ingredients such as cheese, cured meats, olives, and tomatoes, showcasing its versatility for different fondue types.

Neteja i Manteniment

Proper cleaning and maintenance will extend the life of your fondue maker.

1. Refredament: Always ensure the appliance is unplugged and has cooled down completely before cleaning.
2. Empty Pot: Carefully pour out any remaining fondue liquid. For hardened cheese or chocolate, you may need to gently reheat the pot for a short period to soften the residue before emptying.
3. Wash Pot and Ring: The fondue pot and anti-splash ring are dishwasher compatible. Alternatively, wash them by hand in warm, soapy water using a soft sponge or cloth. Do not use abrasive cleaners or scouring pads, as these can damage the non-stick coating. Rinse thoroughly and dry completely.
4. Base de calefacció neta: Netegeu l'exterior de la base calefactora amb un drap suau i sec.amp cloth. Do not use harsh chemicals or abrasive materials. Never immerse the heating base in water or any other liquid.
5. Clean Forks: Wash the fondue forks in warm, soapy water, rinse, and dry.
6. Emmagatzematge: Store the clean and dry fondue maker and its accessories in a cool, dry place.

Resolució de problemes

If you encounter any issues with your fondue maker, please refer to the following common problems and solutions:

• L'aparell no s'encén:
  • Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni.
  • Ensure the thermostat knob is turned to an 'ON' position (not 'MIN' or 'OFF').
• Food is not heating or heating slowly:
  • Verify the thermostat is set to a sufficiently high temperature.
  • Allow adequate time for the liquid to heat up, especially for larger volumes.
• Food is sticking to the pot:
  • Ensure you are using enough oil or liquid as per your recipe.
  • The non-stick coating helps, but continuous stirring or proper liquid levels are still important.
• Appliance overheats and shuts off:
  • The appliance has an integrated overheating protection system. If it activates, unplug the unit and let it cool down completely before restarting.
  • Ensure the pot is not empty during operation.

Si el problema persisteix després de comprovar aquests punts, poseu-vos en contacte amb l'atenció al client.

Especificacions

Garantia i Suport

This LITTLE BALANCE 8690 Electric Fondue Maker comes with a 2 any de garantia. For warranty claims, after-sales service, or technical support, please refer to the contact information provided with your purchase or visit the official LITTLE BALANCE weblloc web. Si us plau, conserveu el comprovant de compra per validar la garantia.
