Arafuna Portable CD Player User Manual

Introducció

Gràcies per la compraasing the Arafuna Portable CD Player. This versatile device combines a CD player, Bluetooth speaker, FM radio, USB player, and AUX-in functionality, offering multiple ways to enjoy your audio. Designed for portability and ease of use, it features a built-in rechargeable battery and powerful stereo speakers. Please read this manual carefully before use to ensure proper operation and to maximize your listening experience.

Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• Arafuna Portable CD Player x1
• Control remot x1
• Adaptador d'alimentació x1
• Cable de càrrega USB a tipus C x1
• Manual d'usuari x1

Característiques del producte

• Multi-functional Audio Device: Supports CD, Bluetooth, FM Radio, USB, and AUX-in playback modes.
• Bateria recarregable incorporada: Integrated 2000mAh battery for portable use without constant power connection.
• Powerful Stereo Speakers: Equipped with two 15W front-facing stereo speakers for enhanced sound quality.
• Protecció anti-salta: Ensures uninterrupted playback even during movement, suitable for car use.
• Pantalla retroil·luminada: Clear visibility of information in low-light conditions.
• Funció de temporitzador de repòs: Allows setting a timer for automatic power off.
• Protective CD Lid: Helps protect CDs from dust and damage.

Controls i Ports

Familiarize yourself with the controls and ports of your Arafuna Portable CD Player.

Imatge: Part superior i lateral view of the Arafuna Portable CD Player, highlighting numbered controls and ports.

1. En espera: Encès / apagat.
2. Configuració del temporitzador de repòs: Estableix el temporitzador de son.
3. Mode: Switch between CD, Bluetooth, FM, USB, AUX modes.
4. Anterior: Skip to previous track/station.
5. Pausa/Reprodueix: Play or pause current audio.
6. Atura: Atura la reproducció.
7. Següent: Skip to next track/station.
8. VOL +: Augmenta el volum.
9. VOL -: Disminuir el volum.
10. Repetiu: Cycle through repeat modes (Repeat All, Repeat One, Random Play, A-B Repeat).
11. CD Cover Open: Latch to open the CD compartment.
12. CD Dust Lid: Transparent lid protecting the CD.
13. Port de càrrega de CC: Connect power adapter for charging.
14. Encès/apagat: Interruptor d'alimentació principal.
15. Earphone / AUX Out Port: 3.5mm jack for headphones or external speaker output.
16. Port d'entrada AUX: Jack de 3.5 mm per connectar fonts d'àudio externes.
17. Port USB: Per a la reproducció des d'una unitat USB.

Configuració

1. Càrrega inicial

Before first use, fully charge the device. Connect the USB to Type-C charging cable to the DC Charging Port (13) and the other end to the power adapter. Plug the adapter into a wall outlet. The charging indicator will show the charging status. A full charge typically takes a few hours.

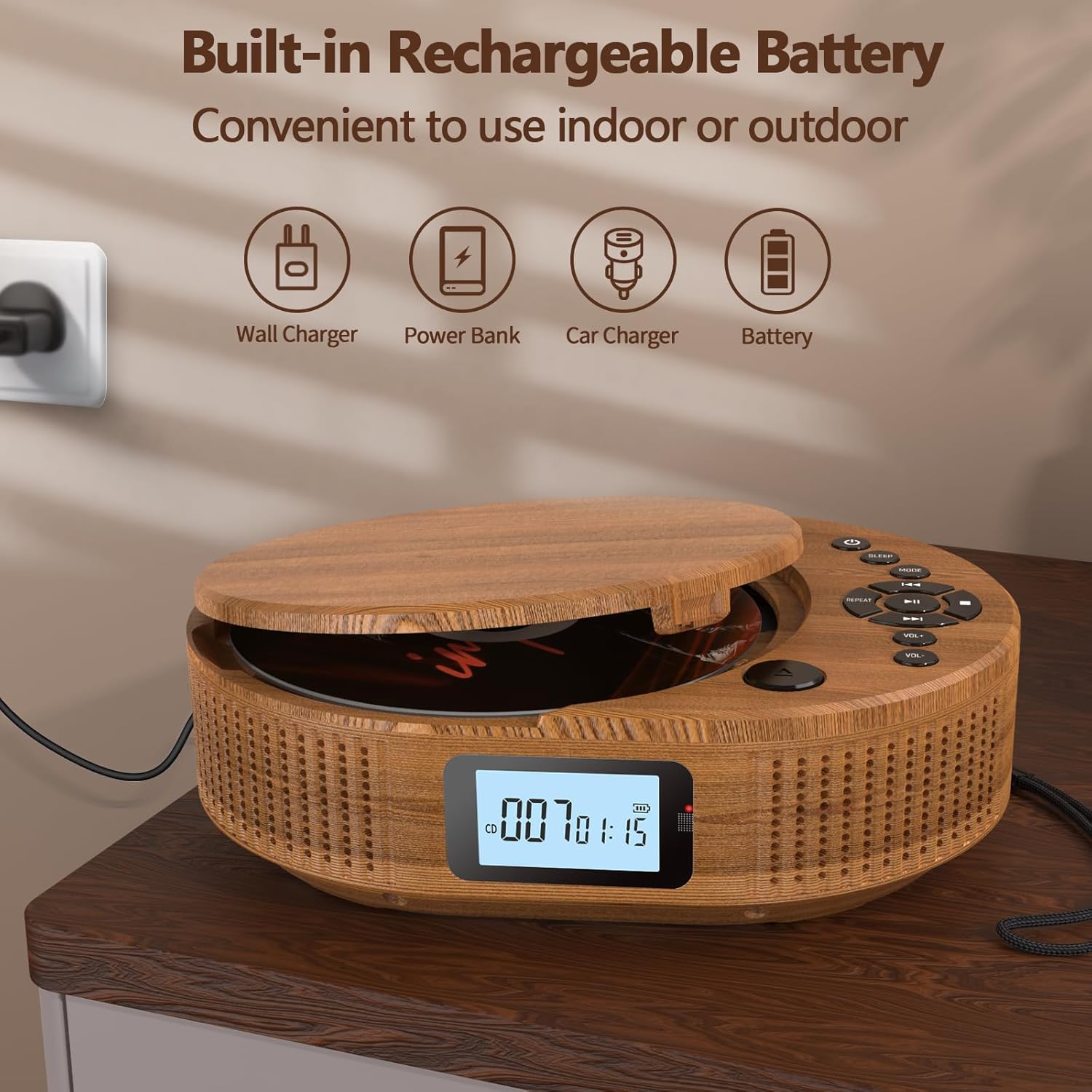

Image: The Arafuna Portable CD Player connected to a power source, illustrating its rechargeable battery feature.

2. Encendre/apagar

To power on the device, slide the main Power On/Off switch (14) to the "ON" position. Press the Standby button (1) to turn the display on. To power off, press the Standby button (1) again or slide the main Power On/Off switch (14) to "OFF" for complete shutdown.

Instruccions de funcionament

1. CD Playback Mode

1. Open the CD cover by gently lifting the CD Cover Open latch (11).
2. Col·loqueu un CD a l'eix amb l'etiqueta cap amunt.
3. Close the CD cover until it clicks securely.
4. Press the MODE button (3) until "CD" mode is displayed.
5. The player will automatically start reading the CD. Press the Play/Pause button (5) to start or pause playback.
6. Use the Previous (4) and Next (7) buttons to skip tracks.
7. Adjust volume with VOL + (8) and VOL - (9).
8. Press the Repeat button (10) to cycle through repeat options (e.g., repeat one, repeat all, random play, A-B repeat).
9. Press the Stop button (6) to stop playback.

Image: The Arafuna Portable CD Player in CD mode, demonstrating its primary function.

2. Mode Bluetooth

1. Press the MODE button (3) until "bt" (Bluetooth) mode is displayed. The device will enter pairing mode, indicated by a flashing Bluetooth icon.
2. Al telèfon intel·ligent, la tauleta o un altre dispositiu Bluetooth, activeu Bluetooth i cerqueu els dispositius disponibles.
3. Select "Arafuna BP2211T" (or similar name) from the list to pair.
4. Once paired, the Bluetooth icon on the player's display will stop flashing. You can now play audio from your connected device.
5. Use the player's controls (Play/Pause, Previous, Next, Volume) or your connected device's controls to manage playback.

Image: The Arafuna Portable CD Player in Bluetooth mode, showing connectivity with a mobile phone.

3. Mode de ràdio FM

1. Press the MODE button (3) until "FM" mode is displayed.
2. To auto-scan and save stations, press and hold the Play/Pause button (5). The player will scan and store available FM stations (76MHz-108MHz).
3. Use the Previous (4) and Next (7) buttons to navigate through saved stations.
4. Adjust volume with VOL + (8) and VOL - (9).

Image: The Arafuna Portable CD Player displaying FM radio frequency and demonstrating the sleep timer function.

4. USB Playback Mode

1. Insert a USB flash drive into the USB Port (17).
2. Press the MODE button (3) until "USB" mode is displayed.
3. The player will automatically detect and start playing compatible audio files (MP3, WAV, AAC, FLAC, SBC).
4. Use the Play/Pause (5), Previous (4), Next (7), and Volume (8, 9) buttons to control playback.

5. AUX-in Mode

1. Connect an external audio device (e.g., smartphone, MP3 player) to the AUX In Port (16) using a 3.5mm audio cable (not included).
2. Press the MODE button (3) until "AUX" mode is displayed.
3. Play audio from your external device. The volume can be controlled both on the external device and the CD player.

6. Temporitzador de son

To set the sleep timer, press the Sleep Timer Setting button (2). Repeatedly press the button to cycle through available timer options (e.g., 15, 30, 60, 90 minutes, OFF). The device will automatically power off after the selected time.

Manteniment

• Neteja: Use a soft, dry cloth to clean the exterior of the player. Do not use abrasive cleaners or solvents.
• Cura de CD: Handle CDs by their edges. Clean CDs with a soft, lint-free cloth, wiping from the center outwards.
• Emmagatzematge: When not in use, store the player in a cool, dry place away from direct sunlight and extreme temperatures.
• Bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu durant períodes prolongats.

Resolució de problemes

Especificacions

Garantia i Suport

Arafuna provides a 100% risk-free purchase. If you encounter any issues with your product, please do not hesitate to contact us. Our customer support team is available to assist you.

For support, please refer to the contact information provided on the product packaging or the official Arafuna weblloc.
