Moimhear Mezzanine Bed (Model LDB00050) Instruction Manual

1. Introducció

Thank you for choosing the Moimhear Mezzanine Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed. Please read these instructions carefully before beginning assembly and retain them for future reference.

Informació important de seguretat:

• Es requereix assemblea d'adults.
• Assegureu-vos que totes les peces estiguin presents i no estiguin danyades abans del muntatge. No utilitzeu el producte si hi falta alguna peça o si està trencada.
• The bed is designed for a mattress size of 90 x 200 cm. It is recommended that the mattress height does not exceed 12 cm to ensure the safety of the guardrails.
• The maximum recommended load capacity for the bed is 150 kg.
• The product is delivered in two packages, which may arrive on different days. Please be patient and ensure both packages are received before starting assembly.

2. Contingut del paquet

Before assembly, verify that all components listed below are present. If any parts are missing or damaged, please contact customer support.

• Metal bed frame components
• Ladder with integrated storage shelves and cabinet
• Iron slatted bed base
• Mesh guardrails
• Ferramenteria de muntatge (cargols, perns, femelles)
• Eines de muntatge (per exemple, clau Allen)

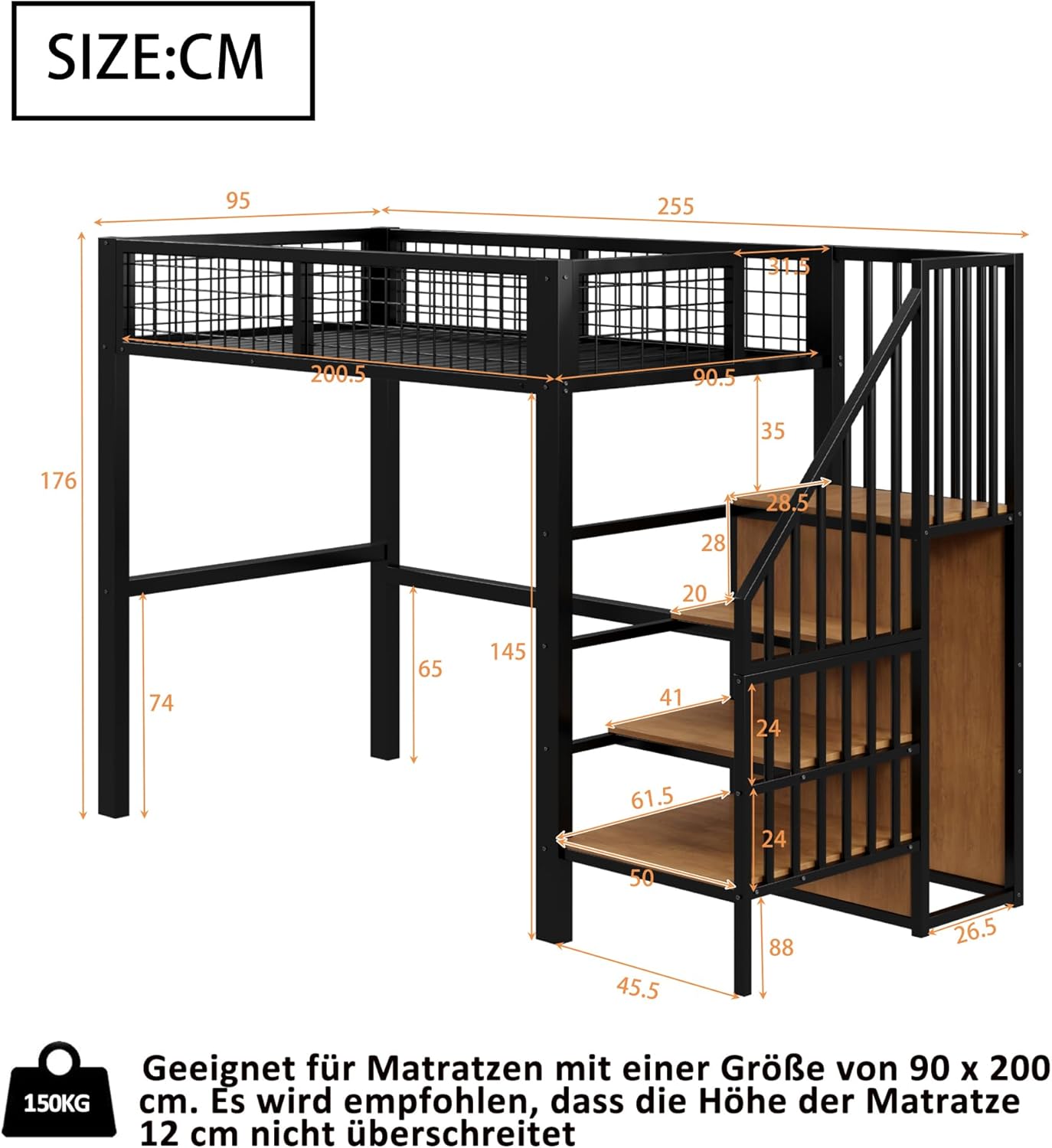

Figure 1: Overall dimensions of the Moimhear Mezzanine Bed, including height, width, and depth, along with specific measurements for the bed platform, ladder steps, and integrated storage.

3. Instruccions de muntatge i instal·lació

Seguiu aquests passos amb cura per a un muntatge correcte. Es recomana que hi hagi dos adults per al muntatge.

1. Prepara la zona: Deixeu una zona espaiosa per al muntatge. Col·loqueu tots els components i els accessoris.
2. Muntar el marc principal del llit: Begin by connecting the main vertical and horizontal metal beams to form the bed's elevated structure. Ensure all connections are secure but do not fully tighten bolts until instructed. The high-quality metal construction ensures excellent stability.
3. Install the Bed Base: Place and secure the fixed iron slatted bed base onto the main frame. This provides the mattress support and contributes to the bed's load capacity.
4. Attach Guardrails: Install the full mesh guardrails around the perimeter of the upper bed platform. These guardrails are designed for safety and reliability.
5. Assemble the Ladder and Storage Unit: Construct the ladder unit, which includes the steps and the integrated cabinet/storage shelves. Attach this unit securely to the main bed frame. The ladder design allows for safe access to the bed and provides convenient storage space.
6. Ajustament final: Once all components are in place and aligned, systematically tighten all bolts and screws using the provided tools. Do not overtighten.
7. Wall Anchoring (Optional but Recommended): For enhanced stability, especially if the bed feels wobbly, it is highly recommended to anchor the bed to a wall. Wall anchoring hardware is not included and must be purchased separately.

Figure 2: The Moimhear Mezzanine Bed in a room setting, illustrating how the space underneath can be utilized for seating or study areas. The integrated ladder and storage are visible on the right.

Figura 3: Un pro lateralfile of the mezzanine bed, providing a clear view of the sturdy metal frame, the ladder structure, and the wooden storage shelves integrated into the ladder design.

Figure 8: The Moimhear Mezzanine Bed positioned in a room, demonstrating its elevated sleeping platform and the open space created underneath for various activities.

4. Instruccions de funcionament

The Moimhear Mezzanine Bed is designed to provide a comfortable sleeping area while maximizing floor space. Its unique design creates an ideal area for studying, working, or relaxing underneath.

Ús del llit:

• Accessing the Bed: Use the integrated ladder to safely climb to and descend from the bed. Always face the ladder when climbing or descending.
• Col·locació del matalàs: Place a 90 x 200 cm mattress on the slatted bed base. Ensure the mattress height does not exceed 12 cm to maintain the effectiveness of the guardrails.
• Ús de l'emmagatzematge: The ladder unit includes shelves and a cabinet for convenient storage of books, clothes, or other personal items.
• Espai sota el llit: The elevated design provides ample space underneath the bed, which can be used for a desk, sofa, or additional storage, making it suitable for children's rooms or guest rooms.

Figura 9: Un primer pla view of the cabinet section integrated into the ladder, offering practical storage space.

5. Manteniment

Regular maintenance will help prolong the life and ensure the safety of your Moimhear Mezzanine Bed.

• Neteja: Wipe the metal frame and wooden surfaces with a damp drap. Eviteu utilitzar productes químics agressius o netejadors abrasius que puguin danyar l'acabat.
• Comprovació de maquinari: Periodically check all bolts, screws, and connections to ensure they are tight and secure. Retighten if necessary.
• Integritat estructural: Inspect the bed frame, ladder, and guardrails for any signs of wear, damage, or bending. Address any issues promptly to maintain safety.

Figure 10: A detailed image showing the robust iron frame construction and one of the integrated storage shelves, highlighting the material quality.

6. Solució De Problemes

If you encounter any issues with your mezzanine bed, refer to the following common problems and solutions:

• El llit sembla inestable:
  • Assegureu-vos que tots els cargols i cargols de muntatge estiguin completament apretats.
  • Consider anchoring the bed to a wall for added stability (wall anchoring hardware not included).
• Sorolls de grinyols:
  • Check and retighten all connections.
  • Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if necessary.
• Ladder steps bend slightly under heavy load:
  • The ladder steps are designed to support the weight of a person accessing the bed. Avoid placing excessively heavy items on the steps or using them as a standing platform for multiple individuals simultaneously. The maximum recommended load for the bed structure is 150 kg.
• Peces que falten o danyades:
  • Do not proceed with assembly. Contact customer support immediately for replacement parts.

7. Especificacions

Detailed specifications for the Moimhear Mezzanine Bed (Model LDB00050):

Figure 11: An overall view of the 90 x 200 cm mezzanine bed, emphasizing its iron frame and the functional ladder design.

8. Informació de la garantia

Moimhear products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact Moimhear customer support. Keep your proof of purchase for any warranty claims.

9. Atenció al client

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Moimhear customer support through the retailer where you purchased the product. Please have your model number (LDB00050) and purchase details ready.
