Introducció
This instruction manual provides essential information for the proper installation, operation, and maintenance of your new FURITEK Complete PRE-Build Front AXLE Set with SERVO. This product is specifically designed for the FURITEK FX118 remote control vehicle, offering enhanced performance and supporting 4-wheel steering (4WS) capabilities. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product.
Característiques principals:
- Full complete pre-built front axle with integrated servo.
- Designed for direct compatibility with the Furitek FX118.
- Supports 4-wheel steering (4WS) configurations for the FX118.
Producte acabatview

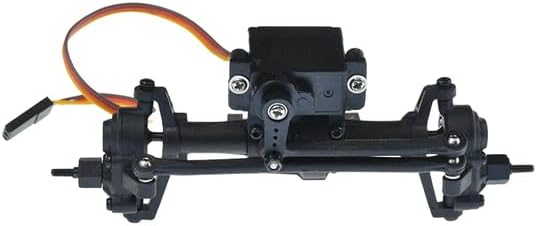

Figura 1: Angle view of the complete Furitek pre-built front axle set, including the integrated servo and wiring.
Figura 2: Frontal view of the Furitek pre-built front axle set, showing the steering links and servo horn.
Guia d'instal·lació
This pre-built front axle set is designed for direct replacement on the Furitek FX118. Ensure your vehicle is powered off and the battery is disconnected before beginning installation.
Instal·lació pas a pas:
- Preparar el vehicle: Carefully remove the body of your Furitek FX118 to access the chassis.
- Remove Existing Front Axle: Disconnect the steering servo wire from the receiver/ESC. Unbolt and remove the existing front axle assembly from the chassis. Keep all screws and small parts organized.
- Install New Front Axle: Position the new FURITEK PRE-Build Front AXLE Set onto the chassis. Align the mounting points and secure it using the appropriate screws. Ensure all links and suspension components are correctly attached.
- Connect Servo: Connect the integrated servo's wire from the new axle to the designated steering channel on your FX118's receiver/ESC. Refer to your FX118's manual for specific port locations if needed.
- Verifica les connexions: Double-check all screw connections for tightness and ensure the servo wire is not pinched or obstructing any moving parts.
- Prova inicial: Reconnect the battery and power on your FX118. Test the steering function to ensure the servo responds correctly and the wheels turn smoothly from left to right. Adjust trim settings on your transmitter if necessary for straight tracking.
- Reattach Body: Once satisfied with the installation and function, carefully reattach the vehicle body.

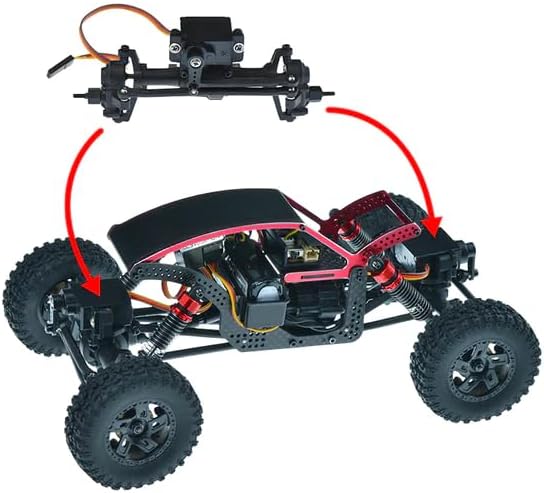

Figure 3: Illustration of the front axle being mounted onto an RC vehicle chassis.
Funcionament
After successful installation, the FURITEK PRE-Build Front AXLE Set with SERVO will provide precise steering control for your FX118. If your FX118 is configured for 4-wheel steering, this front axle will work in conjunction with a rear steering system (sold separately) to enable advanced maneuverability. Always operate your RC vehicle in a safe environment, away from people, pets, and obstacles.
- Control de direcció: Use your transmitter's steering wheel or stick to control the direction of the front wheels.
- 4WS Operation (if applicable): If you have a 4WS setup, familiarize yourself with your transmitter's controls for independent or synchronized front and rear steering.
- Operació suau: Avoid sudden, harsh steering inputs at high speeds to prevent damage to the servo and axle components.
Manteniment
Regular maintenance will extend the lifespan and performance of your axle set.
- Neteja: After each use, especially in dirty or wet conditions, clean the axle assembly to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using harsh chemicals.
- Inspecció: Periodically inspect all screws, nuts, and bolts for tightness. Check for any signs of wear or damage on the gears, bearings, and steering links.
- Lubricació: Lightly lubricate moving metal parts, such as universal joints and gear teeth, with appropriate RC-grade grease or oil. Avoid over-lubrication, which can attract dirt.
- Comprovació del servo: Ensure the servo operates smoothly and without binding. If the servo exhibits erratic behavior or loss of power, inspect its connections and consider replacement if necessary.
Resolució de problemes
Si teniu problemes, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense resposta de la direcció | Loose servo connection, damaged servo, transmitter/receiver issue | Check servo wire connection. Test servo with another channel or replace if faulty. Verify transmitter/receiver functionality. |
| Steering is weak or slow | Low battery, binding in steering linkage, damaged servo | Charge or replace battery. Inspect steering links for obstructions or damage. Replace servo if necessary. |
| Grinding noise from axle | Debris in gears, worn gears, loose components | Clean gears thoroughly. Inspect gears for wear and replace if damaged. Tighten all screws. |
| El vehicle tira cap a un costat | Steering trim off, bent steering link, uneven suspension | Adjust steering trim on transmitter. Inspect and replace bent steering links. Check suspension for proper setup. |
Especificacions del producte
| Especificació | Detall |
|---|---|
| Nom de marca | Furitek |
| Nom del model | FRONT AXLE SET |
| Número de peça del fabricant | FUR-2429 |
| Compatibilitat | Furitek FX118 |
| Components inclosos | Complete Pre-Built Front Axle Set with Servo |
| Muntatge obligatori | No (Pre-built) |
| Pes de l'article | 0.13 lliures |
| Dimensions de l'article | 5 x 5 x 5 polzades |
Informació de garantia i suport
For specific warranty details, please refer to the documentation included with your purchase or contact Furitek directly through their official website. If you purchased this product from Amazon, a 30-day return policy may apply. For technical support or assistance with your product, please reach out to the manufacturer, Furitek, or the seller, HeliDirect, for guidance.
