1. Producte acabatview

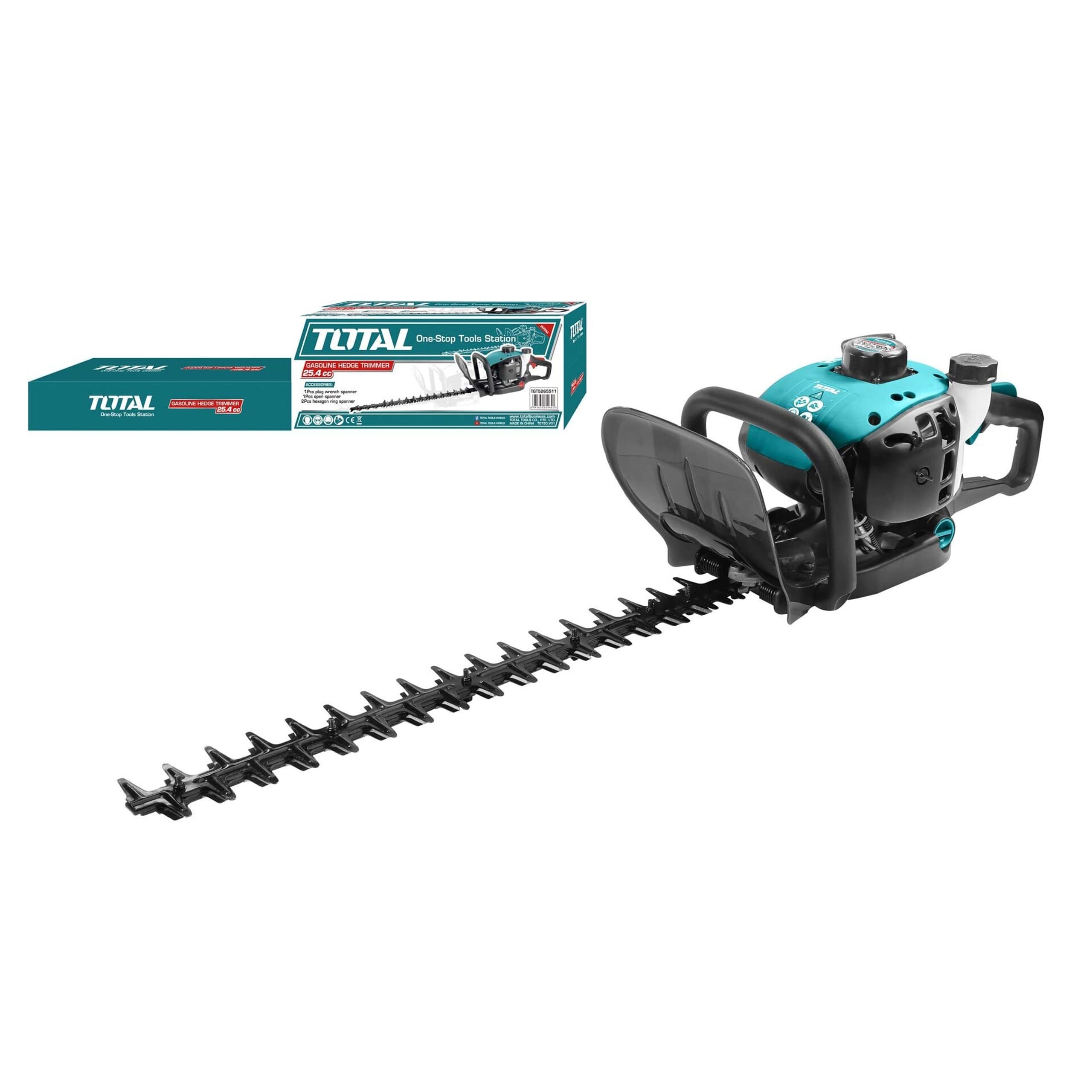

The TOTAL TGT5265511 1HP Gasoline Hedge Trimmer is a powerful and efficient tool designed to make your hedge trimming tasks effortless. This trimmer features a 25.4cc two-stroke engine, delivering 1 horsepower at an impressive 10,000 RPM. The blade length is 55 cm, capable of cutting branches up to 26-28 mm thick. The quick-start system ensures easy and hassle-free starting, while the ergonomic design includes a rotating handle and hand guard for added comfort and safety. Additionally, it comes with a 550ml fuel tank for extended operation without frequent refueling.
- Designed for effortless hedge trimming tasks.
- 25.4cc two-stroke engine.
- Delivers 1 horsepower at an impressive 10,000 RPM.
2. Informació de seguretat
Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before using the hedge trimmer.
2.1 Normes generals de seguretat
- Utilitzeu equips de protecció individual (EPI) adequats, incloent-hi protecció ocular, protecció auditiva, guants i calçat resistent.
- Manteniu els nens i els vianants a una distància segura (almenys 15 metres/50 peus) de la zona d'operació.
- Do not operate the hedge trimmer in wet conditions or in the presence of flammable liquids or gases.
- Inspect the trimmer for damage before each use. Do not use if any parts are damaged.
- Assegureu-vos que totes les proteccions i dispositius de seguretat estiguin al seu lloc i funcionin correctament.
- Never modify the hedge trimmer or use it for purposes other than its intended use.
2.2 Specific Safety Rules for Hedge Trimmers
- Hold the hedge trimmer firmly with both hands during operation.
- Mantingueu les mans i els peus allunyats de les fulles de tall.
- Never attempt to clear jammed material while the engine is running.
- Turn off the engine and disconnect the spark plug wire before performing any maintenance, cleaning, or when transporting the trimmer.
- Be aware of the blade's movement and potential kickback.
- No sobrepasseu. Mantenir un bon peu i un equilibri en tot moment.
3. Components
Familiarize yourself with the main components of your hedge trimmer:
- Carcassa del motor
- Dipòsit de combustible
- Mànec d'arrencada
- Front Handle (with hand guard)
- Rear Handle (rotating)
- Disparador d’accelerador
- Interruptor de parada
- Fulles de tall
- Guàrdia de la fulla
4. Configuració
4.1 Barreja de combustible
This hedge trimmer uses a two-stroke engine and requires a specific gasoline-to-oil mixture. Refer to the engine manufacturer's recommendations for the correct mixing ratio, typically found on the fuel cap or in a separate engine manual. Use fresh, unleaded gasoline and high-quality two-stroke engine oil.
- Obtain a clean, approved fuel container.
- Pour half of the required gasoline into the container.
- Add the entire amount of two-stroke oil according to the recommended ratio.
- Shake the container thoroughly to mix the fuel and oil.
- Afegiu la gasolina restant i torneu a agitar.
- Carefully pour the mixed fuel into the hedge trimmer's fuel tank, avoiding spills.
WARNING: Never use straight gasoline or automotive oil in a two-stroke engine. This will cause severe engine damage.
4.2 Inspecció inicial
- Check that all nuts, bolts, and screws are securely tightened.
- Ensure the blade guard is properly installed.
- Verify that the cutting blades are clean and free from debris.
5. Instruccions de funcionament
5.1 Arrencada del motor
- Col·loqueu el tallabarres sobre una superfície plana i estable.
- Assegureu-vos que l'interruptor d'aturada estigui a la posició 'ON'.
- Push the primer bulb several times until fuel is visible in the return line.
- Engage the choke (if applicable, refer to engine specific instructions).
- Pull the starter handle firmly and steadily until the engine attempts to start or starts briefly.
- Desenganxa l'asfixia.
- Pull the starter handle again until the engine starts and runs smoothly.
- Deixeu que el motor s'escalfi uns instants abans de començar a funcionar.
5.2 Tècniques de retall
- Hold the trimmer with both hands, maintaining a firm grip.
- Keep the blades parallel to the hedge for an even cut.
- Use a sweeping motion, moving the trimmer along the hedge.
- For vertical trimming, start at the bottom and work your way up.
- Avoid cutting branches thicker than the recommended maximum (26-28 mm).
5.3 Parar el motor
To stop the engine, simply move the stop switch to the 'OFF' position.
6. Manteniment
Regular maintenance ensures optimal performance and extends the life of your hedge trimmer. Always turn off the engine and disconnect the spark plug wire before performing any maintenance.
6.1 Manteniment de les fulles
- Neteja: After each use, clean the blades of sap and debris using a stiff brush and a suitable cleaning solution.
- Lubricació: Apply a light machine oil or blade lubricant to the blades before and after each use to prevent rust and ensure smooth operation.
- Afilat: Dull blades can tear foliage and strain the engine. Sharpen the blades regularly or have them professionally sharpened.
6.2 Manteniment del motor
- Filtre d'aire: Clean the air filter regularly (more often in dusty conditions). Replace if damaged.
- Bujía: Inspeccioneu la bugia periòdicament. Netegeu-la o substituïu-la si està bruta o desgastada.
- Filtre de combustible: Check and replace the fuel filter as needed to prevent fuel system blockages.
6.3 Emmagatzematge
- Buideu completament el dipòsit de combustible o utilitzeu un estabilitzador de combustible si el guardeu durant més de 30 dies.
- Netegeu a fons tota la retalladora.
- Guardeu el tallabarders en un lloc sec i ben ventilat, fora de l'abast dels nens.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | Sense combustible, posició incorrecta de l'estrangulador, bugia bruta, filtre de combustible obstruït | Check fuel level and mixture, adjust choke, clean/replace spark plug, clean/replace fuel filter |
| El motor funciona malament | Incorrect fuel mixture, dirty air filter, worn spark plug | Verify fuel mixture, clean air filter, replace spark plug |
| Les fulles no tallen eficaçment | Dull blades, blades jammed with debris | Sharpen blades, clean blades thoroughly (with engine off) |
| Vibració excessiva | Loose components, damaged blade | Check all fasteners, inspect blade for damage and replace if necessary |
8. Especificacions
| Especificació | Valor |
|---|---|
| Product Type Name | Cortadora Hedge |
| Número de model de l'article | TGT5265511 |
| Nom de marca | TOTAL |
| Font d'alimentació | Gasolina |
| Desplaçament del motor | 25.4 cc |
| Tipus de motor | Dos temps |
| Potència de sortida | 1 CV |
| Velocitat màxima del motor | 10,000 RPM |
| Longitud de la fulla | 55 cm |
| Diàmetre màxim de tall | 26-28 mm |
| Capacitat del dipòsit de combustible | 550 ml |
| Pes de l'article | 6.3 quilos |
| Dimensions del producte | 70 x 20 x 28 cm |
| Materials | Acer d'aliatge, plàstic |
| Material de la fulla | Acer d'aliatge |
| Components inclosos | 1 x TOTAL TGT5265511 1HP Gasoline Hedge Trimmer |
| Primera data disponible | 7 de novembre de 2023 |
9. Garantia i Suport
This TOTAL TGT5265511 1HP Gasoline Hedge Trimmer comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
For technical support, spare parts, or warranty service, please contact your authorized TOTAL dealer or visit the official TOTAL website for contact information in your region. Do not attempt to repair the product yourself, as this may void the warranty and pose safety risks.
