Micsig VTO Series VTO 2004 Oscilloscope User Manual

1. Introducció

The Micsig VTO Series VTO 2004 is a high-performance oscilloscope designed for precise signal test and measurement. This device offers a 200MHz bandwidth, 1GSa/s sampling rate, and 50Mpts memory depth, making it suitable for a wide range of applications. Its compact design and versatile connectivity options provide a new experience in portable measurement.

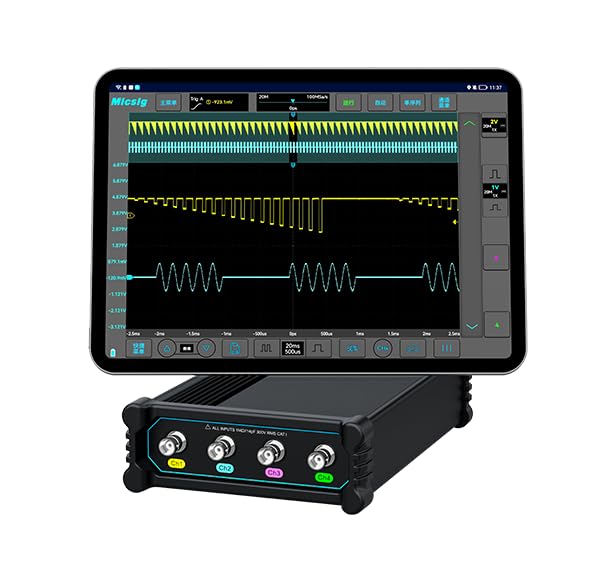

Figure 1.1: Micsig VTO 2004 Oscilloscope connected to a tablet.

2. Precaucions de seguretat

To ensure safe operation and prevent damage to the product or other equipment, please read and follow all safety instructions carefully. Observe all warnings and cautions marked on the product and in this manual.

• Do not perform floating measurements.
• Do not attempt to repair or modify the product by yourself.
• To avoid fire and overcurrent shock, please review all ratings prior to connecting the product.
• Assegureu-vos que la ventilació sigui adequada; no obstruïu les obertures de ventilació.
• Use only the original battery (if applicable) and power adapter provided.
• Always switch the power lock to "OFF" after oscilloscope shut down to prevent accidental turn-on.

Figure 2.1: Excerpt from the safety precautions section of the manual.

3. Contingut del paquet

Verify that all items listed below are included in your product package. If any items are missing or damaged, please contact Micsig customer support.

• Micsig VTO 2004 Oscilloscope Unit
• Adaptador d'alimentació
• Cable USB-C
• Test Leads (various types, e.g., BNC to alligator clips, test probes)
• User Manual / Calibration Certificate

Figure 3.1: Micsig VTO 2004 Oscilloscope and included accessories.

4. Producte acabatview i interfícies

The Micsig VTO 2004 features a robust design with clearly labeled interfaces for ease of use.

Figure 4.1: Front and Rear Panel Interfaces.

Panell frontal:

• CH1, CH2, CH3, CH4: BNC input channels for connecting probes.

Panell posterior:

• POWER LOCK: Slide switch to enable/disable power.
• Botó d'encesa: Premeu per encendre/apagar la unitat.
• DC 12V-24V: DC power input for the adapter.
• Reixeta de filferro: Per a la gestió de cables.
• Port de càrrega: Per carregar la bateria interna.
• USB-C: For data transfer and connection to Android devices.
• Probe Calibration Output: For calibrating oscilloscope probes.

5. Configuració

1. Carregueu la bateria: Connect the provided power adapter to the DC input port and a power outlet. The internal 7500mAh Lithium-ion battery will begin charging.
2. Connexió a un dispositiu: Use the USB-C cable to connect the oscilloscope unit to a compatible Android tablet or device.
3. Instal·lar programari: Download and install the Micsig oscilloscope application on your Android device. Refer to the quick start guide for QR codes or links.
4. Encès: Slide the POWER LOCK switch to the left (unlocked position), then press the Power Button to turn on the oscilloscope unit.
5. Connectar sondes: Attach the desired test probes or leads to the BNC input channels (CH1-CH4) on the front panel.

Figure 5.1: Typical setup with the oscilloscope unit and a connected tablet.

6. Instruccions de funcionament

The Micsig VTO 2004 is operated primarily through the dedicated Android application on your connected device. This section provides general guidance.

6.1 Mesura bàsica

1. Ensure the oscilloscope unit is powered on and connected to your Android device.
2. Launch the Micsig oscilloscope application.
3. Connect the probes to the circuit or signal you wish to measure.
4. Adjust the vertical scale (Volts/Div) and horizontal scale (Time/Div) within the application to properly display the waveform.
5. Use the trigger settings to stabilize the waveform for clear observation.

Figure 6.1: Waveform display on the Micsig oscilloscope application.

6.2 Funcions avançades

• Serial Bus Decode: The VTO 2004 supports CAN and LIN serial bus decoding. Access this feature through the application's analysis menu.
• Auto Measurements: Perform up to 31 types of automated measurements (e.g., Vpp, Vmax, Frequency, Period) with a single tap.
• Profunditat de memòria: Utilize the 50Mpts memory depth for capturing long signal sequences or detailed transient events.

Figure 6.2: Oscilloscope in an automotive diagnostic application.

7. Manteniment

Proper maintenance ensures the longevity and accuracy of your Micsig VTO 2004 Oscilloscope.

• Neteja: Utilitzeu un suau, damp drap per netejar l'exterior de la unitat. No utilitzeu productes de neteja abrasius ni dissolvents.
• Emmagatzematge: Store the device in a cool, dry environment away from direct sunlight and extreme temperatures.
• Cura de la bateria: Si l'emmagatzemeu durant períodes prolongats, assegureu-vos que la bateria estigui parcialment carregada (al voltant del 50%) per allargar-ne la vida útil.
• Actualitzacions de programari: Regularly check for and install software updates for the Android application to ensure optimal performance and access to new features.

8. Solució De Problemes

This section addresses common issues you might encounter with your Micsig VTO 2004 Oscilloscope.

8.1 Sense poder

• Ensure the POWER LOCK switch is in the unlocked position.
• Verify the power adapter is securely connected to both the unit and a working power outlet.
• Comproveu si la bateria està carregada.

8.2 No Waveform Display

• Confirm the USB-C connection between the oscilloscope unit and the Android device is secure.
• Ensure the Micsig application is running and properly connected to the unit.
• Check probe connections to the BNC input channels and the circuit under test.
• Adjust the vertical (Volts/Div) and horizontal (Time/Div) scales in the application.
• Verify trigger settings are appropriate for the signal being measured.

8.3 Mesures inexactes

• Perform probe calibration using the dedicated output on the rear panel.
• Ensure probes are correctly compensated for the input impedance.
• Check for proper grounding of the oscilloscope and the circuit under test.

9. Especificacions

Key technical specifications for the Micsig VTO 2004 Oscilloscope.

Figure 9.1: Product Specifications Table.

10. Garantia i Suport

Micsig Technology Co., Ltd. provides warranty and technical support for its products. For detailed warranty information, please refer to the warranty card included in your package or visit the official Micsig website. For technical assistance, troubleshooting, or service inquiries, please contact Micsig customer support directly.

Manufacturer: Micsig Technology Co., Ltd

Data de primera disponibilitat: 10 de novembre de 2023
